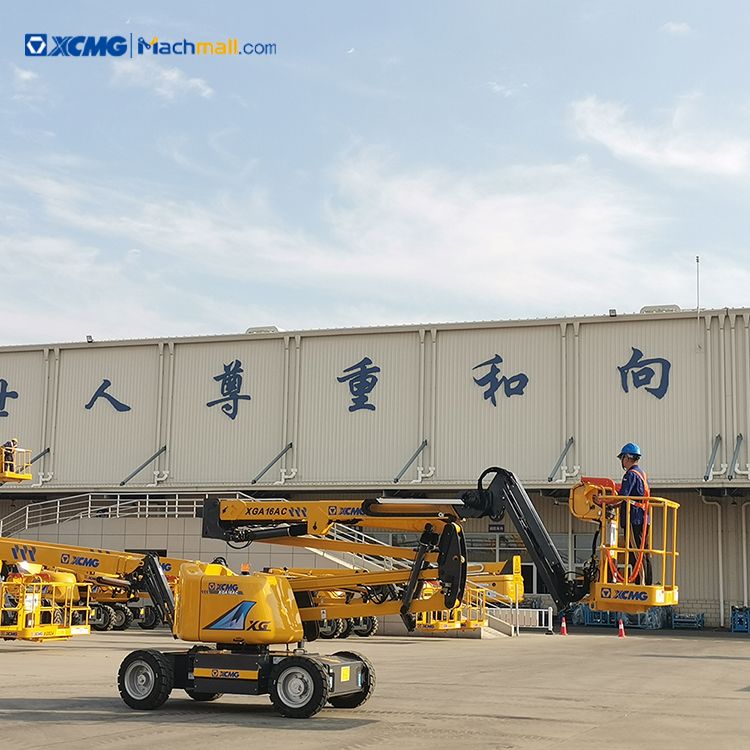

XCMG official boom lift XGA16 small articulated boom lift for sale
Summary
- Weight:6900kg
- Overall Dimension:6.69*2.26*2.13m
- Table Size:1.83*0.76m
- Max Lifting Height:16.05m
- Rated Loading Capacity:230kg
- Power:38KW
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Articulated Lift
- Model Number:XGA16
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:6900.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

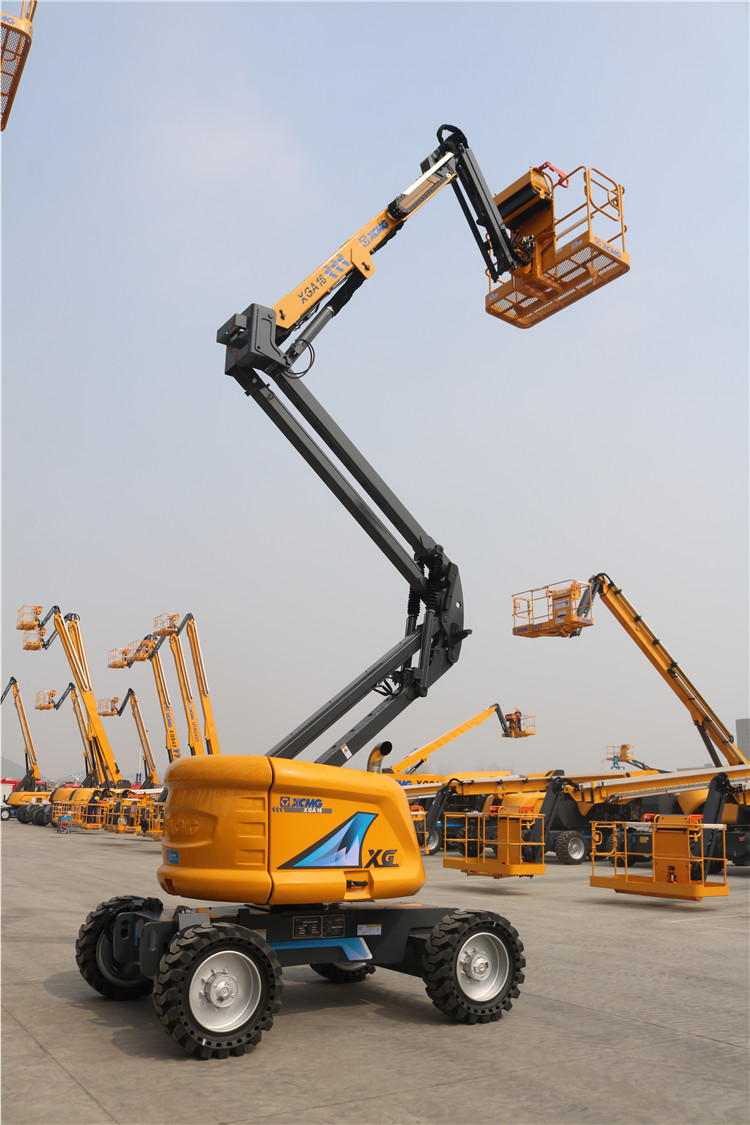

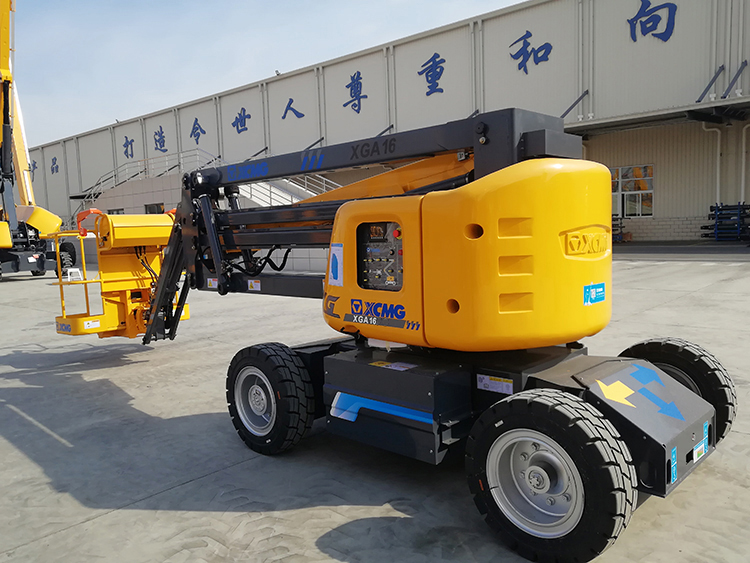

XCMG official boom lift XGA16 small articulated boom lift.
XGA16 16m articulated mobile small boom lift aiming to
satisfy customers’ requirements. Intelligent and perfect control system
features the humanized layout, the maintenance-free design and easy use and
maintenance, providing the multiple options and comprehensive safety.
Advantages and highlights:
1.Σ-shaped boom, compact and flexible, able to ascend and
descend vertically or extend horizontally to cross obstacles;
2.Compact and narrow turntable eliminates tail swing and
improves operation efficiency;
3.Work platform is enabling to extend out, enlarging the
work space, together with the foldable fence making the transportation easier;
4.Full - range work; direct and friendly control panel
easy to control;
5.Platform overloading warning, emergent lowering, safety
speed limit, flexible start/stop technologies.
|
Item |
XGA16 |
|
Parameters of traveling state |
|
|
Overall dimensions (L × W × H) |
6.69×2.26×2.13 m |
|
Working platform overall dimensions |
1.83×0.76×1.15 m |
|
Max. speed |
6.12 km/h |
|
Max. gradeability |
≥30%(2WD) ≥45%(4WD) |
|
Min. external turning radius |
≤4.5m |
|
Ground clearance/m (center) |
0.41 m |
|
Wheelbase |
2.1 m |
|
Total mass |
6900 kg |
|
Main Operation Performance Parameters |
|
|
Rated working height |
16.05m |
|
Max. platform height |
14.05m |
|
Max. working range |
8.22m |
|
Max. net spanning height |
7.14 m |
|
Scope of platform swing |
160° |
|
Slewing radius of turntable |
1.145 m |
|
Max. Load capacity |
230 kg |
|
Max. Tail swing |
0 m |
|
Control system |
12V DC proportional control |
|
Working speed |
|
|
Platform lifting/lowering speed |
0.1~0.3m/ s |
|
Slewing speed |
0.5~1r/min |
|
Engine Parameters |
|
|
Engine manufacturer |
British Perkins
/ Germany Deutz |
|
Engine model |
Perkins 404D-22/ Deutz D2011 L03i |
|
Engine rated power |
38KW/3000rpm,
36.3KW/2800rpm |
