XCMG official 16m self-propelled hydraulic scissor lift XG1612HD aerial work platform equipment price for sale
Summary
- Weight:3350kg
- Overall Dimension:2840*1270*2600mm
- Table Size:2640*1120mm
- Max Lifting Height:16m
- Min Lifting Height:1.478m
- Rated Loading Capacity:230Kg
- Power:4.5kw
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Scissor Lift
- Model Number:XG1612HD
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO
Specifications
- Weight:3350.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

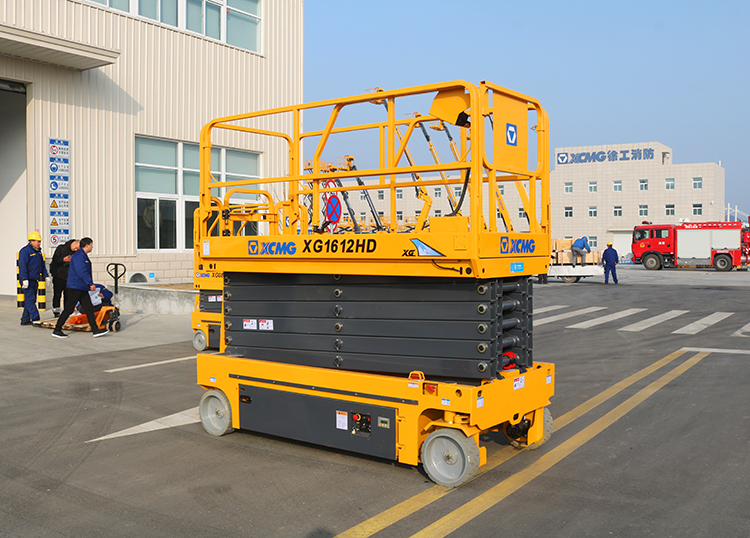

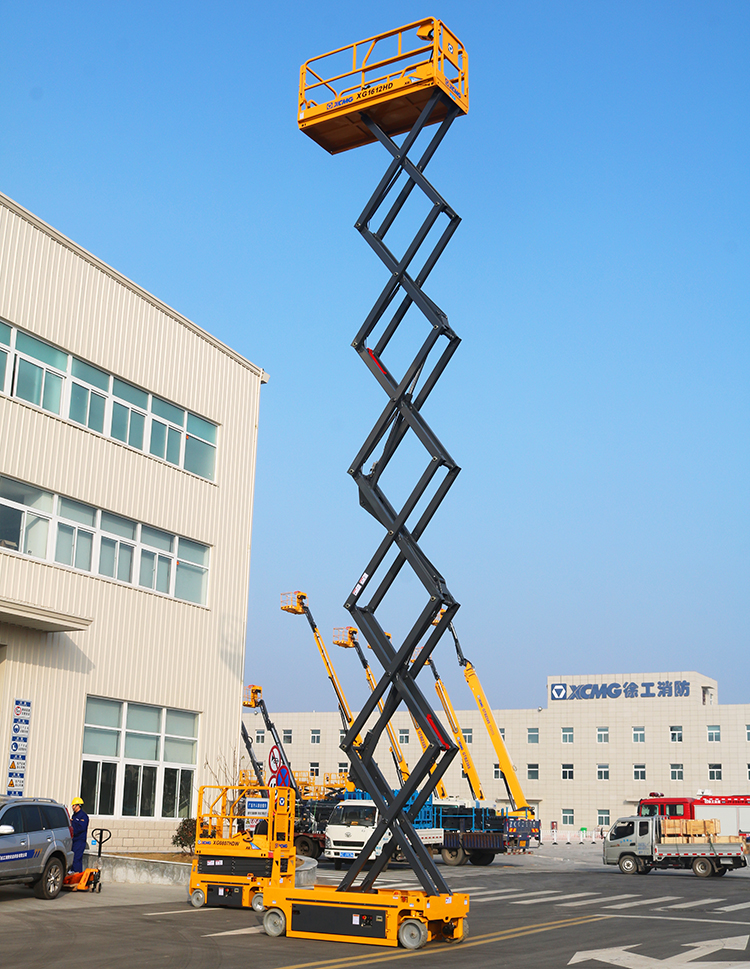

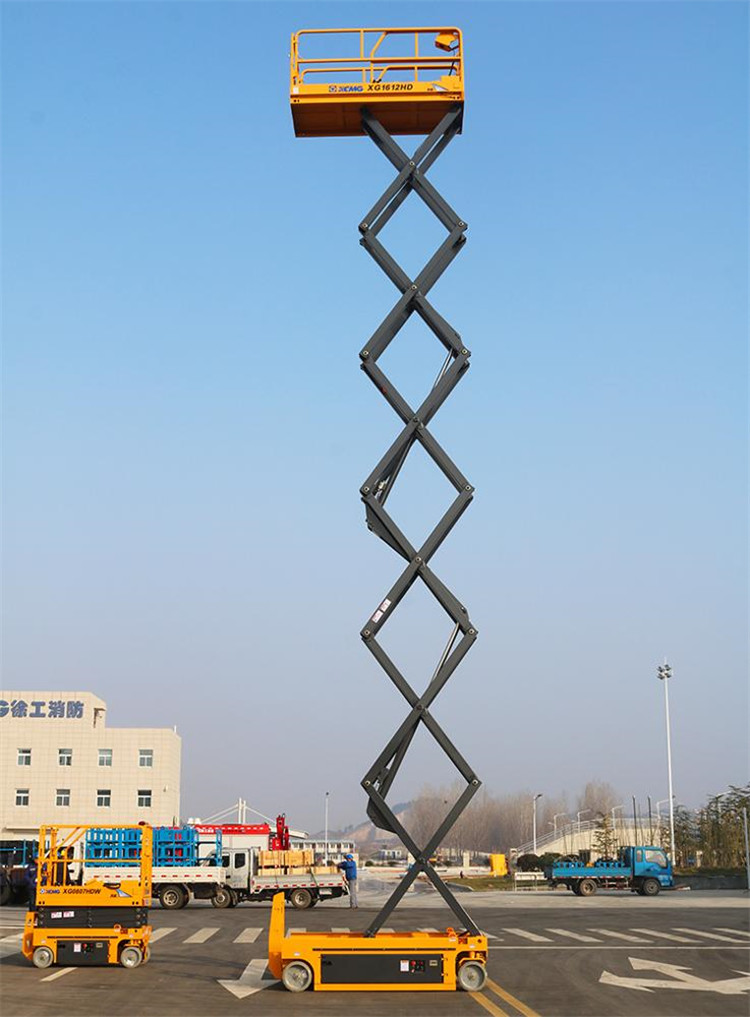

16m self-propelled hydraulic scissor lift aerial work
platform equipment XG1612HD.
New aerial work platform developed by XCMG has the work
height at 15.7m, the vehicle width at 1.27m, the rated load at 230kg, max.
gradeability at 25%. This vehicle features compact structure, advanced
performance, completed safety devices, specially suitable for construction. In
addition. It is free of any pollution, with steady lifting / lowering, easy
control and maintenance. Therefore, this kind of platforms are widely applied
to warehouses, factories, airports, and train stations.
Advantages and features:
* Effective and energy-saving electric-drive system features zero emission and
low noise, together with the traceless tires, enabling this machine easily to
work in enclosed environments such as office building, hospitals and schools
and minimizing the effect on environment.
* Active protective mechanism such as pothole protective
mechanism and the self-developed safety control system feature the humanized
design and the rich options, meeting the customer needing for safety,
reliability and intelligence.
* Narrow- structure design enables the complete vehicle
to easily pass through a single gateway; foldable fence could make the
transportation easier
* "Zero Turning Radius "is unique and enable
machine to corner in narrow room.
* Max. payload at 230kg, leading the industry. Maximum
traveling speed 3.2km/h and 25% gradeability make the driving easier.
|
Item |
Unit |
Parameter |
|
Dimension of machine Length (without ladder) |
mm |
2840 (2630) |
|
Dimension of machine Width |
mm |
1270 |
|
Dimension of machine Height (platform folded) |
mm |
2600 (2060) |
|
Wheelbase |
mm |
2240 |
|
Wheel track |
mm |
1123 |
|
Min ground clearance (Pit protector
ascending/descending) |
mm |
100/20 |
|
Dimension of working platform Length |
mm |
2640 |
|
Dimension of working platform Width |
mm |
1120 |
|
Dimension of working platform Height |
mm |
1263 |
|
Dimension of working platform Extension length
of the auxiliary platform |
mm |
900 |
|
Centroid position of machine Horizontal
distance to front shaft |
mm |
1127 |
|
Centroid position of machine Height of
centroid |
mm |
720 |
|
Total mass of machine |
kg |
3350 |
|
Max. height of platform |
m |
13.7 |
|
Min. height of platform |
m |
1.478 |
|
Max working height |
m |
15.7 |
|
Min turning radius (inner wheel/outer wheel) |
m |
0/2.65 |
|
Rated load |
kg |
230 |
|
Payload of extended platform |
kg |
115 |
|
Lifting time |
s |
65-82 |
|
Lowering time |
s |
61-80 |
|
Drive speed(lowered) |
km/h |
3.2 |
|
Drive speed(elevated) |
km/h |
0.8 |
|
Max. gradeability |
% |
25 |
|
Tilt warning angle (side/forward and backward) |
° |
1.5/3 |
|
Lifting / traveling motor Model |
- |
- |
|
Lifting / traveling motor Rated power |
kW |
4.5 |
|
Lifting / traveling motor Manufacturer |
- |
- |
|
Battery Model |
- |
T1275/6-EV-100 |
|
Battery Voltage |
v |
24 |
|
Battery Capacity |
Ah |
300 |
|
Battery Manufacturer |
- |
Trojan/ Leoch |
|
Tire models |
- |
Traceless and solid /381×127 |
