XCMG Brand XG1612DC China 16m Lifting High Aerial Work Platform Electric Hydraulic Scissor Lift
Summary
- Weight:3350kg
- Overall Dimension:2840*1250*2600mm
- Table Size:2640*1120*1263mm
- Max Lifting Height:15.7m
- Lift Drive / Actuation:Electric
- Lift Mechanism:Scissor Lift
- Model Number:XG1612DC
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:3350.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

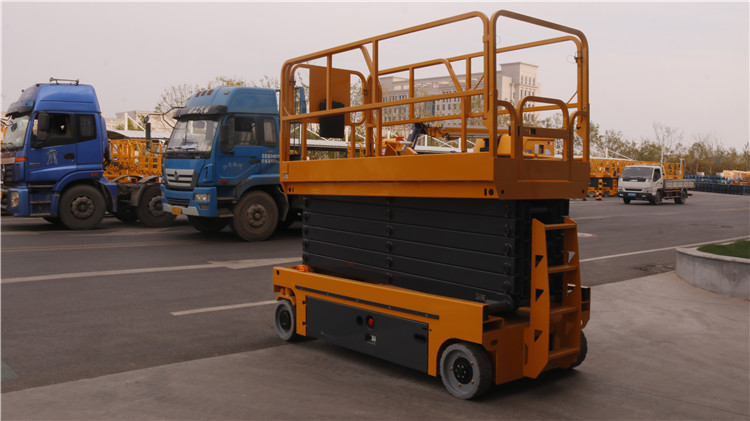

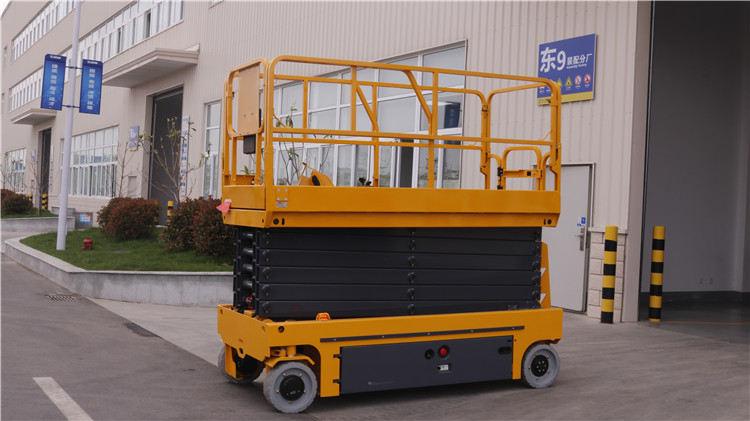

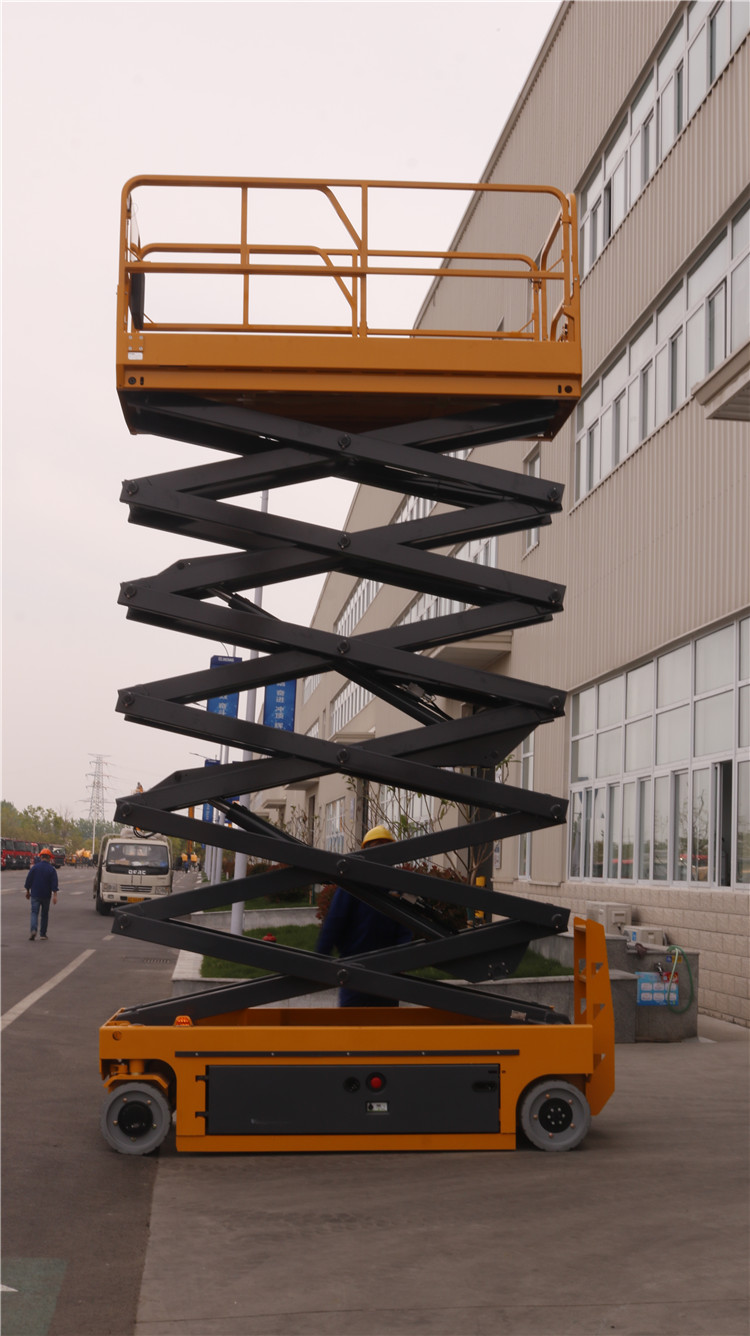

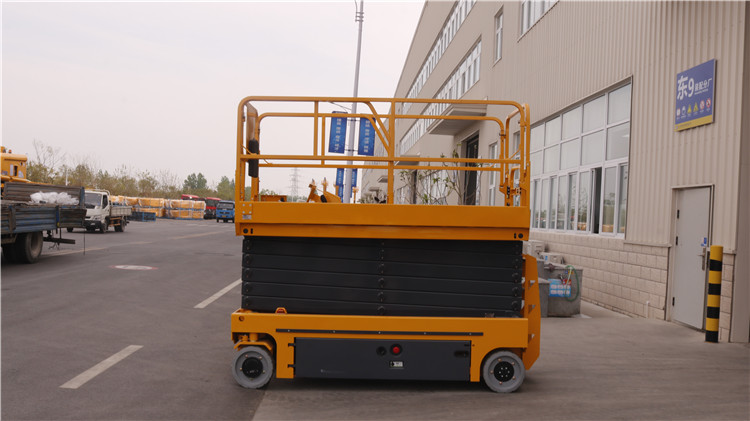

XCMG Brand XG1612DC China 16m Lifting High Aerial Work Platform Electric Hydraulic Scissor Lift.
New electric scissor lift table developed by XCMG has the work height at 15.7m, the vehicle width at 1.25m, the rated load at 230kg, max. gradeability at 25%. This vehicle features compact structure, advanced performance, completed safety devices, specially suitable for construction.
In addition. It is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, this kind of platforms are widely applied to warehouses, factories, airports, and train stations.
Advantages and features：
1.Effective and energy-saving electric-drive system features zero emission and low noise.
2.Active protective mechanism such as pothole protective mechanism and the self-developed safety control system meeting the customer needing for safety, reliability and intelligence.
3.Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier. “Zero Turning Radius ”is unique and enable machine to corner in narrow room.
4.Maximum payload at 230kg, leading the industry. Maximum traveling speed 4.5 km/h and 25% gradeability make the driving easier.
Item | Unit | XG1612DC |
Dimensions (LxWxH) | mm | 2840x1250x2600 |
Wheel base | mm | 2240 |
Wheel track | mm | 1123 |
Min. Ground clearance (pit protector lifting / decline) | mm | 100/20 |
Platform dimensions(LxWxH) | mm | 2640x1120x1263 |
Platform dimensions Platform extension length | mm | 900 |
Vehicle center of mass position Horizonal distance from front axis | mm | 1127 |
Vehicle center of mass position Height of center of mass | mm | 720 |
Total weight | kg | 3350 |
Max. Platform height | m | 13.7 |
Min. Platform height | m | 1.478 |
Max. Working height | m | 15.7 |
Min. Turning radius (inner wheel / outer wheel) | m | 0/2.65 |
Platform rated load | kg | 230 |
Extension platform rated load | kg | 115 |
Platform lifting time | s | 65-82 |
Platform decline tine | s | 61-80 |
Max. Walking speed (low position) | km/h | 4.0 |
Max. Walking speed (high position) | km/h | 0.8 |
Max. gradeability | % | 25 |
Tilt warning angle（side / forward and backward） | ° | 1.5/3 |
Lifting /walking motor Rated power | kW | 4.5/0.75 |
Battery Voltage | v | 24 |
Battery Capacity | Ah | 300 |
Battery Manufacturer | — | Trojan/Leoch |
