XCMG XG1412HD 14m hydraulic scissor lift elevated work platform price
![](/app/topc/statics/images/close.png)
![XCMG XG1412HD 14m hydraulic scissor lift elevated work platform price](/images/store/357636/item/XG1412HD-a.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:3100kg
- Overall Dimension:2480*1190*2600mm
- Table Size:2275*1120mm
- Max Lifting Height:14m
- Min Lifting Height:1.47m
- Rated Loading Capacity:320Kg
- Power:4.5kw
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Scissor Lift
- Model Number:XG1412HD
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- weight:3100.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

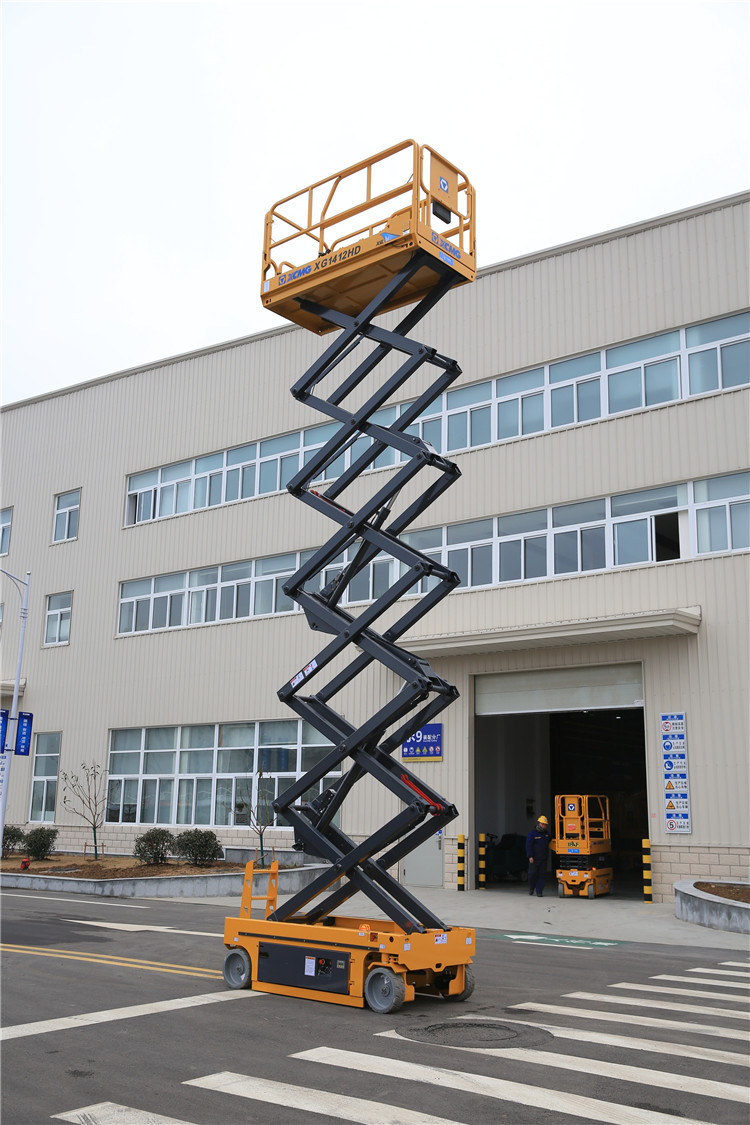

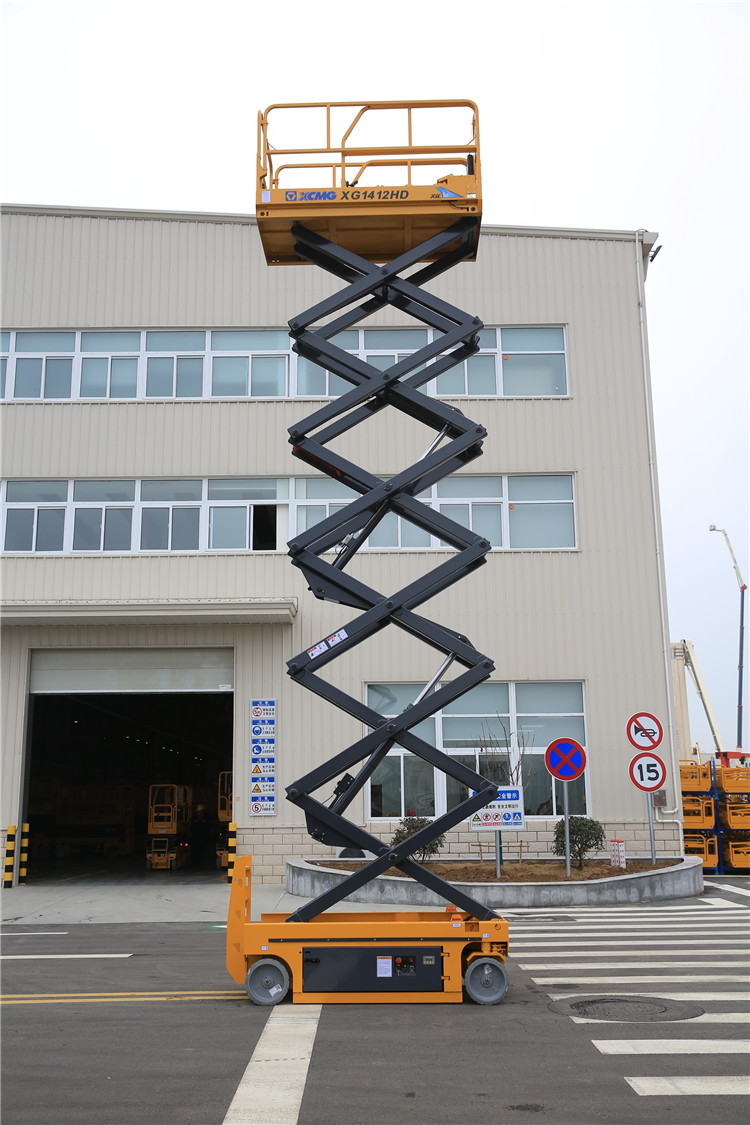

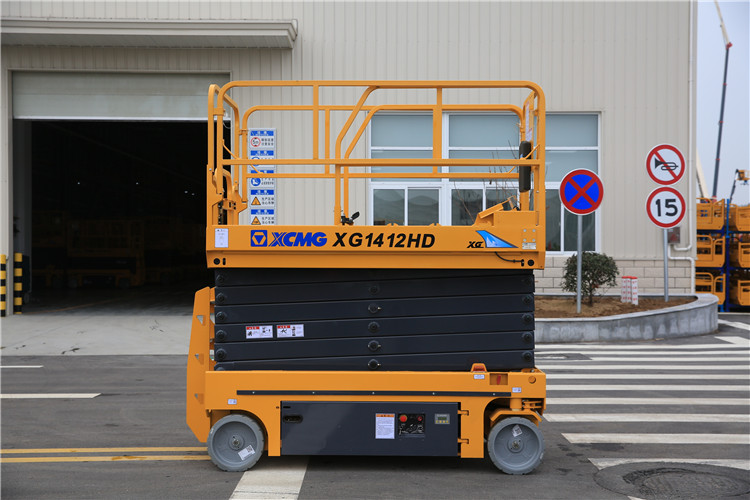

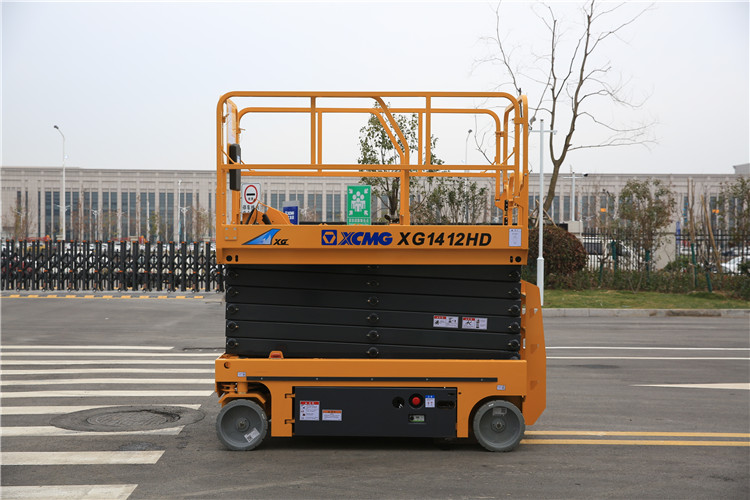

XCMG XG1412HD 14m hydraulic scissor lift elevated work
platform.
New XG1412HD scissor lift elevated work platform developed by XCMG has the work height at
11.8m, the vehicle width at 1.19m, the rated load at 320kg, max. platform
length at 3.2m and max. gradeability at 25%.
This kind of platforms are widely applied to warehouses,
factories, airports, and train stations, especially the narrow work sites.
Advantages and features:
1.Effective and energy-saving electric-drive system
features zero emission and low noise.
2.features compact structure, advanced performance,
completed safety devices.
3.Meeting the customer needing for safety, reliability
and intelligence.
4."Zero Turning Radius "is unique and enable
machine to corner in narrow room.
5.Max. payload at 320kg, leading the industry. Maximum
traveling speed 4km/h and 25% gradeability make the driving easier.
Item |
Unit |
Parameter |
Dimension of machine Length (without ladder) |
mm |
2480 (2270) |
Dimension of machine Width |
mm |
1190 |
Dimension of machine Height (platform folded) |
mm |
2600 (2060) |
Wheelbase |
mm |
1875 |
Wheel track |
mm |
1063 |
Min. ground clearance (Pit protector ascending/descending) |
mm |
100/20 |
Dimension of working platform Length |
mm |
2275 |
Dimension of working platform Width |
mm |
1120 |
Dimension of working platform Height |
mm |
1265 |
Dimension of working platform Extension length of the auxiliary platform |
mm |
900 |
Centroid position of machine Horizontal distance to front shaft |
mm |
950 |
Centroid position of machine Height of centroid |
mm |
680 |
Total mass of machine |
kg |
3100 |
Max. height of platform |
m |
11.8 |
Min. height of platform |
m |
1.47 |
Max. working height |
m |
13.8 |
Min. turning radius (inner wheel/outer wheel) |
m |
0/2.3 |
Rated load |
kg |
320 |
Payload of extended platform |
kg |
115 |
Lifting time |
s |
45-70 |
Lowering time |
s |
52-78 |
Drive speed(lowered) |
km/h |
≥3.9 |
Drive speed(elevated) |
km/h |
≥0.8 |
Max. gradeability |
% |
25 |
Tilt warning angle (side/forward and backward) |
° |
1.5/3 |
Lifting / traveling motor Model |
- |
- |
Lifting / traveling motor Rated power |
kW |
3.3 |
Lifting / traveling motor Manufacturer |
- |
- |
Battery Model |
- |
T1275/6-EV-100 |
Battery Voltage |
v |
24 |
Battery Capacity |
Ah |
300 |
Battery Manufacturer |
- |
Trojan/Leoch |
Tire models |
- |
Traceless and solid /381×127 |
