![XCMG official 14m electric hydraulic manlift scissor lift XG1412DC for sale XCMG official 14m electric hydraulic manlift scissor lift XG1412DC for sale](http://www.machmall.com/images/store/357636/item/XG1412DC-a.jpg_l.jpg)
XCMG official 14m electric hydraulic manlift scissor lift XG1412DC for sale
![](/app/topc/statics/images/close.png)
![XCMG official 14m electric hydraulic manlift scissor lift XG1412DC for sale](/images/store/357636/item/XG1412DC-a.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:3100kg
- Overall Dimension:2480*1190*2600mm
- Table Size:2275*1120*1265mm
- Max Lifting Height:13.8m
- Rated Loading Capacity:320kg
- Lift Drive / Actuation:Electric
- Lift Mechanism:Scissor Lift
- Model Number:XG1412DC
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- weight:3100.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

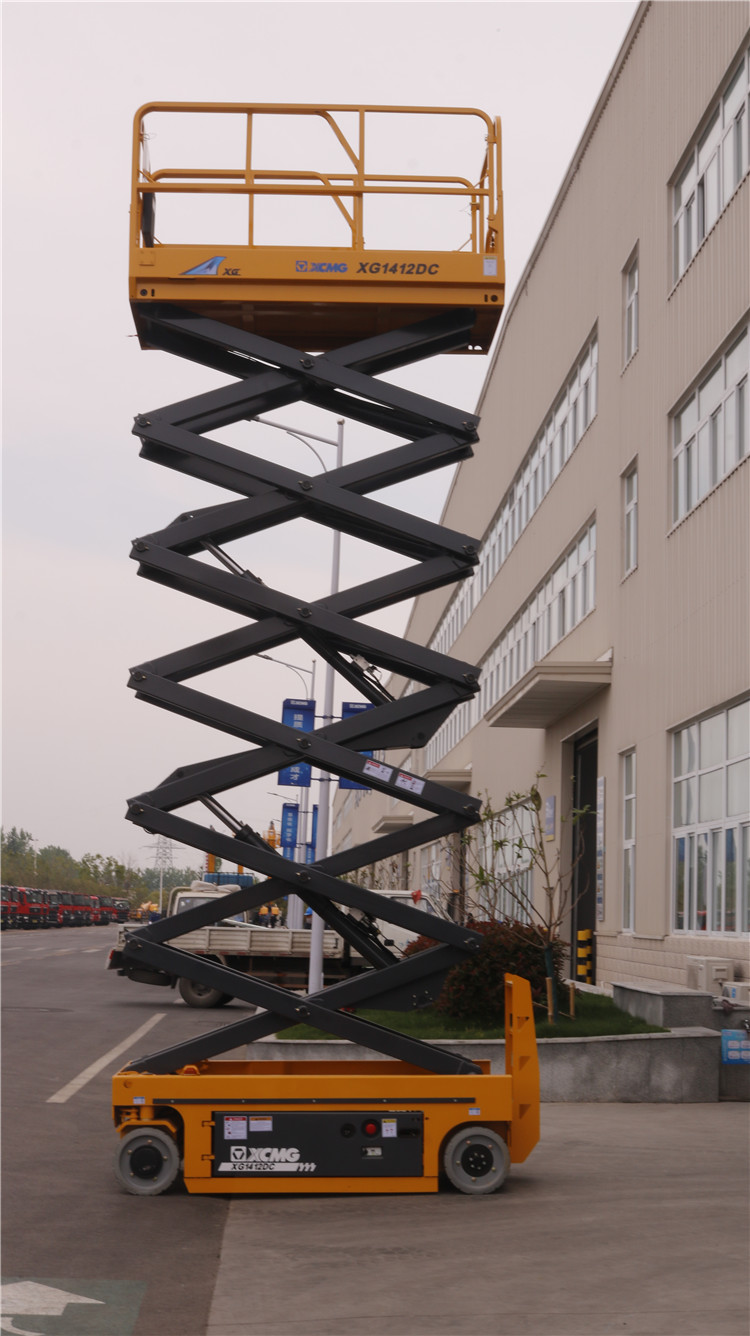

XCMG official 14m electric hydraulic manlift scissor lift
XG1412DC.
New XG1412DC electric manlift scissor lift developed by
XCMG has the work height at 13.8m, the vehicle width at 1.19m, the rated load
at 320kg and max. gradeability at 25%.
This kind of platforms are widely applied to warehouses,
factories, airports, and train stations, especially the narrow work sites.
Advantages and features:
1.Effective and energy-saving electric-drive system
features zero emission and low noise.
2.features compact structure, advanced performance,
completed safety devices.
3.Meeting the customer needing for safety, reliability
and intelligence.
4."Zero Turning Radius "is unique and enable
machine to corner in narrow room.
5.Max. payload at 450kg, leading the industry. Maximum
traveling speed 3.2km/h and 25% gradeability make the driving easier.
Item |
Unit |
Parameters |
Dimensions Length (without ladder) |
mm |
2477(2267) |
Dimensions width |
mm |
1170 |
Dimensions Height (platform folded) |
mm |
2355(1805) |
Wheel base |
mm |
1877 |
Wheel track |
mm |
1043 |
Min. Ground clearance (pit protector
lifting / decline) |
mm |
100/20 |
Platform dimensions Length |
mm |
2277 |
Platform dimensions Width |
mm |
1120 |
Platform dimensions Height |
mm |
1263 |
Platform dimensions Platform extension
length |
mm |
900 |
Vehicle center of mass position
Horizonal distance from front axis |
mm |
950 |
Vehicle center of mass position Height
of center of mass |
mm |
613 |
Total weight |
kg |
2620 |
Max. Platform height |
m |
8 |
Min. Platform height |
m |
1.2 |
Max. Working height |
m |
10 |
Min. Turning radius (inner wheel / outer
wheel) |
m |
0/2.3 |
Platform rated load |
kg |
450 |
Extension platform rated load |
kg |
115 |
Platform lifting time |
s |
29-40 |
Platform decline tine |
s |
34-45 |
Max. Walking speed (low position) |
km/h |
4.0 |
Max. Walking speed (high position) |
km/h |
0.8 |
Max. gradeability |
% |
25 |
Tilt warning angle(side / forward and backward) |
° |
1.5/3 |
Lifting /walking motor Model |
— |
— |
Lifting /walking motor Rated power |
kW |
3.3/0.75 |
Lifting /walking motor Manufacturer |
— |
— |
Battery Model |
— |
T125/3-EV-225 |
Battery Voltage |
v |
24 |
Battery Capacity |
Ah |
225 |
Battery Manufacturer |
— |
Trojan/Leoch |
Tire model |
— |
Non-trace solid/381×127 |
