XCMG official manufacturer 12m electric scissor lift table XG1212DC mobile machine for sale
Summary
- Weight:2900kg
- Overall Dimension:2477*1170*2480mm
- Table Size:2277*1120*1263mm
- Max Lifting Height:12m
- Rated Loading Capacity:320kg
- Lift Drive / Actuation:Electric
- Lift Mechanism:Scissor Lift
- Model Number:XG1212DC
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO
Specifications
- Weight:2900.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

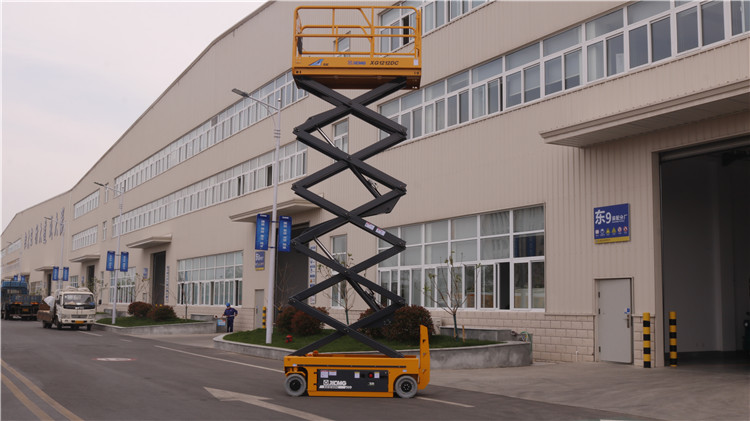

12m electric scissor lift table mobile machine XG1212DC.
New XG1212DC aerial work platform developed by XCMG has
the work height at 12m, the vehicle width at 1.17m, the rated load at 320kg,
max. gradeability at 25%.
This kind of platforms are widely applied to warehouses,
factories, airports, and train stations, especially the narrow work sites.
Advantages and features:
* Effective and energy-saving electric-drive system
features zero emission and low noise.
* features compact structure, advanced performance,
completed safety devices.
* Meeting the customer needing for safety, reliability
and intelligence.
* "Zero Turning Radius "is unique and enable
machine to corner in narrow room.
|
Item |
Unit |
Parameters |
|
Dimensions Length (without ladder) |
mm |
2477（2267） |
|
Dimensions width |
mm |
1170 |
|
Dimensions Height (platform folded) |
mm |
2480（1930） |
|
Wheel base |
mm |
1877 |
|
Wheel track |
mm |
1043 |
|
Min. Ground clearance (pit protector lifting / decline) |
mm |
100/20 |
|
Platform dimensions Length |
mm |
2277 |
|
Platform dimensions Width |
mm |
1120 |
|
Platform dimensions Height |
mm |
1263 |
|
Platform dimensions Platform extension length |
mm |
900 |
|
Vehicle center of mass position Horizonal distance from front axis |
mm |
950 |
|
Vehicle center of mass position Height of center of mass |
mm |
663 |
|
Total weight |
kg |
2900 |
|
Max. Platform height |
m |
10 |
|
Min. Platform height |
m |
1.34 |
|
Max. Working height |
m |
12 |
|
Min. Turning radius (inner wheel / outer wheel) |
m |
0/2.3 |
|
Platform rated load |
kg |
320 |
|
Extension platform rated load |
kg |
115 |
|
Platform lifting time |
s |
50-75 |
|
Platform decline tine |
s |
43-65 |
|
Max. Walking speed (low position) |
km/h |
4.0 |
|
Max. Walking speed (high position) |
km/h |
0.8 |
|
Max. gradeability |
% |
25 |
|
Tilt warning angle（side / forward and backward） |
° |
1.5/3 |
|
Lifting /walking motor Model |
— |
— |
|
Lifting /walking motor Rated power |
kW |
4.5/0.75 |
|
Lifting /walking motor Manufacturer |
— |
— |
|
Battery Model |
— |
T125/3-EV-225 |
|
Battery Voltage |
v |
24 |
|
Battery Capacity |
Ah |
240 |
|
Battery Manufacturer |
— |
Trojan/Leoch |
|
Tire model |
— |
Non-trace solid/381×127 |
