XCMG official 10m mobile electric drive scissor lift XG1012DC machine equipment price for sale
Summary
- Weight:2620kg
- Overall Dimension:2477*1170*2355mm
- Table Size:2277*1120*1263mm
- Max Lifting Height:10m
- Rated Loading Capacity:450kg
- Lift Drive / Actuation:Electric
- Lift Mechanism:Scissor Lift
- Model Number:XG1012DC
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO
Specifications
- Weight:2620.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

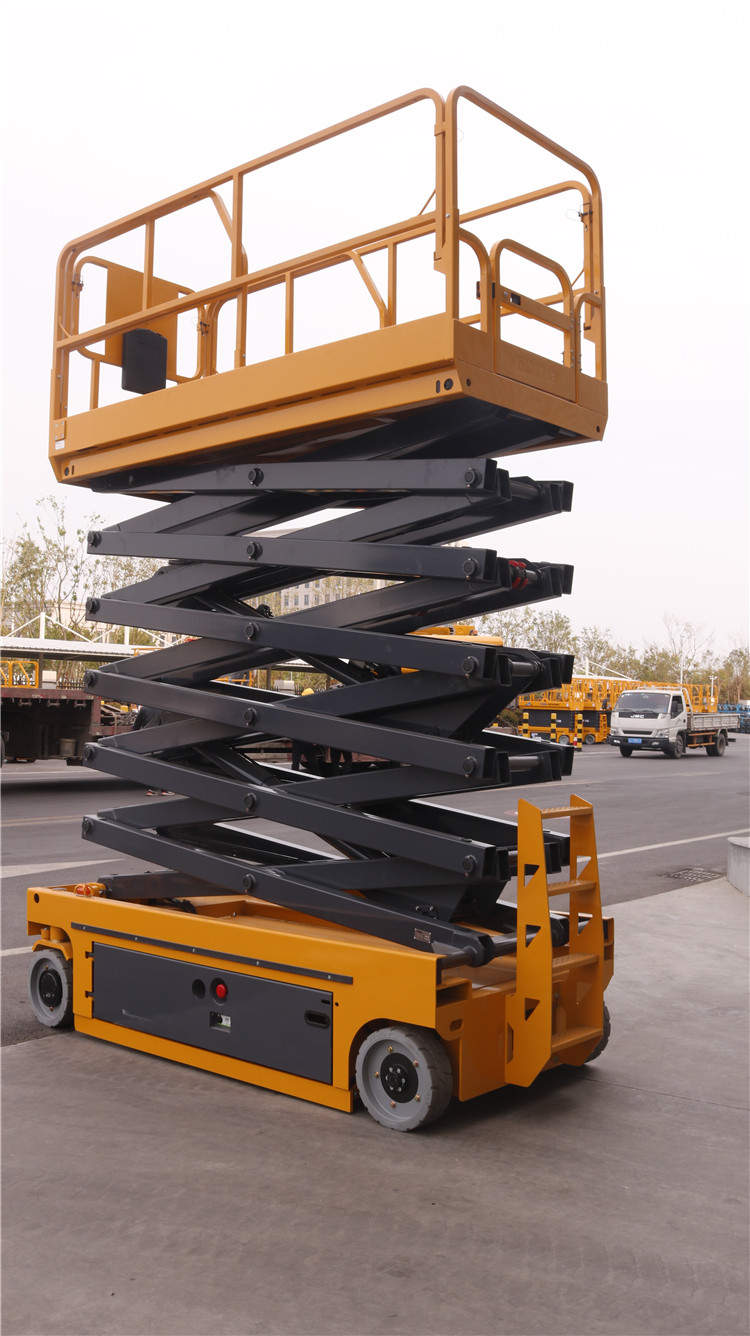

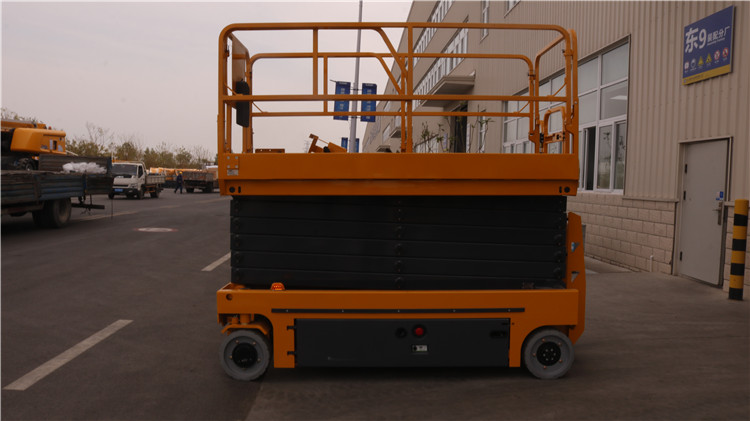

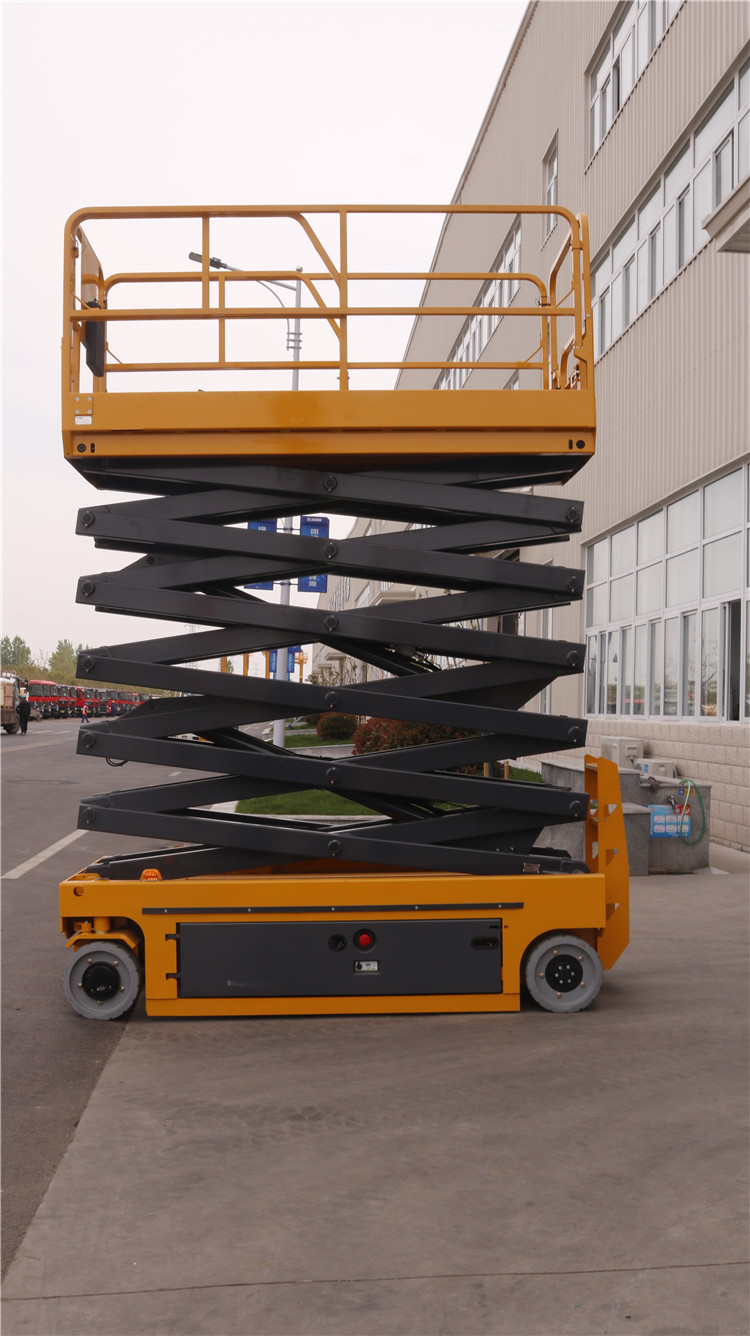

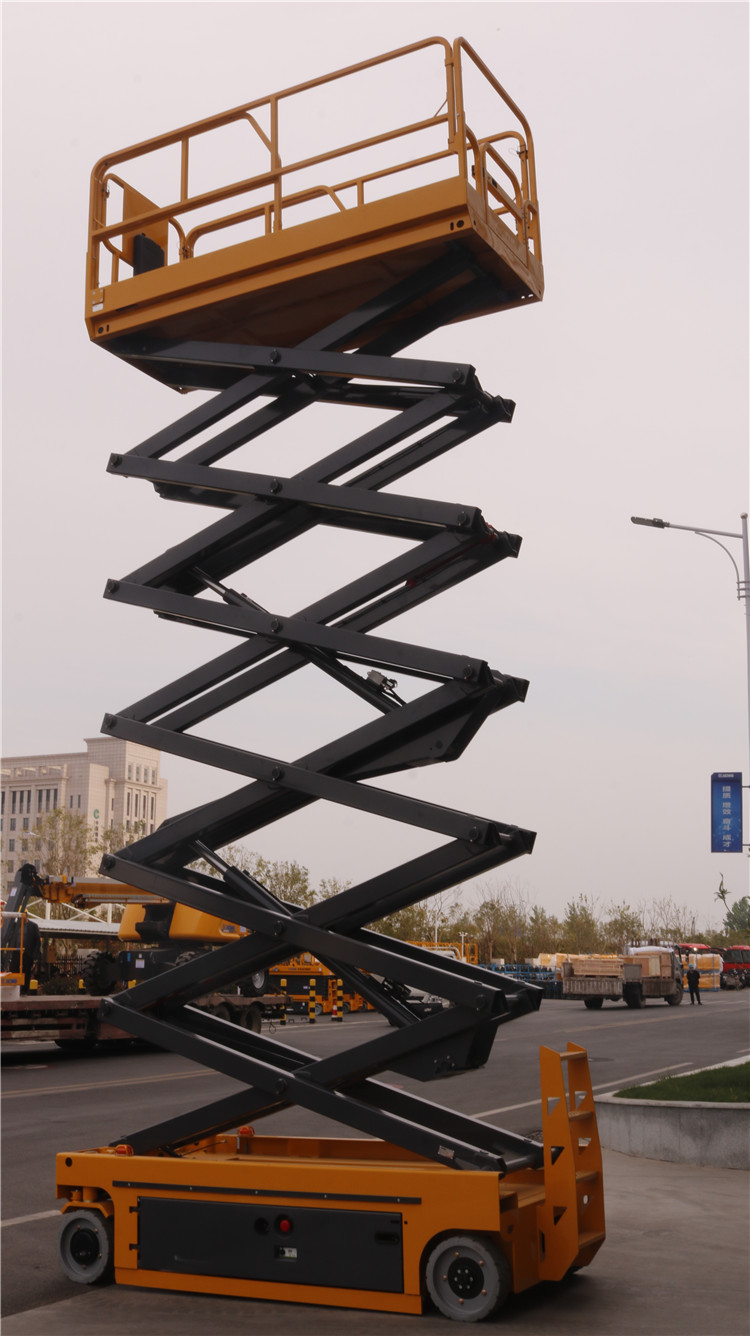

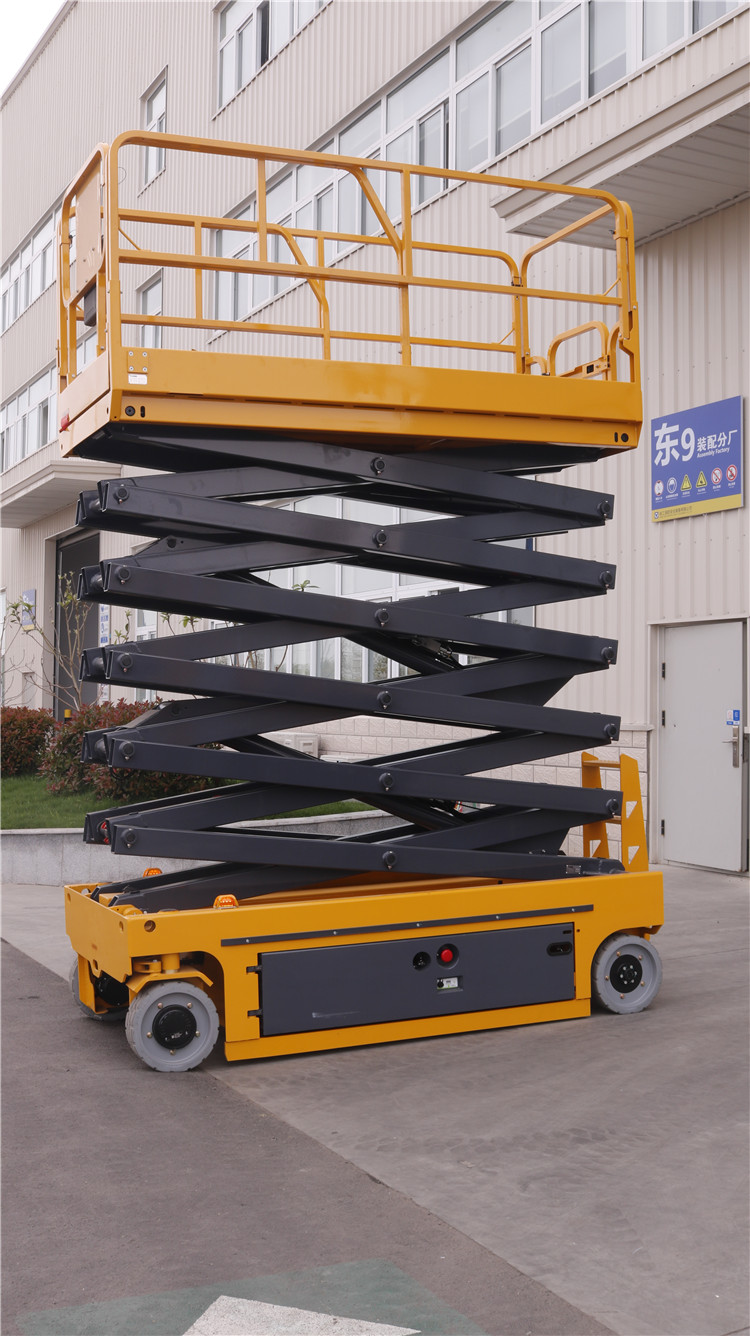

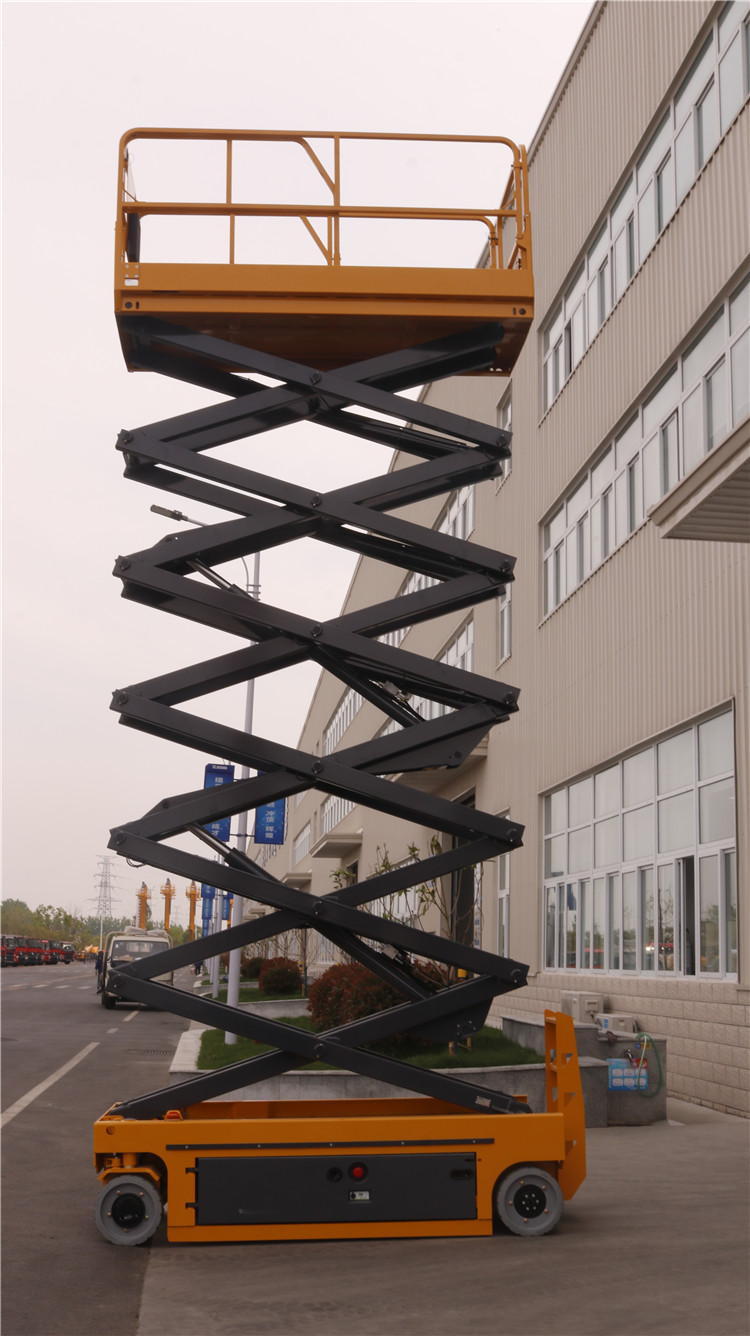

10m mobile electric drive scissor lift machine equipment
XG1012DC.
New aerial work platform developed by XCMG has the work
height at 10m, the vehicle width at 1.17m, the rated load at 450kg, max.
platform length at 3.2m and max. gradeability at 25%. This vehicle features
compact structure, advanced performance, completed safety devices, specially
suitable for construction. In addition. It is free of any pollution, with
steady lifting / lowering, easy control and maintenance. Therefore, this kind
of platforms are widely applied to warehouses, factories, airports, and train
stations, especially the narrow work sites.
Advantages and features:
* Effective and energy-saving electric-drive system
features zero emission and low noise, together with the traceless tires,
enabling this machine easily to work in enclosed environments such as office
building, hospitals and schools and minimizing the effect on environment.
* Active protective mechanism such as pothole protective
mechanism and the self-developed safety control system feature the humanized design
and the rich options, meeting the customer needing for safety, reliability and
intelligence.
* Narrow- structure design enables the complete vehicle to
easily pass through a single gateway; foldable fence could make the
transportation easier.
* “Zero Turning Radius” is unique and enable machine to
corner in narrow room.
* Max. payload at 450kg, leading the industry.
*
Maximum traveling
speed 4km/h and 25% gradeability make the driving easier.
|
Item |
Unit |
Parameters |
|
Dimensions Length (without ladder) |
mm |
2477（2267） |
|
Dimensions width |
mm |
1170 |
|
Dimensions Height (platform folded) |
mm |
2355（1805） |
|
Wheel base |
mm |
1877 |
|
Wheel track |
mm |
1043 |
|
Min. Ground clearance (pit protector lifting / decline) |
mm |
100/20 |
|
Platform dimensions Length |
mm |
2277 |
|
Platform dimensions Width |
mm |
1120 |
|
Platform dimensions Height |
mm |
1263 |
|
Platform dimensions Platform extension length |
mm |
900 |
|
Vehicle center of mass position Horizonal distance from front axis |
mm |
950 |
|
Vehicle center of mass position Height of center of mass |
mm |
613 |
|
Total weight |
kg |
2620 |
|
Max. Platform height |
m |
8 |
|
Min. Platform height |
m |
1.2 |
|
Max. Working height |
m |
10 |
|
Min. Turning radius (inner wheel / outer wheel) |
m |
0/2.3 |
|
Platform rated load |
kg |
450 |
|
Extension platform rated load |
kg |
115 |
|
Platform lifting time |
s |
29-40 |
|
Platform decline tine |
s |
34-45 |
|
Max. Walking speed (low position) |
km/h |
4.0 |
|
Max. Walking speed (high position) |
km/h |
0.8 |
|
Max. gradeability |
% |
25 |
|
Tilt warning angle（side / forward and backward） |
° |
1.5/3 |
|
Lifting /walking motor Model |
— |
— |
|
Lifting /walking motor Rated power |
kW |
3.3/0.75 |
|
Lifting /walking motor Manufacturer |
— |
— |
|
Battery Model |
— |
T125/3-EV-225 |
|
Battery Voltage |
v |
24 |
|
Battery Capacity |
Ah |
225 |
|
Battery Manufacturer |
— |
Trojan/Leoch |
|
Tire model |
— |
Non-trace solid/381×127 |
