XCMG official 10m hydraulic scissor lift XG1008HD mobile lifting work platform equipment price
Summary
- Weight:2150kg
- Overall Dimension:2477*830*2335mm
- Table Size:2270*810mm
- Max Lifting Height:10m
- Min Lifting Height:1.2m
- Rated Loading Capacity:230Kg
- Power:3.3kw
- Lift Drive / Actuation:Hydraulic
- Lift Mechanism:Scissor Lift
- Model Number:XG1008HD
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO
Specifications
- Weight:2150.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
10m hydraulic scissor lift mobile lifting work platform equipment XG1008HD.

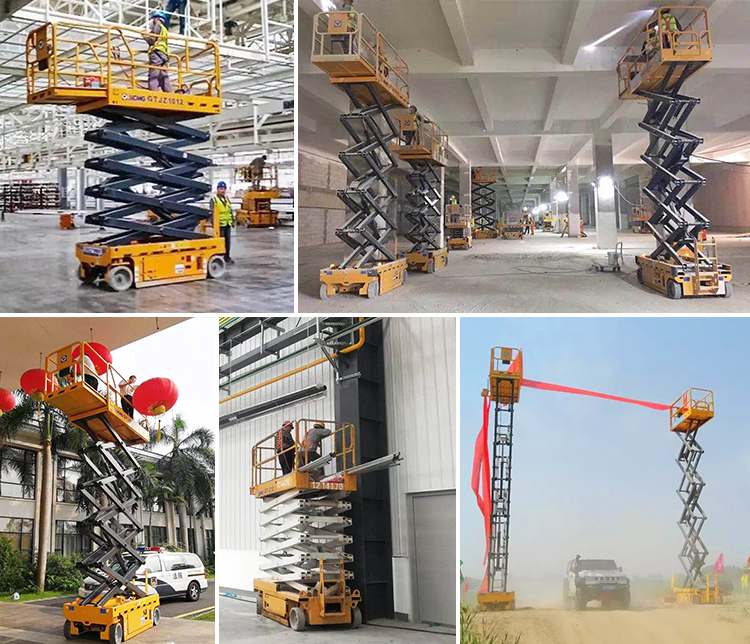

New aerial work platform developed by XCMG has the work height at 10m, the vehicle width at 0.83m, the rated load at 230kg, max. platform length at 3.2m and max. gradeability at 25%. This vehicle features compact structure, advanced performance, completed safety devices, specially suitable for construction. In addition, it is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, this kind of platforms are widely applied to warehouses, factories, airports, and train stations, especially the narrow work sites.
Advantages and features:
* Effective and energy-saving electric-drive system features zero emission and low noise, together with the traceless tires, enabling this machine easily to work in enclosed environments such as office building, hospitals and schools and minimizing the effect on environment.
* Active protective mechanism such as pothole protective mechanism and the self-developed safety control system feature the humanized design and the rich options, meeting the customer needing for safety, reliability and intelligence.
* Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier
* "Zero Turning Radius "is unique and enable machine to corner in narrow room.
* Max. payload at 230kg, leading the industry. Maximum traveling speed 3.5km/h and 25% gradeability make the driving easier.
|
Item |
Unit |
Parameter |
|
Dimension of
machine Length (without ladder) |
mm |
2477 (2280) |
|
Dimension of machine Width |
mm |
830 |
|
Dimension of
machine Height (platform folded) |
mm |
2335 (2005) |
|
Wheelbase |
mm |
1877 |
|
Wheel track |
mm |
689 |
|
Min. ground clearance (Pit
protector ascending / descending) |
mm |
100/20 |
|
Dimension of
working platform Length |
mm |
2270 |
|
Dimension of working platform Width |
mm |
810 |
|
Dimension of
working platform Height |
mm |
1246 |
|
Dimension of working platform Extension length of the auxiliary platform |
mm |
900 |
|
Centroid
position of machine Horizontal distance to front shaft |
mm |
927 |
|
Centroid position of machine Height
of centroid |
mm |
475 |
|
Total mass
of machine |
kg |
2150 |
|
Max. height of platform |
m |
8 |
|
Min. height
of platform |
m |
1.2 |
|
Max. working height |
m |
10 |
|
Min. turning
radius (inner wheel/outer wheel) |
m |
0/2.3 |
|
Rated load |
kg |
230 |
|
Payload of
extended platform |
kg |
115 |
|
Lifting time |
s |
29
~ 40 |
|
Lowering
time |
s |
34 ~ 45 |
|
Drive speed(lowered) |
km/h |
≥3.5 |
|
Drive
speed(elevated) |
km/h |
≥0.8 |
|
Max. gradeability |
% |
25 |
|
Tilt warning
angle (side/forward and backward) |
° |
1.5/3 |
|
Lifting/traveling motor Model |
- |
- |
|
Lifting/traveling
motor Rated power |
kW |
3.3 |
|
Lifting/traveling motor Manufacturer |
- |
- |
|
Battery Model |
- |
T105/DT106 |
|
Battery Voltage |
v |
24 |
|
Battery Capacity |
Ah |
225 |
|
Battery Manufacturer |
- |
Trojan/Leoch |
|
Tire models |
- |
Traceless and solid /381×127 |
