XCMG Manufacturer XG1008DC Brand New 10m Mobile Electric Scissor Made in China
![](/app/topc/statics/images/close.png)
![XCMG Manufacturer XG1008DC Brand New 10m Mobile Electric Scissor Made in China](/images/store/357636/item/XG1008DC-1.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:2150kg
- Overall Dimension:2477*810*2335mm
- Table Size:2270*810*1246mm
- Max Lifting Height:10m
- Rated Loading Capacity:230Kg
- Power: 4.4kw
- Lift Drive / Actuation:Electric
- Lift Mechanism:Scissor Lift
- Model Number:XG1008DC
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Specifications
- weight:2150.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

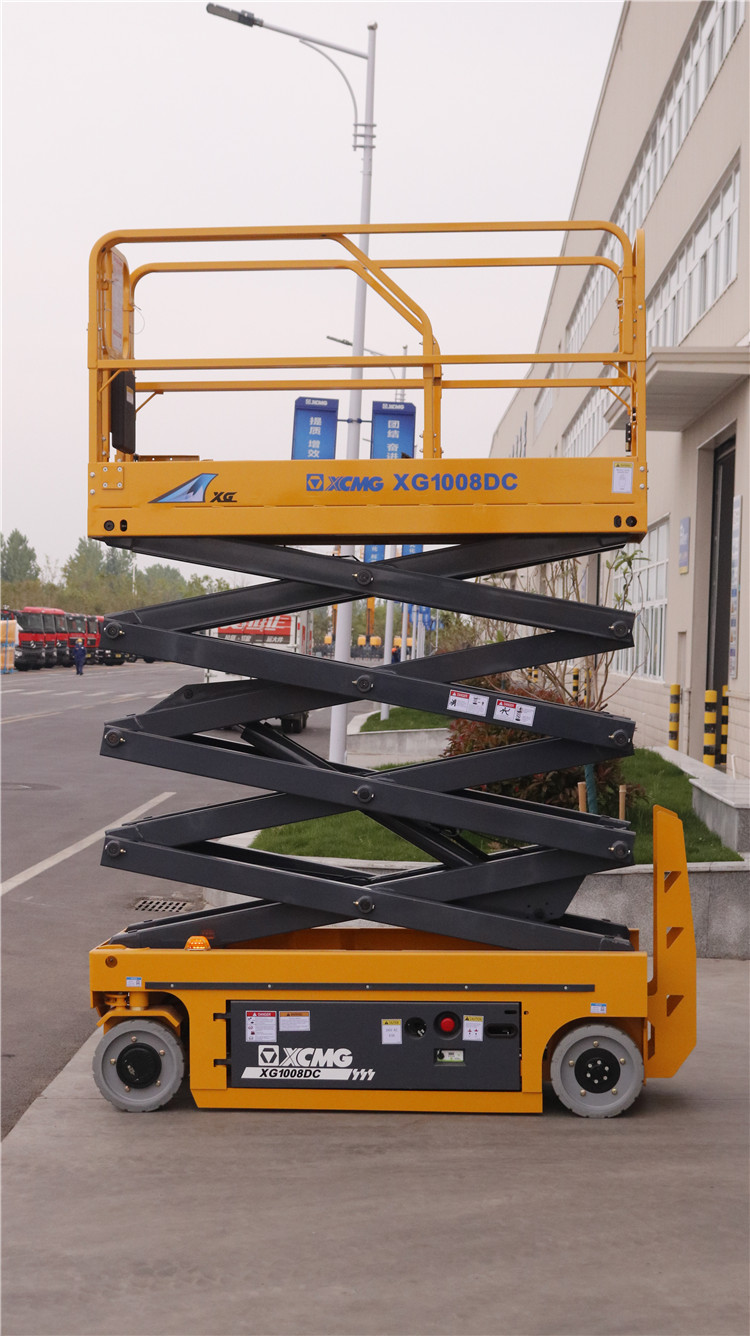

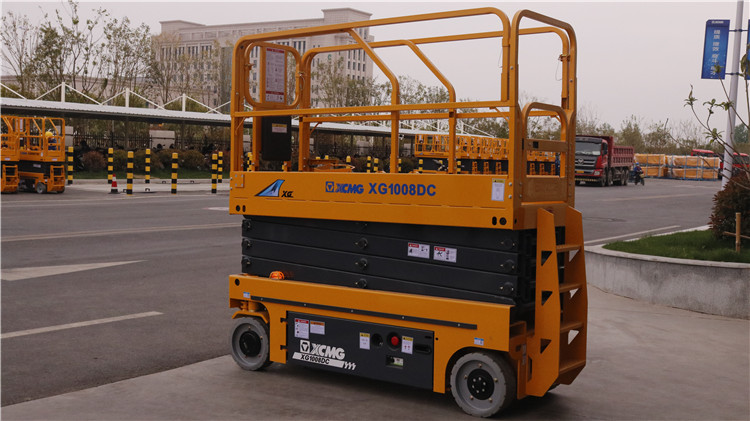

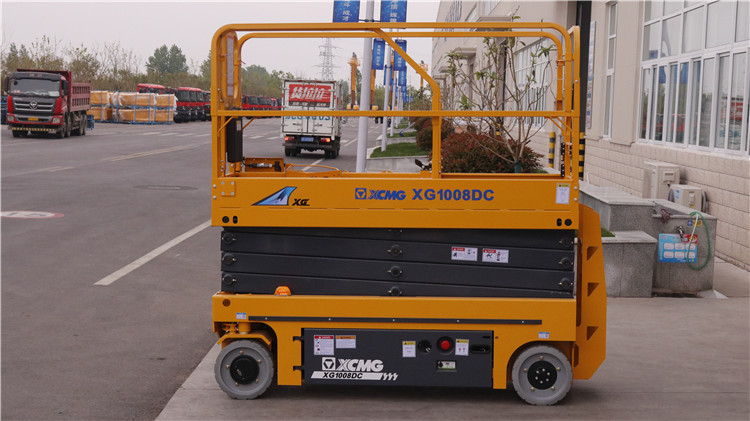

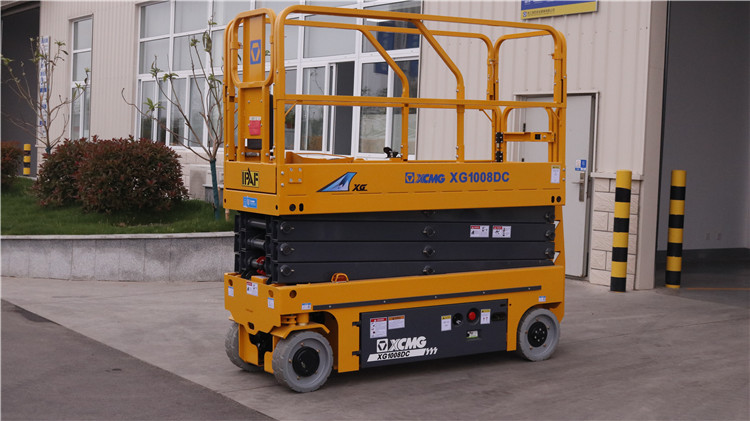

XCMG Manufacturer XG1008DC Brand New 10m Mobile Electric Scissor
Made in China.
New
scissor lift platform developed by XCMG has the work height at 10m, the vehicle
width at 0.83m, the rated load at 230kg, max. platform length at 3.2m and max.
gradeability at 25%. This vehicle features compact structure, advanced
performance, completed safety devices, specially suitable for construction. In
addition. It is free of any pollution, with steady lifting / lowering, easy
control and maintenance. Therefore, this kind of platforms are widely applied
to warehouses, factories, airports, and train stations, especially the narrow
work sites.
Advantages and features:
1.Effective
and energy-saving electric-drive system features zero emission and low noise.
2.Active
protective mechanism such as pothole protective mechanism and the
self-developed safety control system meeting the customer needing for safety,
reliability and intelligence.
3.Narrow-
structure design enables the complete vehicle to easily pass through a single
gateway; foldable fence could make the transportation easier. “Zero Turning
Radius ”is unique and enable machine to corner in narrow room.
4.Max.
payload at 230kg, leading the industry.Maximum traveling speed 4.5 km/h and 25%
gradeability make the driving easier.
Item |
Unit |
XG1008DC |
Dimensions(LxWxH) |
mm |
2477x830x2335 |
Wheel base |
mm |
1877 |
Wheel track |
mm |
689 |
Min. Ground clearance (pit protector lifting / decline) |
mm |
100/20 |
Platform dimensions(LxWxH) |
mm |
2270x810x1246 |
Platform dimensions Platform extension length |
mm |
900 |
Vehicle center of mass position Horizonal distance from front axis |
mm |
927 |
Vehicle center of mass position Height of center of mass |
mm |
475 |
Total weight |
kg |
2150 |
Max. Platform height |
m |
8 |
Min. Platform height |
m |
1.2 |
Max. Working height |
m |
10 |
Min. Turning radius (inner wheel / outer wheel) |
m |
0/2.3 |
Platform rated load |
kg |
230 |
Extension platform rated load |
kg |
115 |
Platform lifting time |
s |
29~40 |
Platform decline tine |
s |
34~45 |
Max. Walking speed (low position) |
km/h |
4 |
Max. Walking speed (high position) |
km/h |
0.8 |
Max. gradeability |
% |
25 |
Tilt warning angle(side / forward and backward) |
° |
1.5/3 |
Lifting /walking motor Model |
— |
— |
Lifting /walking motor Rated power |
kW |
3.3/0.75 |
Battery Voltage |
v |
24 |
Battery Capacity |
Ah |
225 |
Battery Manufacturer |
— |
Trojan/Leoch |
