XCMG Top Brand Electric Lift Platform XG0807DCW Chinese 8m Mobile Electric Lift Work Platform
Summary
- Weight:1580kg
- Overall Dimension:1900*810*2160mm
- Table Size:1670*740*1235mm
- Max Lifting Height:7.8m
- Min Lifting Height:2.1m
- Rated Loading Capacity:230kg
- Power:4.4kw
- Lift Drive / Actuation:Electric
- Lift Mechanism:Scissor Lift
- Model Number:XG0807DCW
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:1580.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

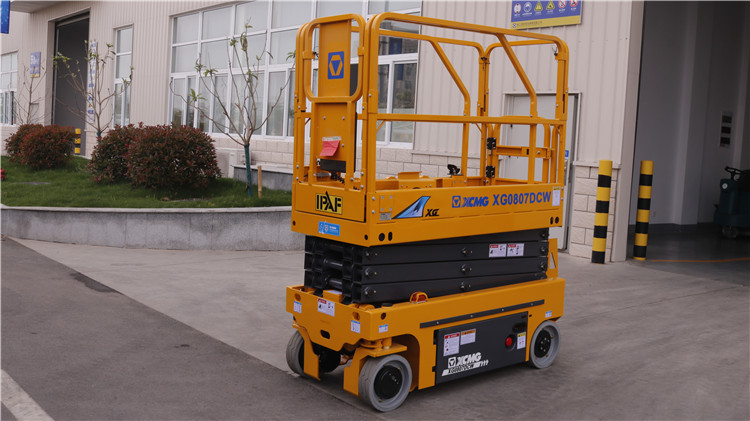

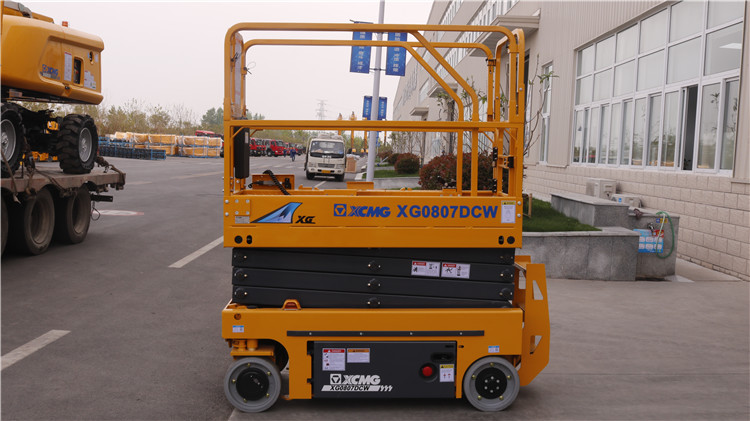

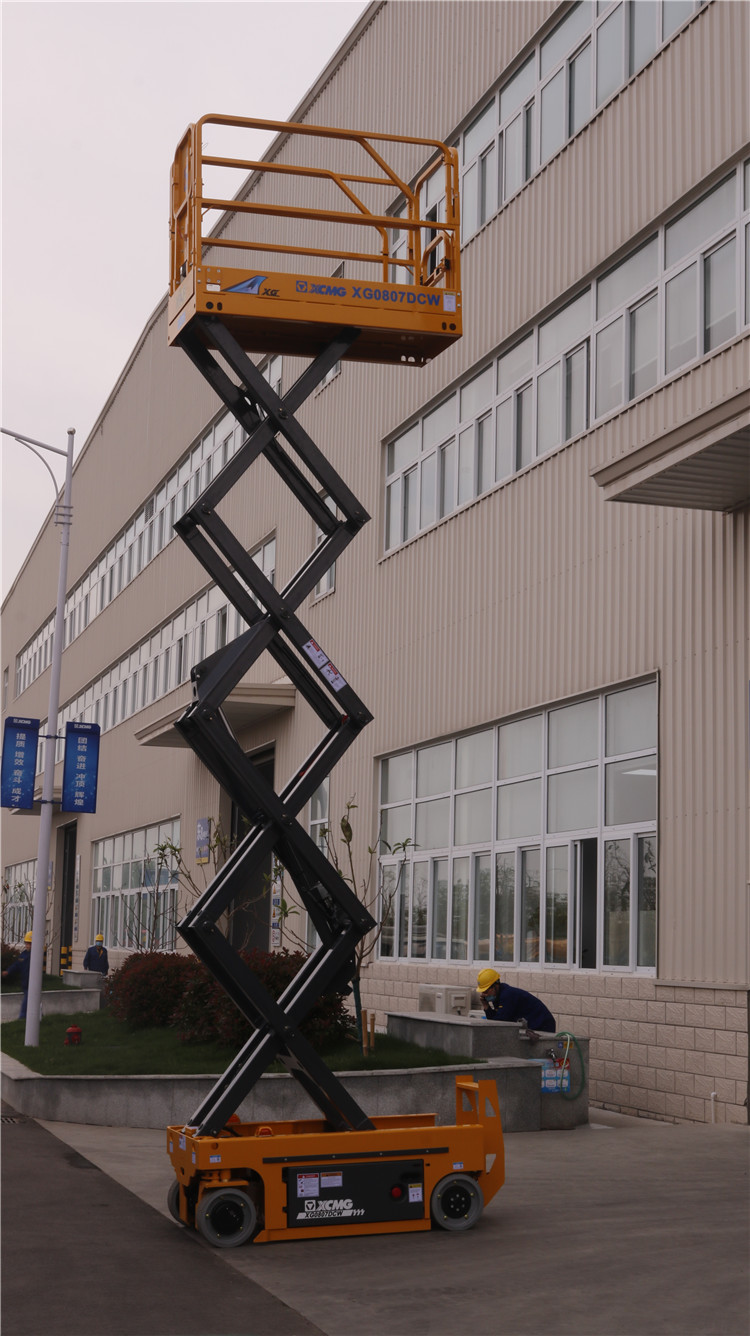

XCMG Top Brand Electric Lift Platform XG0807DCW Chinese 8m Mobile
Electric Lift Work Platform.
New
aerial work platform developed by XCMG has the work height at 8m, the vehicle
width at 0.81m, the rated load at 230kg, max. gradeability at 25%. This vehicle
features compact structure, advanced performance, completed safety devices,
specially suitable for construction. In addition. It is free of any pollution,
with steady lifting / lowering, easy control and maintenance. Therefore, this
kind of platforms are widely applied to warehouses, factories, airports, and
train stations, especially the narrow work sites.
Advantages and features
1.Effective
and energy-saving electric-drive system features zero emission and low noise.
2.Active
protective mechanism such as pothole protective mechanism and the
self-developed safety control system meeting the customer needing for safety,
reliability and intelligence.
3.Narrow-
structure design enables the complete vehicle to easily pass through a single
gateway; foldable fence could make the transportation easier. “Zero Turning
Radius ”is unique and enable machine to corner in narrow room.
4.Max. payload at
230kg, leading the industry.Maximum traveling speed 4.5 km/h and 25%
gradeability make the driving easier.
Item | Unit | XG0807DCW |
Dimension of machine(LxWxH) | mm | 1900x830x2160 |
Wheelbase | mm | 1360 |
Wheel track | mm | 710 |
Min. ground clearance (Pit protector ascending/descending) | mm | 70/20 |
Dimension of working platform (LxWxH) | mm | 1670x740x1235 |
Centroid position of machine Horizontal distance to front shaft | mm | 750 |
Centroid position of machine Height of centroid | mm | 570 |
Total mass of machine | kg | 1580 |
Max. height of platform | m | 5.8 |
Min. height of platform | m | 1.05 |
Max. working height | m | 7.8 |
Minimum turning radius (inner wheel/outer wheel) | m | 0/1.75 |
Rated load | kg | 230 |
Payload of extended platform | kg | 115 |
Lifting time | s | 13-30 |
Lowering time | s | 25-35 |
Drive speed(lowered) | km/h | 4.5 |
Drive speed(elevated) | km/h | 0.8 |
Max. gradeability | % | 25 |
Tilt warning angle (side/forward and backward) | ° | 1.5/3 |
Lifting / traveling motor Rated power | kW | 3.3/0.75 |
Battery Voltage | v | 24 |
Battery Capacity | Ah | 225 |
Battery Manufacturer | — | Trojan/Leoch |
