XCMG official manufacturer 8m mini china electric drive scissor lift XG0807DCW machine price
Summary
- Weight:1580kg
- Overall Dimension:1900*810*2160mm
- Table Size:1670*740*1235mm
- Max Lifting Height:7.8m
- Min Lifting Height:2.1m
- Rated Loading Capacity:230kg
- Power:4.4kw
- Lift Drive / Actuation:Electric
- Lift Mechanism:Scissor Lift
- Model Number:XG0807DCW
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO
Specifications
- Weight:1580.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

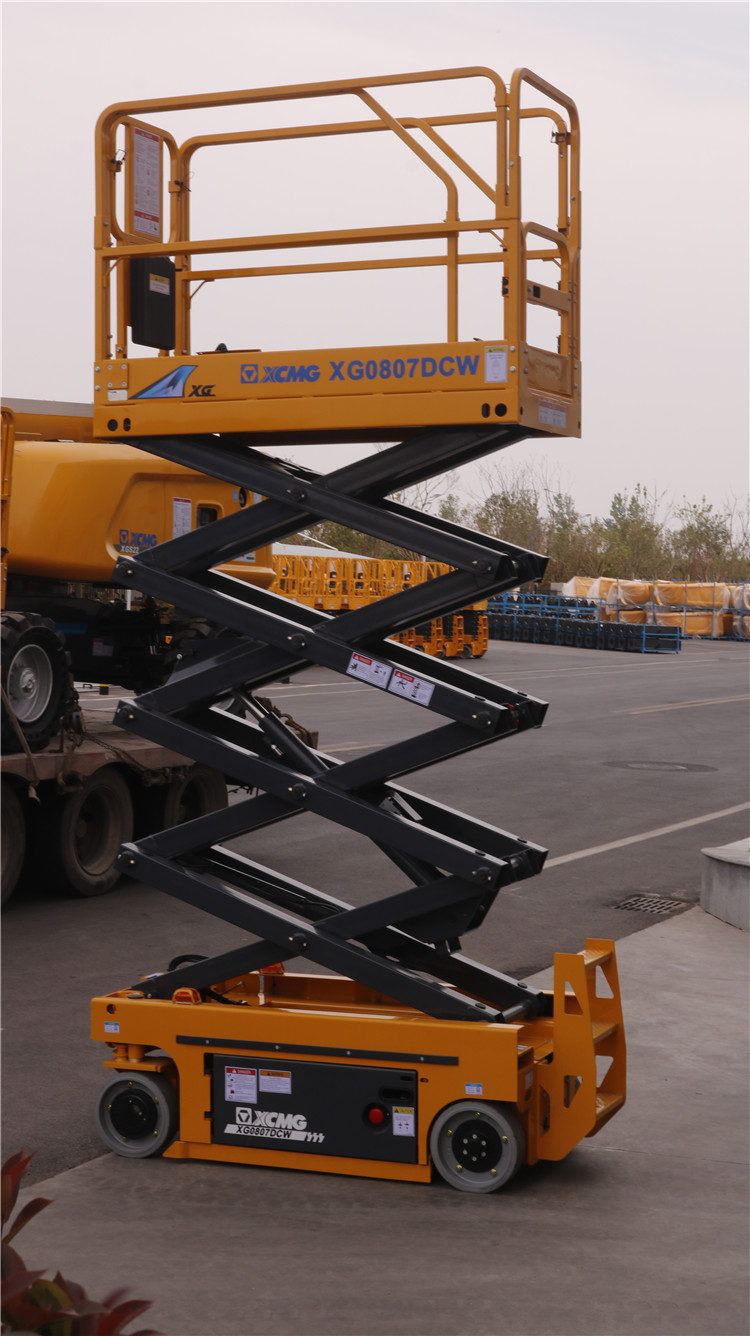

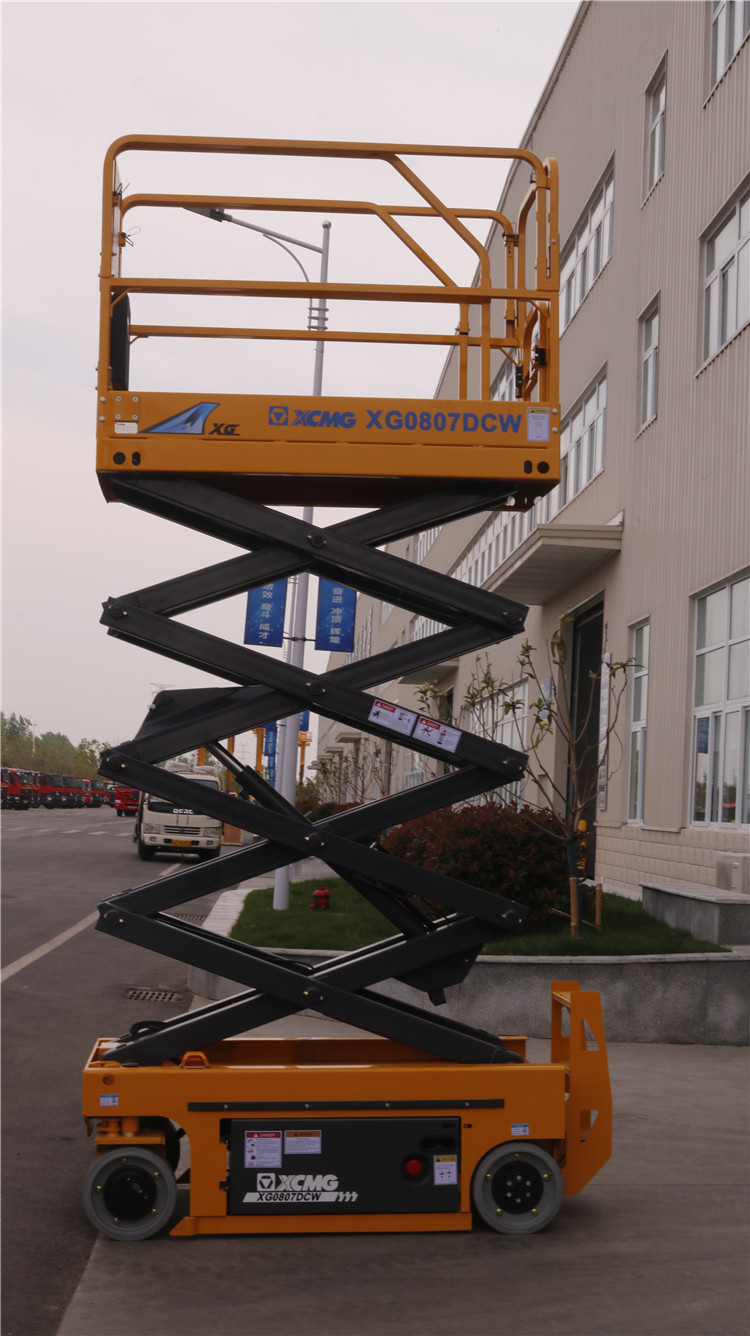

8m mini china electric drive scissor lift machine XG0807DCW.
New
aerial work platform developed by XCMG has the work height at 7.8m, the vehicle
width at 0.83m, the rated load at 230kg, max. gradeability at 25%. This vehicle
features compact structure, advanced performance, completed safety devices,
specially suitable for construction. In addition. It is free of any pollution,
with steady lifting / lowering, easy control and maintenance. Therefore, this

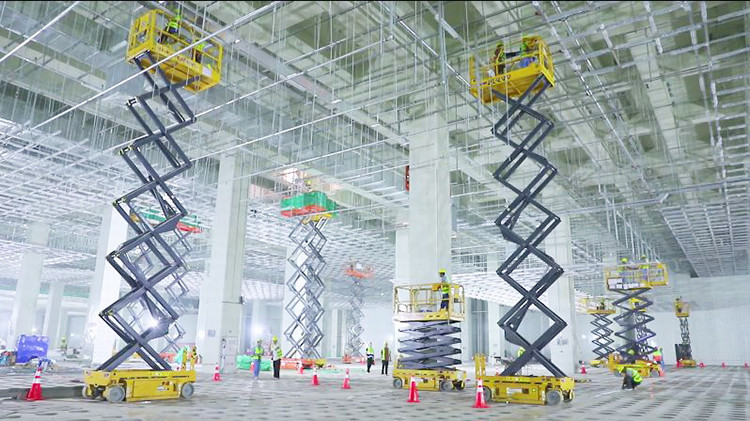

kind of platforms are widely applied to warehouses, factories, airports, and
train stations, especially the narrow work sites.
Advantages
and features:
* Effective
and energy-saving electric-drive system features zero emission and low noise,
together with the traceless tires, enabling this machine easily to work in
enclosed environments such as office building, hospitals and schools and
minimizing the effect on environment.
* Active
protective mechanism such as pothole protective mechanism and the
self-developed safety control system feature the humanized design and the rich
options, meeting the customer needing for safety, reliability and intelligence.
* Narrow-
structure design enables the complete vehicle to easily pass through a single
gateway; foldable fence could make the transportation easier
* “Zero
Turning Radius” is unique and enable machine to corner in narrow room.
* Max.
payload at 230kg, leading the industry.
* Maximum
traveling speed 4.5 km/h and 25% gradeability make the driving easier.
|
Item |
Unit |
Parameter |
|
Dimension of machine Length (without ladder) |
mm |
1900(1680) |
|
Dimension of machine Width |
mm |
830 |
|
Dimension of machine Height (platform folded) |
mm |
2160(1830) |
|
Wheelbase |
mm |
1360 |
|
Wheel track |
mm |
710 |
|
Min. ground clearance (Pit protector
ascending/descending) |
mm |
70/20 |
|
Dimension of working platform Length |
mm |
1670 |
|
Dimension of working platform Width |
mm |
740 |
|
Dimension of working platform Height |
mm |
1235 |
|
Dimension of working platform Extension length of the
auxiliary platform |
mm |
900 |
|
Centroid position of machine Horizontal distance to front shaft |
mm |
750 |
|
Centroid position of machine Height of centroid |
mm |
570 |
|
Total mass of machine |
kg |
1580 |
|
Max. height of platform |
m |
5.8 |
|
Min. height of platform |
m |
1.05 |
|
Max. working height |
m |
7.8 |
|
Minimum turning radius (inner wheel/outer wheel) |
m |
0/1.75 |
|
Rated load |
kg |
230 |
|
Payload of extended platform |
kg |
115 |
|
Lifting time |
s |
13-30 |
|
Lowering time |
s |
25-35 |
|
Drive speed(lowered) |
km/h |
4.5 |
|
Drive speed(elevated) |
km/h |
0.8 |
|
Max. gradeability |
% |
25 |
|
Tilt warning angle (side/forward and backward) |
° |
1.5/3 |
|
Lifting / traveling motor Model |
— |
— |
|
Lifting / traveling motor Rated power |
kW |
3.3/0.75 |
|
Lifting / traveling motor Manufacturer |
— |
— |
|
Battery Model |
— |
T105/3-EV-225 |
|
Battery Voltage |
v |
24 |
|
Battery Capacity |
Ah |
225 |
|
Battery Manufacturer |
— |
Trojan/Leoch |
|
Tire models |
— |
Traceless and solid /323×100 |
