XCMG official 8m small electric drive scissor lift mobile machine XG0807DC factory price for sale
Summary
- Weight:1550kg
- Overall Dimension:1900*760*2160mm
- Table Size:1670*740*1235mm
- Max Lifting Height:7.8m
- Rated Loading Capacity:230kg
- Power:4.4kw
- Lift Drive / Actuation:Electric
- Lift Mechanism:Scissor Lift
- Model Number:XG0807DC
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO
Specifications
- Weight:1550.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

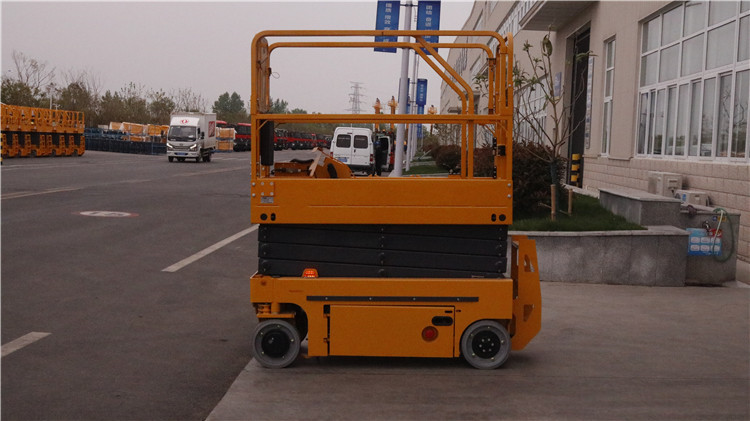

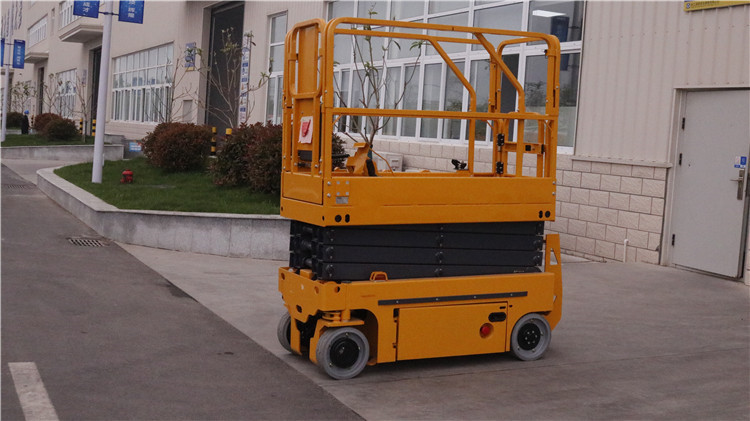

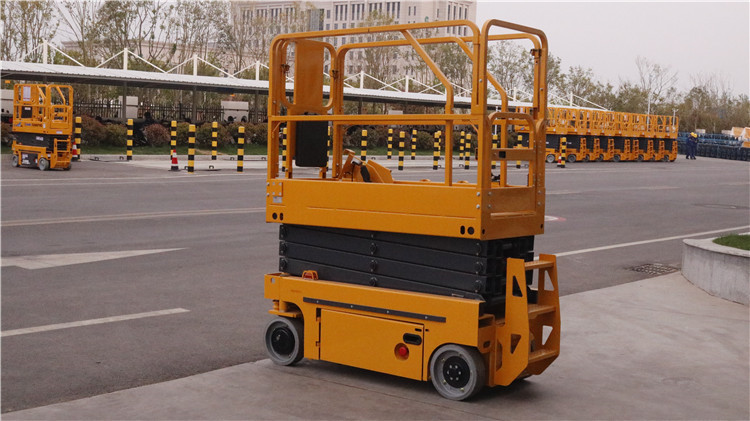

XCMG official 8m small electric drive scissor lift mobile
machine XG0807DC.

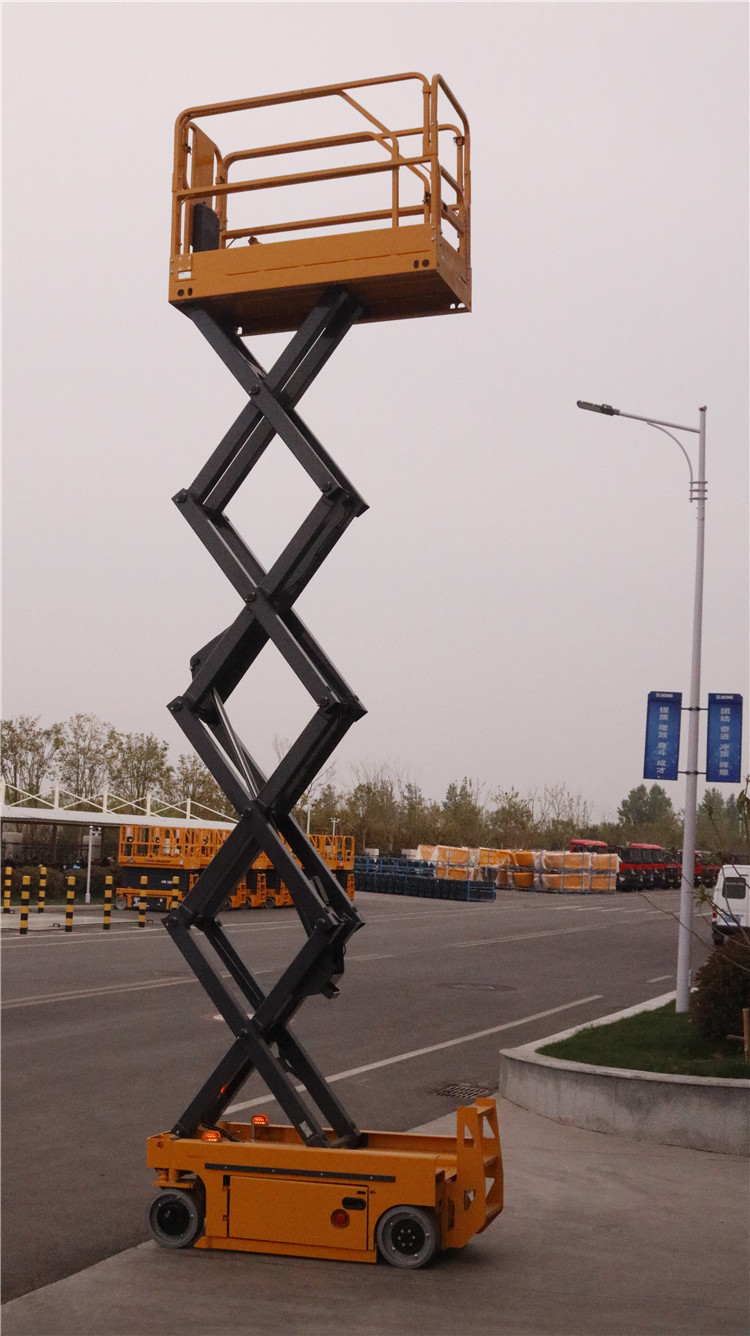

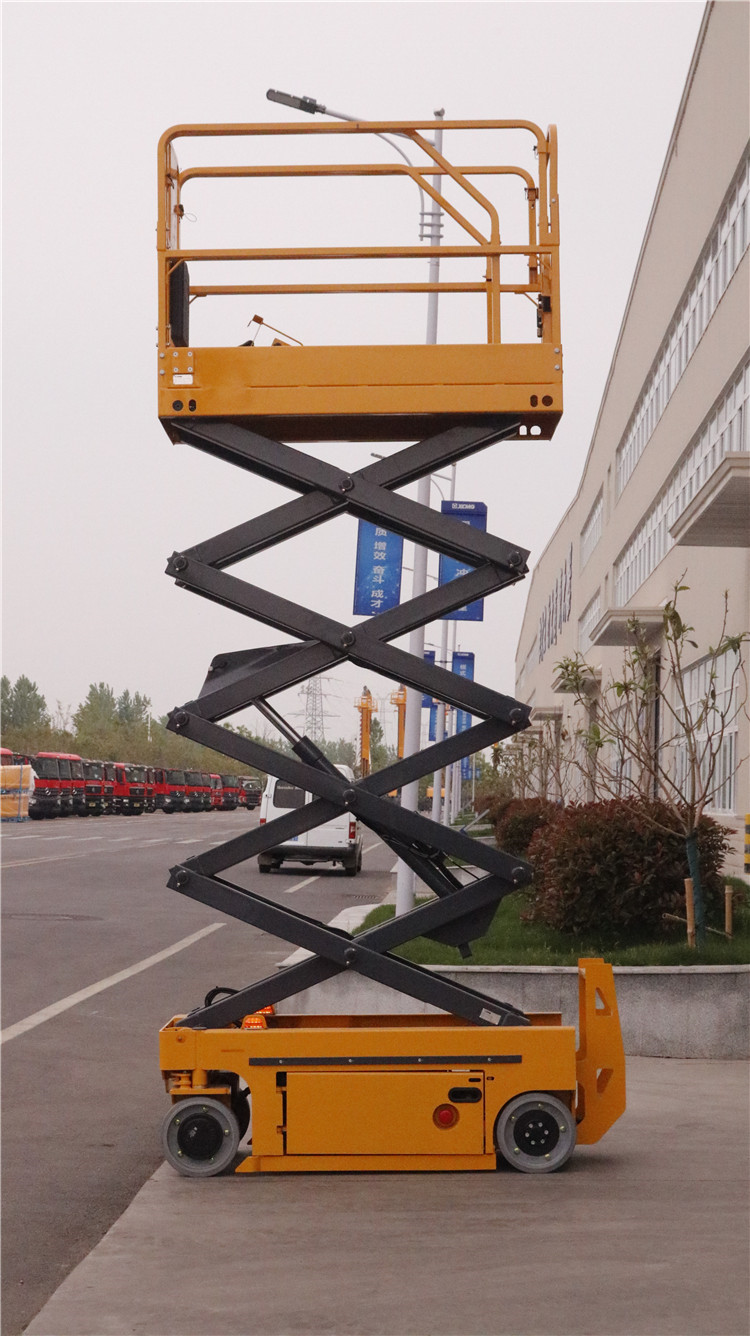

New aerial work platform developed by XCMG has the work
height at 7.8m, the vehicle width at 0.78m, the platform extension length at
0.9m, the rated load at 230kg, max. gradeability at 25%. This vehicle features
compact structure, advanced performance, completed safety devices, specially
suitable for construction. In addition. It is free of any pollution, with
steady lifting / lowering, easy control and maintenance. Therefore, this kind

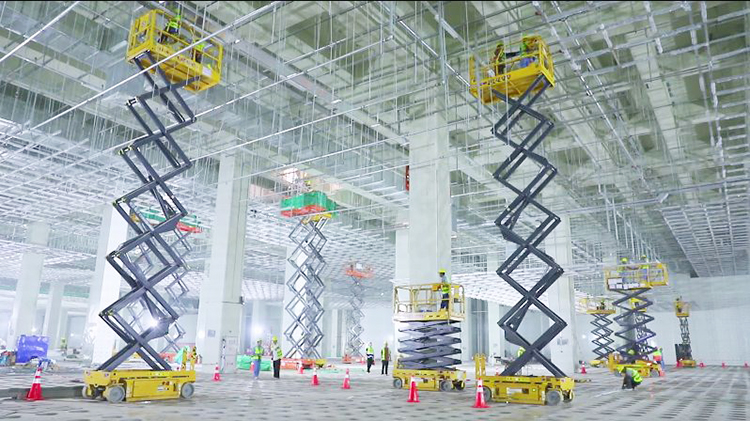

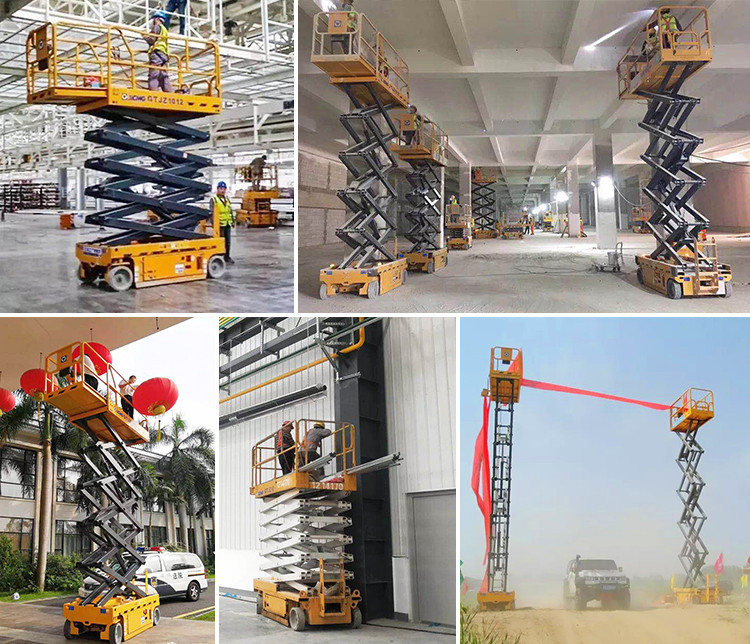

of platforms are widely applied to warehouses, factories, airports, and train
stations, especially the narrow work sites.
Advantages and features:
* Effective and energy-saving electric-drive system
features zero emission and low noise, together with the traceless tires,
enabling this machine easily to work in enclosed environments such as office
building, hospitals and schools and minimizing the effect on environment.
* Active protective mechanism such as pothole protective
mechanism and the self-developed safety control system feature the humanized
design and the rich options, meeting the customer needing for safety,
reliability and intelligence.
* Narrow- structure design enables the complete vehicle to
easily pass through a single gateway; foldable fence could make the
transportation easier
* “Zero Turning Radius” is unique and enable machine to
corner in narrow room.
* Max. payload at 230kg, leading the industry.
* Maximum traveling speed 4.5 km/h and 25% gradeability
make the driving easier.
|
Item |
Unit |
Parameters |
|
Dimensions Length (without ladder) |
mm |
1900(1680) |
|
Dimensions Width |
mm |
760 |
|
Dimensions Height (platform folded) |
mm |
2160(1830) |
|
Wheel base |
mm |
1360 |
|
Wheel track |
mm |
660 |
|
Min. Ground clearance (pit protector lifts / decline) |
mm |
70/20 |
|
Working platform dimensions Length |
mm |
1670 |
|
Working platform dimensions Width |
mm |
740 |
|
Working platform dimensions Height |
mm |
1235 |
|
Platform extension Working platform dimensions length |
mm |
900 |
|
Vehicle center of mass position Horizonal distance from front axis |
mm |
750 |
|
Vehicle center of mass position Height of center of mass |
mm |
570 |
|
Total weight |
kg |
1550 |
|
Max. Platform height |
m |
5.8 |
|
Min. Platform height |
m |
1.05 |
|
Max. Working height |
m |
7.8 |
|
Min. Turning radius (inner wheel / outer wheel) |
m |
0/1.75 |
|
Working platform rated load |
kg |
230 |
|
Extension platform load |
kg |
115 |
|
Platform lifting time |
s |
13-30 |
|
Platform decline time |
s |
25-35 |
|
Drive speed(lowered) |
km/h |
4.5 |
|
Drive speed(elevated) |
km/h |
0.8 |
|
Max. Gradeability |
% |
25 |
|
Tilt warning angle（side/forward and backward） |
° |
1.5/3 |
|
Lifting / walking motor Model |
— |
— |
|
Lifting / walking motor Rated power |
kW |
3.3/0.75 |
|
Lifting / walking motor manufacturer |
— |
— |
|
Battery Model |
— |
T105/3-EV-225 |
|
Battery Voltage |
v |
24 |
|
Battery Capacity |
Ah |
225 |
|
Battery manufacturer |
— |
Trojan/Leoch |
|
Tire model |
— |
No-trace solide/323×100 |
