XCMG official 6 ton mini hydraulic crawler excavator XE60DA multifunction excavator machine price
Summary
- Rated Speed:4.2km/h
- Max Digging Radius:6130mm
- Machine Weight:6010kg
- Maximum Digging Depth:3830mm
- Maximum Digging Height:5630mm
- Bucket capacity:0.23m3
- Operating Weight:6010kg
- Model Number:XE60DA
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- Weight:6010.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

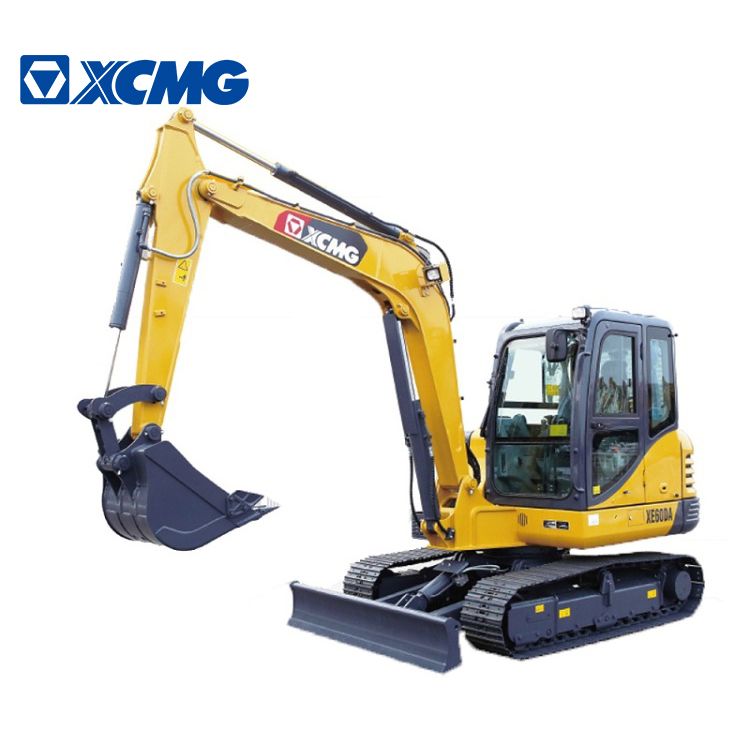

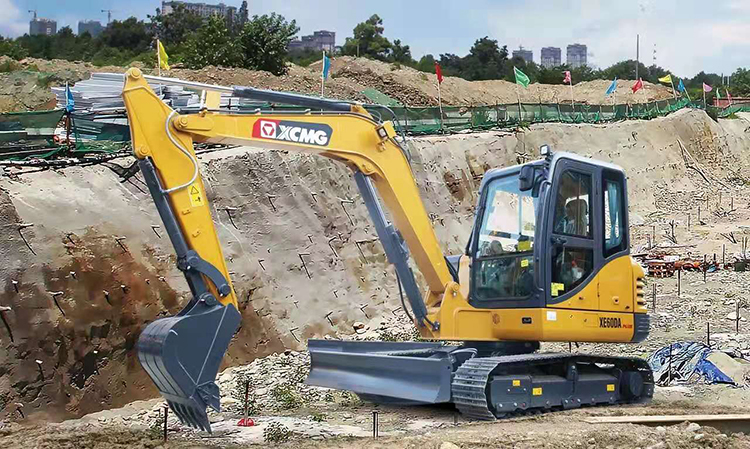

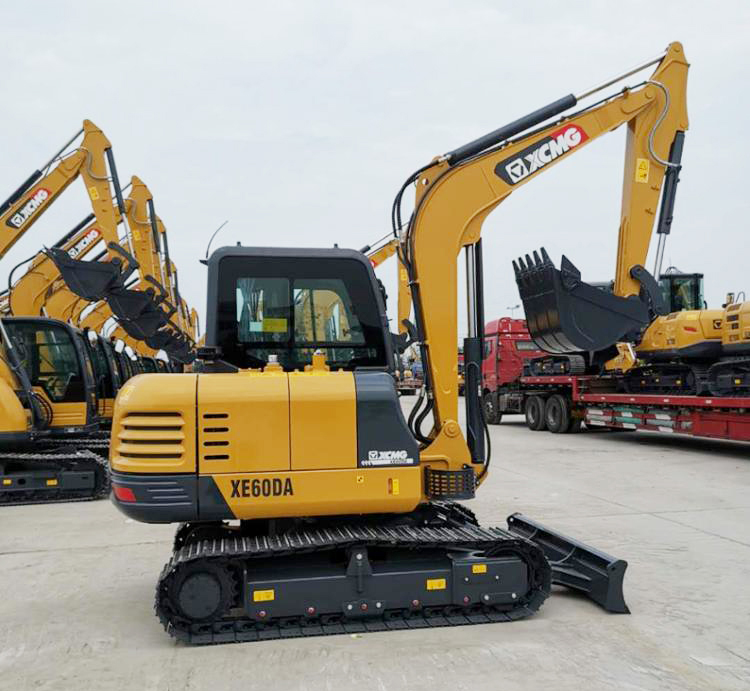

6 ton mini hydraulic crawler excavator XE60DA multifunction excavator machine.
XCMG XE60DA crawler excavator adopts a good engine excellent in environmental protection and energy saving. Moreover, it uses a load sensitive hydraulic system, able to guarantee operator's better controlling of the machine and better movement coordination, reduce the demand for operation proficiency of the driver.
The stress analysis and structure optimization of such key components platforms, swing arms, bucket rods and lower chassis has fully guaranteed the reliability of the structural members.
The daily maintenance is sufficiently convenient and you only need to open the rear hood for maintenance of the engine oil, fuel and air filters.

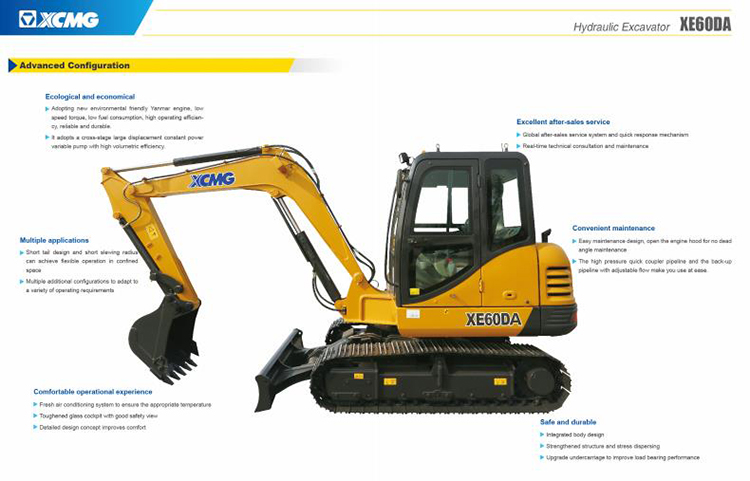

1. Ecological and economical
Adopting new environmentally friendly Yanmar engine, low speed torque, low fuel consumption, high operating efficiency, reliable and durable.
2. Multiple applications
Short tail design and short slewing radius can achieve flexible operation in confined space; multiple additional configurations to adapt to a variety of operating requirements.
3.Comfortable operational experience
Toughened glass cockpit with good safety view; detailed design concept improves comfort.
4. Excellent after-sales service
Global after-sales service system and quick response mechanism; real-time technical consultation and maintenance.
|
Operation Weight |
6010 kg |
|
|
Bucket Capacity |
0.23 m ³ |
|
|
Main performance |
Travel speed(H/L) |
4.2/2.2 km/h |
|
Rotating speed |
10 r/min |
|
|
Gradeability |
35° |
|
|
Ground pressure |
32.5 kPa |
|
|
Bucket digging force |
48.3 kN |
|
|
Arm digging force |
32.5 kN |
|
|
Maximum traction |
50.5 kN |
|
|
Hydraulic system |
Rated flow of main pump |
151.2 L/min |
|
Pressure of prime valve |
24.5 Mpa |
|
|
Pressure of travel system |
22 Mpa |
|
|
Pressure of swing system |
21 Mpa |
|
|
Pressure of pilot system |
3.5 Mpa |
|
|
Oil capacity |
Fuel tank capacity |
110 L |
|
Hydraulic tank capacity |
85 L |
|
|
Engine oil capacity |
12 L |
|
|
Appearance size |
Overall dimensions(L*W*H) |
5860×1920×2585 mm |
|
Width of platform |
1780mm |
|
|
Width of crawler |
400 mm |
|
|
Clearance under counterweight |
700 mm |
|
|
Min. ground clearance |
385 mm |
|
|
Min. tail swing radius |
2890 mm |
|
|
Working scope |
Max. digging height |
5630 mm |
|
Max. dumping height |
3945 mm |
|
|
Max. digging depth |
3830 mm |
|
|
Max. vertical wall digging depth |
2680 mm |
|
|
Max. digging reach |
6130 mm |
|
|
Min. swing radius |
2460 mm |
|
|
Standard |
Boom length |
3000 mm |
|
Arm length |
1600 mm |
|
|
Bucket Capacity |
0.23 m ³ |
|
