XCMG official 6-ton mini hydraulic excavator XE60DA crawler excavator machine price for sale
Summary
- Rated Speed: 5.5km/h
- Max Digging Radius:6130mm
- Machine Weight:6 ton
- Maximum Digging Depth:3830mm
- Maximum Digging Height:5630mm
- Bucket capacity:0.23m3
- Operating Weight:6010kg
- Model Number:XE60D
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:6000.000kg
- Condition:New
- Moving Type:Other
- Certification: ISO9001
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

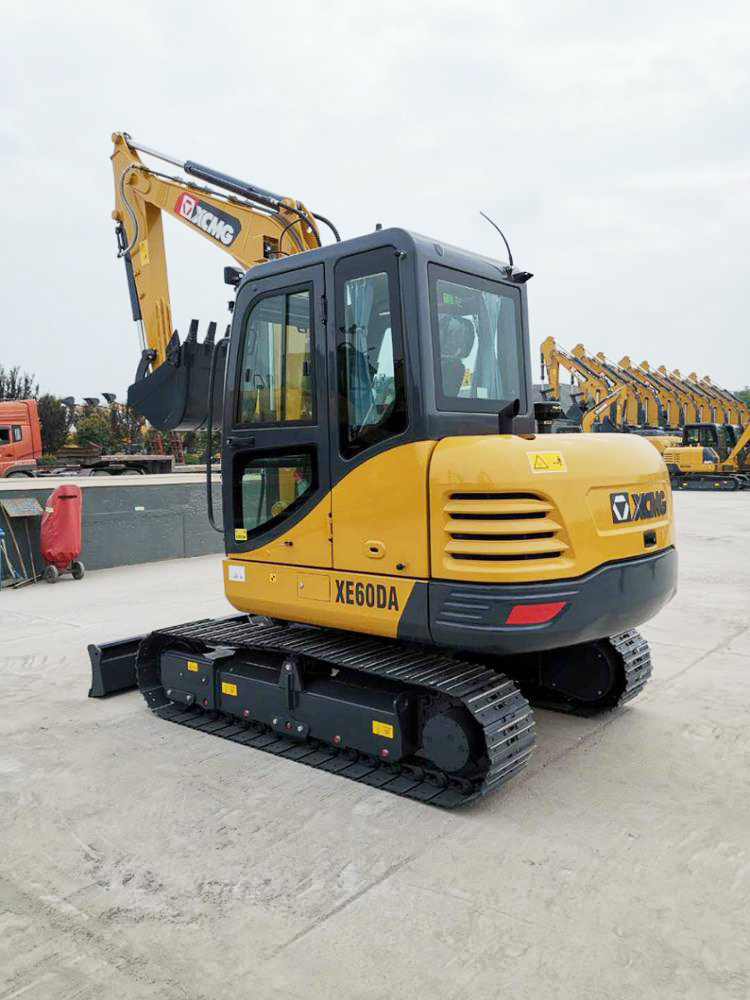

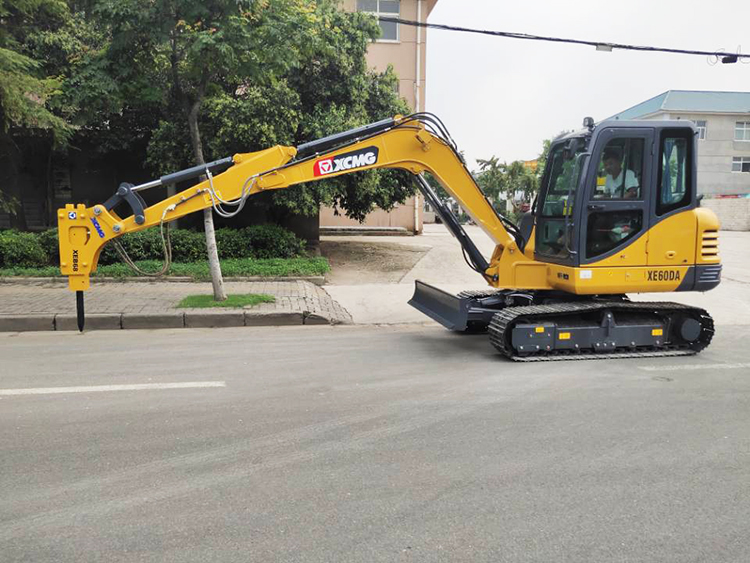

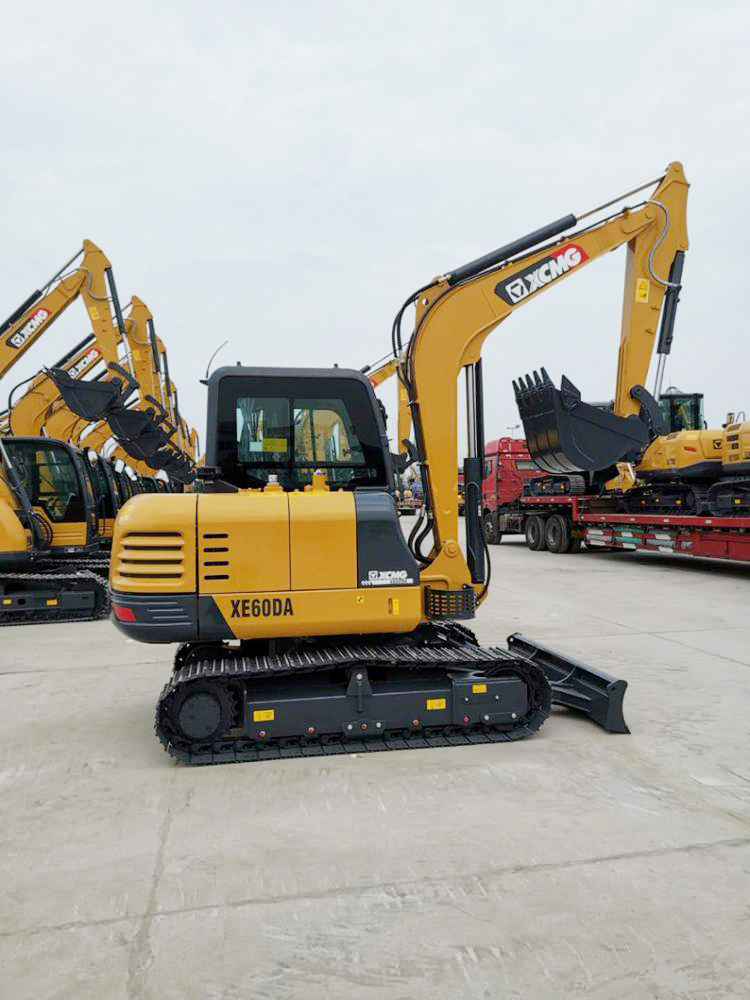

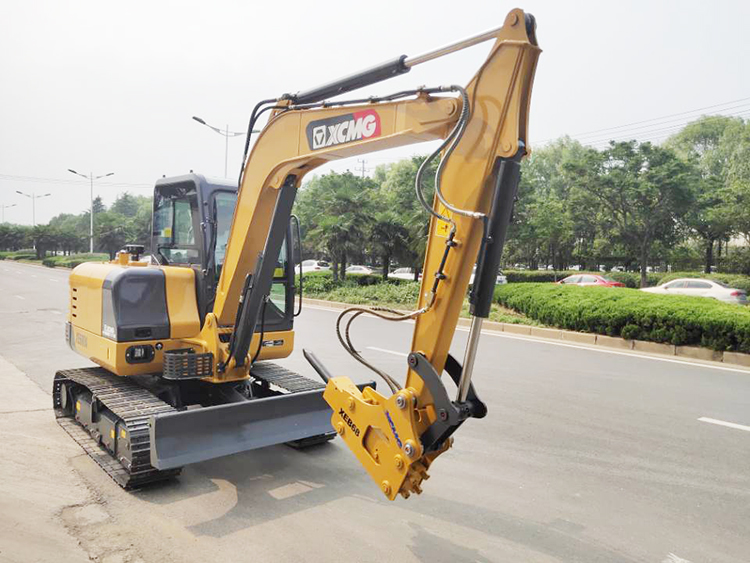

XCMG official 6-ton mini hydraulic excavator XE60DA crawler
excavator machine price for sale.
XE60DA
adopts a good engine excellent in environmental protection and energy saving.
Moreover, it uses a load sensitive hydraulic system, able to guarantee
operator's better controlling of the machine and better movement coordination,
reduce the demand for operation proficiency of the driver; in addition, the
reliability of this system has been recognized by the majority of users.
The
stress analysis and structure optimization of such key components’ platforms,
swing arms, bucket rods and lower chassis has fully guaranteed the reliability
of the structural members.
The
daily maintenance is sufficiently convenient, and you only need to open the
rear hood for maintenance of the engine oil, fuel and air filters.
Performance Characteristics:
1. Ecological and economical
*
Adopting new environmentally friendly Yammer engine, low speed torque, low fuel
consumption, high operating efficiency, reliable and durable.
*
It adopts a cross-stage large displacement constant power variable pump with
high volumetric efficiency.
2. Multiple applications
*
Short tail design and short slewing radius can achieve flexible operation in
confined space.
*
Multiple additional configurations to adapt to a variety of operating
requirements.
3.Comfortable operational experience
*
Fresh air conditioning system to ensure the appropriate temperature.
*
Toughened glass cockpit with good safety view.
*
Detailed design concept improves comfort.
4. Excellent after-sales service
*
Global after-sales service system and quick response mechanism.
*
Real-time technical consultation and maintenance.
|
Operation Weight |
6010 kg |
|
|
Bucket Capacity |
0.23 m ³ |
|
|
Main performance |
Travel speed(H/L) |
4.2/2.2 km/h |
|
Rotating speed |
10 r/min |
|
|
Gradeability |
35° |
|
|
Ground pressure |
32.5 kPa |
|
|
Bucket digging force |
48.3 kN |
|
|
Arm digging force |
32.5 kN |
|
|
Maximum traction |
50.5 kN |
|
|
Hydraulic system |
Rated flow of main pump |
151.2 L/min |
|
Pressure of prime valve |
24.5 Mpa |
|
|
Pressure of travel system |
22 Mpa |
|
|
Pressure of swing system |
21 Mpa |
|
|
Pressure of pilot system |
3.5 Mpa |
|
|
Oil capacity |
Fuel tank capacity |
110 L |
|
Hydraulic tank capacity |
85 L |
|
|
Engine oil capacity |
12 L |
|
|
Appearance size |
Overall dimensions(L*W*H) |
5860×1920×2585 mm |
|
Width of platform |
1780mm |
|
|
Width of crawler |
400 mm |
|
|
Clearance under counterweight |
700 mm |
|
|
Min. ground clearance |
385 mm |
|
|
Min. tail swing radius |
2890 mm |
|
|
Working scope |
Max. digging height |
5630 mm |
|
Max. dumping height |
3945 mm |
|
|
Max. digging depth |
3830 mm |
|
|
Max. vertical wall digging depth |
2680 mm |
|
|
Max. digging reach |
6130 mm |
|
|
Min. swing radius |
2460 mm |
|
|
Standard |
Boom length |
3000 mm |
|
Arm length |
1600 mm |
|
|
Bucket Capacity |
0.23 m ³ |
|
