XCMG hydraulic crawler excavator XE370CA 37 ton large high quality crawler excavator for sale
Summary
- Rated Speed:5.4/3.2(km/h)
- Max Digging Radius:11114mm
- Machine Weight:36600kg
- Maximum Digging Depth:7423mm
- Maximum Digging Height:10445mm
- Bucket capacity:1.4~1.8m3
- Operating Weight:37 Ton
- Model Number:XE370CA
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- Weight:36600.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG hydraulic crawler excavator XE370CA 37 ton large high quality crawler excavator.
XCMG XE370CA hydraulic excavator as a model featuring strong power, excellent energy saving, outstanding environmental protection and strong durability, etc., and especially suitable for earthwork engineering, tunnels and other harsh construction environment.
It has adopted advanced design and manufacturing methods and the latest standards in accordance with the product design concept of “high efficiency, excellent energy saving and outstanding environmental protection”, and the ultimate target of “powerful functions, wide scope of applications and creation of more value for customers”.

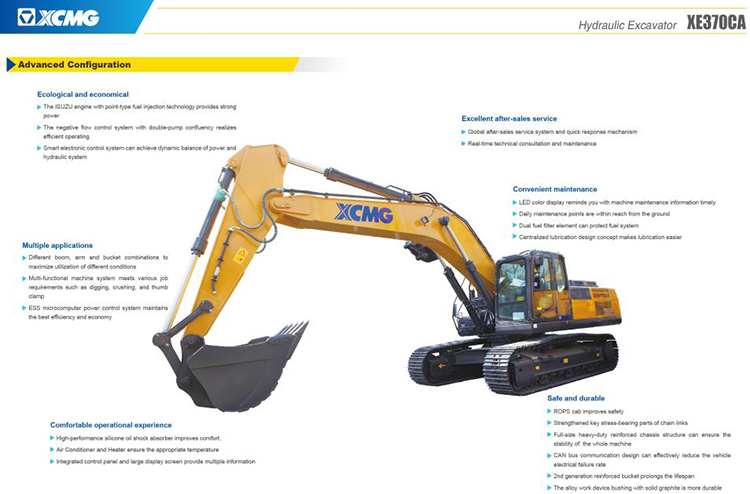

Model Characteristics:
1. Ecological and economical
* The ISUZU engine with point-type fuel injection technology provides strong power.
* The negative flow control system with double-pump confluency realizes efficient operating.
* Smart electronic control system can achieve dynamic balance of power and hydraulic system.
2. Multiple applications
* Different boom, arm and bucket combinations to maximize utilization of different conditions.
* Multi-functional machine system meets various job requirements such' as digging, crushing, and thumb clamp.
* ESS microcomputer power control system maintains the best efficiency and economy.
3. Comfortable operational experience
* High-performance silicone oil shock absorber improves comfort.
* Air Conditioner and Heater ensure the appropriate temperature.
* Integrated control panel and large display screen provide multiple information.
|
Description |
Unit |
Parameter value |
|
|
Operating weight |
kg |
36600 |
|
|
Bucket capacity |
m³ |
1.4～1.8 |
|
|
Engine |
Model |
Engine |
ISUZU AA-6HK1XQP |
|
Direct injection |
--- |
√ |
|
|
Four strokes |
--- |
√ |
|
|
Water cooling |
--- |
√ |
|
|
Turbo-charging |
--- |
√ |
|
|
Air to air intercooler |
--- |
√ |
|
|
No. of cylinders |
--- |
6 |
|
|
Output power |
kW/ r/min |
190.5/2000 |
|
|
torque/speed |
N.m |
872.8/1700 |
|
|
Displacement |
L |
7.79 |
|
|
Travel speed（H/L) |
km/h |
5.4/3.2 |
|
|
Main performance |
Gradeability |
% |
70 |
|
Rotary speed |
r/min |
9.6 |
|
|
Ground pressure |
kPa |
66.6 |
|
|
Bucket digging force |
kN |
263 |
|
|
Arm digging force |
kN |
225 |
|
|
Working scope (2.71m arm) |
Max. dumping height |
mm |
6947 |
|
Max. digging depth |
mm |
6927 |
|
|
Max. digging depth at the range of level 8 feet |
mm |
6709 |
|
|
Max. vertical wall digging depth |
mm |
5312 |
|
|
Max. digging reach |
mm |
10470 |
|
|
Min. swing radius |
mm |
4424 |
|
|
Working scope (2.5m arm) |
Max. digging height |
mm |
9891 |
|
Max. dumping height |
mm |
6820 |
|
|
Max. digging depth |
mm |
6786 |
|
|
Max. digging depth at the range of level 8 feet |
mm |
6666 |
|
|
Max. vertical wall digging depth |
mm |
4914 |
|
|
Max. digging reach |
mm |
10414 |
|
|
Min. swing radius |
mm |
4416 |
|
|
Worker Standard |
Length of boom |
mm |
6400 |
|
Length of arm |
mm |
2670 |
|
|
Bucket capacity |
m³ |
1.6 |
|
|
Worker Optional |
Length of arm |
mm |
2900/3200/4000 |
|
Bucket capacity |
m³ |
1.4/1.5/1.8 |
|
