Summary
- Max Digging Radius:11114mm
- Machine Weight:36800Kg
- Maximum Digging Depth:7423mm
- Maximum Digging Height:10445mm
- Bucket capacity:1.6m3
- Operating Weight:36800Kg
- Model Number:XE360E
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:36800.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

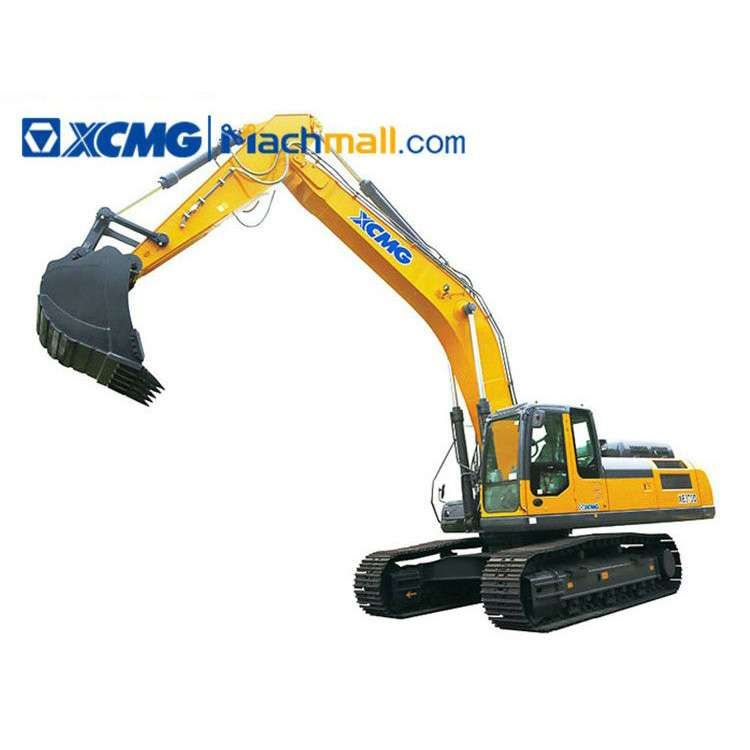

XCMG 35 Ton Mining Excavator Hydraulic Digger Machine XE360E Meets Eruo IV Emissions Price.
engine that meets Eruo IV emissions, achieving optimal fuel injection control and improved combustion efficiency for greater energy and environmental protection. The new cab is complemented by luxurious interiors. The panoramic sunroof has a wider field of view and the operation buttons are centrally arranged to fully upgrade the driving experience.
The reinforced working device, combined with the high-pressure system design, ensures that the machine has the most powerful digging force in the same class of machines, and can easily cope with various working conditions. Can be widely used in municipal construction, highway and bridge construction, digging trenches, farmland water conservancy construction and other projects.
Sales model |
Unit |
XE360E |
|
Operating weight |
Kg |
36800 |
|
Bucket capacity |
m³ |
1.6 |
|
Engine |
Model |
/ |
QSL9 |
No. of cylinders |
/ |
6 |
|
Rated power |
kw/rpm |
213/2000 |
|
Maximum torque/speed |
N.m/rpm |
1400/1451 |
|
Displacement |
L |
8.9 |
|
Main performance |
Travel speed |
km/h |
5.4/3.2 |
Swing speed |
r/min |
9.7 |
|
Gradeability |
° |
35 |
|
Ground pressure |
kPa |
66.7 |
|
Bucket digging force |
kN |
263 |
|
Arm digging force |
kN |
183 |
|
Maximum tractive force |
kN |
285 |
|
Hydraulic system |
Rated flow of main pump |
L/min |
2×300 |
Main safety valve pressure |
MPa |
34.3/37.3 |
|
Travel system pressure |
MPa |
34.3 |
|
Swing system pressure |
MPa |
26.5 |
|
Pilot system pressure |
MPa |
3.9 |
|
Oil Capacity |
Fuel tank capacity |
L |
660 |
Hydraulic tank capacity |
L |
350 |
|
Engine oil capacity |
L |
30 |
|
Appearance size |
A Overall length |
mm |
11388 |
B Overall width |
mm |
3226 |
|
C Overall height |
mm |
3570 |
|
D Width of platform |
mm |
3200 |
|
E Track length |
mm |
5035 |
|
F Overall width of chassis |
mm |
3190 |
|
G Track width |
mm |
600 |
|
H Wheel base of crawler |
mm |
4040 |
|
I Track gauge |
mm |
2590 |
|
J Counterweight clearance |
mm |
1197 |
|
K Min. ground clearance |
mm |
500 |
|
L Min. tail swing radius |
mm |
3700 |
|
M Track height |
mm |
1115 |
|
Working scope |
A Max. digging height |
mm |
10445 |
B Max. dumping height |
mm |
7287 |
|
C Max. digging depth |
mm |
7423 |
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
7266 |
|
E Max. vertical wall digging depth |
mm |
6776 |
|
F Max. digging radius |
mm |
11114 |
|
G Min. swing radius |
mm |
4369 |
|
Standard |
Length of boom |
mm |
6400 |
Length of arm |
mm |
3200 |
|
Bucket capacity |
m³ |
1.6 |
|
Optional |
Length of boom |
m³ |
6200 |
Length of arm |
m³ |
2670 |
|
Bucket capacity |
m³ |
1.8 Earthwork bucket(Equipped with 2.67 meters arm) 1.4 Rock bucket |
