Summary
- Max Digging Radius:5415mm
- Machine Weight:4200kg
- Maximum Digging Depth:3060mm
- Maximum Digging Height:5215mm
- Bucket capacity:0.12m3
- Operating Weight:4200kg
- Model Number:XE35U
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:4200.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

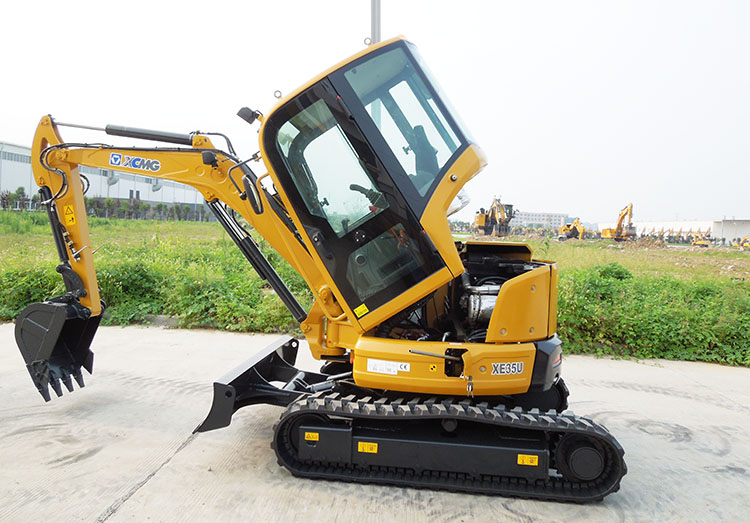

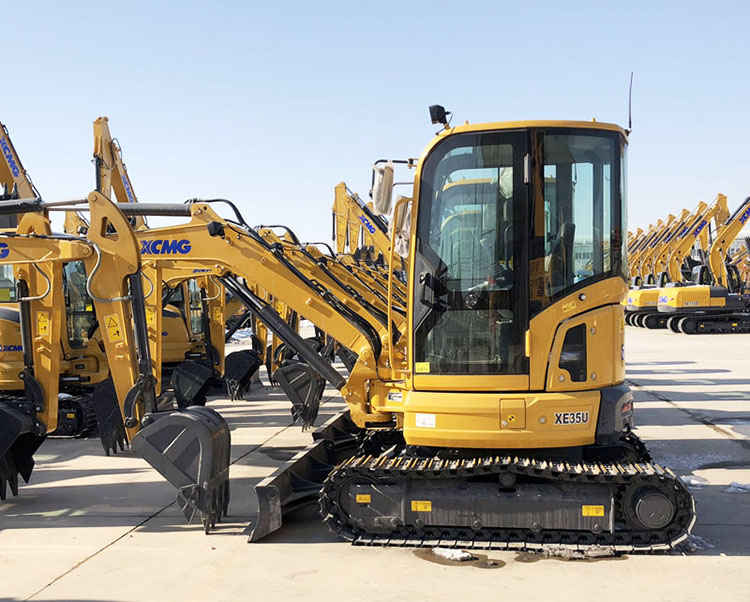

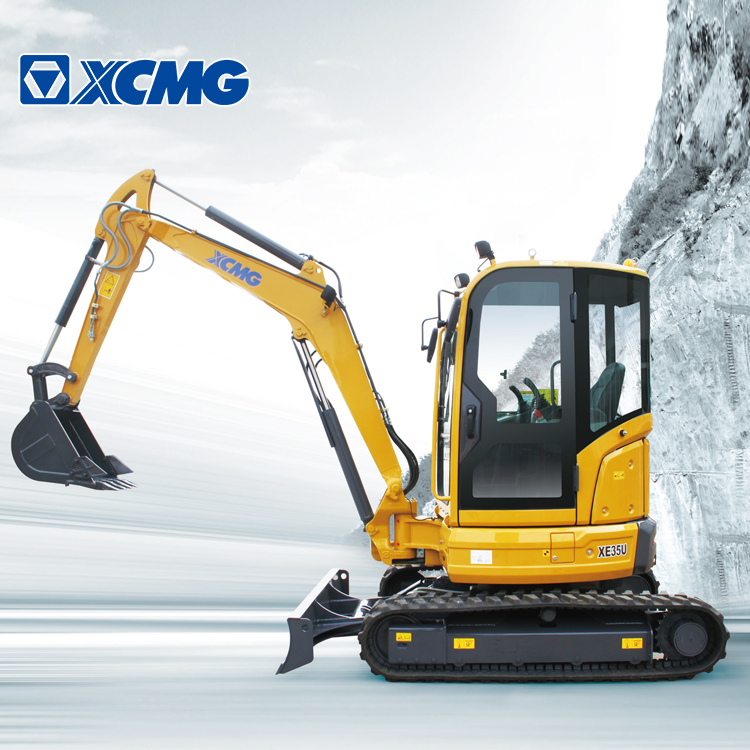

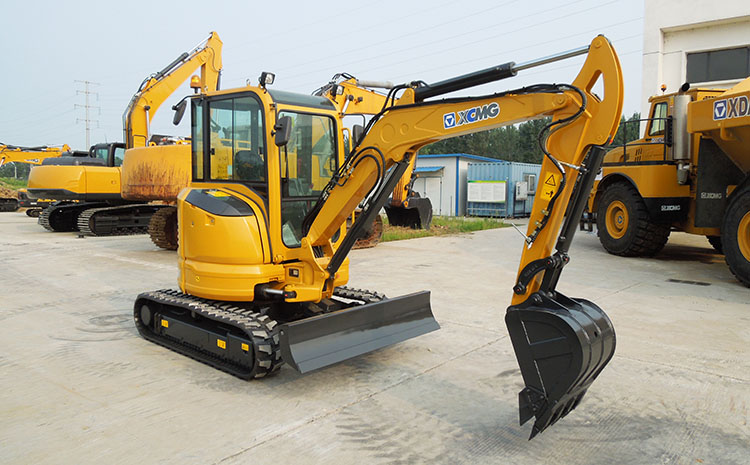

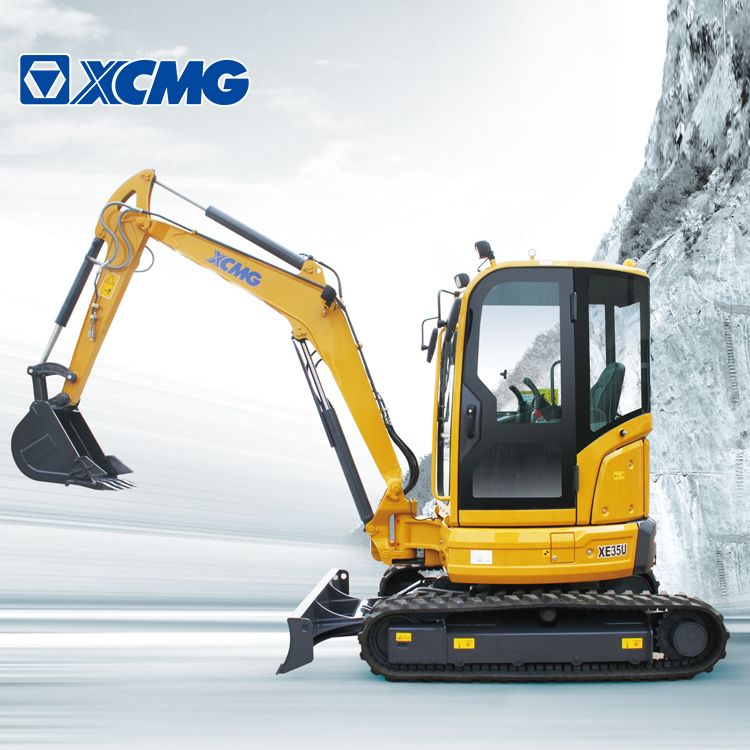

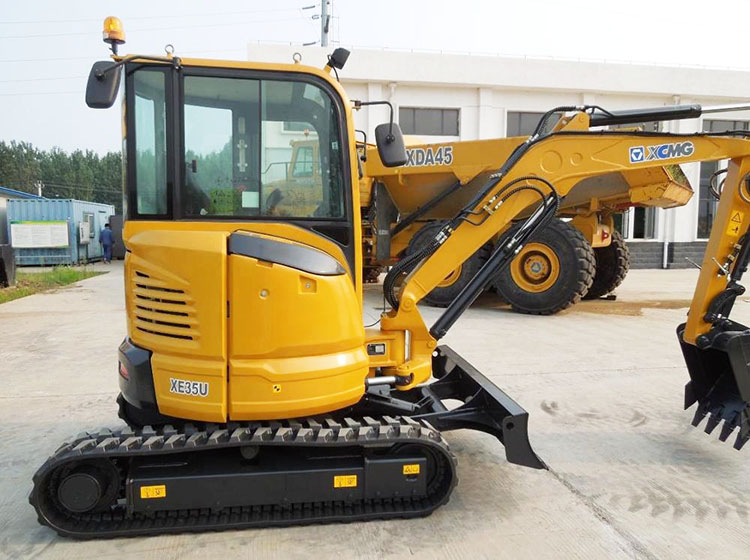

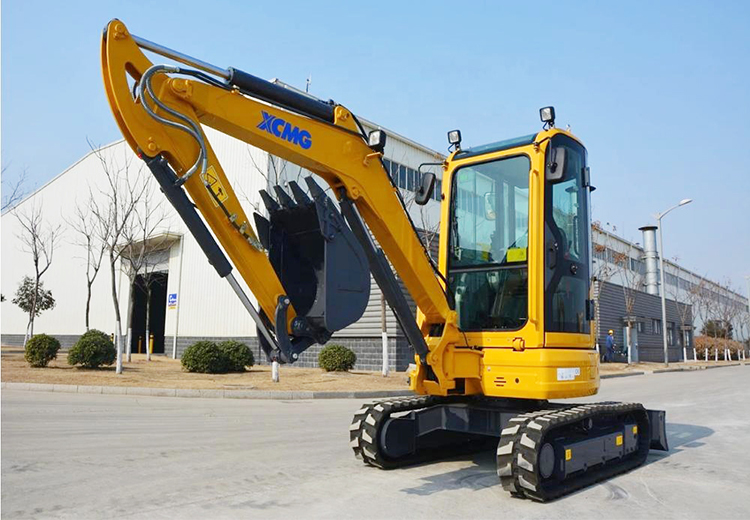

XCMG official XE35U China new 3ton small hydraulic excavator.
XE35U hydraulic excavator cooperates with multi-functional working tools to complete tasks such as excavation, loading, leveling, trenching, crushing, drilling, pinching, lifting, etc. It is widely used in the construction and production of hydropower, transportation, municipal, garden, farmland transformation, oil pipelines, etc.
1. More energy-conservation and environmental protection
* By adopting Yanmar engine meeting national stage III emission standard, mechanical fuel injection pump has reliable performance.
* With compact size, the maintenance is convenient. Enough low torque reserve can ensure strong power. High reliability can reduce the maintenance cost.
2. More efficient return
* Rear-end swing radius adopts tailless design, which can ensure that the tail part will not collide with obstacles under narrow working conditions.
* Deflectable working device can deflect to left and right at 75° and 50° separately, which can achieve compound action with superstructure.
* Through swing cooperation with superstructure, digging operation parallel to the wall surface will be achieved and various kinds of working conditions can be coped with easily.
3. More reliable and durable
* Partial strengthen the parts with great stress on boom and arm, and meanwhile adjust the structure to disperse the stress, which makes the life longer.
* With standard configured new bucket, the depth of bucket is reduced and unloading material will be faster and easier.
Model |
Metric unit |
XE35U |
|
Operating weight |
kg |
4200 |
|
Bucket capacity |
m3 |
0.11 |
|
Engine |
Output power |
kW/ r/min |
21.6/2400 |
torque/speed |
N.m |
107.2/1444 |
|
Displacement |
L |
1.642 |
|
Main performance |
Travel speed(H/L) |
km/h |
3.6/2.2 |
Gradeability |
% |
58 |
|
Rotating speed |
r/min |
8.5 |
|
Ground pressure |
kPa |
36.6 |
|
Bucket digging force |
kN |
24.6 |
|
Arm crowd force |
kN |
17.8 |
|
Appearance size |
Overall length |
mm |
4960 |
Overall width |
mm |
1740 |
|
Overall height |
mm |
2535 |
|
Width of platform |
mm |
1585 |
|
Length of crawler |
mm |
2220 |
|
Working scope |
Max. digging height |
mm |
5215 |
Max. dumping height |
mm |
3760 |
|
Max. digging depth |
mm |
3060 |
|
Max. vertical wall digging depth |
mm |
2260 |
|
Max. digging reach |
mm |
5415 |
|
Min. swing radius |
mm |
2170 |
