XCMG 3 ton Excavator XE35E China Mini Small Hydraulic Crawler Excavator Japan Yanmar Engine with CE
Summary
- Rated Speed:9r/min
- Max Digging Radius:5300mm
- Maximum Digging Depth:3060mm
- Maximum Digging Height:5000mm
- Bucket capacity:0.12
- Operating Weight:4200Kg
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:4200.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 3 ton Excavator XE35E China Mini Small Hydraulic Crawler Excavator Japan Yanmar Engine with CE (Euro Stage V) prices.
1. Environment friendly engine meeting Euro V emission standards is equipped with large displacement main pump, which has low energy consumption and high efficiency.
2. Tailless design cooperates with boom swing function, which can adapt to the narrow space operation flexibly.

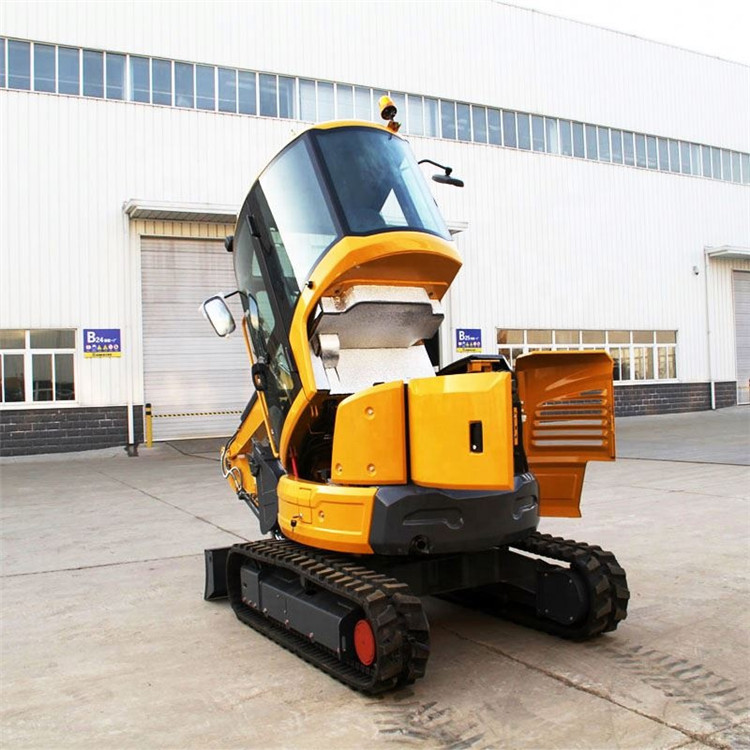

3. The cab can be flipped up for easy maintenance.
4. Cab and base plate are integrated, which has strong noise isolation and high comfort.
5. The whole machine's weight is distributed reasonably improving the excavator's digging stability.
6. The armrest can be flipped up for easy access to the cab.
|
Item |
Unit |
Parameters |
|
|
Model |
Operating weight |
Kg |
4200 |
|
Bucket capacity |
m³ |
0.12 |
|
|
Engine |
Model |
- |
Yanmar 3TNV88F |
|
No. of cylinders |
- |
3 |
|
|
Rated power |
kw/rpm |
18.2/2200 |
|
|
Maximum torque/speed |
N.m |
85.3-94.2/1320 |
|
|
Displacement |
L |
1.642 |
|
|
Main performance |
Travel speed (H/L) |
km/h |
3.6/2.2 |
|
Swing speed |
r/min |
9 |
|
|
Gradeability |
° |
≤30 |
|
|
Ground pressure |
kPa |
36.6 |
|
|
Bucket digging force |
kN |
28.6 |
|
|
Arm digging force |
kN |
20.3 |
|
|
Maximum tractive force |
kN |
31.6 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
108 |
|
Main safety valve pressure |
Mpa |
23 |
|
|
Travel system pressure |
Mpa |
27.5 |
|
|
Swing system pressure |
Mpa |
16.7 |
|
|
Pilot system pressure |
Mpa |
3.9 |
|
|
Oil capacity |
Fuel tank capacity |
L |
40 |
|
Hydraulic tank capacity |
L |
45 |
|
|
Engine oil capacity |
L |
7 |
|
|
Appearance size |
A Overall length |
mm |
4960 |
|
B Overall width |
mm |
1740 |
|
|
C Overall height |
mm |
2535 |
|
|
D Width of platform |
mm |
587 |
|
|
E Minimum tail swing radius |
mm |
870 |
|
|
F Track shoe width |
mm |
300 |
|
|
G Wheel base of crawler |
mm |
1721 |
|
|
H Track gauge |
mm |
1440 |
|
|
J Minimum ground clearance |
mm |
297 |
|
|
Dozer blade(width/height) |
mm |
1740/358 |
|
|
Working range |
A Maximum digging height |
mm |
5000 |
|
B Maximum dumping height |
mm |
3600 |
|
|
C Maximum digging depth |
mm |
3060 |
|
|
D Maximum vertical wall digging depth |
mm |
2260 |
|
|
E Maximum digging radius |
mm |
5300 |
|
|
F Minimum swing radius |
mm |
2170 |
|
|
Maximum dozer lifting height |
mm |
305 |
|
|
Maximum dozer cutting depth |
mm |
360 |
|
|
Standard |
Length of boom |
mm |
2560 |
|
Length of arm |
mm |
1350 |
|
