XCMG Excavators XE335DK China 30 ton Hydraulic Crawler Excavator Machine with Hammer Bucket for sale
Summary
- Max Digging Radius:10680mm
- Bucket capacity:1.6-2.0m3
- Operating Weight:32500Kg
- Model Number:XE335DK
- Brand Name:XCMG
- Place of Origin:China
Specifications
- Weight:32500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

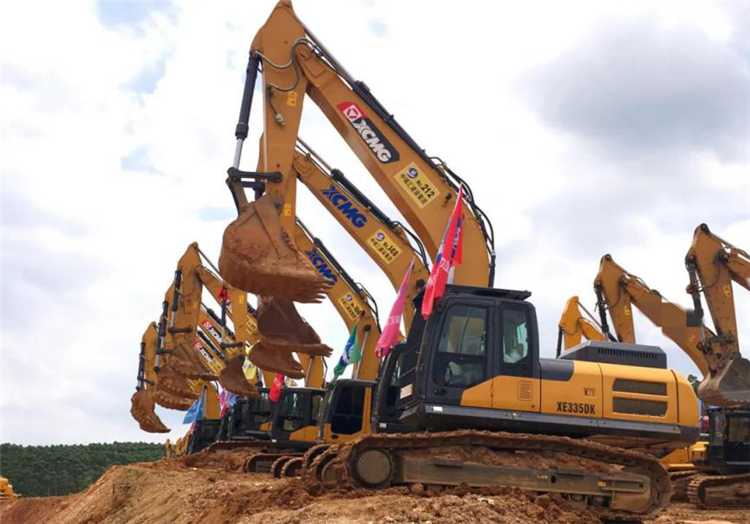

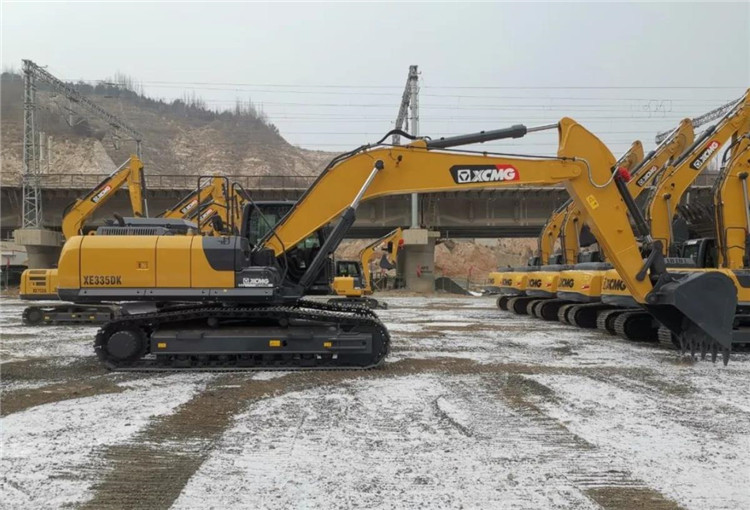

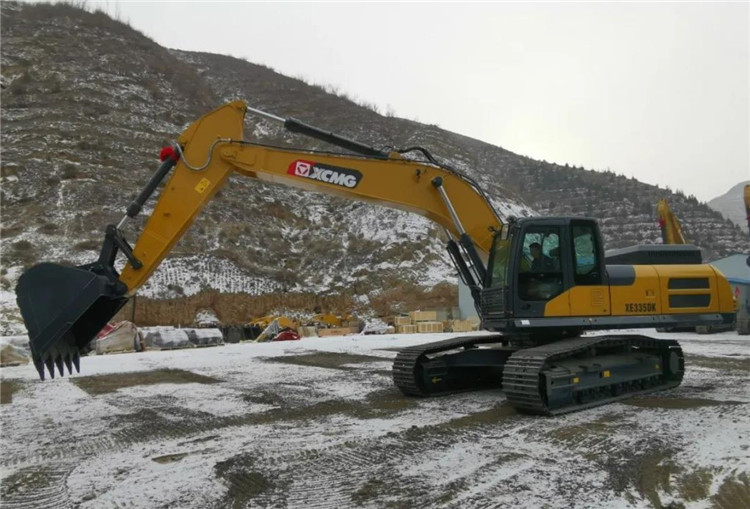

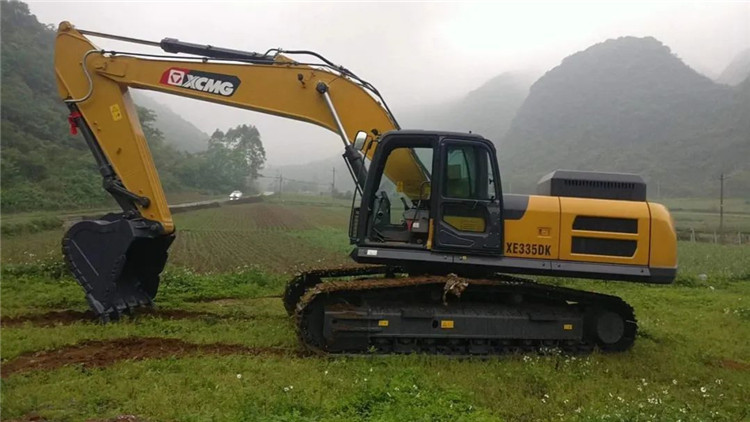

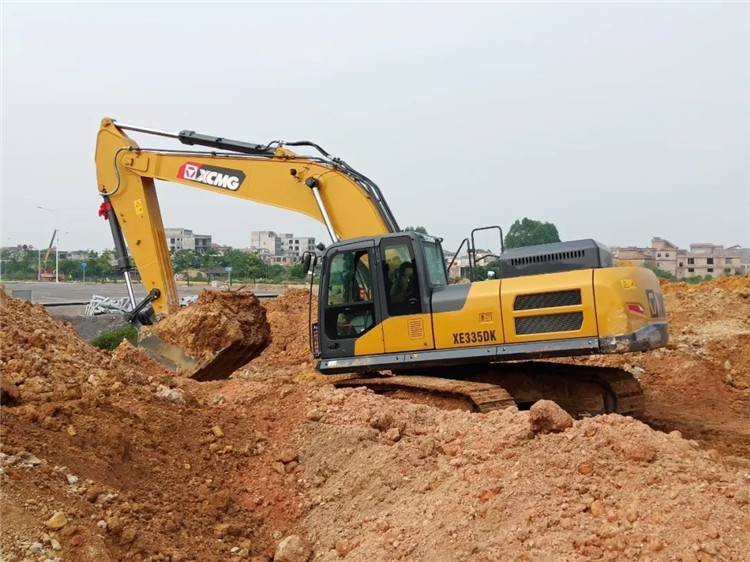

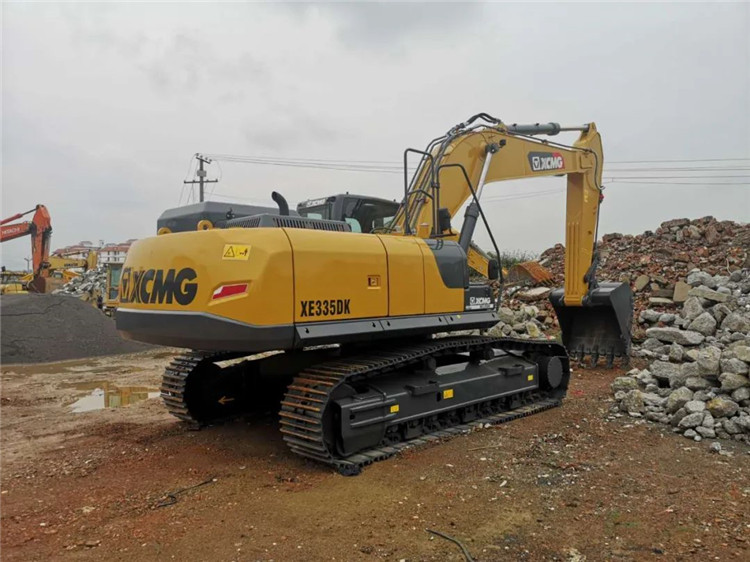

XCMG Excavators XE335DK China 30 ton Hydraulic Crawler Excavator Machine with Hammer Bucket
XCMG XE335DK hydraulic excavator as a model featuring strong power, excellent energy saving, outstanding environmental protection and strong durability, etc., and especially suitable for earthwork engineering, tunnels and other harsh construction environment.
It has adopted advanced design and manufacturing methods and the latest standards in accordance with the product design concept of “high efficiency, excellent energy saving and outstanding environmental protection”, and the ultimate target of “powerful functions, wide scope of applications and creation of more value for customers”.
1. Ecological and economical

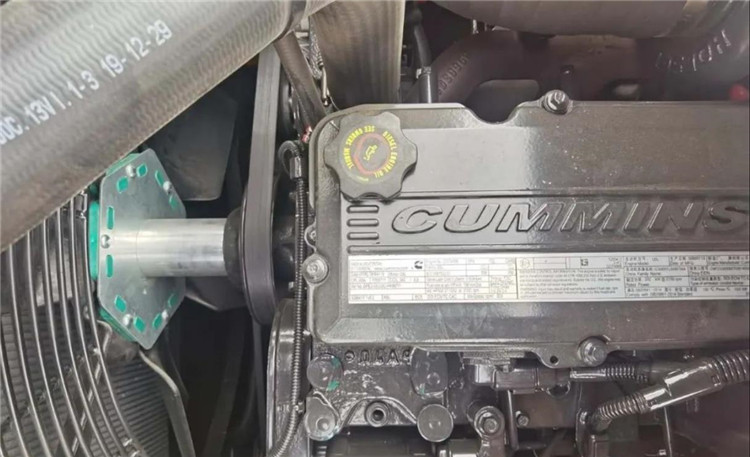

* Cummins engine with low fuel consumption, low noise and low emission can provide strong power.
* Negative flow control system maximizes work efficiency.
* Smart electronic control system can achieve the balance of power and hydraulic load.
2. Multiple applications

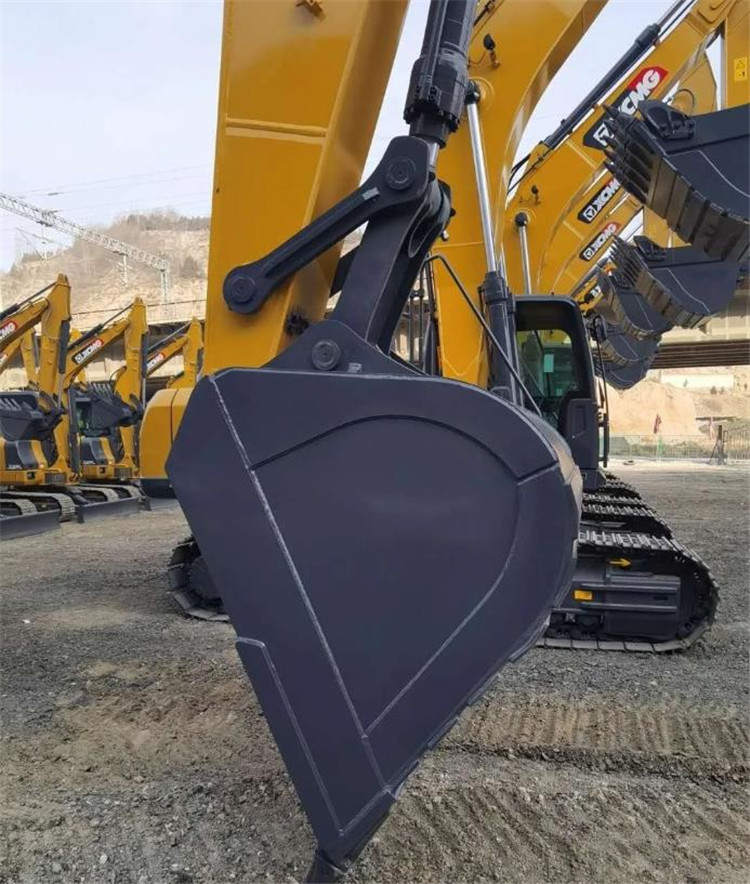

* Different boom and bucket combinations maximize utilization of different conditions.
* Multi-functional machine system meets various job requirements such as digging and crushing.
3. Comfortable operational experience
* Air Conditioner and Heator and multi-channel stereo air input system ensure the appropriate temperature.
* Equipped with advanced audio system.
* The cab equipped with hydraulic shock absorbers has multi-directional and multi-level adjustment functions.
|
Sales model |
Unit |
XE335DK |
|
|
Operating weight |
Kg |
32500 |
|
|
Bucket capacity |
m³ |
1.6-2.0 |
|
|
Engine |
Model |
/ |
QSL9 |
|
No. of cylinders |
/ |
6 |
|
|
Output power |
kw/rpm |
202/2100 |
|
|
Maximum torque/speed |
N.m/rpm |
1230/1500 |
|
|
Displacement |
L |
8.9 |
|
|
Main performance |
Travel speed |
km/h |
5.3/3.2 |
|
Swing speed |
r/min |
11.5 |
|
|
Gradeability |
° |
35 |
|
|
Bucket digging force |
kN |
206 |
|
|
Arm digging force |
kN |
160 |
|
|
Maximum traction |
kN |
260 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
2×272 |
|
Main safety valve pressure |
MPa |
36 |
|
|
Travel system pressure |
MPa |
34.3 |
|
|
Rotary system pressure |
MPa |
30 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
520 |
|
Hydraulic tank capacity |
L |
270 |
|
|
Engine oil capacity |
L |
30 |
|
|
Appearance size |
A Overall length |
mm |
10790 |
|
B Overall width |
mm |
3150 |
|
|
C Overall height |
mm |
3640 |
|
|
D Width of platform |
mm |
3050 |
|
|
E Track length |
mm |
4944 |
|
|
F Overall width of chassis |
mm |
3190 |
|
|
G Track width |
mm |
600 |
|
|
H Length to center of rollers |
mm |
4028 |
|
|
I Track gauge |
mm |
2590 |
|
|
J Counterweight clearance |
mm |
1198 |
|
|
K Min. ground clearance |
mm |
538 |
|
|
L Min. tail swing radius |
mm |
3360 |
|
|
M Track height |
mm |
1084 |
|
|
Working scope |
A Max. digging height |
mm |
10265 |
|
B Max. dumping height |
mm |
7110 |
|
|
C Max. digging depth |
mm |
6735 |
|
|
E Max. vertical wall digging depth |
mm |
5010 |
|
|
F Max. digging radius |
mm |
10680 |
|
|
G Min. swing radius |
mm |
4125 |
|
|
Standard configuration |
Length of boom |
mm |
6150 |
|
Length of arm |
mm |
2900 |
|
|
Bucket capacity |
m³ |
1.6 |
|
|
Length of arm |
m³ |
2670 |
|
|
Bucket capacity |
m³ |
1.8/2Earthwork bucket 1.45/1.6Rock bucket |
|
