XCMG 33.5ton crawler excavator XE335C china top brand new hydraulic excavator machine price
Summary
- Rated Speed:2000rpm
- Machine Weight:33800kg
- Maximum Digging Depth:6972mm
- Maximum Digging Height:10074mm
- Bucket capacity:1.4m3
- Operating Weight:33800kg
- Model Number:XE335C
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- Weight:33800.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 33.5ton crawler excavator XE335C china top brand new hydraulic excavator machine price
XCMG XE335C hydraulic excavator as a model featuring strong power, excellent energy saving, outstanding environmental protection and strong durability, etc., and especially suitable for earthwork engineering, tunnels and other harsh construction environment.
It has adopted advanced design and manufacturing methods and the latest standards in accordance with the product design concept of “high efficiency, excellent energy saving and outstanding environmental protection”, and the ultimate target of “powerful functions, wide scope of applications and creation of more value for customers”.
1. Ecological and economical
* ISUZU engine with low fuel consumption, low noise and low emission can provide strong power.
* Negative flow control system maximizes work efficiency.
* Smart electronic control system can achieve the balance of power and hydraulic load.
2. Multiple applications
* Different boom and bucket combinations maximize utilization of different conditions.
* Multi-functional machine system meets various job requirements such as digging and crushing.

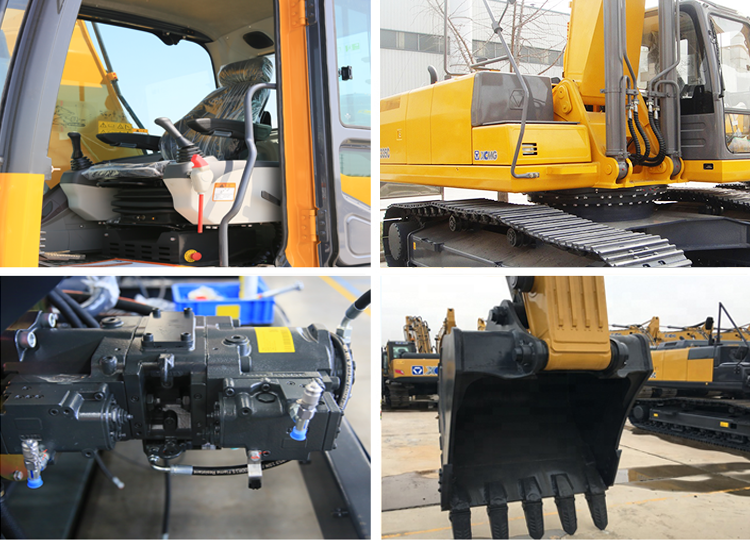

3. Comfortable operational experience
* Air Conditioner and Heator and multi-channel stereo air input system ensure the appropriate temperature.
* Equipped with advanced audio system.
* The cab equipped with hydraulic shock absorbers has multi-directional and multi-level adjustment functions.
|
Item |
Unit |
Parameters |
|
|
Model |
Operating weight |
kg |
33800 |
|
Bucket capacity |
m³ |
1.4-1.6-10 |
|
|
Engine |
Engine model |
/ |
ISUZU AA-6HK1XQP |
|
Direct injection |
/ |
√ |
|
|
4×strokes |
/ |
√ |
|
|
Water cooling |
/ |
√ |
|
|
Turbocharging |
/ |
√ |
|
|
A/A intercool |
/ |
√ |
|
|
Cylinders |
/ |
6 |
|
|
Output power of engine |
Kw/rpm |
190.5/2000 |
|
|
Max.torque/engine |
N.m/rpm |
872.8/1700 |
|
|
Displacement |
L |
7.79 |
|
|
Main performance |
Travel speed |
km/h |
5.5/3.3 |
|
Slewing speed |
r/min |
9.7 |
|
|
Gradient capability |
° |
≤35° |
|
|
Ground pressure |
kPa |
66 |
|
|
Digging capacity of tcuket |
kN |
263 |
|
|
Digging capacity of tcuket rod |
kN |
225 |
|
|
Max.traction |
kN |
261 |
|
|
Working scope |
A Max.digging height |
mm |
10074 |
|
B Max.unloading height |
mm |
6898 |
|
|
C Max.digging depth |
mm |
6972 |
|
|
D Digging depth at the range of 8 feet horizontally |
mm |
6728 |
|
|
E Max.vertical digging depth |
mm |
5366 |
|
|
F Max.digging radius |
mm |
10650 |
|
|
G Max.swing height |
mm |
4424 |
|
|
Standard configuration |
Boom length |
mm |
6400 |
|
Length of bucket rod |
mm |
2670 |
|
|
Bucket capacity |
m³ |
1.4 |
|
|
Optional configuration |
Length of bucket rod |
mm |
2900/3200/4000 |
|
Bucket capacity |
m³ |
1.6 |
