XCMG XE335C excavator 30 ton rc hydraulic crawler excavator machine for sale
Summary
- Rated Speed:3.3-5.5km/h
- Max Digging Radius:4424mm
- Machine Weight:34000kg
- Maximum Digging Depth:6972mm
- Maximum Digging Height:10074mm
- Bucket capacity:1.4m³
- Operating Weight:33800kg
- Model Number:XE335C
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:34000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

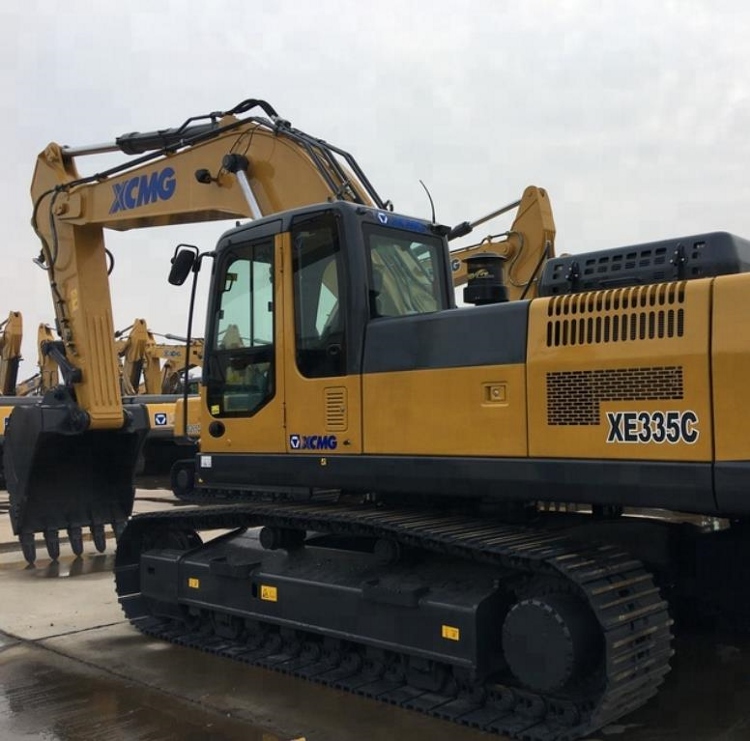

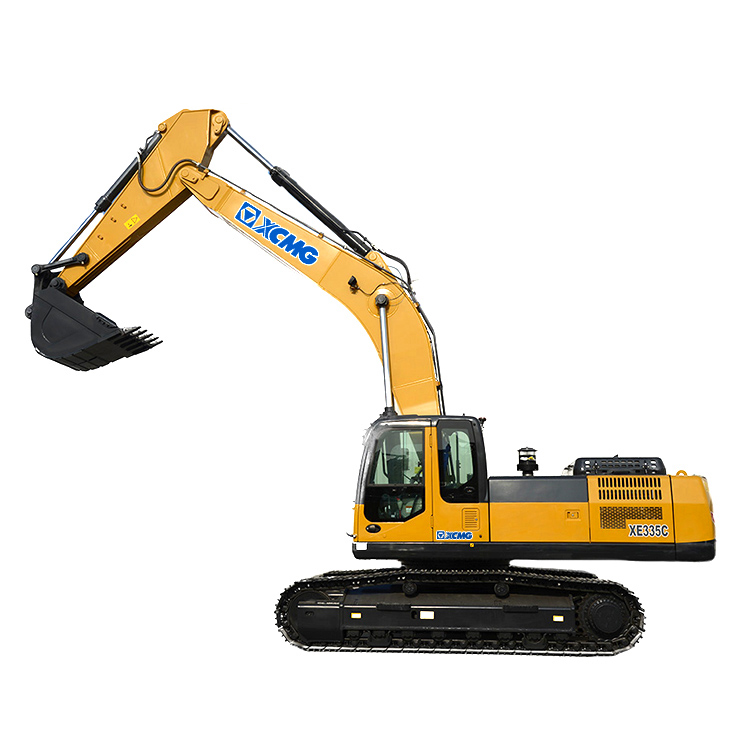

XCMG XE335C excavator 30 ton rc hydraulic excavator crawler excavator machine.
XCMG XE335C hydraulic excavator as a model featuring strong power, excellent energy saving, outstanding environmental protection and strong durability, etc., and especially suitable for earthwork engineering, unnels and other harsh construction environment.
It has adopted advanced design and manufacturing methods and the latest standards in accordance with the product design concept of “high efficiency, excellent energy saving and outstanding environmental protection”, and the ultimate target of “powerful functions, wide scope of applications and creation of more value for customers”.
Model Characteristics:
1. The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2. The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4. The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.
|
Project |
Unit |
Parameter |
|
|
Model |
Operating weight |
kg |
33800 |
|
Bucket capacity |
m³ |
1.4-1.6-10 |
|
|
Engine |
Engine model |
/ |
ISUZU AA-6HK1XQP |
|
Direct injection |
/ |
√ |
|
|
4×strokes |
/ |
√ |
|
|
Water cooling |
/ |
√ |
|
|
Turbocharging |
/ |
√ |
|
|
A/A intercool |
/ |
√ |
|
|
Cylinders |
/ |
6 |
|
|
Output power of engine |
Kw/rpm |
190.5/2000 |
|
|
Max.torque/engine |
N.m/rpm |
872.8/1700 |
|
|
Displacement |
L |
7.79 |
|
|
Mian pertormance |
Travel speed |
km/h |
5.5/3.3 |
|
Slewing speed |
r/min |
9.7 |
|
|
Gradient capability |
° |
≤35° |
|
|
Ground pressure |
kPa |
66 |
|
|
Digging capacity of tcuket |
kN |
263 |
|
|
Digging capacity of tcuket rod |
kN |
225 |
|
|
Max.traction |
kN |
261 |
|
|
Working scope |
A Max.digging height |
mm |
10074 |
|
B Max.unloading height |
mm |
6898 |
|
|
C Max.digging depth |
mm |
6972 |
|
|
D Digging depth at the range of 8feets horizontally |
mm |
6728 |
|
|
E Max.vertical digging depth |
mm |
5366 |
|
|
F Max.digging radius |
mm |
10650 |
|
|
G Max.swing height |
mm |
4424 |
|
|
Standard configuration |
Boom length |
mm |
6400 |
|
Length of bucket rod |
mm |
2670 |
|
|
Bucket capacity |
m³ |
1.4 |
|
|
Optional counfiguration |
Length of bucket rod |
mm |
2900/3200/4000 |
|
Bucket capacity |
m³ |
1.6 |
|
