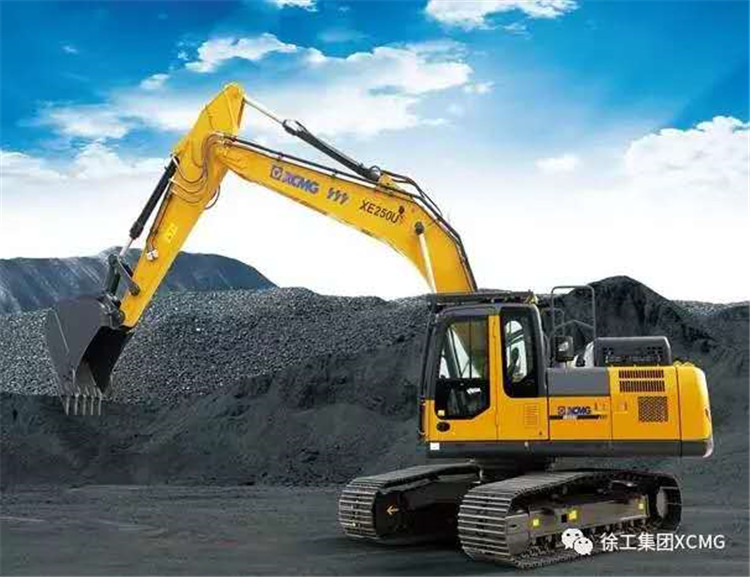

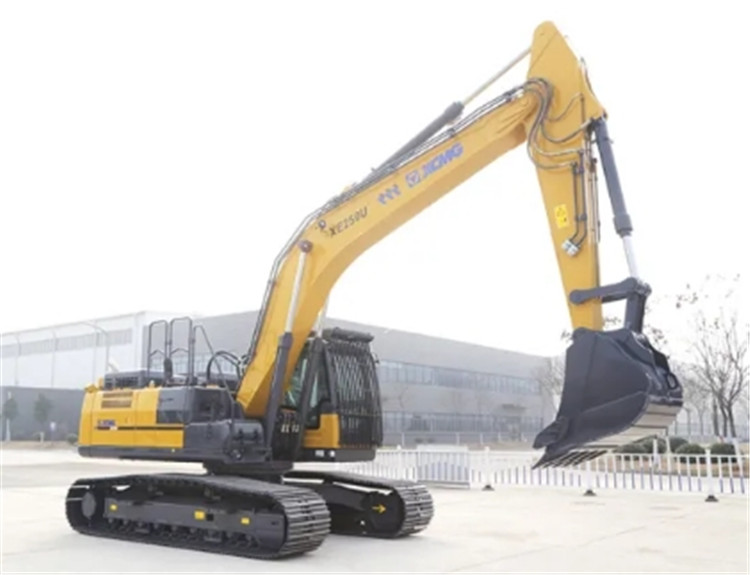

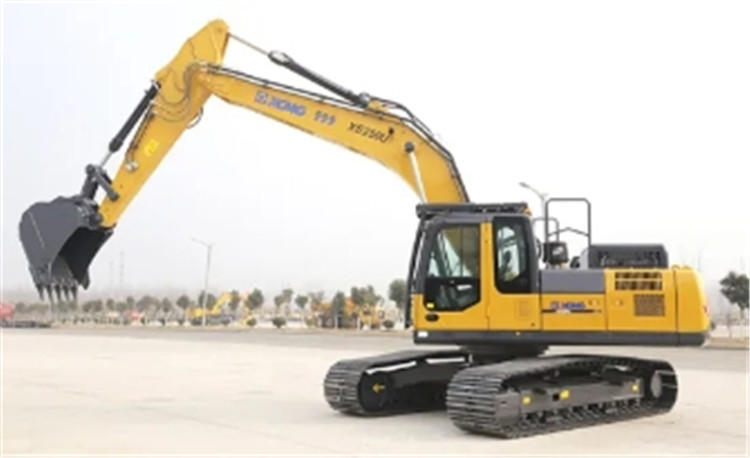

XCMG 25 Ton Cheap Excavators China Crawler Excavator XE250U With Hydraulic Hammer For Sale
![](/app/topc/statics/images/close.png)
![XCMG 25 Ton Cheap Excavators China Crawler Excavator XE250U With Hydraulic Hammer For Sale](http://www.machmall.com/images/store/357636/item/XE250U.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Rated Speed:11.6r/min
- Max Digging Radius:10240mm
- Machine Weight:25700Kg
- Maximum Digging Depth:6960mm
- Maximum Digging Height:9595mm
- Bucket capacity:1.2m3
- Operating Weight:25700Kg
- Model Number:XE250U
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- weight:25700.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 25 Ton Cheap Excavators China
Crawler Excavator XE250U With Hydraulic Hammer For Sale.
XCMG's new-generation “U-series” small-sized
short-tailexcavatorsare flexible, efficient, reliable and durable. The engine
emission meets the European V Standard and is energy-saving and
environment-protective. The new-generation hydraulic components are more
efficient and more reliable, and have high control precision, strong digging
force, and excellent operational efficiency. XCMG's exclusive load
self-adaptive control technology ensures that the engine makes full use of
every drop of fuel. More tools are provided to meet requirements of more
complex working conditions and achieve the purpose of multiple functions in one
machine.
Sales model |
Unit |
XE250U |
|
Operating weight |
Kg |
25700 |
|
Bucket capacity |
m³ |
1.2 |
|
Engine |
Model |
/ |
QSB6.7 |
No. of cylinders |
/ |
6 |
|
Rated power |
kw/rpm |
142/2000 |
|
Maximum
torque/speed |
N.m/rpm |
803/1500 |
|
Displacement |
L |
6.7 |
|
Main performance |
Travel speed |
km/h |
6.0/4.1 |
Swing speed |
r/min |
11.6 |
|
Gradeability |
° |
≤35 |
|
Ground pressure |
kPa |
56.7 |
|
Bucket digging
force |
kN |
176 |
|
Arm digging
force |
kN |
125 |
|
Maximum tractive
force |
kN |
188.6 |
|
Hydraulic system |
Rated flow of
main pump |
L/min |
2×260 |
Main safety
valve pressure |
MPa |
34.3/37 |
|
Travel system
pressure |
MPa |
34.3 |
|
Swing system
pressure |
MPa |
25 |
|
Pilot system
pressure |
MPa |
3.9 |
|
Oil Capacity |
Fuel tank
capacity |
L |
400 |
Hydraulic tank
capacity |
L |
256 |
|
Engine oil
capacity |
L |
24 |
|
Appearance size |
A Overall length |
mm |
10220 |
B Overall width |
mm |
3390 |
|
C Overall height |
mm |
3180 |
|
D Width of
platform |
mm |
2830 |
|
E Track length |
mm |
4640 |
|
F Overall width
of chassis |
mm |
3390 |
|
G Track width |
mm |
800 |
|
H Wheel base of
crawler |
mm |
3842 |
|
I Track gauge |
mm |
2590 |
|
J Counterweight
clearance |
mm |
1050 |
|
K Min. ground
clearance |
mm |
485 |
|
L Min. tail
swing radius |
mm |
2985 |
|
M Track height |
mm |
810 |
|
Working scope |
A Max. digging
height |
mm |
9595 |
B Max. dumping
height |
mm |
6745 |
|
C Max. digging
depth |
mm |
6960 |
|
D Maximum depth
cut for 2240mm(8 ft) level bottom |
mm |
6750 |
|
E Max. vertical
wall digging depth |
mm |
5545 |
|
F Max. digging
radius |
mm |
10240 |
|
G Min. swing
radius |
mm |
3510 |
|
Standard |
Length of boom |
mm |
6000 |
Length of arm |
mm |
2964 |
|
Bucket capacity |
m³ |
1.2 |
