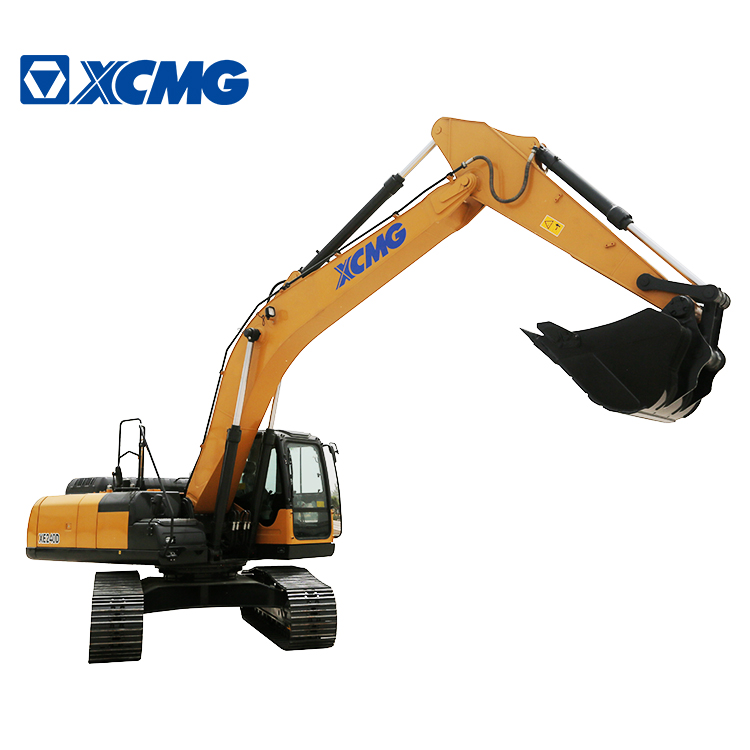

XCMG Manufacturer 25 Ton Crawler Excavator XE240D with Hydraulic System
.jpg)
Summary
- Rated Speed:11.2r/min
- Max Digging Radius:10240mm
- Maximum Digging Depth:6972mm
- Maximum Digging Height:10048mm
- Bucket capacity:1.3m3
- Operating Weight:24870kg
- Model Number:XE240D
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:24870.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Manufacturer
25 Ton Crawler Excavator XE240D with Hydraulic System.
1. The overall layout and the
axle load distribution are more reasonable to achieve better traveling
stability and the maximum traveling speed is up to 40km/h to realize faster
site transfer speed.
2. The domestic leading
hydraulic system distribution technology features high energy-saving and
efficiency.
3. The advanced structure and
hinge points on the digging end and the industry’s largest rotating angle of
the bucket ensure strong soil holding capacity.
|
Description |
Unit |
XE240D |
|
|
Operating
weight |
kg |
24870 |
|
|
Bucket
capacity |
m3 |
0.9~1.3 |
|
|
Engine |
Model |
Engine |
QSB7 |
|
No.
of cylinders |
--- |
6 |
|
|
Output
power |
kW/
r/min |
150/2050 |
|
|
torque/speed |
N.m |
825/1250 |
|
|
Displacement |
L |
6.7 |
|
|
Main
performance |
Travel
speed(H/L) |
km/h |
5.3/3.6 |
|
Gradeability |
% |
70 |
|
|
Rotary
speed |
r/min |
11.2 |
|
|
Ground
pressure |
kPa |
55.3 |
|
|
Bucket
digging force |
kN |
185 |
|
|
Arm
digging force |
kN |
129 |
|
|
Hydraulic
system |
Main
pump |
-- |
K7V125 |
|
Rated
flow of main pump |
L/min |
2×241 |
|
|
Main
safety valve pressure |
MPa |
34.3/37 |
|
|
Pressure
of pilot system |
MPa |
3.9 |
|
|
Oil
Capacity |
Fuel
tank capacity |
L |
400 |
|
Hydraulic
tank capacity |
L |
220 |
|
|
Engine
oil capacity |
L |
19.5 |
|
|
Appearance
size |
Overall
length |
mm |
10165 |
|
Overall
width |
mm |
2990 |
|
|
Overall
height |
mm |
3130 |
|
|
Width
of platform |
mm |
2830 |
|
|
Length
of crawler |
mm |
4250 |
|
|
Overall
width of chassis |
mm |
2990 |
|
|
Width
of crawler |
mm |
600 |
|
|
Wheel
base of crawler |
mm |
3462 |
|
|
Crawler
gauge |
mm |
2390 |
|
|
Clearance
under counterweight |
mm |
1045 |
|
|
Min.
ground clearance |
mm |
476 |
|
|
Min.
rear-end swing radius |
mm |
2955 |
|
|
Working
scope |
Max.
digging height |
mm |
10048 |
|
Max.
dumping height |
mm |
7123 |
|
|
Max.
digging depth |
mm |
6972 |
|
|
Max.
vertical wall digging depth |
mm |
5567 |
|
|
Max.
digging reach |
mm |
10240 |
|
|
Min.
swing radius |
mm |
3510 |
|
