XCMG Excavator Long Reach 20 ton New Wheel Excavators Machine XE210WLL price
Summary
- Max Digging Radius:12622mm
- Machine Weight:21000Kg
- Bucket capacity:0.5m3
- Operating Weight:20600Kg
- Model Number:XE210WLL
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:21000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

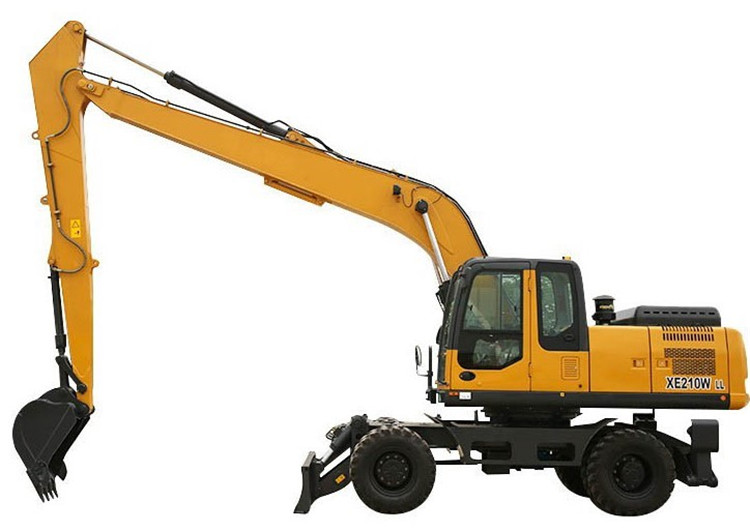

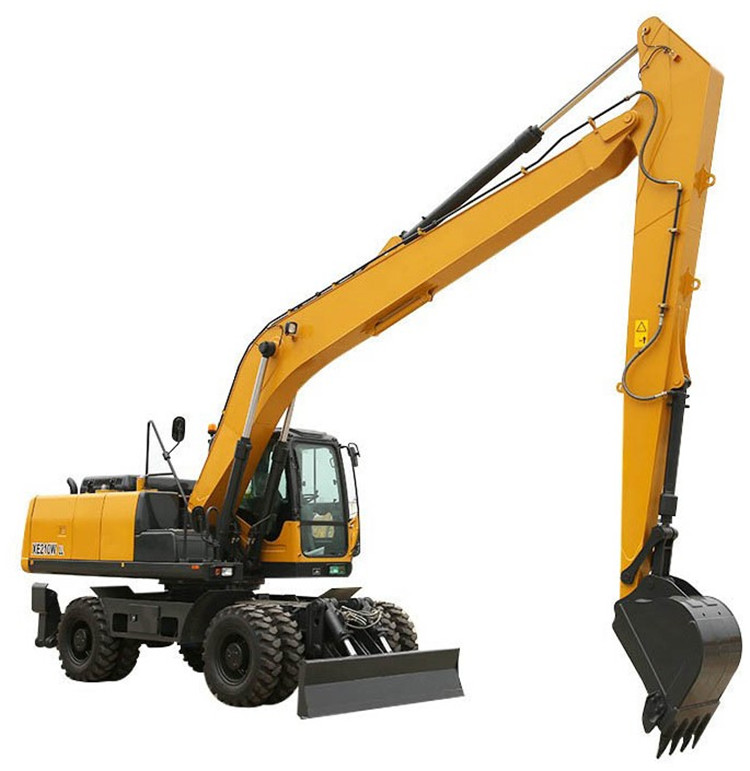

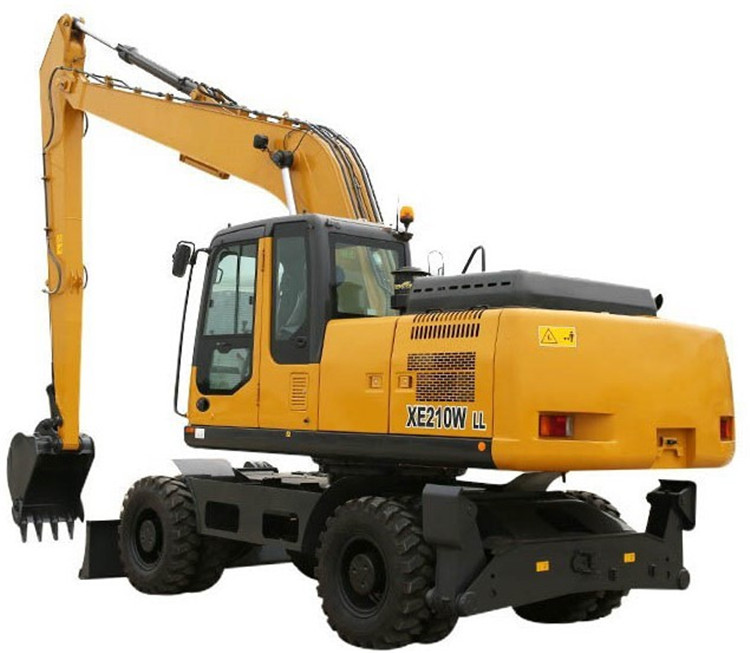

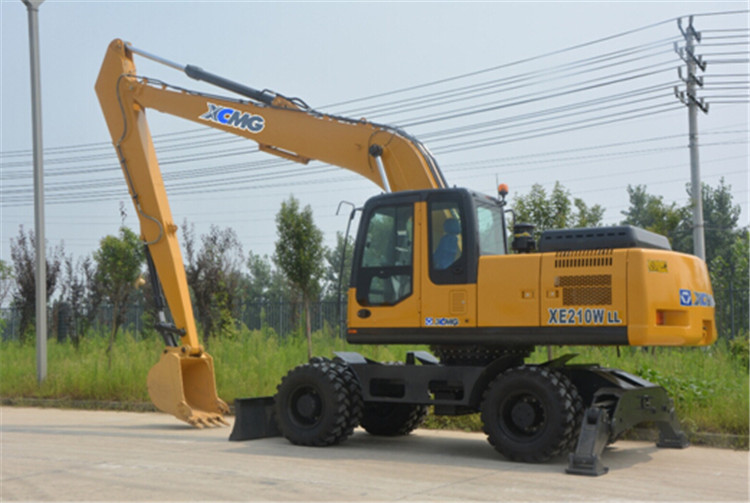

XCMG Excavator Long Reach 20 ton New Wheel Excavators Machine XE210WLL.
This machine has used a new generation of independent researched and developed controllers as well as a compact parallel pump and focused on the matching between the engine power and the high-speed running to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption. The reliability during heavy-load operations can be satisfied by virtue of its lightweight chassis with high rigidity and strengthened key parts.
As a model featuring excellent flexibility, high fuel efficiency and considerate operation reliability and based on the power system in accordance with the North America and Euro-III and China Stage-II emission standards, this machine can be provided with optional one-section booms, two-section booms, lengthened booms and other working mechanisms as well as other multi-functional implements, able to be widely used in highway bridges, housing construction, road engineering, construction of water conservancy works, port construction, general construction projects and other small and medium earthwork construction.
|
Model |
Unit |
XE210WLL |
|
|
Operating weight |
Kg |
20600 |
|
|
Bucket capacity |
m³ |
0.5 |
|
|
Engine |
Model |
/ |
6B5.9 |
|
Output power |
kW/r/min |
133/2000 |
|
|
Maximum torque/speed |
N.m |
708/1500 |
|
|
Displacement |
L |
5.9 |
|
|
Fuel tank |
L |
305 |
|
|
Main performance |
Rated flow |
L/min |
2×220 |
|
Working Pressure |
MPa |
31.4/34.3 |
|
|
Hydraulic tank |
L |
202 |
|
|
Swing speed |
r/min |
12 |
|
|
Bucket digging force |
kN |
80 |
|
|
Arm digging force |
kN |
70 |
|
|
Min. turning radius |
mm |
6500 |
|
|
Travel speed |
km/h |
9/31 |
|
|
Gradeability |
% |
70% |
|
|
Hydraulic system |
Main pump/Pilot pump |
/ |
2×Piston pump |
|
Appearance size |
Overall length |
mm |
10933 |
|
Overall width |
mm |
2552 |
|
|
Overall height |
mm |
3763 |
|
|
Counterweight clearance |
mm |
1312 |
|
|
Min. ground clearance |
mm |
399 |
|
|
tail turning radius |
mm |
2820 |
|
|
Wheel base |
mm |
2960 |
|
|
Tread width |
mm |
1919 |
|
|
Width of chassis |
mm |
2495 |
|
|
Distance from front bridge to rotary center |
mm |
1900 |
|
|
Hood height |
mm |
2605 |
|
|
Max. digging depth of dozer |
mm |
58 |
|
|
Dozer(width/height) |
mm |
2495/564 |
|
|
Working scope |
Max. digging radius |
mm |
12622 |
|
Max. digging distance |
mm |
12456 |
|
|
Max. digging height |
mm |
11843 |
|
|
Max. dumping height |
mm |
9665 |
|
|
Max. digging depth |
mm |
8690 |
|
|
Max. vertical wall digging depth |
mm |
5835 |
|
|
Max. lifting height of dozer |
mm |
508 |
|
