XCMG Construction Equipment 20 Ton Hydraulic Excavators XE205DA With Excavator Attachment Price List
Summary
- Rated Speed:12r/min
- Max Digging Radius:9760mm
- Maximum Digging Depth:6660mm
- Maximum Digging Height:9540mm
- Bucket capacity:1m3
- Operating Weight:21500Kg
- Model Number:XE205DA
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:21500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

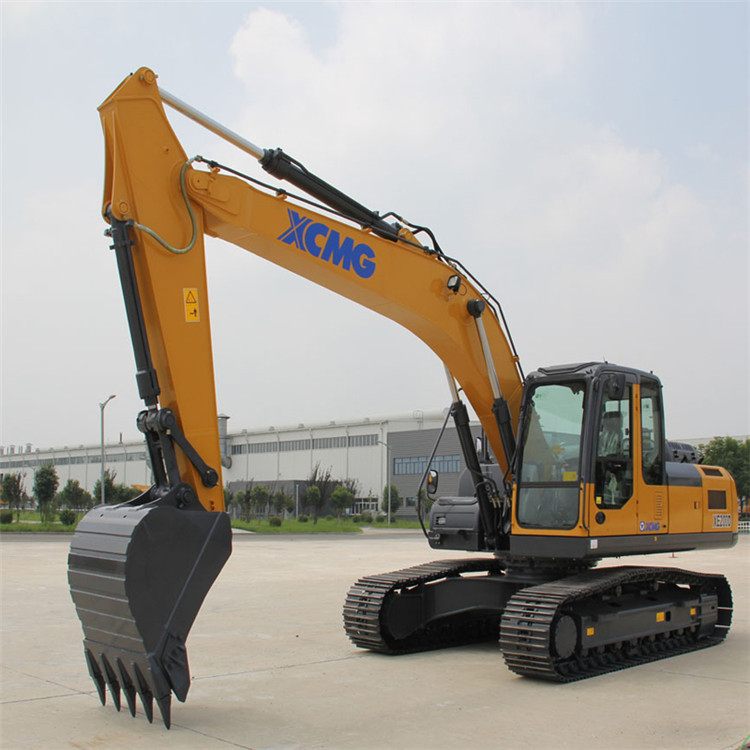

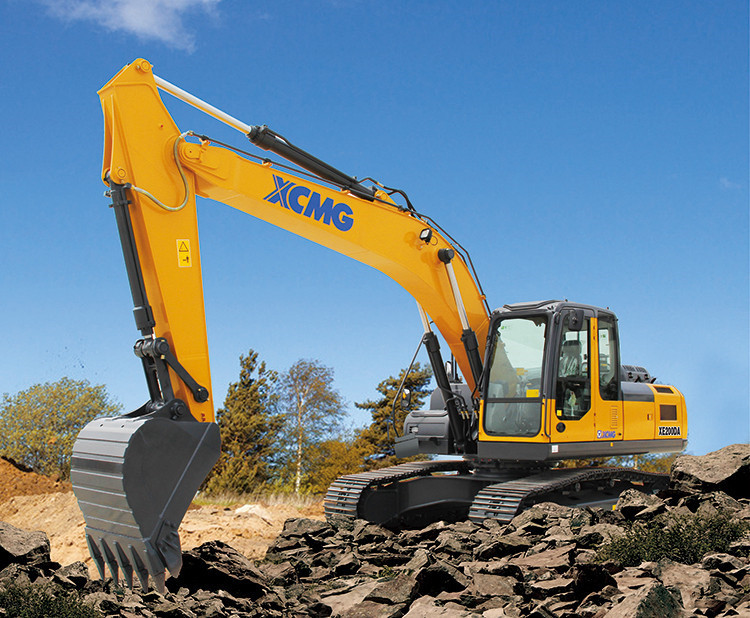

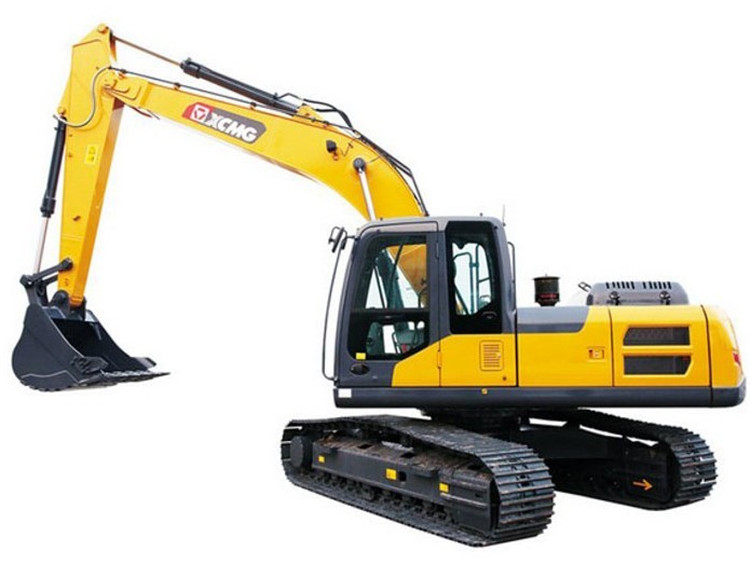

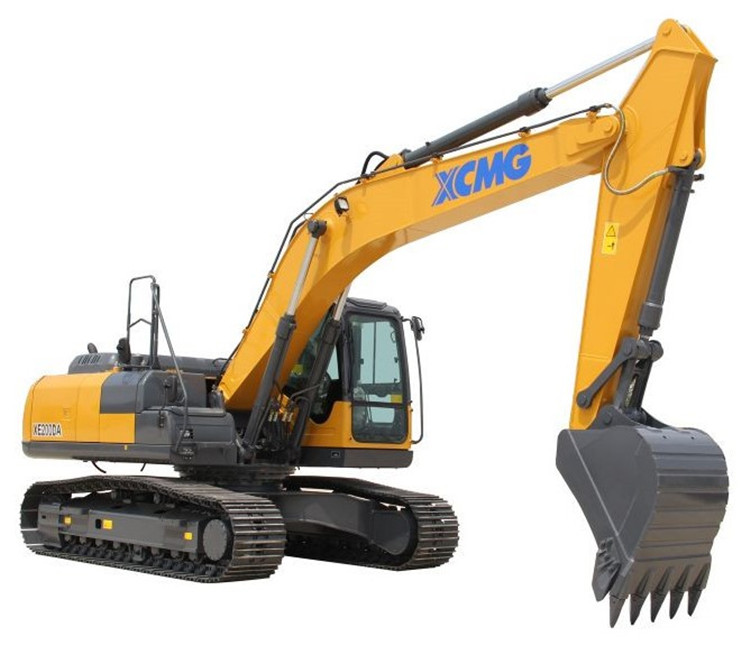

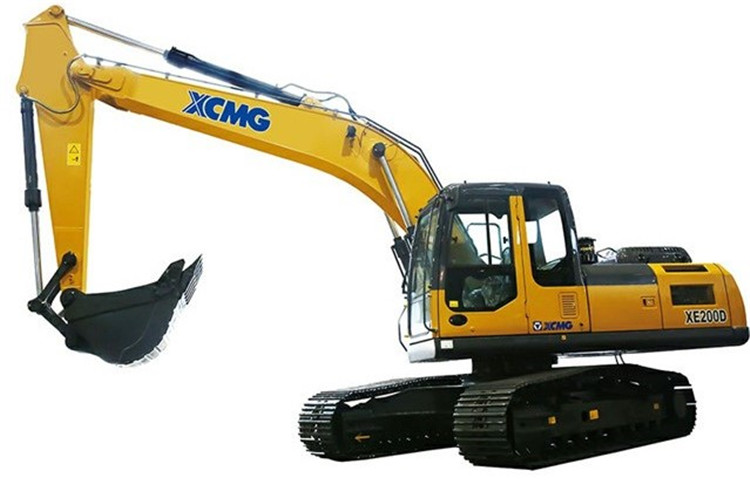

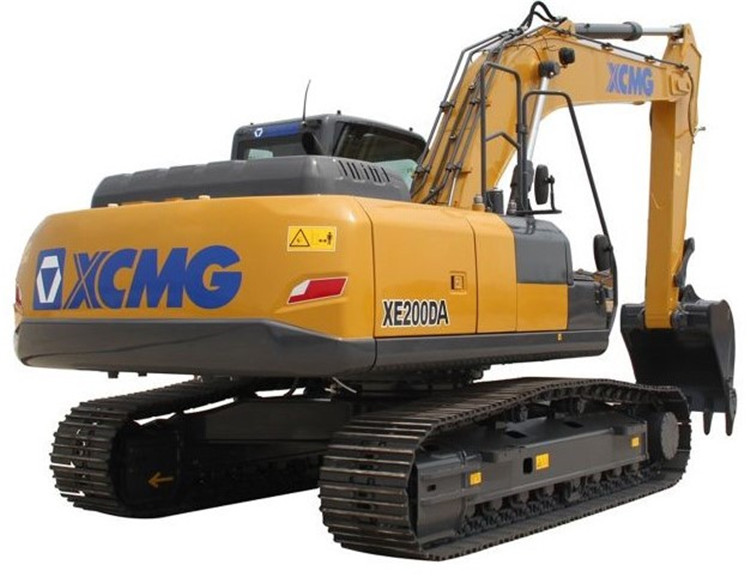

XCMG Construction Equipment 20 Ton Hydraulic Excavators XE205DA With Excavator Attachment Price List.
As an efficiency-oriented product featuring strong adaptation, green energy saving and high performance, the XE205DA hydraulic excavator is researched and developed on the basis of the market demands with the economic efficiency highlighted.
This excavator uses an ISUZU engine excellent in energy conservation and environmental protection, an improved and optimized hydraulic system and an independently researched and developed control system, able to realize perfect matching of the power and efficiency and achieve low fuel consumption and high working performance (its working performance is leading among its peers); a buffer valve is configured, so that the complete control performance is good; its structural members have experienced computer-aided optimization design and 3D solid modeling design, so the enhanced working mechanisms can significantly improve the reliability and durability; the large-capacity fuel tank can enable the machine to work much longer at one time; the brand-new cab subject to injection molding features sufficient comfortableness, low noise and a beautiful appearance, as well as better warming and cooling effect by virtue of its new air-conditioning system.
This machine is mainly applicable to municipal construction, highway bridges, housing construction, road engineering, construction of water conservancy works, port construction and other earthwork construction.
|
Sales model |
Unit |
XE205DA |
|
|
Operating weight |
Kg |
21500 |
|
|
Bucket capacity |
m³ |
1 |
|
|
Engine |
Model |
/ |
QSB7 |
|
No. of cylinders |
/ |
6 |
|
|
Output power |
kw/rpm |
135/2050 |
|
|
Maximum torque/speed |
N.m/rpm |
740/1250 |
|
|
Displacement |
L |
6.7 |
|
|
Main performance |
Travel speed |
km/h |
5.7/3.1 |
|
Swing speed |
r/min |
12 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kPa |
47.5 |
|
|
Bucket digging force |
kN |
157 |
|
|
Arm digging force |
kN |
116 |
|
|
Maximum traction |
kN |
184 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
2×227 |
|
Main safety valve pressure |
MPa |
34.3 |
|
|
Travel system pressure |
MPa |
37 |
|
|
Rotary system pressure |
MPa |
27.5 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
400 |
|
Hydraulic tank capacity |
L |
220 |
|
|
Engine oil capacity |
L |
24 |
|
|
Appearance size |
A Overall length |
mm |
9630 |
|
B Overall width |
mm |
2910 |
|
|
C Overall height |
mm |
3100 |
|
|
D Width of platform |
mm |
2830 |
|
|
E Track length |
mm |
4155 |
|
|
F Overall width of chassis |
mm |
2890 |
|
|
G Track width |
mm |
600 |
|
|
H Length to center of rollers |
mm |
3370 |
|
|
I Track gauge |
mm |
2290 |
|
|
J Counterweight clearance |
mm |
1050 |
|
|
K Min. ground clearance |
mm |
486 |
|
|
L Min. tail swing radius |
mm |
2890 |
|
|
M Track height |
mm |
940 |
|
|
Working scope |
A Max. digging height |
mm |
9540 |
|
B Max. dumping height |
mm |
6780 |
|
|
C Max. digging depth |
mm |
6660 |
|
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
6480 |
|
|
E Max. vertical wall digging depth |
mm |
5700 |
|
|
F Max. digging radius |
mm |
9760 |
|
|
G Min. swing radius |
mm |
3530 |
|
|
Standard configuration |
Length of boom |
mm |
5680 |
|
Length of arm |
mm |
2910 |
|
|
Bucket capacity |
m³ |
1 |
|
|
Optional configuration |
Length of boom |
m³ |
/ |
|
Length of arm |
m³ |
2400 |
|
|
Bucket capacity |
m³ |
1.0/1.1/1.2 Earth Working bucket 0.9/1.0/1.1 Strengthened bucket |
|
