XCMG factory 20 ton hydraulic excavators XE200D bucket crawler excavator machine price

View All >

Model： XE200D

Engine： Cummins

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG factory 20 ton hydraulic excavators XE200D bucket crawler excavator machine price

Quantity:

- + /Unit

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

XE200D

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Rated Speed

Max Digging Radius

Machine Weight

Maximum Digging Depth

Maximum Digging Height

Bucket capacity

Operating Weight

Model Number

Brand Name

Place of Origin

Engineering & Construction Machinery

XE200D

5.3km/h

3350mm

6460mm

9680mm

0.9~1.1m3

21500kg

XE200D

XCMG

Jiangsu, China

+ Add a Product

Summary

Rated Speed:5.3km/h
Max Digging Radius:3350mm
Maximum Digging Depth:6460mm
Maximum Digging Height:9680mm
Bucket capacity:0.9~1.1m3
Operating Weight:21500kg
Model Number:XE200D
Brand Name:XCMG
Place of Origin:Jiangsu, China

Specifications

Weight:21500.000kg
Condition:New
Moving Type:Other
Power: 135kw

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

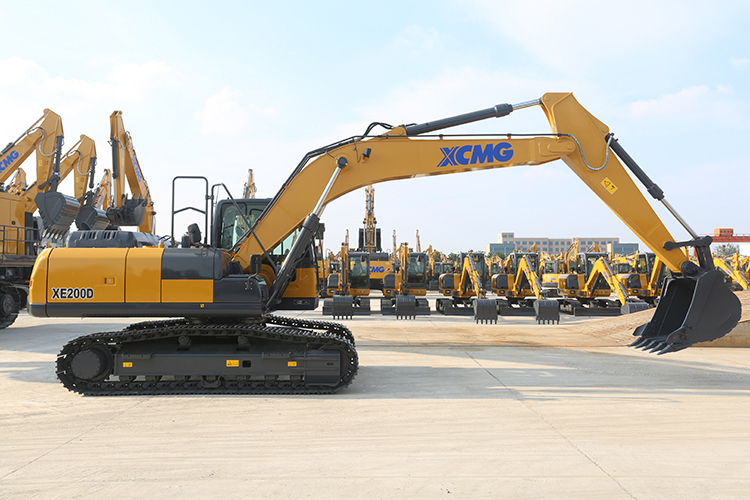

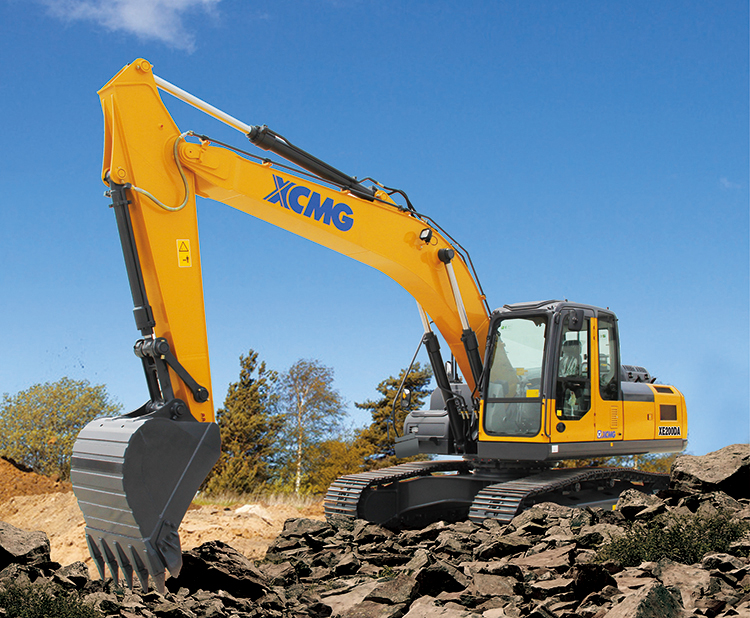

XCMG factory 20 ton hydraulic excavators XE200D bucket crawler excavator machine price

XCMG factory 20 ton hydraulic excavators XE200D bucket crawler excavator machine.

1. The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.

2. The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.

3. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

4. The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.

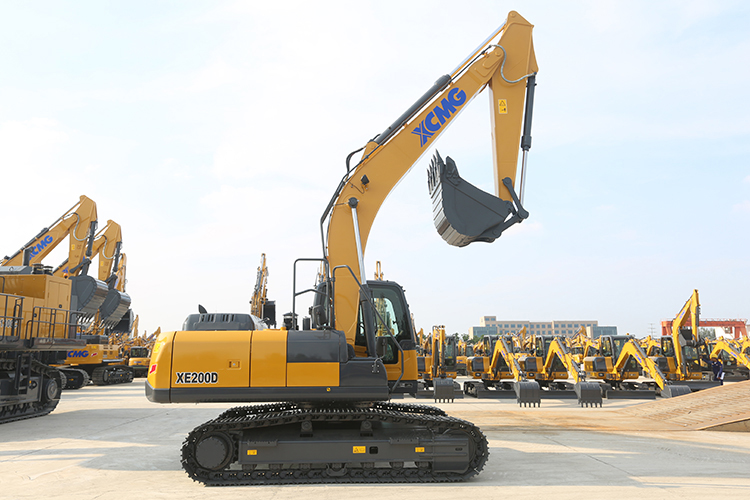

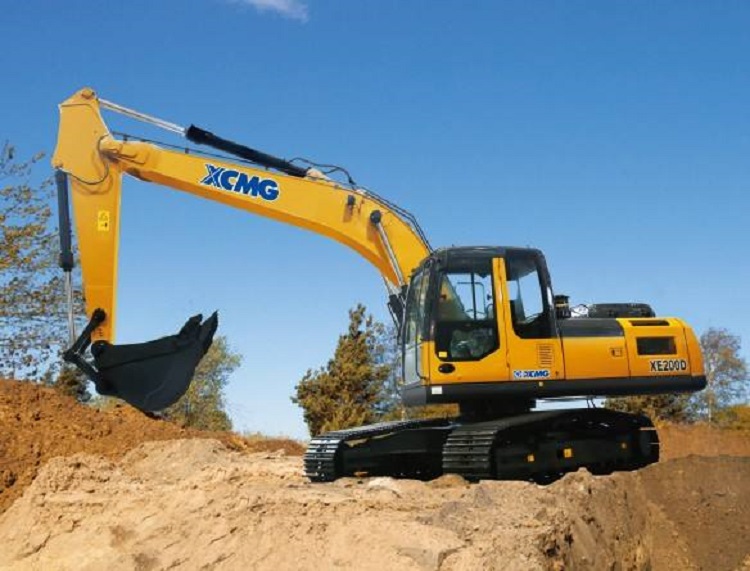

XCMG factory 20 ton hydraulic excavators XE200D bucket crawler excavator machine price

Description			Unit	Parameter value
Operating weight			kg	21500
Bucket capacity			m³	0.9～1.1
Engine	Model		Engine	CUMMINS QSB7
	Style	Direct injection	---	√
		Four strokes	---	√
		Water cooling	---	√
		Turbo-charging	---	√
		Air to air intercooler	---	√
	No. of cylinders		---	6
	Output power		kW/ r/min	135/2050
	torque/speed		N.m	740/1250
	Displacement		L	6.7
Main performance	Travel speed（H/L)		km/h	5.3/2.9
	Gradeability		%	70
	Rotary speed		r/min	12.6
	Ground pressure		kPa	46.3
	Bucket digging force		kN	138
	Arm digging force		kN	112
Hydraulic system	Main pump		--	K3V112DT
	Rated flow of main pump		L/min	2×207
	Main safety valve pressure		MPa	31.4/34.3
	Pressure of pilot system		MPa	3.9
Oil Capacity	Fuel tank capacity		L	400
	Hydraulic tank capacity		L	220
	Engine oil capacity		L	19.5
Appearance size	Overall length		mm	9625
	Overall width		mm	2990
	Overall height		mm	3100
	Width of platform		mm	2830
	Length of crawler		mm	4255
	Overall width of chassis		mm	2990
	Width of crawler		mm	600
	Wheel base of crawler		mm	3460
	Crawler gauge		mm	2390
	Clearance under counterweight		mm	1050
	Min. ground clearance		mm	476
	Min. rear-end swing radius		mm	2890
Working scope	Max. digging height		mm	9680
	Max. dumping height		mm	6815
	Max. digging depth		mm	6460
	Max. digging depth at the range of level 8 feet		mm	6275
	Max. vertical wall digging depth		mm	5590
	Max. digging reach		mm	9790
	Min. swing radius		mm	3530

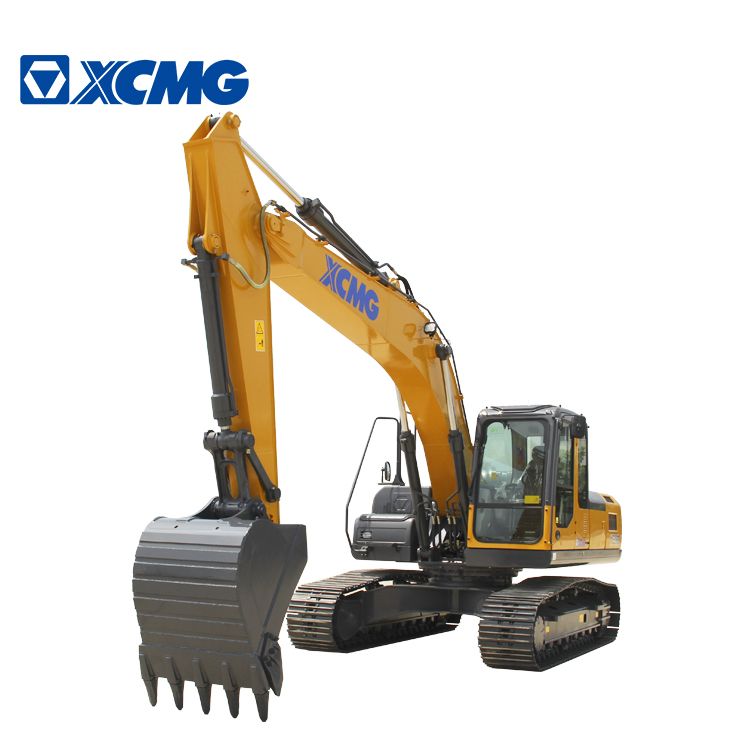

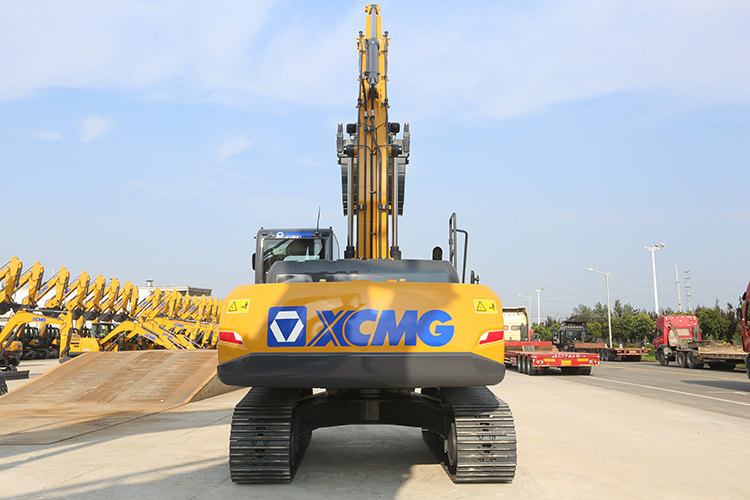

XCMG factory 20 ton hydraulic excavators XE200D bucket crawler excavator machine price
