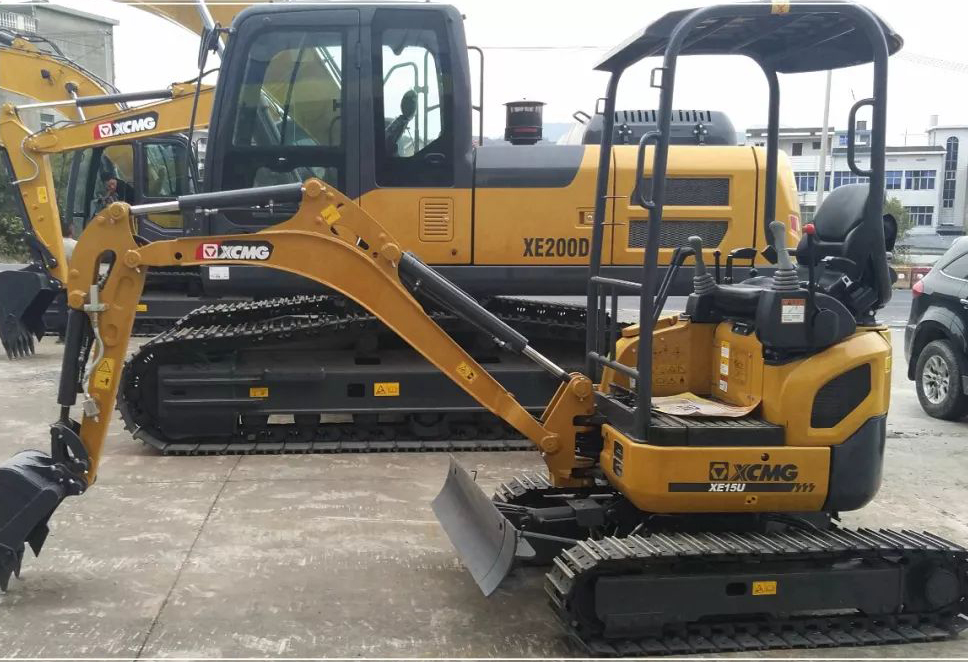

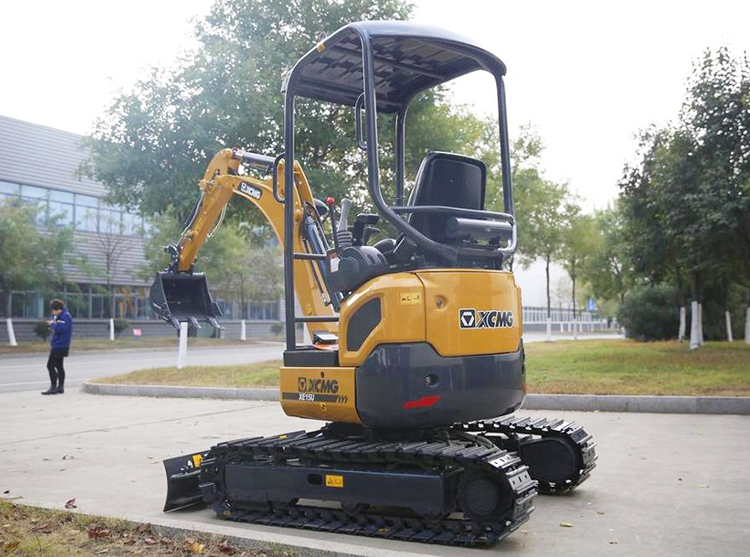

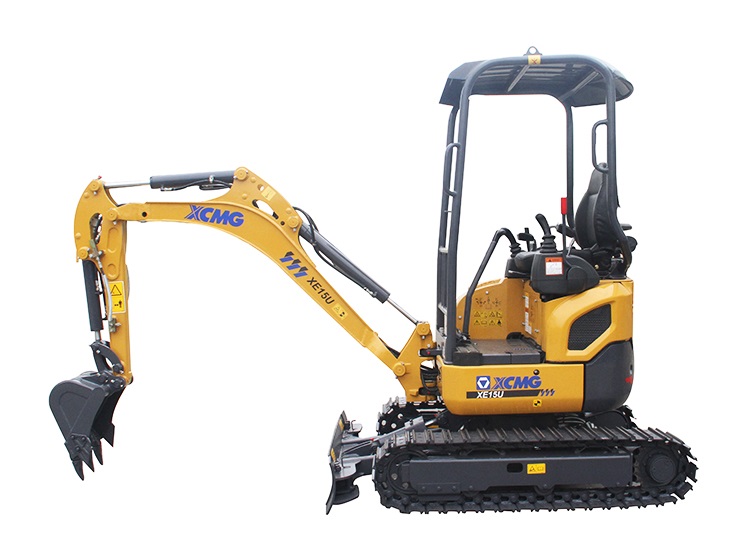

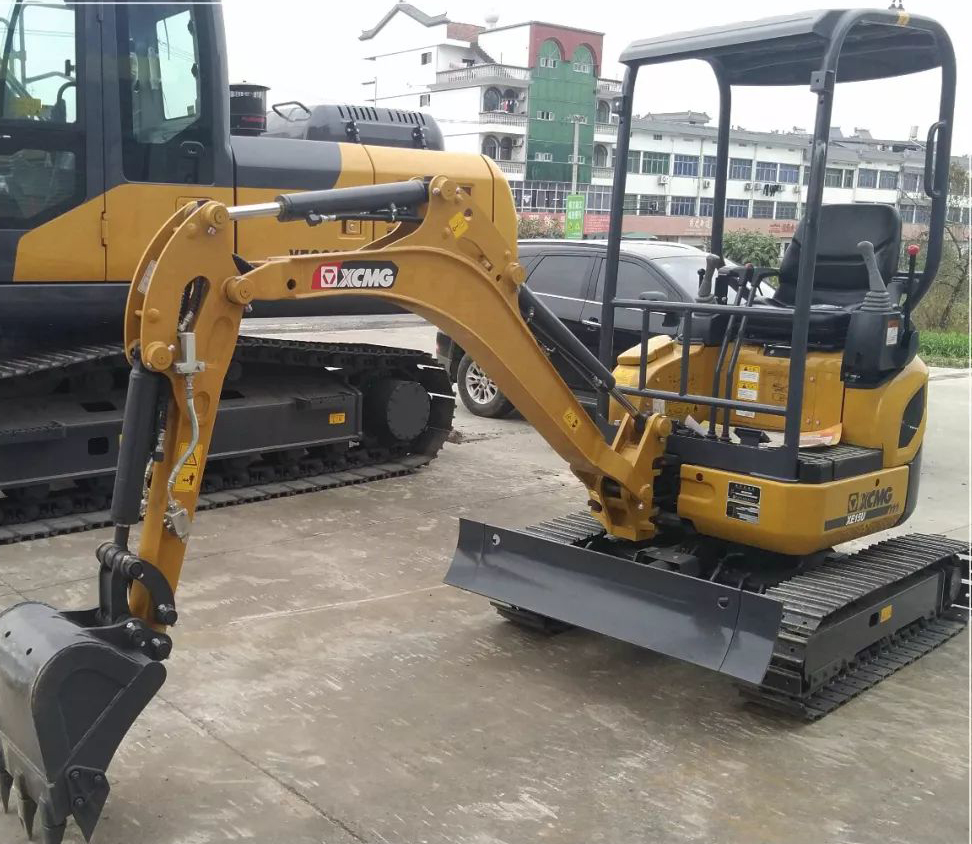

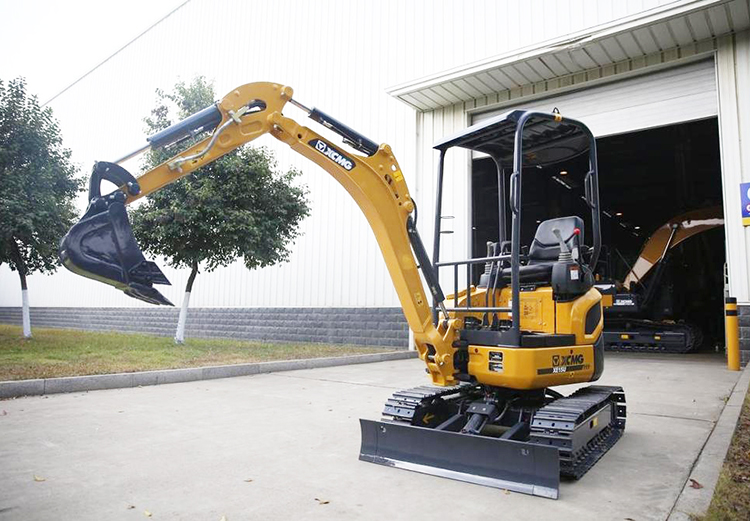

XCMG XE15U New 2 Ton Small Household Excavators For Sale
Summary
- Rated Speed: 9.5r/min
- Max Digging Radius:3900mm
- Maximum Digging Depth:2290mm
- Maximum Digging Height:3475mm
- Bucket capacity:0.04m3
- Operating Weight:1700kg
- Model Number:XE15U
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:1700.000kg
- Condition:New
- Moving Type:Other
- Power:9.8kw
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG New 2 Ton Small Household Excavators XE15U .
XE15U household excavators uses a mechanical injection oil engine with national II emission standards and has characteristics of strong power, energy conservation and environmental protection, high reliability and excellent performance.
1. More efficient return
Tailless design for a turning radius ensures that the XE15U hydraulic excavator will not touch obstacles at the tail in narrow working conditions.
2. More reliable and durable
A four-point supporting shed that meets safety standards is used for the cab, and widens the driver's horizon while ensures the shed's strength. Seats are configured with standard safety belts, improving driver's working security.
3. More comfortable and safe
Brand-new designed hand holder, cup holder, etc. improve operation comfort and convenience maximally.
|
Description |
Unit |
Parameter value |
|
|
Operating weight |
Kg |
1795 |
|
|
Bucket capacity |
m³ |
0.04 |
|
|
Engine |
Model |
/ |
D782-E3B-CBH-1 |
|
No. of cylinders |
/ |
3 |
|
|
Output power |
kw/rpm |
9.8/2300 |
|
|
torque/speed |
N.m |
44.5/1800 |
|
|
Displacement |
L |
0.778 |
|
|
Hydraulic system |
Travel speed(H/L) |
km/h |
4.3/2.2 |
|
Gradeability |
° |
30° |
|
|
Pressure of prime valve |
MPa |
22 |
|
|
Pressure of travel system |
MPa |
22 |
|
|
Pressure of swing system |
MPa |
11 |
|
|
Pressure of pilot system |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
18 |
|
Hydraulic tank capacity |
L |
17 |
|
|
Engine oil capacity |
L |
3.8 |
|
|
Appearance size |
Overall length |
mm |
3560 |
|
Overall width |
mm |
1240 |
|
|
Overall height |
mm |
2348 |
|
|
Width of platform |
mm |
990 |
|
|
Overall width of chassis |
mm |
990/1240 |
|
|
Width of crawler |
mm |
230 |
|
|
Working scope |
Min. tail swing radius |
mm |
620 |
|
Max. digging height |
mm |
3475 |
|
|
Max. dumping height |
mm |
2415 |
|
|
Max. digging depth |
mm |
2290 |
|
|
Standard |
Length of boom |
mm |
1690 |
|
Length of arm |
mm |
1100 |
|
|
Bucket capacity |
m³ |
0.04 |
|
