XCMG 1 ton Excavator Mini New Crawler Excavator Machine with CE XE15E (Euro Stage V) for sale
Summary
- Rated Speed:8.7 r/min
- Max Digging Radius:3900mm
- Maximum Digging Depth:2290mm
- Maximum Digging Height:3475mm
- Bucket capacity:0.04m3
- Operating Weight:1.7 tons
- Model Number:XE15E
- Brand Name:XCMG
- Place of Origin:China
Specifications
- Weight:1700.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

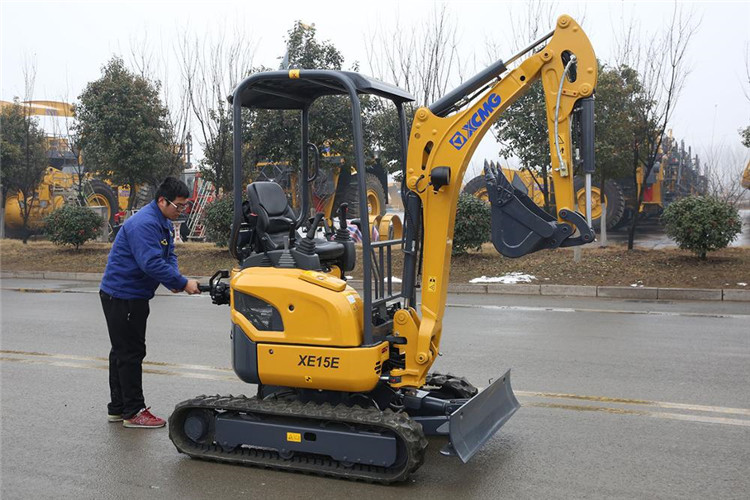

XCMG 1 ton Excavator Mini New Crawler Excavator Machine with CE XE15E (Euro Stage V) for sale.
1. Engine that meets Euro V emission standards has strong power and excellent performance.
2. Tailless design cooperates with boom swing function, which can adapt to the narrow space operation flexibly.
3. When the travel system retracts, the length between two crawlers is only 990mm, which has better trafficability.
4. Built-in working pipelines will avoid being damaged during work.
5. Rear hood can be opened from both the left and the right direction, which can improve the convenience of maintenance.
|
Item |
Unit |
Parameters |
|
|
|
Weight |
Kg |
1795 |
|
Model |
Operating weight |
Kg |
1795 |
|
Bucket capacity |
m³ |
0.04 |
|
|
Moving Type |
crawler |
||
|
Product Name |
|
XE15E |
|
|
Display online time |
|
2019-03-30 |
|
|
Main performance |
Product Name |
XE15E |
|
|
Swing speed |
r/min |
8.7 |
|
|
Ground pressure |
kPa |
28.5 |
|
|
Bucket digging force |
kN |
16 |
|
|
Working range |
A Maximum digging height |
mm |
3475 |
|
B Maximum dumping height |
mm |
2415 |
|
|
C Maximum digging depth |
mm |
2290 |
|
|
H Max Digging Radius |
mm |
3900 |
|
|
I Min. swing radius |
mm |
1550 |
|
