XCMG official 13.5ton mini hydraulic crawler excavator XE135D excavator equipment price
Summary
- Rated Speed:5.2km/h
- Max Digging Radius:8304mm
- Machine Weight:13200kg
- Maximum Digging Depth:5546mm
- Maximum Digging Height:8638mm
- Bucket capacity:0.32~0.61m3
- Operating Weight:13200kg
- Model Number:XE135D
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- Weight:13200.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

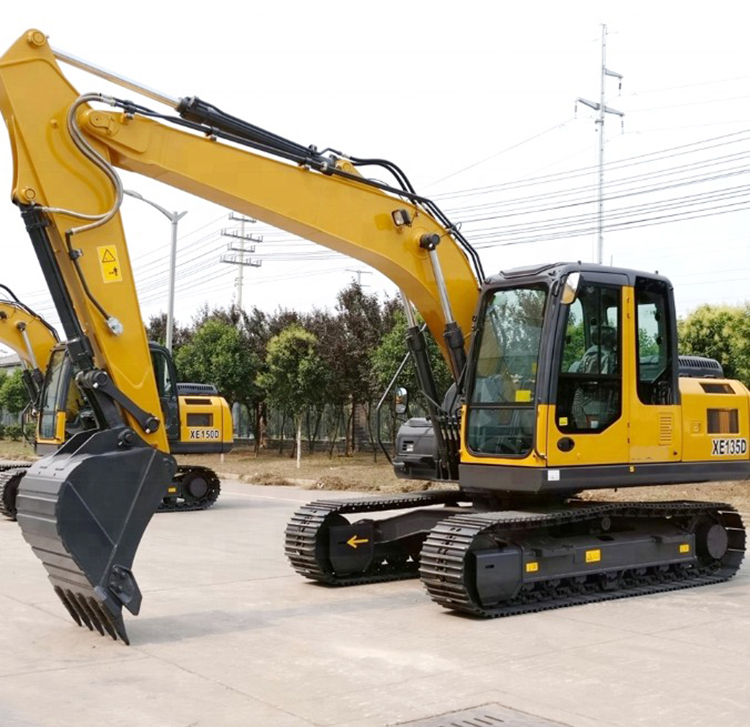

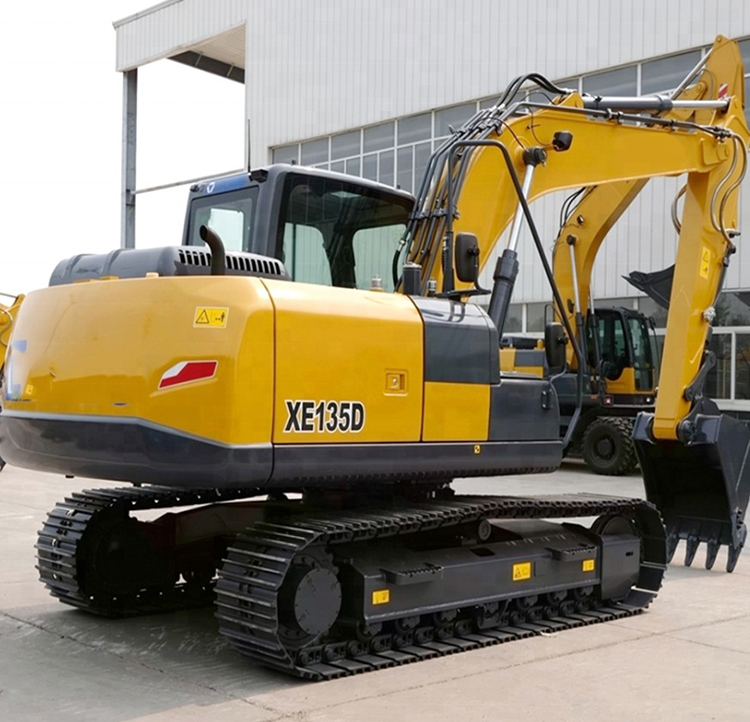

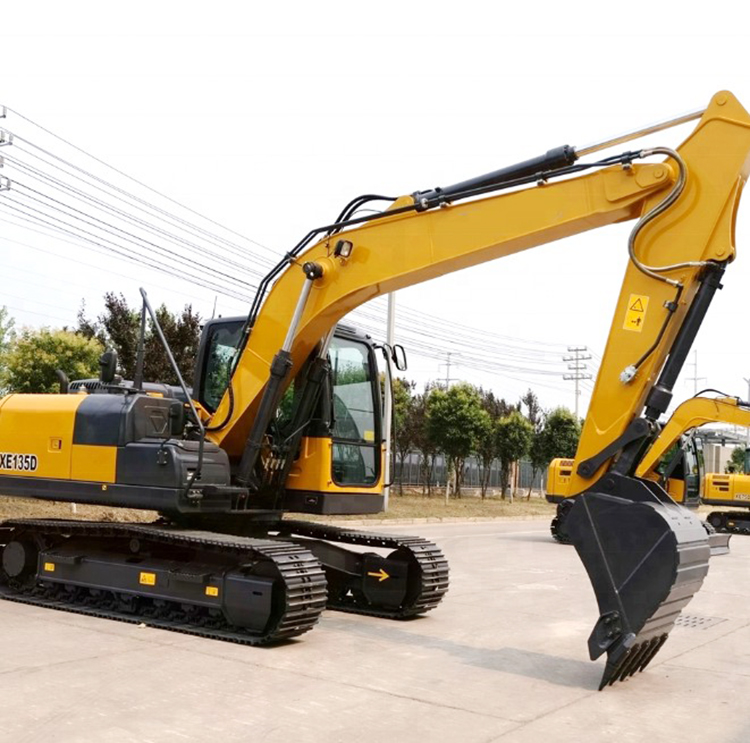

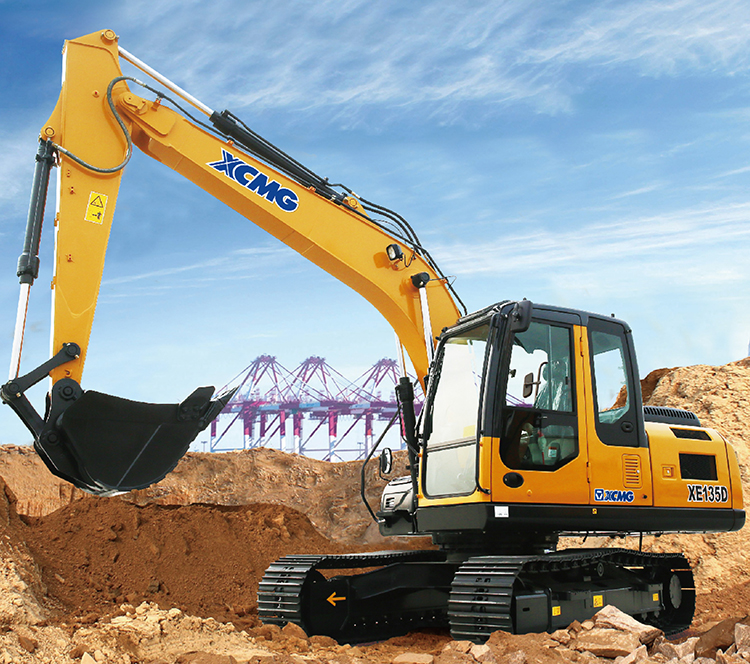

13.5ton mini hydraulic crawler excavator XE135D excavator equipment.
XE135D adopts a new engine jointly developed by XCMG and Cummins. It has strong power (the highest power among the same tonnage), high torque at low speed and high fuel economy. It can reduce fuel consumption by 7% compared with the previous generation. New generation internationally famous hydraulic elements are of high rated working pressure, high efficiency, precise control, small impact and long service life.
Combined with the new generation XEICS intelligent control system independently developed by XCMG excavator, it can make full use of engine output power, with optimized fuel power curve, it can save up to 7% fuel under the same level of operating efficiency. The main structural components are all optimized by FEA, and after long-term high-intensity operation assessment, the service life is longer.
1. Ecological and economical
Customized XCMG exclusive engine can meet Euro stage IV Emission Standard; Minicomputer control technology makes operation more economical.
2.Multiple applications
Different boom, arm and bucket combinations can provide excellent all-around versatility; Multi-functional work tool system can meet various operational requirements including digging, breaking and so on.
3. Comfortable operating experience
Air conditioner and heater ensure the appropriate temperature; Integrated control panel and large display screen provide multiple information.
|
Model |
Unit |
XE135D |
|
|
Operating weight |
Kg |
13200 |
|
|
Bucket capacity |
m³ |
0.32-0.61 |
|
|
Engine |
Model engine |
/ |
QSF3.8 |
|
Injection |
/ |
√ |
|
|
Four strokes |
/ |
√ |
|
|
Water cooling |
/ |
√ |
|
|
Turbo-charging |
/ |
√ |
|
|
No. of cylinders |
/ |
4 |
|
|
Rated power/speed |
kw/rpm |
86/2200 |
|
|
Maximum torque/speed |
N.m/rpm |
470/1300 |
|
|
Displacement |
L |
3.8 |
|
|
Main performance |
Travel speed |
km/h |
5.2/2.9 |
|
Swing speed |
r/min |
11 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kPa |
40.4 |
|
|
Bucket digging force |
kN |
99.1 |
|
|
Arm digging force |
kN |
68 |
|
|
Maximum tractive force |
kN |
134 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
125.4*2 |
|
Travel system pressure |
MPa |
34.4 |
|
|
Swing system pressure |
MPa |
25 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
260 |
|
Hydraulic tank capacity |
L |
105 |
|
|
Engine oil capacity |
L |
11 |
|
|
Appearance size |
Overall length |
mm |
7795 |
|
Overall width |
mm |
2525 |
|
|
Overall height |
mm |
2880 |
|
|
Width of platform |
mm |
2490 |
|
|
Total width of chassis |
mm |
2490 |
|
|
Track shoe width |
mm |
500 |
|
|
Wheel base of crawler |
mm |
2918 |
|
|
Track gauge |
mm |
1990 |
|
|
Counterweight clearance |
mm |
931 |
|
|
Min. ground clearance |
mm |
466 |
|
|
Working range |
Max. digging height |
mm |
8638 |
|
Max. dumping height |
mm |
6174 |
|
|
Max. digging depth |
mm |
5546 |
|
|
Max. vertical wall digging depth |
mm |
4698 |
|
|
Max. digging radius |
mm |
8304 |
|
|
Min. swing radius |
mm |
2445 |
|
|
Standard |
Length of boom |
mm |
4600 |
|
Length of arm |
mm |
2520 |
|
|
Bucket capacity |
m³ |
0.52 |
|
