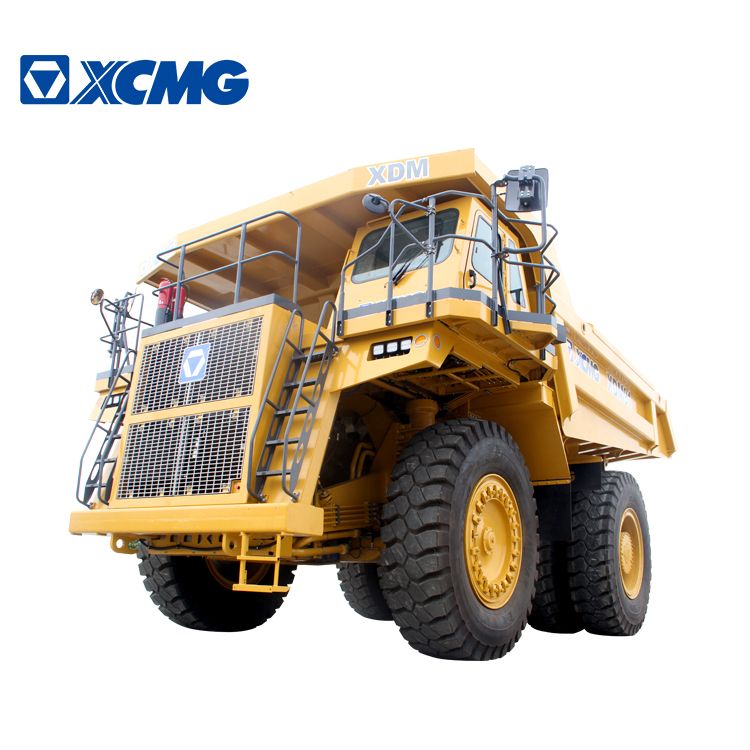

XCMG Official Mechanical Driver Dump Truck 320ton XDE320 Mining Mine Dump Truck For Sale
![](/app/topc/statics/images/close.png)
![XCMG Official Mechanical Driver Dump Truck 320ton XDE320 Mining Mine Dump Truck For Sale](/images/store/357636/item/XDM (6).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Dimension(L*W*H):15310*8930*7380mm
- Weight:210000kg
- Power(W):2014kw
- Max. Speed:64.5
- Model Number:XDE320
- Brand Name:XCMG
- Certification:ISO/CE
- Place of Origin:JiangSu,China
Specifications
- weight:210000.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official Mechanical Driver Dump Truck 320ton XDE320 Mining Mine Dump Truck.
XCMG boasts a full series of electrically driven dump trucks ranging from 120 t to 360 t, which are mostly applied in construction of opencast mining and large-scale earthwork transporting, making XCMG meet diverse mining and construction demands.
Characterized by exceedingly high transport efficiency, comfty operability, low maintenance cost, and long service life, etc., products of this series are of large bearing capacity, firm structure, shockproof performance, and impact resistance, so they are the optimal choice for you in purchase of opencast mining and construction equipments.
Performance Characteristics:
1. High performance engine
Electronic control diesel engine provides good fuel economy and sufficient power. It equips with the advanced modular common rail fuel system, delivering the high combustion efficiency, low emission, and sufficient dynamics. lts advanced fully electronic control system, with the double electronic-control modules, can ensure the best performance of the engine at various altitudes and load conditions.
2. Reliable brake system
* Electric braking-The rotor receives a reverse torque to drive the motor in its power-generating state and thus brake the vehicle; moreover, it is also provided the function of electric braking during backing up.
* Full hydraulic caliper disc brake system controlled by a pedal.
* Braking mode applicable to material loading and unloading, namely, the rear wheels brake while the front wheels are released.
3. Structurally enhanced frame
* Welded box sectional steel structure.
* High strength alloy steel ensures the frame have high toughness to resist low-pressure impact, good fatigue properties and good weldability.
* Steel castings have been incorporated at key frame pivot points and key load bearing critical portions of the frame, includes the rear body pivot, pump pivot and cross beams, etc.
* The computer-aid design and finite element analysis ensure the frame have enough intensity.
Item |
Unit |
XDE320 |
|
Performance parameters |
Rated Payload |
t |
320 |
Empty Weight |
kg |
210000 |
|
Gross Vehicle Weight |
kg |
510000 |
|
Drive Style |
4x2 |
||
Max. Speed |
km/h |
64.5 |
|
Max. Gradeability |
% |
18 |
|
Min. Turning Diameter |
m |
30.8 |
|
Overall dimension |
mm |
15310*8930*7380 |
|
Engine |
Model |
16V4000 |
|
Rated Power/Speed |
kW/rpm |
2014/1800 |
|
Max. Torque/Speed |
Nm/rpm |
11310/1700 |
|
Electric drive |
Alternator |
GTA41B |
|
Traction Motor |
GDY114 |
||
Ratio |
32.62:1 |
||
Tires |
Standard Tire |
53/80R63 |
