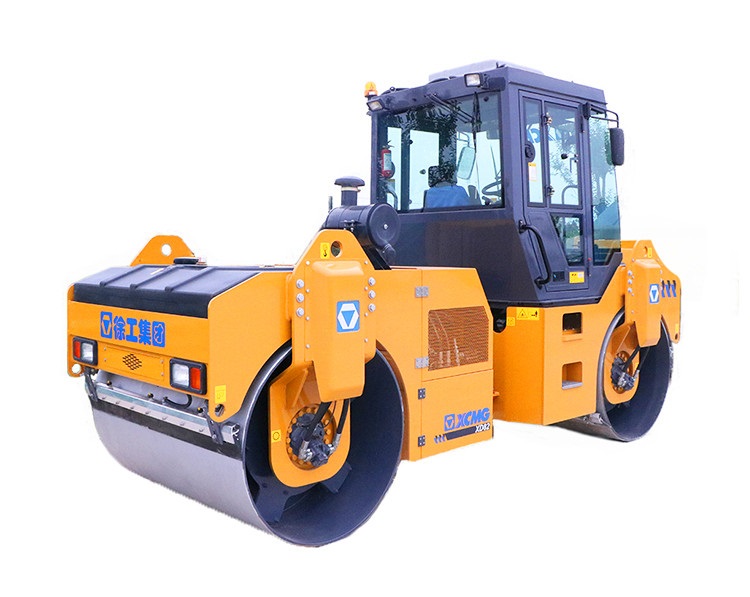

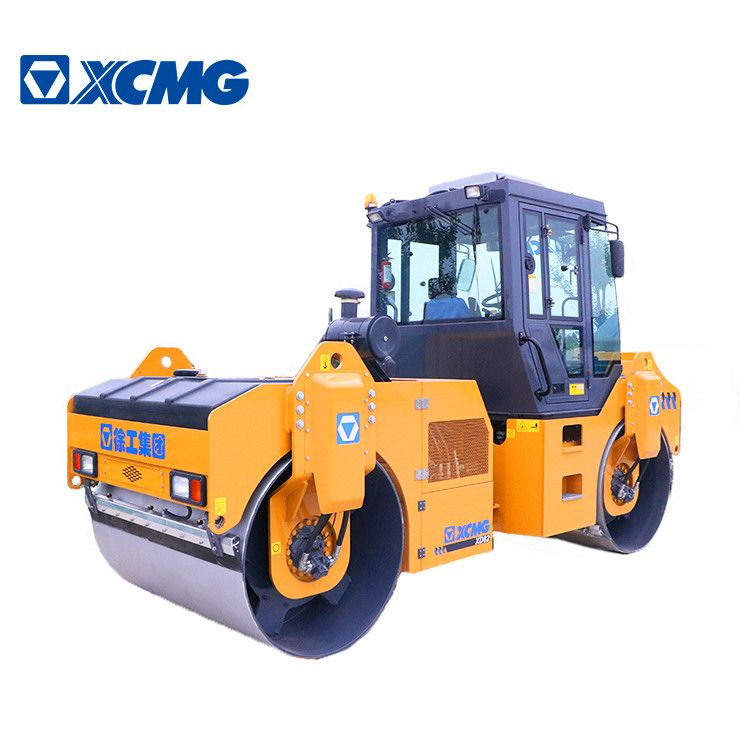

XCMG official road roller compactor XD83 China double drum road rollers compactor for sale

.jpg)

Summary
- Weight:8500kg
- Dimension(L*W*H):4900*1680*3087mm
- Power(W):74.9kW
- Model Number:XD83
- Brand Name:XCMG
- Place of Origin:China
- Grade Ability:35%
- Travel Speed:12km/h
- Static Linear Pressure:248N/cm
- Type:Vibratory Roller
- Certification:CE/ISO9001
Specifications
- Weight:8500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG official road roller compactor XD83 China double drum road rollers compactor.
XD83 light double drum vibratory roller is suitable for surface compaction of compaction works such as asphalt engineering and cement engineering and compaction of curbs. It is also suitable for compaction of base and base layers, sand and gravel materials.
Performance Characteristics:
* Remarkable compacting performance
Dual frequency and dual amplitude vibrating system and scientific and reasonable static linear load and excitation force ensure the effective compaction of different materials and layers with different thicknesses.
* Outstanding powertrain Hydraulic drive system
Adopt the closed anti-slip hydraulic drive system composed by imported heavy-load variable pump and motor, ensuring the good driving performance and high gradeability.
* Reliable Electrical System
The electrical system adopts imported water-proof, dust-proof, vibration-resistant electric connectors for increased reliability. Imported maintenance-free battery has high start-up current and good adaptability.
Parameter |
Unit |
XD83 |
|
Weight distribution |
Working weight |
kg |
8500 |
Front wheel distribution weight (kg) |
4250 |
||
Rear wheel distribution weight (kg) |
4250 |
||
Compaction performance |
Static linear load |
N/cm |
248/248 |
Nominal amplitude |
mm |
0.35/0.6 |
|
Vibration frequency |
Hz |
88/48 |
|
Exciting force (high frequency/low frequency) |
kN |
60/75 |
|
Vibration wheel size |
mm |
1150×1680 |
|
Maneuverability |
Speed range |
km/h |
0~6/ 0~12 |
Theoretical gradeability |
% |
35 |
|
Minimum turning radius mm (in/out) |
|
4100/5780 |
|
Swing angle |
° |
±10 |
|
Steering angle |
° |
±38 |
|
Engine |
model |
|
DEUTZ BF4M2012-10T3R |
Type |
|
Inline four-cylinder pressurized water-cooled |
|
Rated power |
kW |
74.9 |
|
Rated speed |
r/min |
2300 |
