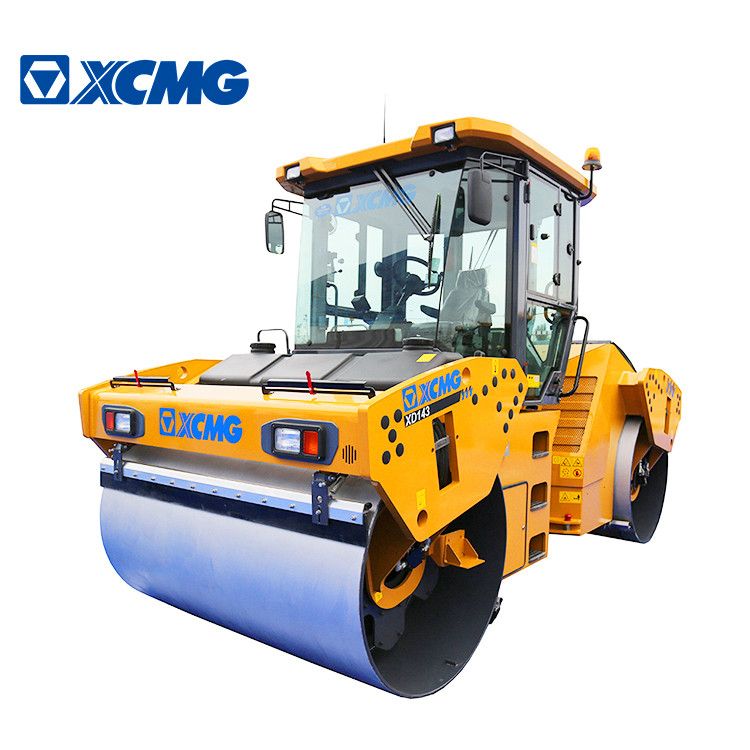

XCMG Official 14 ton double drum vibratory road roller XD143 double drum asphalt rollers for sale
![](/app/topc/statics/images/close.png)
![XCMG Official 14 ton double drum vibratory road roller XD143 double drum asphalt rollers for sale](http://www.machmall.com/images/store/357636/item/XD143 (4).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:14000kg
- Power(W):98kW
- Model Number:XD143
- Brand Name:XCMG
- Place of Origin:China
- Grade Ability:35%
- Travel Speed:0-12km/h
- Type:Vibratory Roller
- Certification:CE/ISO9001
Specifications
- weight:14000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official 14 ton double drum vibratory road
roller XD143 double drum asphalt rollers.
XD143 Vibratory
roller is asphalt compaction machinery product which is independent researched
and developed by XCMG road machinery business division based on years of
experience in compaction machinery research and development. It is designed for
the compaction of asphalt pavement, asphalt layer of different materials and
different thickness, especially suitable for roads, parking lots, airports and
other large engineering projects, can also be used for compaction of roadbed
and sub-base material, wide application scope.
Performance Characteristics:
* The console can
rotate about 35 degrees, improving the driving comfort.
* The steering
wheel can adjust angle according to the need of the driver.
* Control handle,
display, etc. are arranged on the right side to broaden the front view.
* Speed frequency
management system guides the user to compaction operation.
* Guiding the user
to improve operation efficiency.
* The vibration
drum realizes the center of four-in-one combination.
* Preventing the
over-compaction and less-compaction.
Parameter | Unit | XD143 | |
Weight distribution | Working weight | kg | 14000 |
Front wheel distribution weight | 7000 | ||
Rear wheel distribution weight | 7000 | ||
Maneuverability | Speed range | km/h | 0-6 / 0-12 |
Theoretical gradeability | % | 35 | |
Minimum turning radius (in/out) | mm | 4800/6930 | |
Largest amount of crab | mm | ±160 | |
Swing angle | ° | ±8° | |
Steering angle | ° | ±35° | |
Compaction performance | Static linear load | N/cm | 322/322 |
Nominal amplitude | mm | 0.35/0.85 | |
Vibration frequency | Hz | 55/45 | |
Exciting force (high frequency/low frequency) | kN | 98/158 | |
Engine | rated power | kw | 98 |
rated speed | r/min | 2300 |
