XCMG official 85 ton crane truck XCT85_M China new mobile cranes machine price
Summary
- Model Number:XCT85_M
- Brand Name:XCMG
- Place of Origin:China
- Max. Lifting Height:65m
- Rated Loading Capacity:85t
- Application:Construction machinery
- Certification:CE/ISO9001
Specifications
- Weight:85000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

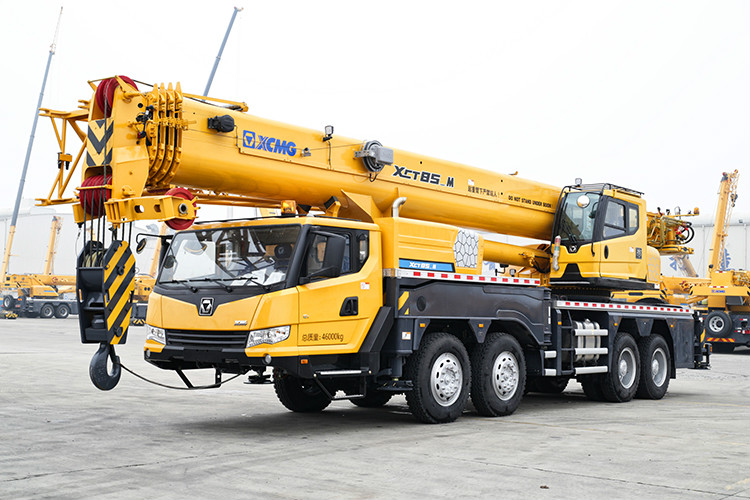

XCMG official 85 ton lifting boom truck crane XCT85_M
It is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mines, and complex working environments.
Performance Characteristics:
* 5-section boom of 48 m with U-type profile is adopted. 85 t max. lifting capacity, 65 m max. lifting height and 44.2 m max. working radius. All capacities take the lead in its class.
* New energy-saving hydraulic system with high efficiency, durability and fine control (lifting: 2.5 m/min, slewing: 0.1°/s).
* Optimal transmission system first created in the industry contributes to strong off-road performance and low oil consumption; the gradeability is 40%.
Item | Unit | Parameter | |
Dimensions (length x width x height) | mm | 14700×2750×3910 | |
Total vehicle mass in travel configuration | kg | 46000 | |
Axle load | 1st and 2nd axle | kg | 10000 |
3rd and 4th axle | kg | 13000 | |
Engine rated power/rpm | kW/(r/min) | 247/2200 | |
Max. output torque/rpm | N.m/(r/min) | 1350/1100-1600 | |
Max. travel speed | km/h | 90 | |
Min. turning diameter | m | 24 | |
Min. ground clearance | mm | 305 | |
Approach angle | ° | 16 | |
Departure angle | ° | 13.5 | |
Max. grade ability | % | 40 | |
Fuel consumption per 100 km | L | 40 | |
Max. total rated lifting capacity | t | 85 | |
Min rated working radius | m | 3 | |
Max. load moment | Base boom | kN.m | 3175 |
Fully-extended boom | kN.m | 1607 | |
Outrigger span | Longitudinal | m | 8.45 |
Lateral | m | 7.9(5.6) | |
Hoist height | Base boom | m | 12.7 |
Fully-extended boom | m | 48 | |
Boom length | Base boom | m | 12.4 |
Fully-extended boom | m | 48 | |
Jib offset angle | ° | 0、15、 30 | |
Boom raising time | s | ≤55 | |
Boom fully extending time | s | ≤110 | |
Hoistin | Main winch | m/min | ≥145 |
Auxiliary winch | m/min | ≥90 | |
