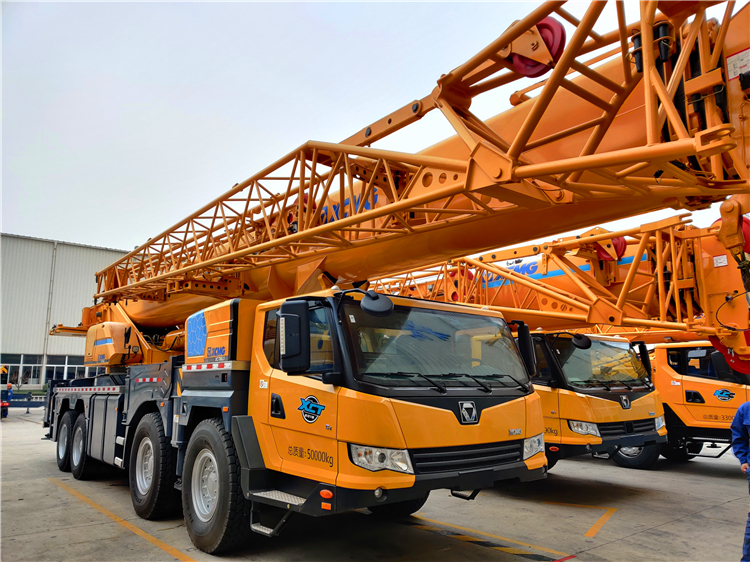

XCMG Official 80n Ton Jib Lifting Crane XCT80L5 China New Mobile Crane Truck Price
.jpg)
Summary
- Model Number:XCT80L5
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Span:7.9m
- Max. Lifting Height:75.5m
- Rated Lifting Moment:3352kN.m
- Rated Loading Capacity:80t
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:80000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

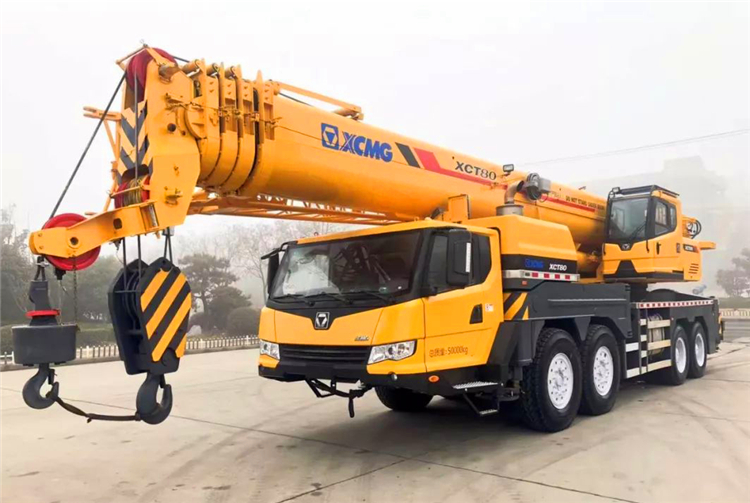

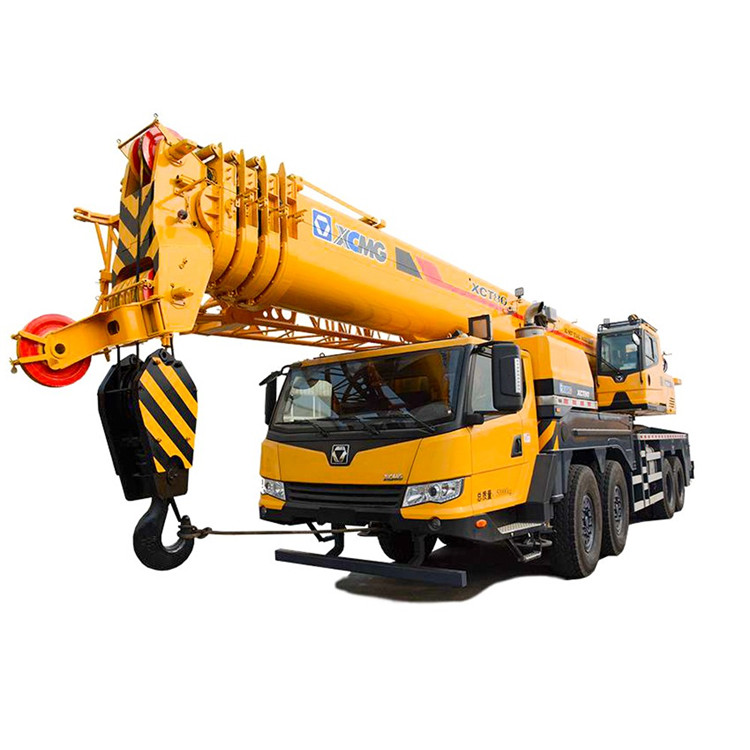

XCMG Official 80n Ton Jib Lifting Crane XCT80L5 China New Mobile Crane Truck.
XCT80L5 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
1. Super lifting performance
6-section boom of 50m with U-type profile is the longest of the same class in the industry; the max. The performance is 20~30% higher than that of the competitors. The telescoping mode is updated from sequential telescoping to random telescoping. New single-cylinder pinning telescoping system brings higher telescoping reliability.
2. New energy-saving hydraulic system
* The min. stable slewing speed is 0.1°/s. The min. stable lifting speed (drum) is 2.5m/min. Precise and safe lifting movements can be realized.
* Independent cooling technology of the hydraulic motor can make the thermal balance temperature of the hydraulic system below 80℃. It can work normally in the high temperature environment and thus the hoisting operation is safe and reliable.
3. Drive train
Heavy truck group MAN engine, rated power 268kw, max torque 1800N.m Shangchai diesel engine, rated power 251kw, max torque 1600N.m
4. Low-speed large-torque power drive system
Resulting in perfect combination of high-power performance and low fuel consumption, i.e.12% reduction in fuel consumption for driving, 15% for operation, and 15% improvement in power performance.
|
Description |
Unit |
Parameter value |
|
Overall length |
mm |
15000 |
|
Overall width |
mm |
2750 |
|
Overall Height |
mm |
3990 |
|
Wheel Base |
mm |
2000+4000+1350 |
|
Track |
mm |
2353/2353/2063/2063 |
|
Total vehicle mass in travel configuration |
kg |
50000 |
|
Axle load |
kg |
12000/12000/13000/13000 |
|
Engine Model |
MC11.40-50 、MC11.40-60 |
|
|
Engine rated power |
kw/(r/min) |
297/1900、297/1900 |
|
Engine rated torque |
N.m/(r/min) |
1900/1000-1400、1907/1000-1400 |
|
Max. travel speed |
km/h |
≥90 |
|
Min. travel speed |
km/h |
2.5～3 |
|
Min. turning diameter |
m |
≤24 |
|
Min. ground clearance |
mm |
303 |
|
Max. grade ability |
% |
47 |
|
Approach angle |
° |
20 |
|
Departure angle |
° |
14 |
|
Braking distance |
m |
≤10 |
|
Oil consumption per 100km |
L |
44 |
|
Max. total rated lifting capacity |
t |
80 |
|
Min. rated range |
m |
3 |
|
Turning radius at turntable tail |
mm |
4260、4290 |
|
Outrigger span Longitudinal |
m |
7.8(7.16) |
|
Outrigger span Lateral |
° |
7.9(5.9) |
|
Base boom |
m |
13.3 |
|
longest boom |
m |
50.5 |
|
Longest main arm + second arm |
m |
75.5 |
|
Max. slewing speed |
r/min |
≥2.0 |
