XCMG Official XCT80 Truck Crane for sale
Summary
- Model Number:XCT80
- Brand Name:XCMG
- Place of Origin:China
- Span:Longitudinal8.075m/Lateral7.9m
- Max. Lifting Height:64
- Max. Lifting Load:80t
- Rated Lifting Moment:3060kN.m
- Rated Loading Capacity:80t
- Application:Construction Industry
- Certification:ISO9001/CE
Specifications
- Weight:50000.000kg
- Condition:New
- Moving Type:Wheel
- Overall length:14770mm
- Overall width:2800mm
- Overall height:3890mm
- Wheel base:1470+4000+1350mm
- Total vehicle mass in travel configuration:50000kg
- Engine Model:WP12.375N/MC11.39-30
- Engine rated power:276/1900kw/(r/min)/290/1900kw/(r/min)
- Engine rated torque:1800/1000-1400N.m/(r/min)/1900/1000-1400N.m/(r/min)
- Max. travel speed:80km/h
- Min. turning diameter:24m
- Max. grade ability:0.4
- Exterior noise level during acceleration traveling:≤122dB(A)
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

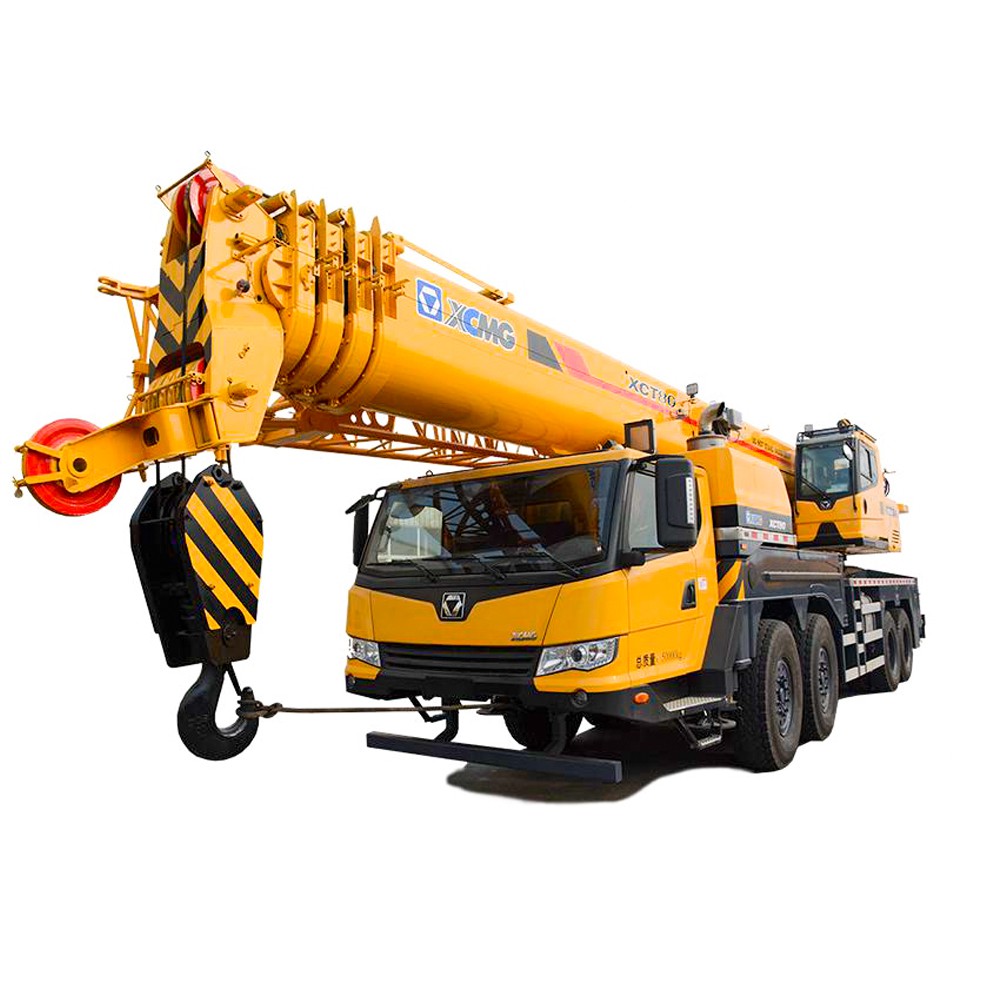

XCT80 Truck Crane
1. Powerful lifting performance and excellent travelling performance2. High working efficiency and convenient switchover in different working modes3. Brand new motive power platform provides powerful motive force and fuel economy4. K-shape outrigger layout contributes to good operation stability5. Stable operation and fine inching control
6. All-around safety and protection design guarantees safety7. Brand new exterior and overall humanized design
Ⅰ.Main Technical Data Table in Travel configuration
|
Description |
Unit |
Parameter value |
|||
|
Overall length |
mm |
14770 |
|||
|
Overall width |
mm |
2800 |
|||
|
Overall Height |
mm |
3890 |
|||
|
Axle base |
1st ,2nd axle |
mm |
1470 |
||
|
2nd ,3rd axle |
4000 |
||||
|
3rd ,4th axle |
1350 |
||||
|
Wheel Base |
mm |
2380+2075 |
|||
|
Total vehicle mass in travel configuration |
kg |
50000 |
|||
|
Axle load |
1st and 2nd Axle |
kg |
24000 |
||
|
3rd and 4th Axle |
26000 |
||||
|
Engine Model |
|
WP12.375N |
MC11.39-30 |
||
|
Engine rated power |
kw/(r/min) |
276/1900 |
290/1900 |
||
|
Engine rated torque |
N.m/(r/min) |
1800/1000-1400 |
1900/1000-1400 |
||
|
Max. travel speed |
km/h |
80 |
|||
|
Min. steady travel speed |
km/h |
3 |
|||
|
Min. turning diameter |
m |
24 |
|||
|
Min. turning diameter at boom tip |
m |
29 |
|||
|
Min. ground clearance |
mm |
371 |
|||
|
Max. grade ability |
% |
40 |
|||
|
Approach angle |
° |
17 |
|||
|
Departure angle |
° |
15.5 |
|||
|
Braking distance (at 30 km/h, full load ) |
m |
≤10 |
|||
|
Oil consumption per 100km |
L |
45 |
|||
Ⅱ.Main Technical Data Table for Lifting Operation
|
Max. total rated lifting capacity |
t |
80 |
|||
|
Min. rated working radius |
m |
3 |
|||
|
Turning radius at turntable tail |
mm |
4670 |
|||
|
Max. load moment |
Base boom |
KN.m |
3060 |
||
|
Fully-extended boom |
1392 |
||||
|
Outrigger span |
Longitudinal |
m |
8.075 |
||
|
Lateral |
7.9 |
||||
|
Hoist height |
Base boom |
m |
12.8 |
||
|
Fully-extended boom |
47.5 |
||||
|
Fully-extended boom + Jib |
64 |
||||
|
Boom length |
Base boom |
m |
12.4 |
||
|
Fully-extended boom |
47.5 |
||||
|
Fully-extended boom + Jib |
65 |
||||
|
Jib offset angle |
° |
0, 15, 30 |
|||
|
Time for boom raising |
s |
70 |
|||
|
Time for boom lowering |
s |
140 |
|||
|
Time for boom extending fully |
s |
150 |
|||
|
Max. slewing speed |
r/min |
2 |
|||
|
Telescoping time |
Fully extended |
s |
150 |
||
|
Fully retracted |
100 |
||||
|
Outrigger extending and retracting time |
Outrigger beam |
Extending Simultaneously |
s |
20 |
|
|
Retracting Simultaneously |
20 |
||||
|
Outrigger jack |
Extending Simultaneously |
50 |
|||
|
Retracting Simultaneously |
40 |
||||
|
Hoisting speed (single line |
Main winch |
No load |
m/min |
130 |
|
|
Full load |
85 |
||||
|
Auxiliary winch |
No load |
130 |
|||
|
Full load |
85 |
||||
|
Exterior noise level |
dB (A) |
≤122 |
|||
|
Noise level at seated position |
dB (A) |
≤90 |
|||
