XCMG Factory Brand New 50 Ton Mobile Truck Crane XCT50_M for Sale
Summary
- Model Number:XCT50_M
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Max. Lifting Height:59.5m
- Max. Lifting Load:50 ton
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:40330.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

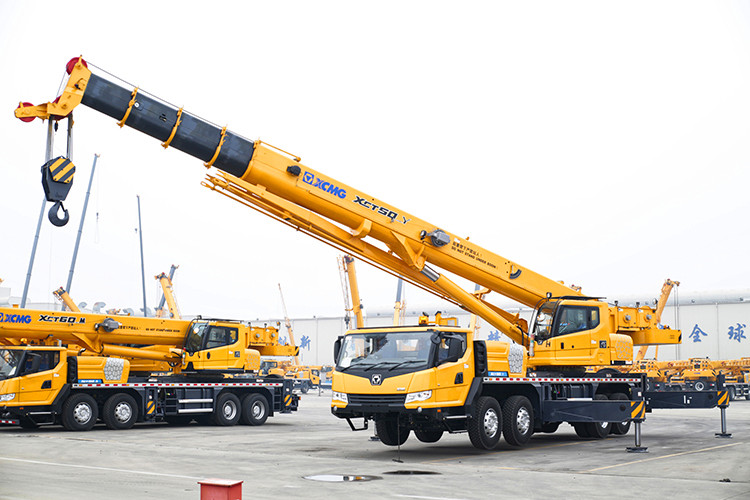

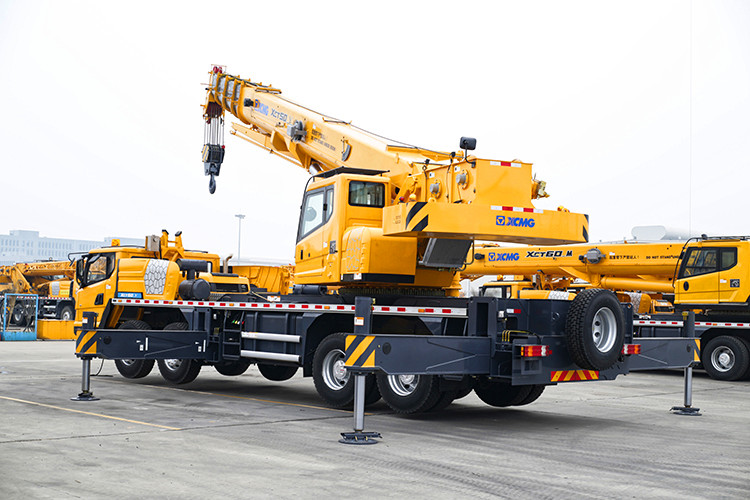

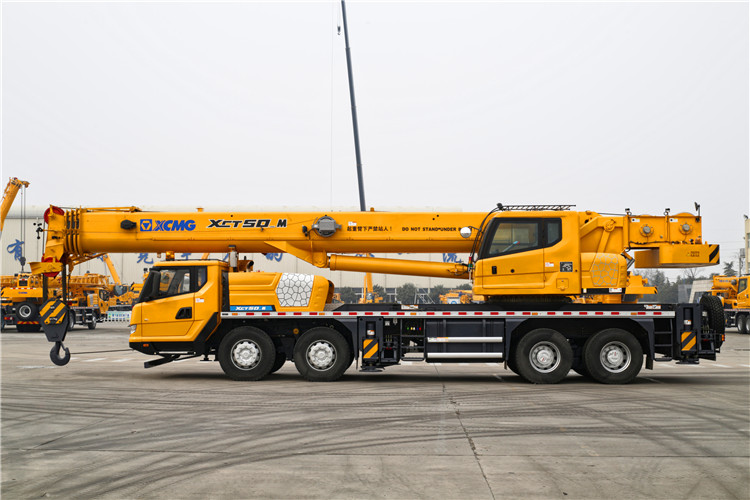

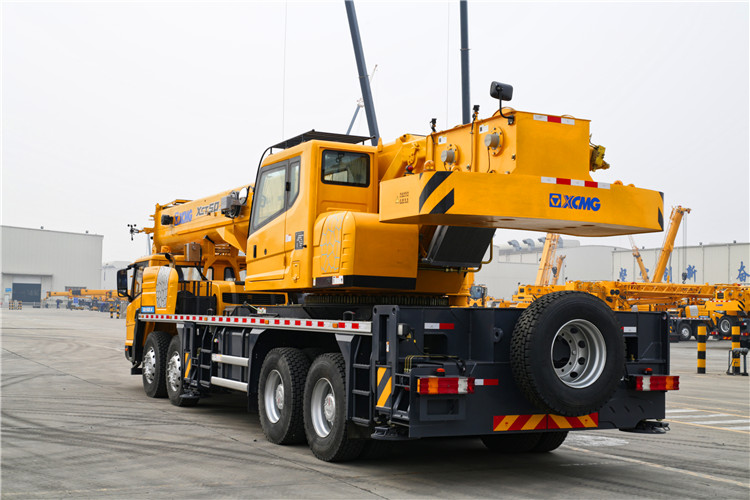

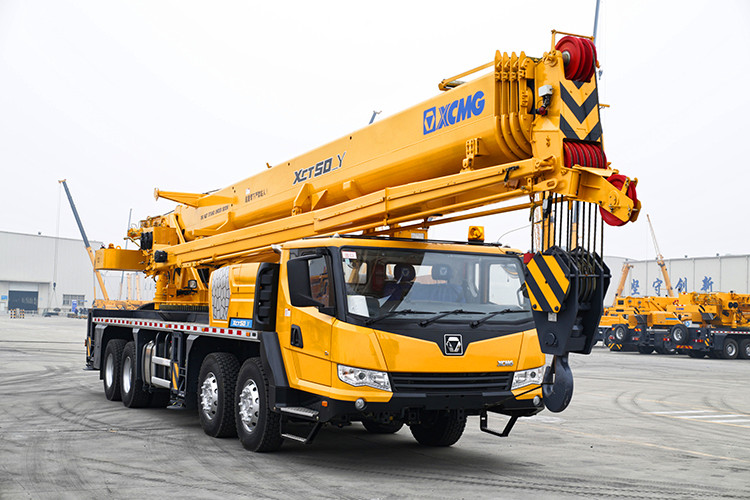

XCMG Factory Brand New 50 Ton Mobile Truck Crane XCT50_M.
XCT50_M Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
The machine is designed to be high temperature resistance, so it can continuously work without downtime in ambient temperature of 60℃.
1.Drive train
Heavy truck group engine, rated power 247kw, max. torque 1350N.m
Max. travel speed 90Km/h, Max. gradeability 38%

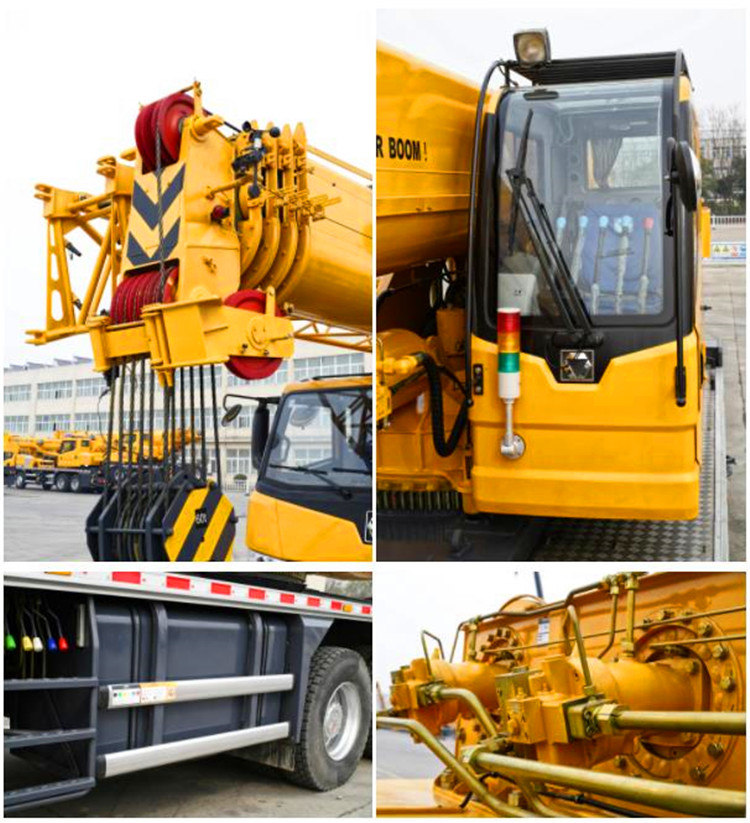

2.Slewing mechanism
Single-row four-point ball contact external tooth slewing ring, may continuously slew 360°.
3.Super lifting performance
5-section boom of 43.5 m with U-type profile is the longest of the same class in the industry; the max. parts of line is 12 for the main hook block. The performance is 8% higher than that of the competitors. The telescoping mode is updated from sequential telescoping to random telescoping. The change of boom length is more efficient, and the performance of medium-long boom is higher.
4.New energy-saving hydraulic system
The min. stable slewing speed is 0.1°/s. The min. stable lifting speed (drum) is 2.5m/min. Precise and safe lifting movements can be realized.
5.Low-speed large-torque power drive system
Resulting in perfect combination of high power performance and low fuel consumption, i.e.12% reduction in fuel consumption for driving, 15% for operation, and 15% improvement in power performance.
|
Item |
|
Unit |
Parameter |
|
Dimensions (length x width x height) |
|
mm |
14040 * 2790 * 3630 |
|
Total vehicle mass in travel configuration |
|
kg |
40330 |
|
Axle load |
1st and 2nd axle |
kg |
16530 |
|
3rd and 4th axle |
kg |
23800 |
|
|
Engine model |
|
- |
W0615.334 |
|
Engine rated power/rpm |
|
kW/(r/min) |
247/2200 |
|
Max. output torque/rpm |
|
N.m/(r/m1n) |
1350/1100-1600 |
|
Max. travel speed |
|
km/h |
90 |
|
Min. turning diameter |
|
m |
24 |
|
Min. ground clearance |
|
mm |
250 |
|
App roach angle |
|
° |
18/10 (front protective device included) |
|
Departure angle |
|
° |
13 |
|
Max. grade ability |
|
% |
38 |
|
Fuel consumption per 100 km |
|
L |
35 |
|
Max. total rated lifting capacity |
|
t |
50 |
|
Min rated working radius |
|
m |
3 |
|
Max. load moment |
Base boom |
kN.m |
2009 |
|
Fully-extended boom |
kN.m |
933 |
|
|
Outrigger span |
Longitudinal |
m |
6.1 |
|
Lateral |
m |
7.1 |
|
|
Hoist height |
Base boom |
m |
11.2 |
|
Fully-extended boom |
m |
43.3 |
|
|
Boom length |
Base boom |
m |
11.4 |
|
Fully-extended boom |
m |
43.5 |
|
|
Jib offset angle |
|
° |
0、15、 30 |
|
Boom raising time |
|
s |
≤40 |
|
Boom fully extending time |
|
s |
≤90 |
|
Hoistin Hoisting speed(single line, 4th layer, no load) |
Main winch |
m/min |
≥130 |
|
Auxiliary winch |
m/min |
≥130 |
