Technical specifications

Chassis

Superstructure

Frame

Designed and manufactured by XCMG, with all covered walking surface, anti-torsion box structure and optimal load-bearing structure design, made of imported high strength steel.

Frame

Designed and manufactured by XCMG; made of high-strength steel

Outrigger

4 outriggers, K-shaped arrangement, rear lateral outrigger are two stage , lateral and vertical outrigger controlled by the hydr-aulic control. Both sides of the chassis equip-ed with outrigger operating system, lighting and speed buttons; outrigger cylinders equipped with one-way valve, and the vertical outrigger has two-way hydraulic lock. Scale of outrigger float:Φ400 Most force on outrigger: 318.2KN.

Hydraulic system

Quadruple pump is driven by the engine, constant delivery pump is used for lifting, elevating, telescoping and slewing; Load sensitive proportional multi-way change valve, impact-resistant valve and anti-cavitation corrosion valve are equipped. Air-cooled hydraulic oil radiator;

Volume of hydraulic oil tank: 490L

Engine

SC9DF300.2Q5, in-line six-cylinder water-cooled EFI diesel engine, manufactured by Shanghai Diesel Engine Co., Ltd., rated power 221kW /1900rpm, max. torque 1400Nm / 1400rpm, the national V emission standards.

Fuel tank capacity : 220L

Operating mode

Hydraulic pilot control of all crane movements using two control levers. All crane movements are controlled by hydraulic pump and proportional valve.

Gearbox

FAST manually mechanical control , 9-speed available, synchronizer is equipped.

Main winch system

Hydraulic controlled speed regulation, groove drum is equipped, driven by hydraulic motor through planetary gear reducer, and built-in normally closed brake and counterbalance valve are available.

Alxes

High strength axle with reliable performance from Meritor. 2nd axle and 3rd axle for driving

AuxiUary winch system

Hydraulic controlled speed regulation, groove drum is equipped, driven by hydraulic motor through planetary gear reducer, and built-in normally closed brake and counterbalance valve are available.

Suspension

Front suspension: longitudinal leaf spring suspension with barrel shock absorber;

Rear suspension: V-type thrust rod structure, and rubber spring suspension.

Slewing system

Four-point ball contact slewing ring. Slewing system is driven by hydraulic motor, with planetary gear reducer, for 360⁶ continuous rotation, stepless slewing speed regulation is available. Hom button s equipped on the control lever.

Tires

10 tires and 1 spare tire, front axle is equipped with single tire, middle axle and rear axle are equipped with double tire.

Tire specifications^ 15/80R22.5

Elevating System

Single-supported double acting front-mounted hydraulic elevating cylinder, with balance valveequipped.

Brakes

Service brake: double-circuit air pressure brake, acting on all wheels.

Parking brake: spring energy brake, acting on wheels of 2-3 axles.

Auxiliary brake: engine exhaust brake and engine in-cylinder brake.

Operator's cab

New fully-enclosed steel tiltable cab with a full- view front window. Safety glass and sun shield are used for windows. Wipers are fitted for the windshield and roof window. The cab features a new ergonomic seat design with backrest adjustment and armrests with joysticks fitted. A sliding door and a pull-out step are available. Air conditioner are available. Fire extinguisher 2kg

Steering

Mechanically steering mechanism with hydraulic power assisted.

Safety devices

Hydraulic balance valve; Hydraulic relief valve; Double-way hydraulic valve; LMI; spring aligning device fbr joystick; Lowering limiter for preventing wire rope from over-releasing; Anti-two block at boom head for preventing wire rope from overwinding; tri-color warning lamp.

Driver's Cab

Full-dimension driver's cab, two passengers are allowable. Equipped with radio, adjustable seats, simple sleeper, steering wheel, safety glasses, electrically controlled windshield washer, electrically operated rearview mirror, electrically operated door window and glove box. Heater and air conditioner are available.

Additional equipment

Engine

MC07.31-50, in-line six-cylinder

water-cooled EFf diesel engine,

manufactured by China National

Heavy Dut Truck Group Hangzhou

Engine Co., LTD.., rated power

228kW /2300rpm, max. torque

1230Nm/l200-1800rpm, the national

V emission standards.

Electric system

24V DC, two sets of battery.Generator: 28.5+0.3V-70 A

Boom system

Boom

5-section, U-shape cross section, welding structure.

Boom length: 10.6m ~ 41m.

Engine

C9DF290.Q3, in-line six-cylinder

water-cooled EFI diesel engine,

manufactured by Shanghai Diesel

 Engine Co., Ltd., rated power 213kw

/2200rpm, max. torque 1200Nm

/ 1400rpm, the national III emission

 standards.

Single top

Single top is installed on the top of main boom, for single wire rope hoist. Its lifting performance is the same as that for jib(8.3m), with 0° jib offset angles.

Safety devices

Anemometer, winch monitor device ； level gauge.

Jib

1-section, Lattice jib, welded structure. Three offset angles of 0° , 15° and 30° . Fixed jib length: 8.3m

Product parts list is as mentioned above, please refer to the product quotation for specific parts.

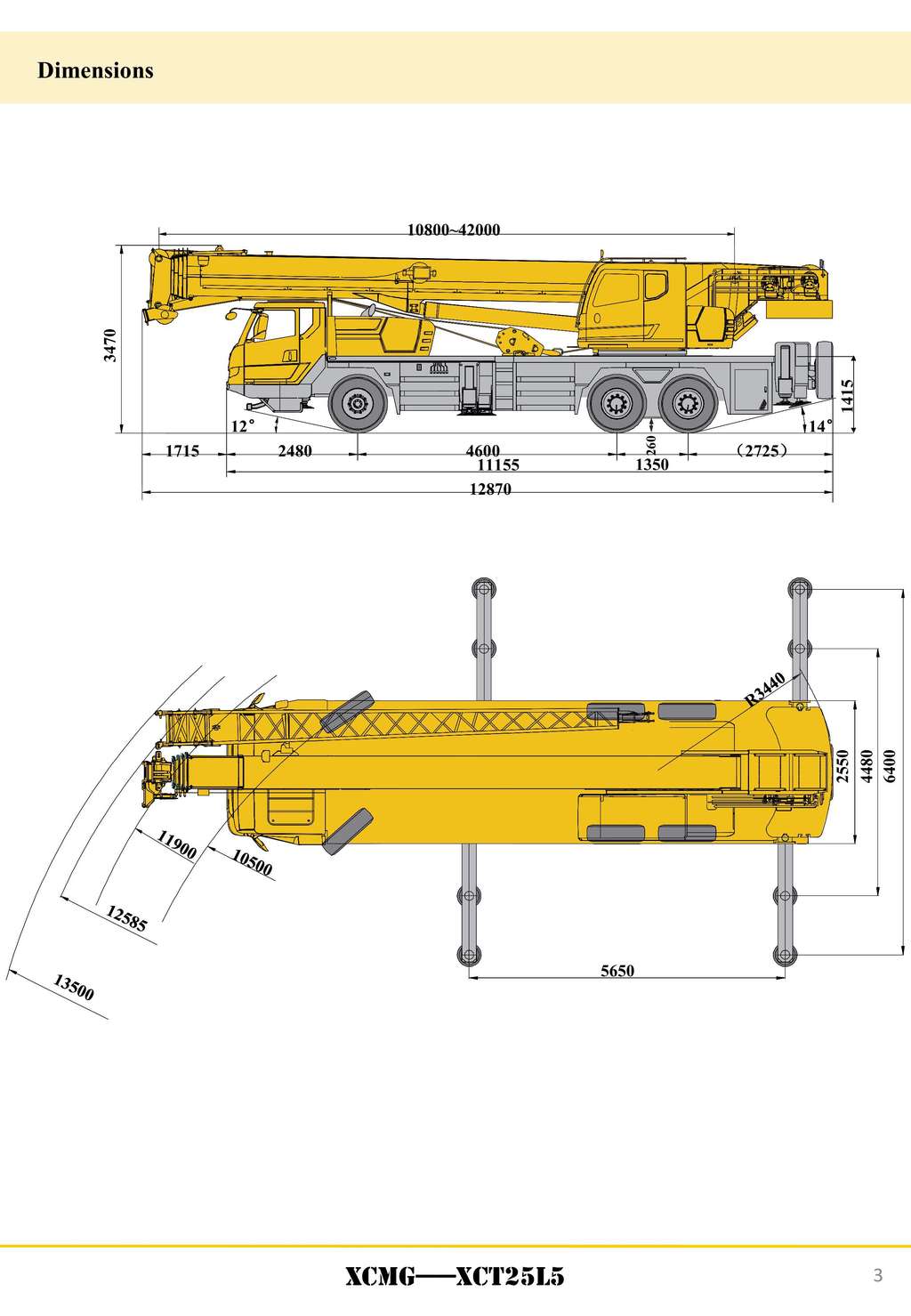

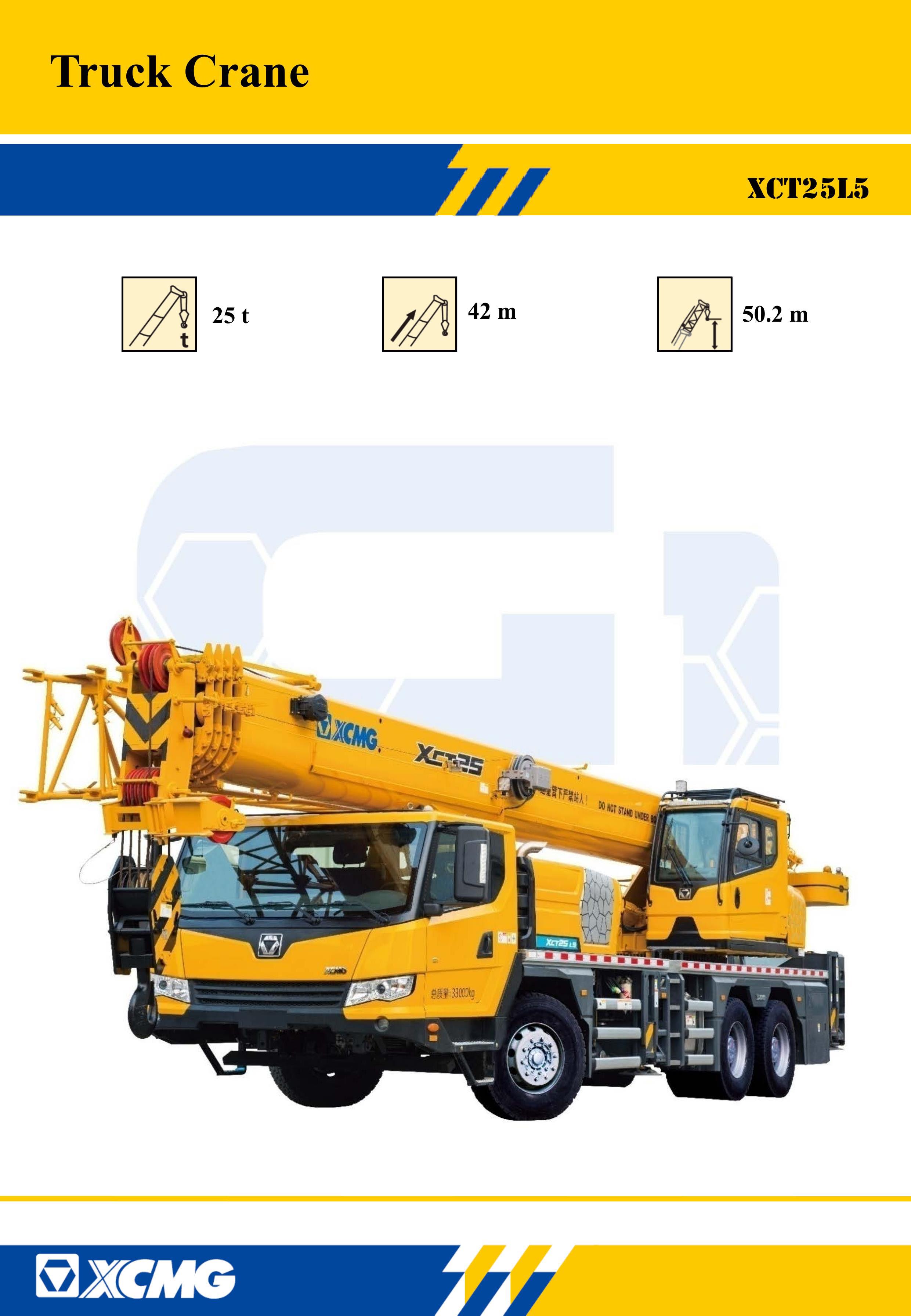

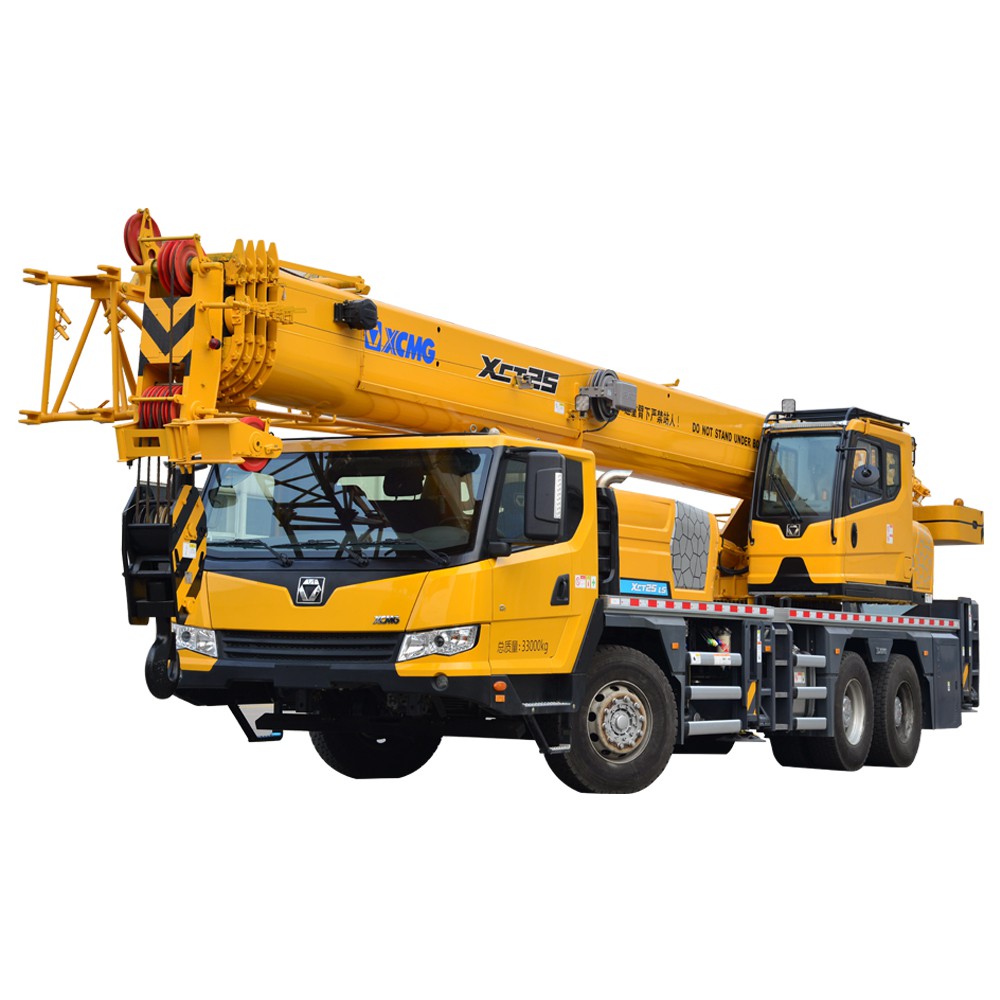

XCMG—XCT25L5
