Summary
- Model Number:XCT25
- Brand Name:XCMG
- Place of Origin:XUZHOU, CHINA
- Max. Lifting Height:43.2m
- Max. Lifting Load:25 tons
Specifications
- Weight:27500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

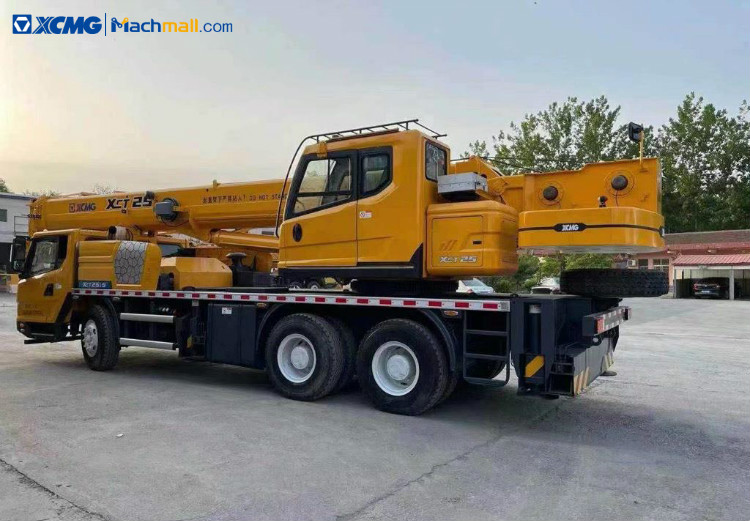

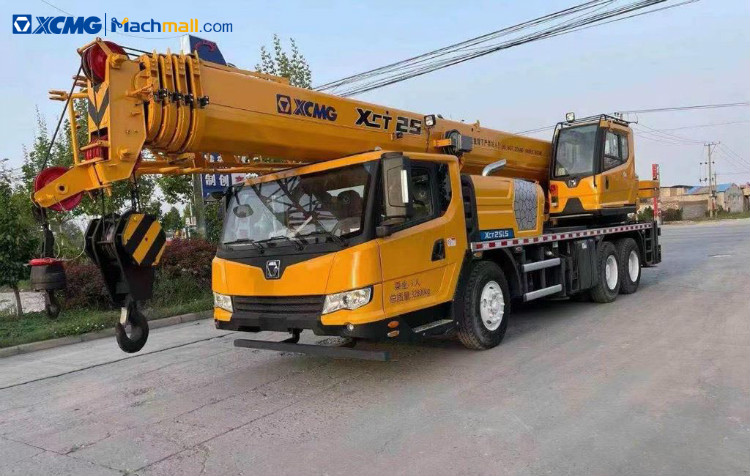

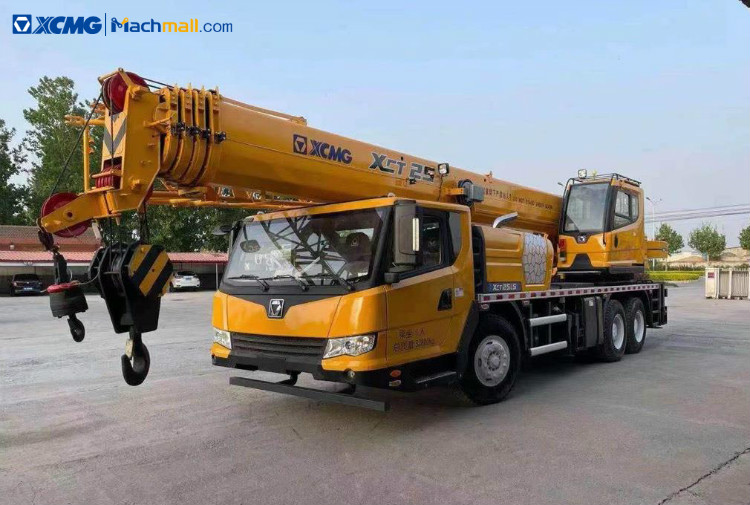

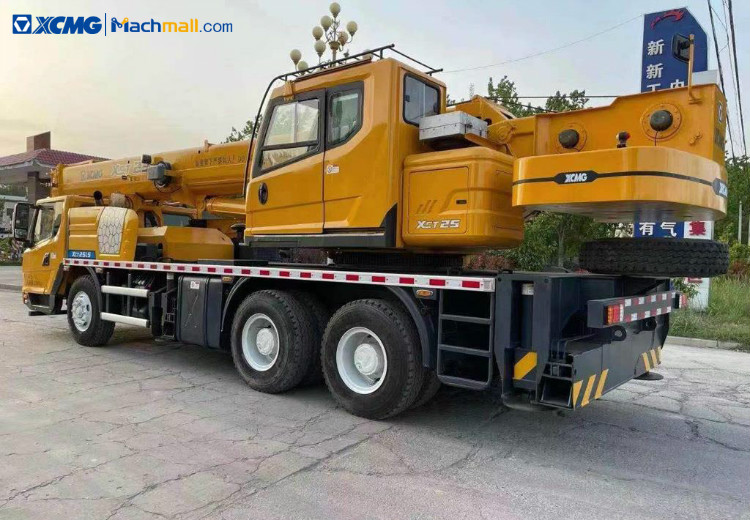

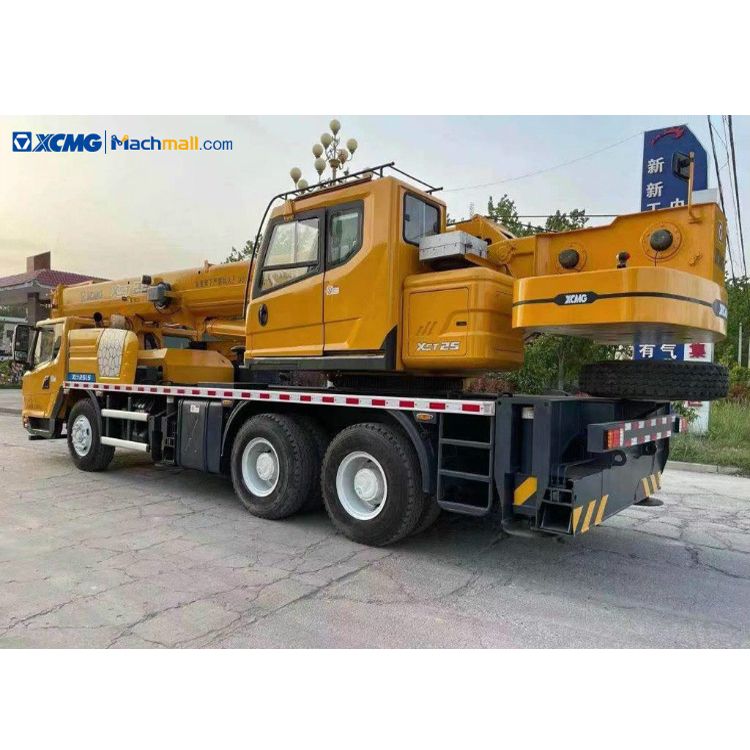

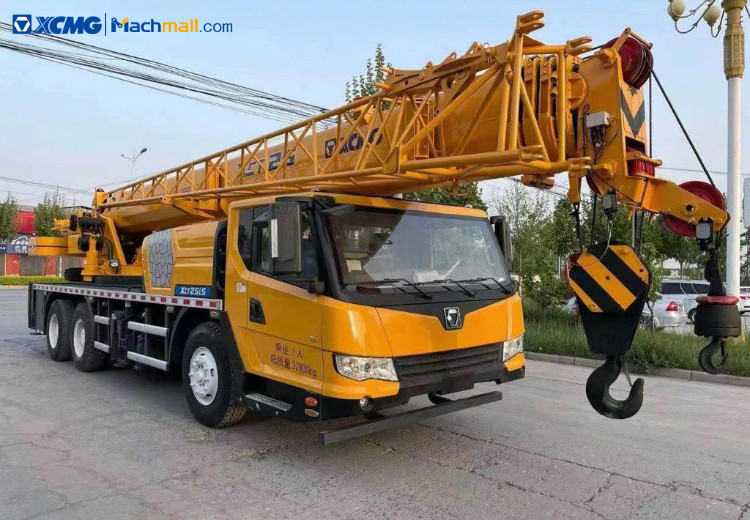

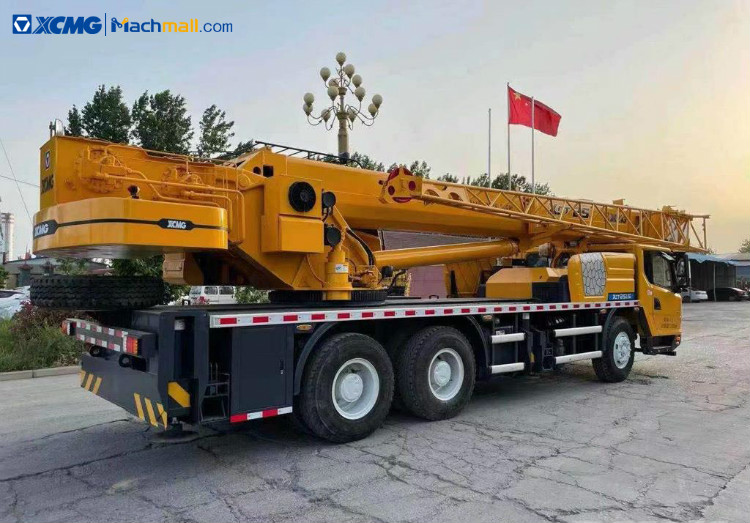

XCT25 - XCMG manufacturer 25 ton mobile crane XCT25.
XCMG manufacturer 25 ton mobile crane XCT25 is widely used for the lifting operations in general engineering projects, such as construction sites, transportation, ports, bridges, deserts, oilfields and mines, etc. Lifting capacity, efficiency, controllability, mobility and environment adaptation take the lead in the industry.
XCMG 25 ton crane XCT25 performance characteristics:
* 4-section boom of 34 m with U-type profile is adopted; the max. lifting load is 25 t; the max. working radius is 30 m; the performance takes the lead comprehensively. the max. lifting height is 43.2m;
* Various adaptation configurations for different working conditions meet the requirements of projects such as oil fields and municipal constructions.
* The entire machine is designed to endure high temperature, it is allowed to work in ambient temperature up to 60℃. With dust-proof parts equipped, the crane is applicable to applications in deserts.
|
Category |
Item |
|
Unit |
Parameter |
|
Main performance |
Max. total rated lifing capacity |
|
t |
25 |
|
|
Min. rated working radius |
|
m |
3 |
|
|
Turning radius at turntable tail |
Counterweight |
mm |
3425 |
|
|
Max. load moment |
Base boom |
kN.m |
938 |
|
|
|
Fully extended boom |
kN.m |
623 |
|
|
|
Fully extended boom + Jib |
kN.m |
370 |
|
|
Outrigger span |
Longitudinal |
m |
5.23 |
|
|
|
Lateral |
m |
6.4 |
|
|
Hoist height |
Base boom |
m |
10.9 |
|
|
|
Fully extended boom |
m |
34.5 |
|
|
|
Fully cxtended boom + Jib |
m |
43.2 |
|
|
Base boom |
Boom length |
m |
10.6 |
|
|
|
Fully extended boom |
m |
34 |
|
|
|
Fully extended boom + Jib |
m |
42.3 |
|
|
Jib offset angle |
|
。 |
0, 15, 30 |
|
Dimensions |
Dimensions (length x width x height) |
|
mm |
12535*2550*3420 |
|
|
Wheel base |
|
mm |
4425+1350 |
|
|
Track ( Front/ Rear ) |
|
mm |
2027/1834 |
|
|
Front/ Rear overhang |
|
mm |
2442/2420 |
|
|
Front Rear extension |
|
mm |
1528/370 |
|
Weight |
Total vehicle mass in travel configuration |
|
kg |
27500 |
|
Power |
Engine model |
|
|
SC7H260Q3 |
|
|
Rated power/rpm |
|
kW/(r/min) |
192/2200 |
|
|
Max. net power/rpm |
|
kW/(r/min) |
188/2200 |
|
|
Max. output torque/rpm |
|
N.m/(t/min) |
1000/1400 |
