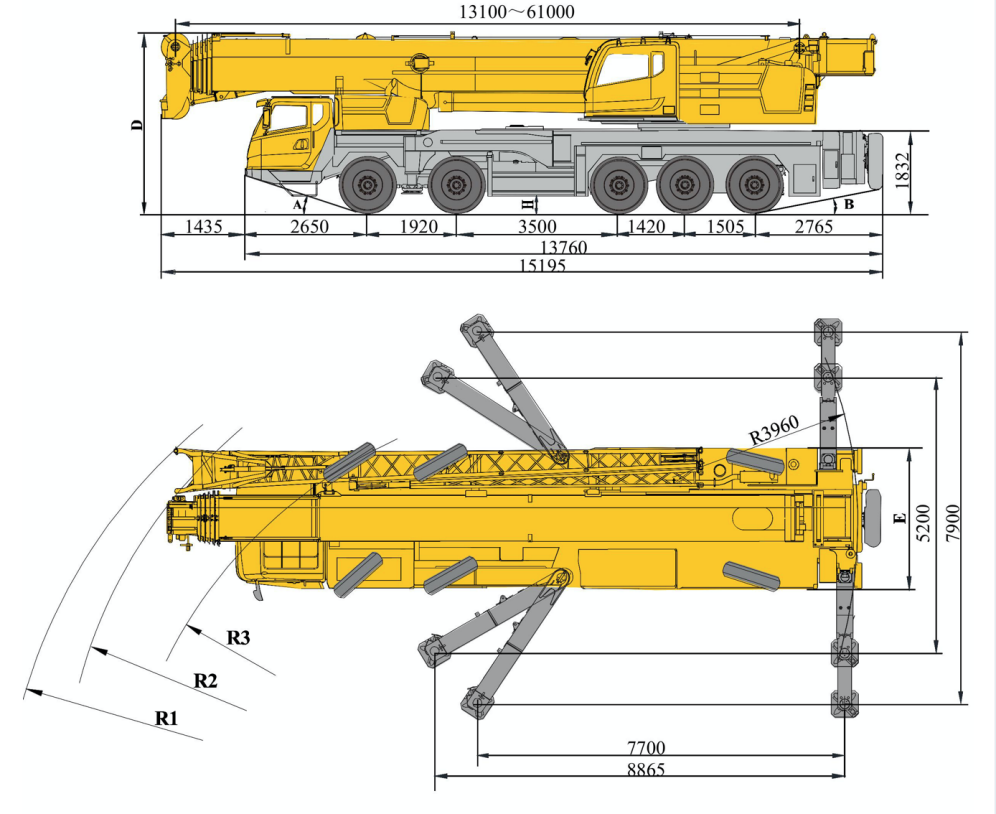

A

B

D

E

R1

R2

R3

H

12.00R24-20PR

18°

13°

3970

3000

14300

13400

11500

312

Technical specifications

Chassis

Superstructure

Frame

Designed and manufactured by XCMG, with all covered walking surface, anti-torsion box structure and optimal load-bearing structure design, made of imported high strength steel.

Frame

Designed and manufactured by XCMG; Full-covered walking platform, made of high-strength steel

Outrigger

4 outriggers, K-shaped arrangement, lateral and vertical outrigger controlled by the hydraulic control. Both sides of the chassis equipped with electronic control console, the console installed with luminous level, lighting and speed buttons; outrigger cylinders equipped with one-way valve, and the vertical outrigger has two-way hydraulic lock. Float dimension: 480mm x 615mm; Reaction force of outrigger at max. lifting load:104KN

Engine

WP6G240E330,Inline six-cylinder water-cooled and high pressure common rail diesel engine, manufactured by Weichai, rated power 176kW / 2300rpm, the maximum torque of 860Nm / 1200-1700rpm, state III emission standards; Fuel tank capacity : 280L.

Engine

WP12.430E50, in-line six-cylinder water-cooled EFI diesel engine, manufactured by WEICHAI POWER, rated power 316kW /1900rpm, max. torque 2060Nm / 1000-1400rpm, the national V emission standards. Fuel tank capacity : 360L

Hydraulic system

Hydraulic pump: variable pump and gear pump driven by superstructure engine, used fbr hoisting, elevating, telescoping and slewing operation; Control valve: Load-sensitive proportional multiway change valve, controlled by electric proportional pilot hydraulic oil. Oil tank capacity: about 1100 L.

Gearbox

Electric controlled transmission imported from ALLISON American, with automatic AT control, equipped with retarded brake, with 6 forward gears and 1 reverse gears available

Operating mode

Pilot electric-proportional control is used for controlling the superstructure with PLC integrated intelligent control technology and CAN-BUS control network. Besides normal control functions, it also has the functions such as real-time monitoring, fault automatic diagnosis, intelligent boom control, single-cylinder pinning control and wireless remote control counterweight erection.

Transfercase

Mechanical transfer box is originally imported from ZF Germany, which can transfer power to superstructure.

Main winch system

Hydraulic control is used for speed regulation. The system is driven by a hydraulic motor through a planetary gear reducer, with a normally closed brake, balance valve and a grooved drum equipped.

Alxes

High strength axle with reliable performance, 1st axle: for steering; 2nd axle: fbr steering and driving; 3rd axle: for driving; 4th axle: fbr driving; 5th axle: fbr steering.

Slewing system

3-row roller type external gearing slewing ring is driven by the planetary gear reducer of slewing mechanism driven by a hydraulic motor, may continuously slew 360° . Power control or free slewing function is available, and the slewing speed may be infinitely regulated.

Suspension

Leaf spring balanced suspensions are adopted for front axle, and dual longitudinal arm leaf spring balanced suspensions are adopted fbr rear axle.

Elevating system

Single-cylinder elevating with boom gravity fall mode to save fuel.

Tires

14 tires and 1 spare tire; Tire specifications: 12.00R24-20PR*

Operator's cab

New fully-enclosed steel cab has better sealing and anti-corrosive properties and it's safe and comfortable to use.It is equipped with a fiill-view front window. Safety glass and sun shield are used fbr windows. The cab features a new ergonomic seat design with backrest adjustment and armrests with joysticks fitted. A sliding door and a pull-out step are available to make it easy and safe as access and egress the cab.Wipers are fitted fbr the windshield and roof window. Control panel with human-machine interactive system is used in operator's cab. The cab can be tilted up to 20°. Heating & air conditioning are available.

Brakes

Service brake: double-circuit air pressure brake, acting on all wheels. Parking brake: spring energy brake, acting on wheels of 2-5 axles. Auxiliary brake: engine retarded brake.

Cab

New full-dimension enclosed cab, luxury and comfort. It is designed to be leak proofs anticorrosive and shockproof. It is equipped with a windshield offering outstanding visibility, rear mirrors, electric control washer, electronic lifters of doors and windows, indoor air humidifier with windscreen defroster, air conditioner, radio cassette player, etc.

Electric

24V DC, negative ground, 2 batteries.

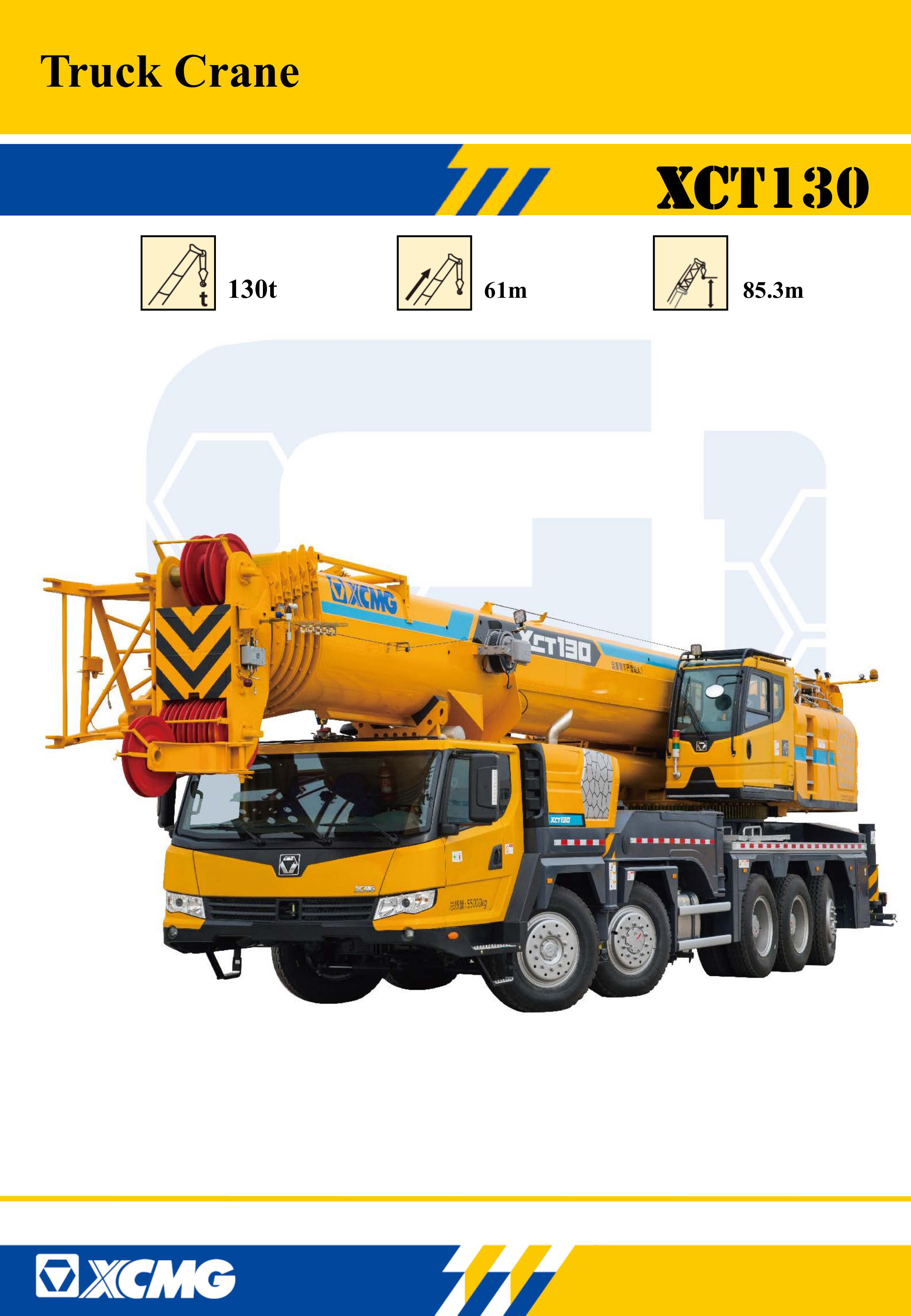

XCMG—XCT130

Technical specifications

Additional equipment

Safetydevices

Hydraulic system: hydraulic balance valve,hydraulic relief valve, double-way hydraulic valve, etc. are available to make hydraulic system safe and stable.The safety system includes displayer, central controller, length/angle sensor, over-winding switch, oil pressure sensor, etc.Lowering limiter switch can make the drum maintain three circles of wire ropes at least.Height limiter switch can make the lifting height within the max. limit.

Telescopic boom extension

 boom extension of 8m

Combined counterweig ht

Total weight is 45t.Counterweights of Ot, 13t, 23t, 33t, and 45t are available.

Engine

OM906LA.E3A/2,Inline six-cylinder water-cooled EFI diesel engine, manufactured by Benz, rated power 190kW / 2200rpm, the maximum torque of lOOONm / 1200-1600rpm,state III emission standards.

Chassis Engine

MCI 1.44-50, in-line six-cylinder water- cooled EFI diesel engine, manufactured by SINOTRUK, rated power 327kW /1900rpm,max. torque 2100Nm / 1000-1400rpm, the national V emission standards.Fuel tank capacity : 360L

Chassis Engine

WP12.430N, in-line six-cylinder water-cooled EFI diesel engine, manufactured by WEICHAI POWER, rated power 316kW /1900rpm, max. torque 2060Nm / 1000-1400rpm, the national III emission standards.Fuel tank capacity : 360L

Boom system

Boom

Anti-torsion design is adopted in telescoping boom with high strength steel structure.Booms are highly stable with the application of U-shaped cross section. The sliders which support the boom are also adjustable. Single-cylinder pinning telescoping mode is adopted to realize various combination of working conditions.Boom length: 13.1m ~ 61m.

Wireless control device

wireless  remote control counterweight  erection.

Single top

Fitted at boom head, used for single line operation.

Jib

Two lattice jibs are stored besides the boom with 0°, 15° and 30° jib offset angles available.Jib length: 11.55m/20m

Product parts list is as mentioned above, pleaserefer to the product quotation for specific parts.

XCMG—XCT13O
