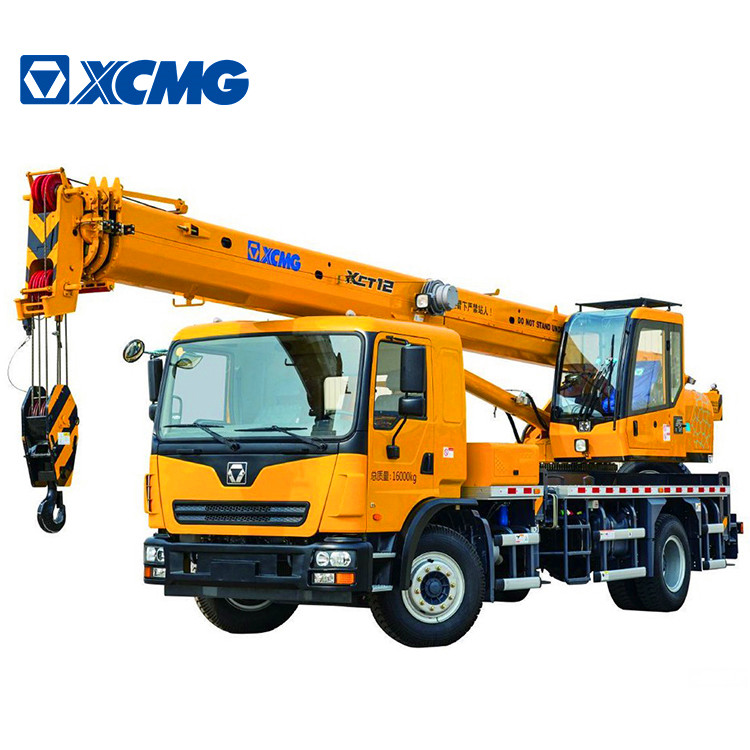

XCMG Official 12 Ton Cranes Hydraulic Truck XCT12L4 China Hydraulic Crane Price
.jpg)
Summary
- Model Number:XCT12L4
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Span:7.6m
- Max. Lifting Height:31.1m
- Rated Lifting Moment:428kn.m
- Rated Loading Capacity:12t
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:12000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official 12 Ton Cranes Hydraulic Truck XCT12L4 China Hydraulic Crane.

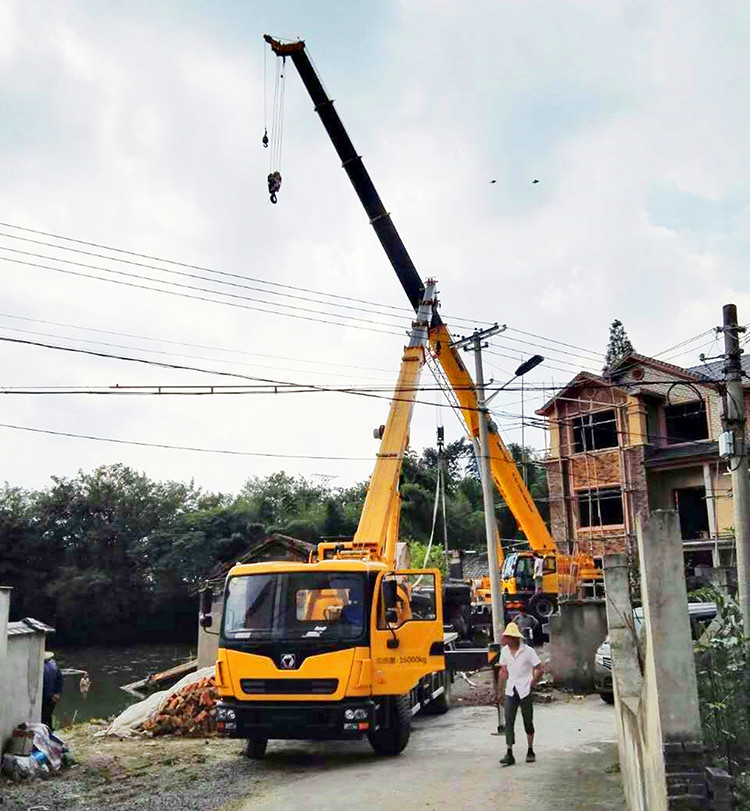

XCT12L4 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
* Super lifting performance
4-section boom of 32m with eight side profile is the longest of the same class in the industry; the max. parts of line is 6 for the main hook block. The performance is 10% higher than that of the competitors.
* New energy-saving hydraulic system
The min. stable slewing speed is 0.1°/s. The min. stable lifting speed (drum) is 2.5m/min. Precise and safe lifting movements can be realized.
* Drive train
Weichai/Shanghai Nation V diesel engine, rated power 162kw/170kw, max. torque 850N.m900N.m；Weichai/Shanghai Nation III diesel engine, rated power 176kw/170kw, max. torque 900N.m900N.m.
Max. travel speed 90Km/h, Max. grade ability 41%
* Energy-saving power transmission system
With new energy-saving motor, the novel power platform is centered with one-stage retarding axle and equipped with full synchronizer containing transmission with over speed gear. Strong drive performance and load bearing capacity contribute to perfect combination of high power performance and low oil consumption, which reduces the general oil consumption over 10% and exceeds competitors more than 12% at the max. speed.
|
Category |
Item |
Unit |
XCT12L4 |
|
Dimension |
Overall length |
mm |
10900 |
|
Overall width |
mm |
2500 |
|
|
Overall height |
mm |
3550 |
|
|
Weight |
Total weight in travel |
kg |
16000 |
|
Power |
Engine model |
SC7H230Q4/WP6.220E40 |
|
|
Engine rated power |
kW/(r/min) |
170/2300 162/2300 |
|
|
Engine rated torque |
N.m/(r/min) |
900/1400 850/1400-1600 |
|
|
Travel |
Max. travel speed |
km/h |
90 |
|
Min. turning diameter |
m |
18 |
|
|
Min. ground clearance |
mm |
250 |
|
|
Approach angle |
° |
21 |
|
|
Departure angle |
° |
13 |
|
|
Max. grade ability |
% |
41 |
|
|
Fuel consumption for 100km |
L |
25 |
|
|
Main performance |
Max. rated total lifting capacity |
t |
12 |
|
Min. rated working radius |
m |
3 |
|
|
Turning radius at turntable tail |
m |
2.57 |
|
|
Max. lifting torque |
kN.m |
482.5 |
|
|
Base boom |
m |
9.5 |
|
|
Max.main boom |
m |
30.9 |
|
|
Max.main boom+jib |
m |
38.1 |
|
|
Turning radius at turntable tail |
Counterweight |
mm |
2570 |
|
Auxiliary winch |
mm |
2910 |
|
|
Max. load moment |
Base boom |
t.m |
48.25 |
|
Fully-extended boom |
t.m |
27.6 |
|
|
Outrigger span(fully-extended) |
Longitudinal |
m |
4.57 |
|
Hoist height |
Lateral |
m |
5.5 |
|
Base boom |
m |
9.5 |
|
|
Fully-extended boom |
m |
30.9 |
|
|
Boom length |
Fully-extended boom + Jib |
m |
38.1 |
|
Base boom |
m |
9.45 |
|
|
Fully-extended boom |
m |
30.5 |
|
|
Fully-extended boom + Jib |
m |
30.5+7 |
