XCMG Official 110 Ton Truck with Crane XCT110 China Truck Crane Price
Summary
- Model Number:XCT110
- Brand Name:XCMG
- Place of Origin:China
- Max. Lifting Height:96.4m
- Rated Lifting Moment:2060Nm
- Rated Loading Capacity:110t
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:110000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

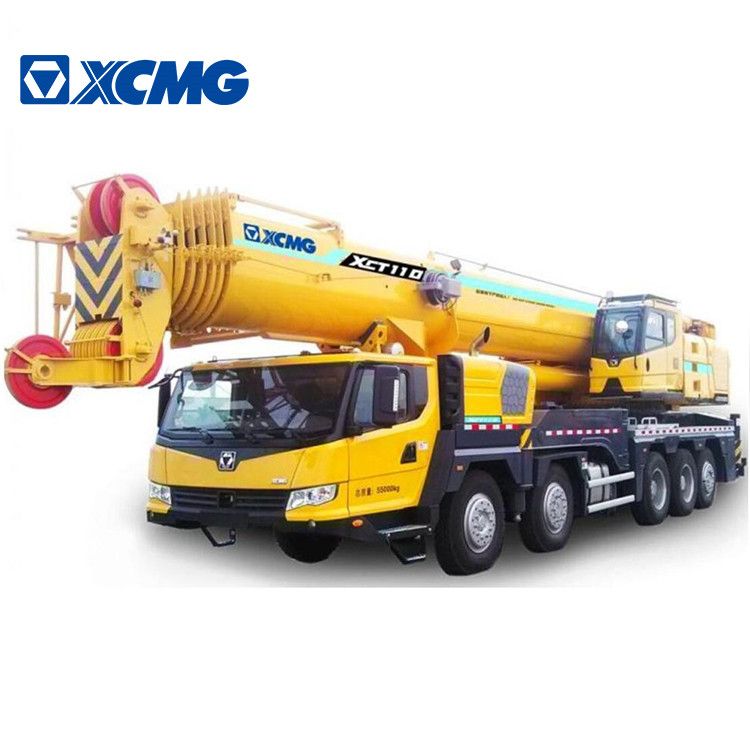

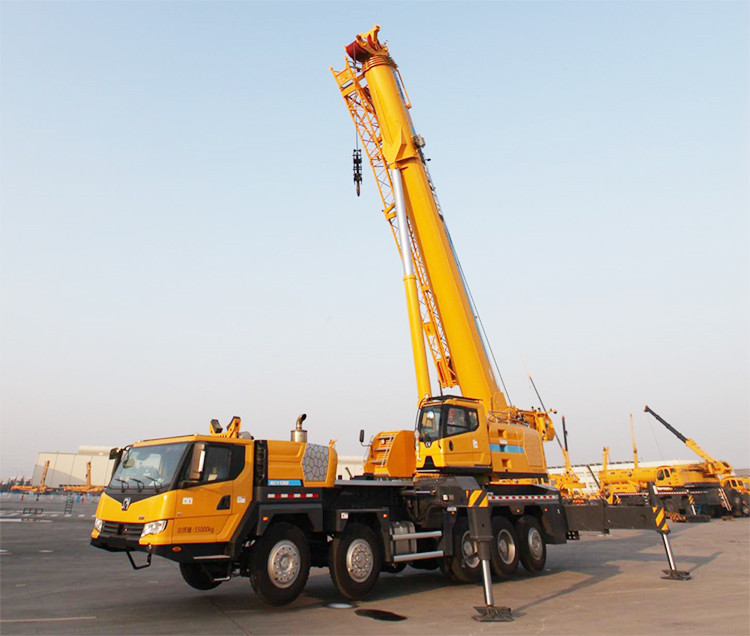

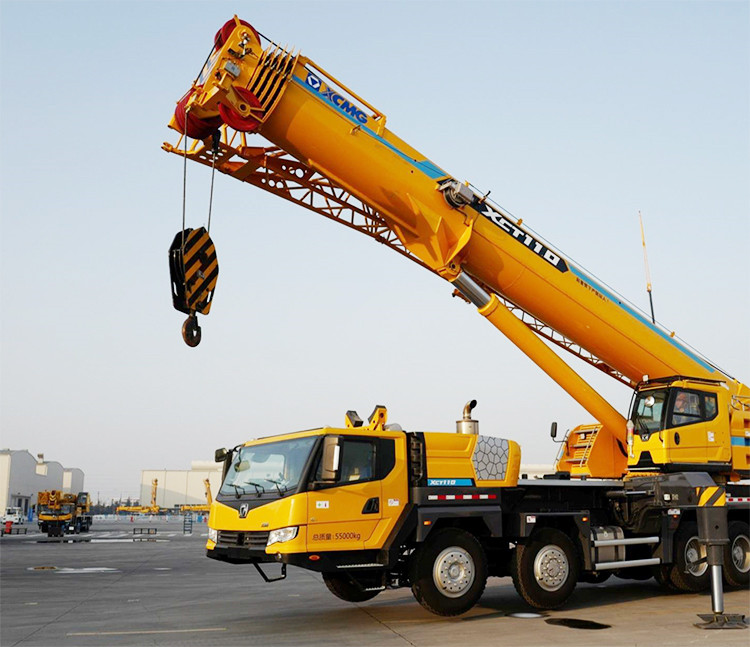

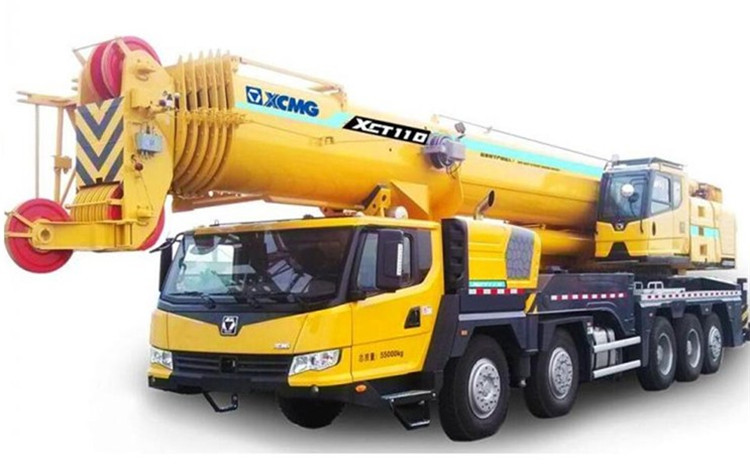

XCMG Official 110 Ton Truck with Crane XCT110 China Truck Crane Price.

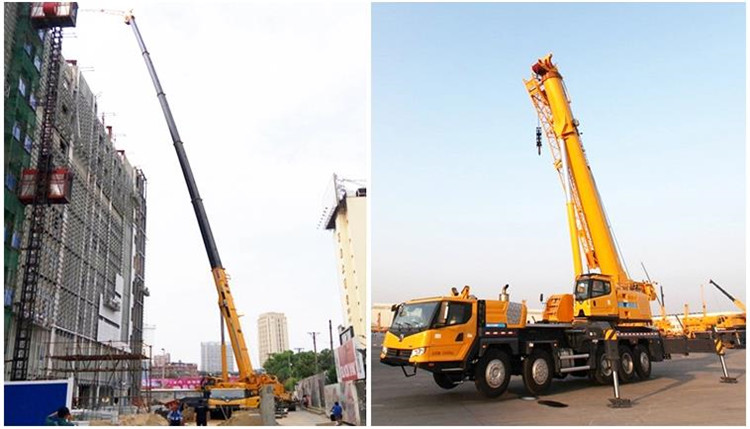

XCT110 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
Performance Characteristics:
* 7-section boom of 73 m with U-type profile is adopted; the max. lifting load is 110 t; the max. lifting height is 96.4 m; the max. working radius is 60 m; The performance takes the lead comprehensively.
* Low speed large torque power transmission system, contributes to perfect combination of optimal power and optimal economical efficiency, leading to more than 12% reduction in fuel consumption and 10% improvement in grade ability.
* XCT110 is also the first four-wheel driven truck crane domestically, which can meet the need under various road conditions. Chassis rear hydraulic controlled follow-up steering technology, realizate highway and small turning two steering modes, ensure stable and reliable of vehicle at high speed, travelling at lower speed is flexible.
Parameter |
Value |
Span |
7.9m |
Max. Lifting Load |
110t |
Total weight in travel |
54990kg |
Overall length |
15545mm |
Overall width |
3000mm |
Overall height |
3890mm |
Engine Model |
WP12.430E50 |
Engine rated torque |
2060Nm/1000-1400rpm |
Engine rated power |
316kW/1900rpm |
