XCMG 45 ton reach stacker for containers XCS4535K China Mobile Container Crane price
Specifications
- Weight:76500.000kg
- Rated capacity:265/2100kW/rpm
- Brand Name:XCMG
- Model Name:XCS4535K
- Rated Loading Capacity:45ton
- Max. lifting height:15100mm
- Max. lifting speed:420mm/s
- Max. travel speed:25km/h
- Overall weight:76.5t
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

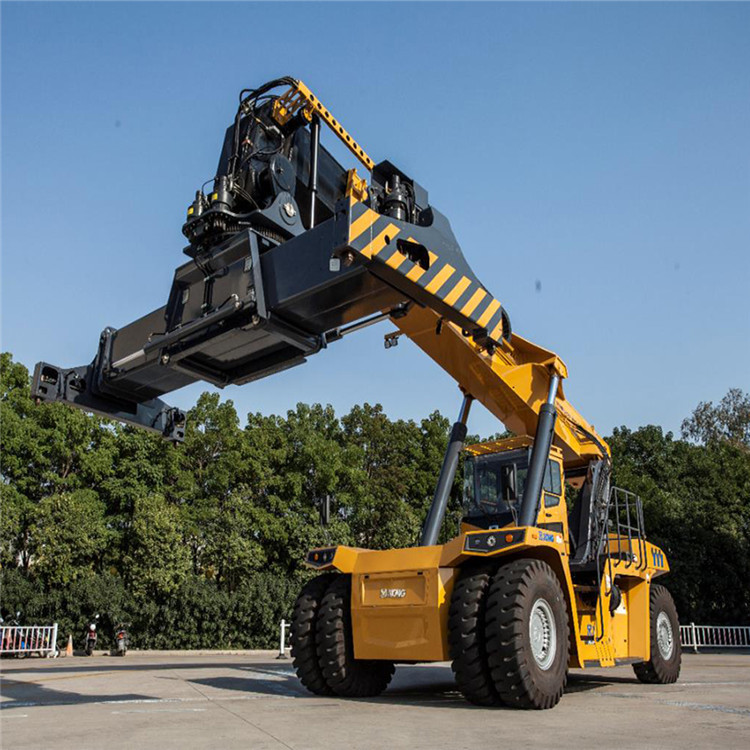

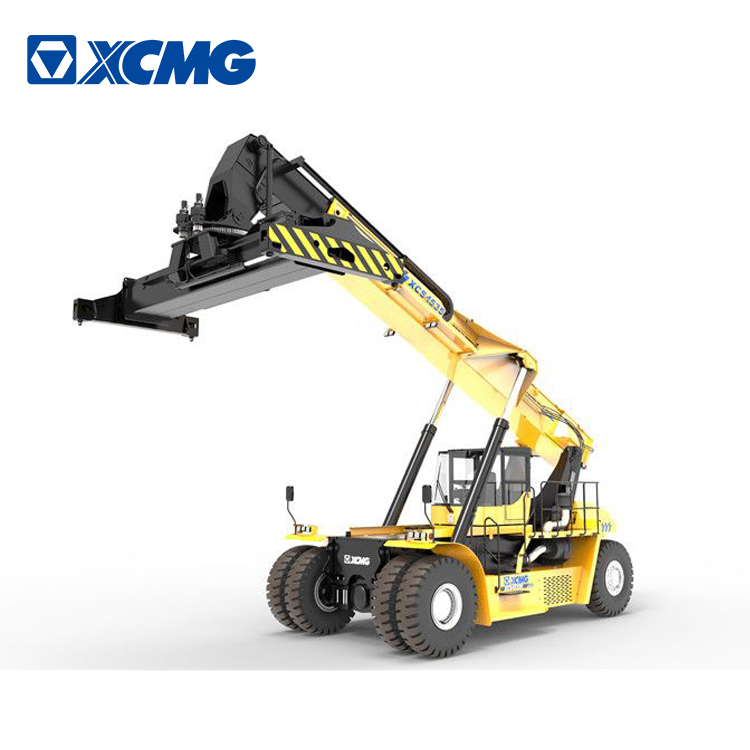

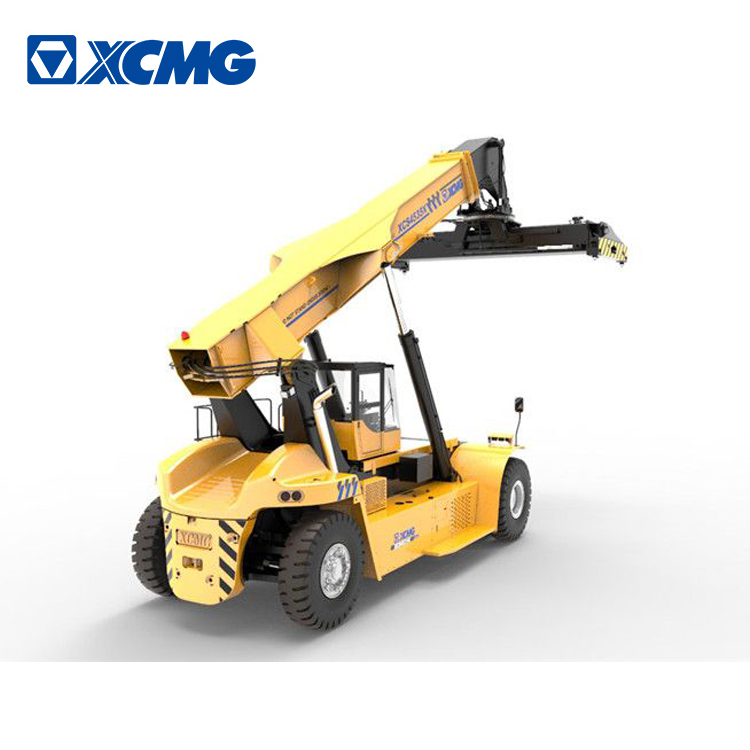

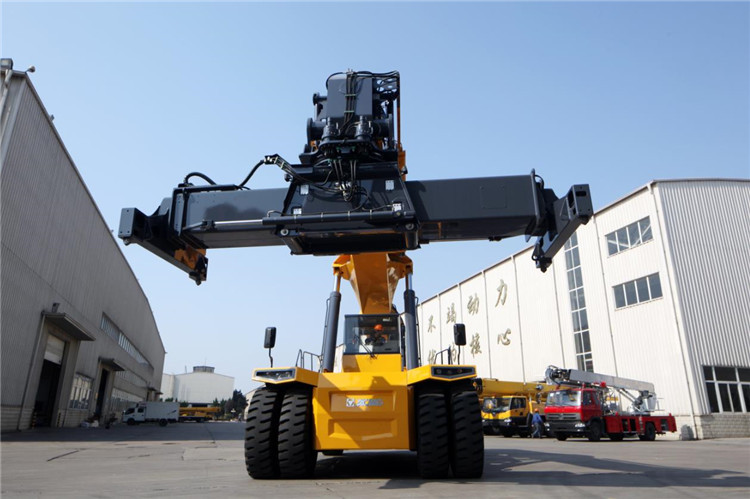

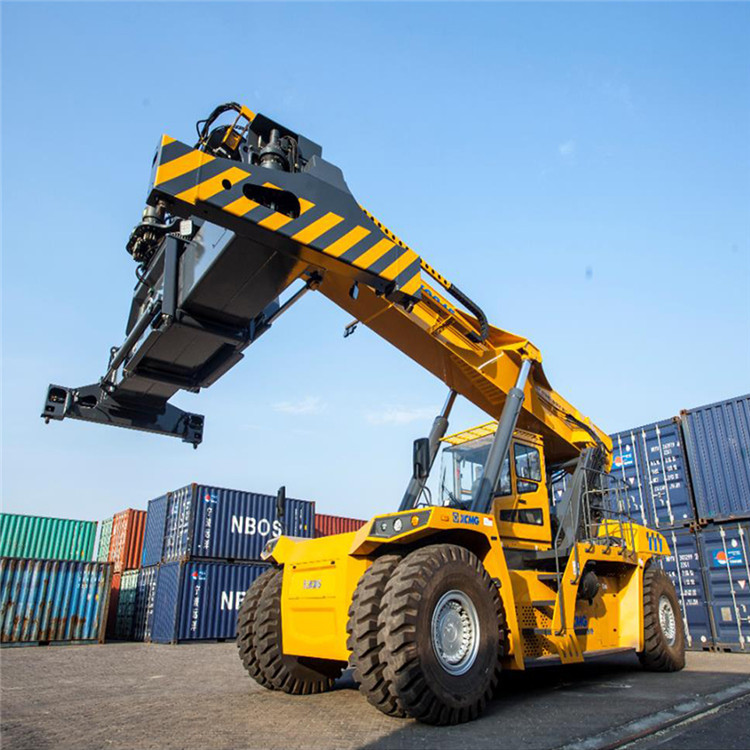

XCMG 45 ton reach stacker for containers XCS4535K China
Mobile Container Crane.
XCMG XCS4535K 45 t container reach stacker with best
working efficiency and complete safety measures. Unique low speed large torque
optimal transmission chain, innovative oil cylinder differential control
technology and vertically lifting spreader technology contribute to highest
working efficiency in the industry.
The technologies
specialized for container reach stackers, such as overturning prevention,
spreader-swing preventing, testing of spreader unbalance loading and driving
safety active protection, lead to better active safety.
Three
energy-saving measures, such as flow self-adaptive load sensitive hydraulic
system, efficient power transmission system and transmission ECO control, lead
to more fuel-efficient.
|
Parameter |
Unit |
XCS4535K |
|
|
Boom |
Max.lifting height |
mm |
15100 |
|
Inclination angle |
。 |
0-58 |
|
|
Max lifting speed（Unloaded/loaded） |
mm/s |
420/250 |
|
|
Max lowering speed（Unloaded/loaded） |
mm/s |
360/360 |
|
|
Max travelling speed（Unloaded/loaded） |
km/h |
25/18 |
|
|
Gradeability（Unloaded/loaded） |
% |
38/24 |
|
|
Overall weight |
t |
76.5 |
|
|
Rated capacity |
t |
45 |
|
|
No. of stack |
- |
5（9’6”/8’6”） |
|
|
Overall length |
mm |
11750 |
|
|
Wheel base |
mm |
6500 |
|
|
Overall height |
mm |
4770 |
|
|
Min ground clearance |
mm |
350 |
|
|
Overall width |
mm |
6052-12185 |
|
|
Front track |
mm |
3033 |
|
|
Rear track |
mm |
2790 |
|
|
Min Turing radius |
mm |
8800 |
|
|
20’ container aile width |
mm |
11600 |
|
|
40’ container aile width |
mm |
13600 |
|
