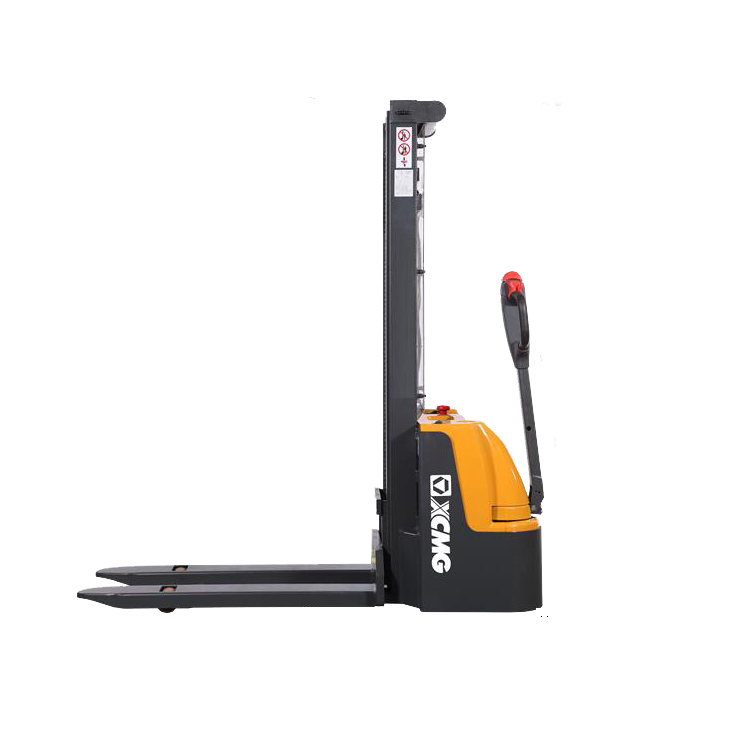

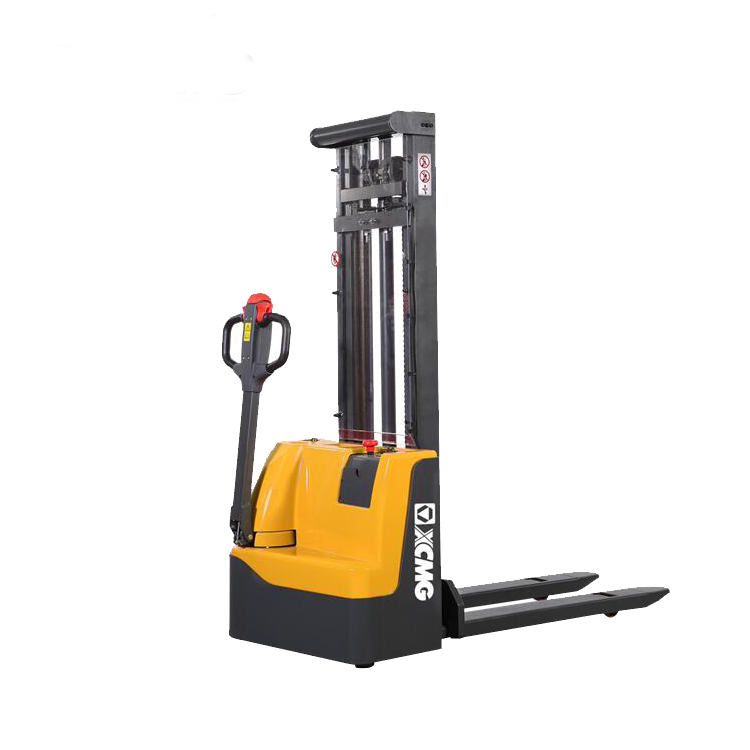

XCMG Electric Stacker Forklifts 1.2 ton walking pallet stacker price
Summary
- Min Lifting Height:3530mm
- Rated Loading Capacity:1200kg
- Model Number:XCS-PW12
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- Weight:1200.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Electric
Stacker Forklifts XCS-PW12 1.2 ton walking pallet stacker price.
• Full AC System
• OPS System (Sit-in type)
• EPS Steering System
• Electromagnetic Braking system
• Lower Energy Consumption
• Easy-to-read operator display
• Assistance System to fit in your specific working
condition
Ergonomic design and high performance supported by
innovative technology help XCMG reach trucks become the perfect solution
for various application. Whether use in operating in pallet, drive-through or
drive-in racking.
Whether for narrow areas or low clearances. XCMG
reach truck will always be your good assistant in stacking.
|
型号(Model) |
XCS-PW12 |
||
|
额定承载能力(Rated capacity) |
Q |
kg |
1200 |
|
载荷中心距（load center distance） |
C |
mm |
600 |
|
动力方式(Power mode) |
电动 |
||
|
电池标准（battery standard） |
2VBS |
||
|
轮胎形式(Tyre type) |
聚氨酯轮(PU) |
||
|
尺寸（Size） |
|||
|
门架最低高度(Lowered mast height) |
h1 |
mm |
2301 |
|
自由提升高度(Free Lift height) |
h2 |
mm |
1760 |
|
最大起升高度(Max.lifting height) |
h3 |
mm |
3530 |
|
作业时门架最大高度(Extended mast height) |
h4 |
mm |
4088 |
|
前悬距（Load distance, centre of drive axle to fork） |
X |
mm |
647 |
|
轮距(Wheel base) |
y |
mm |
1248 |
|
转向轮尺寸（Additional wheels dimensions） |
xw |
mm |
150X54 |
|
轮距,驱动侧(Tread, front) |
b10 |
mm |
522 |
|
轮距（Tread rear ） |
b11 |
mm |
390/505 |
|
操作手柄在中立位置时的高度（Handel height） |
h14 |
mm |
850/1385 |
|
门架缩回时高度(Height, lowered) |
h13 |
mm |
90 |
|
总长(Length) |
l1 |
mm |
1919 |
|
车长( Length to face of forks) |
l2 |
mm |
769 |
|
总宽(Width) |
b1 |
mm |
820 |
|
货叉尺寸(Fork dimensions) |
s/e/l |
mm |
60/180/1150 |
|
货叉外间距(Distance between fork-arms) |
b5 |
mm |
570/ 685 |
|
直角堆垛通道宽度,托盘800X1200（Aisle width for pallets 800X1200 lengthways ） |
Ast |
mm |
2336 |
|
最小转弯半径(Min.Turning radius) |
Wa |
mm |
1440 |
|
性能(Performance) |
|||
|
行驶速度(满载/空载) (Travelling speed loaded/unloaded) |
km/h |
6.0 / 7.0 |
|
|
提升速度（满载/空载）（Lift speed,loaded/unloaded） |
m/s |
0.09/ 0.14 |
|
|
下降速度（满载/空载）（Lowering speed,loaded/unloaded） |
m/s |
0.28/ 0.23 |
|
|
爬坡能力（满载/空载）（Gradeability,loaded/unloaded） |
% |
6.0/12.0 |
|
|
行车制动（Braking method） |
电磁制动 |
||
|
电机和蓄电池(Motor&Battery) |
|||
|
提升电机功率(Lift motor power) |
kw |
3.2 |
|
|
驱动电机功率(Drive motor power) |
kw |
1.3 |
|
|
电压(Voltage) |
V |
24 |
|
|
容量(Amphere) |
Ah |
180 |
|
