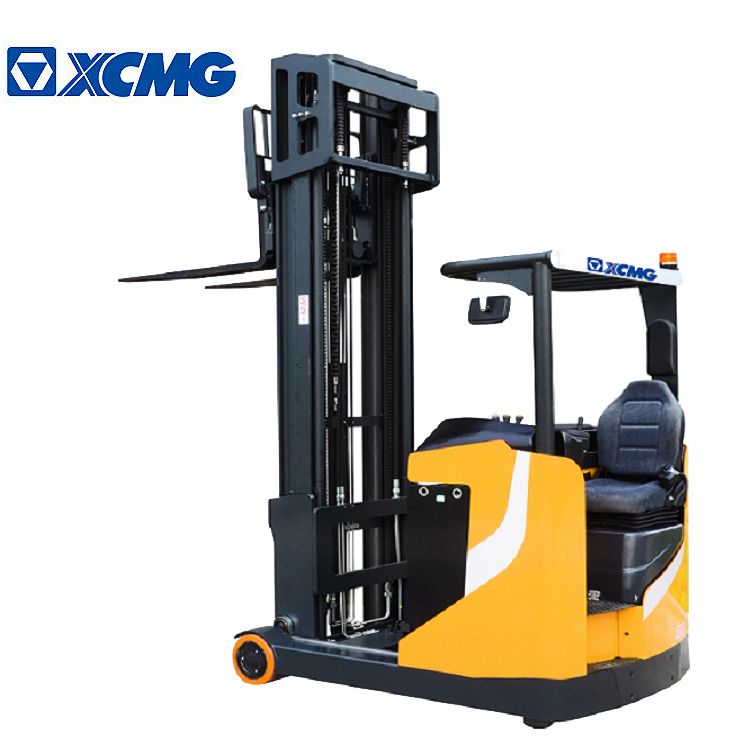

XCMG official 2 tons electric stacker XCF-PSG20 China new AC battery reach stacker forklift price
.jpg)
Summary
- Max Lifting Height:5000mm
- Rated Loading Capacity:2000kg
- Type:stacker
- Model Number:XCF-PSG20
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- Weight:2000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG official 2 tons electric stacker XCF-PSG20 China new
AC battery reach stacker forklift price.
1.
XCF-PSG20 has excellent performance and high configuration. The rated load
capacity is 2000kg and the maximum lifting height is 5000mm.
2.
XCF-PSG20 has the characteristics of the overall forward movement of the door
frame, small turning radius, and can ignore the obstacles at the bottom of the
shelf.
3. XCF-PSG20 is especially suitable for loading,
unloading and stacking palletized goods, and is the best choice for large-scale
transport in storage.
Advantages:
1.Full
AC System
2.OPS
System (Sit-in type)
3.EPS
Steering System
4.Electromagnetic
Braking system
5.Lower
Energy Consumption
6.Easy-to-read
operator display
7.Assistance
System to fit in your specific working condition
特性（character） | |||
型号(Model) | XCF-PSG20 | ||
额定承载能力(Rated capacity) | Q | kg | 2000 |
载荷中心距（load center distance） | C | mm | 600 |
动力方式(Power mode) | 电动 | ||
电池标准（battery standard） | 4PZS | ||
轮胎形式(Tyre type) | 聚氨酯轮(PU) | ||
尺寸（Size） | |||
门架缩回时高度(Height, lowered) | h1 | mm | 2335 |
自由提升高度(Free Lift height) | h2 | mm | 1420 |
最大起升高度(Max.lifting height) | h3 | mm | 5000 |
作业时门架最大高度(Extended mast height) | h4 | mm | 5915 |
护顶架高度(overhead load guard height) | h6 | mm | 2160 |
前悬距（Load distance, centre of drive axle to fork） | X | mm | 208 |
轮距(Wheel base) | y | mm | 1500 |
转向轮尺寸（Additional wheels dimensions） | xw | mm | 343X140 |
轮距（Tread rear ） | b11 | mm | 1124/1155 |
总长(Length) | l1 | mm | 2800 |
车长( Length to face of forks) | l2 | mm | 1310 |
总宽(Width) | b1 | mm | 1260 |
货叉尺寸 (Fork dimensions) | s/e/l | mm | 40/120/1070 |
货叉倾角前/后(mast/fork carriage tilt forward/backward) | α/β | ° | 2.0/4.0 |
货叉外间距（最小/最大）(Distance between fork-arms) | b5 | mm | 240/760 |
前移距离(reath distance) | l4 | mm | 645 |
至轮臂最前端的长度(length across wheel arms) | l7 | mm | 1920 |
直角堆垛通道宽度,托盘800X1200（Aisle width for pallets 800X1200 lengthways ） | Ast | mm | 2800 |
最小转弯半径(Min.Turning radius) | Wa | mm | 1800 |
性能(Performance) | |||
行驶速度 (满载/空载) (Travelling speed loaded/unloaded) | km/h | 10.5 / 10.5 | |
提升速度（满载/空载）（Lift speed,loaded/unloaded） | m/s | 0.3/ 0.45 | |
下降速度（满载/空载）（Lowering speed,loaded/unloaded） | m/s | 0.45/ 0.4 | |
爬坡能力（满载/空载）（Gradeability,loaded/unloaded） | % | 10.0/15.0 | |
行车制动（Braking method） | 电磁制动 | ||
电机和蓄电池(Motor&Battery) | |||
提升电机功率(Lift motor power) | kw | 12.5 | |
驱动电机功率(Drive motor power) | kw | 6.4 | |
电压(Voltage) | V | 48 | |
容量(Amphere) | Ah | 480/600 | |
