XCMG official 2 ton pallet truck XCC-P20 china new Ac battery electric pallet trucks price for sale
Summary
- Max Lifting Height:120mm
- Rated Loading Capacity:2000kg
- Model Number:XCC-P20
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:2000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

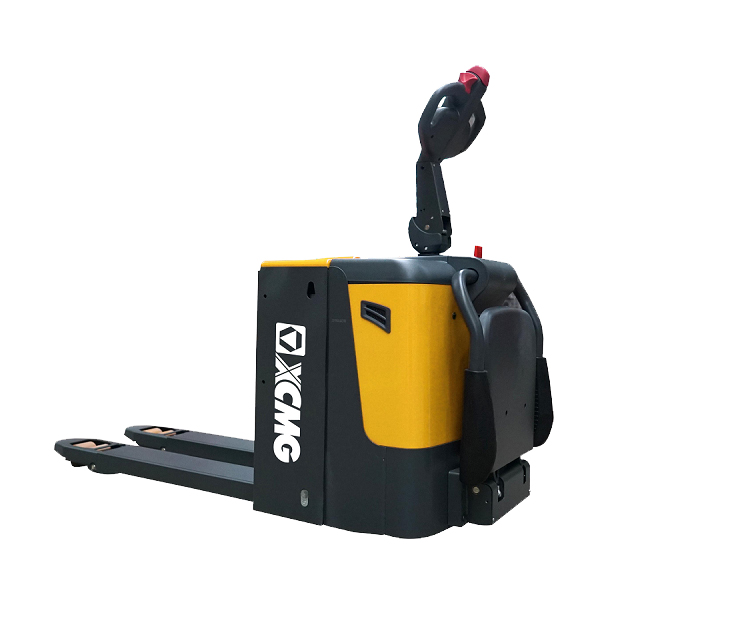

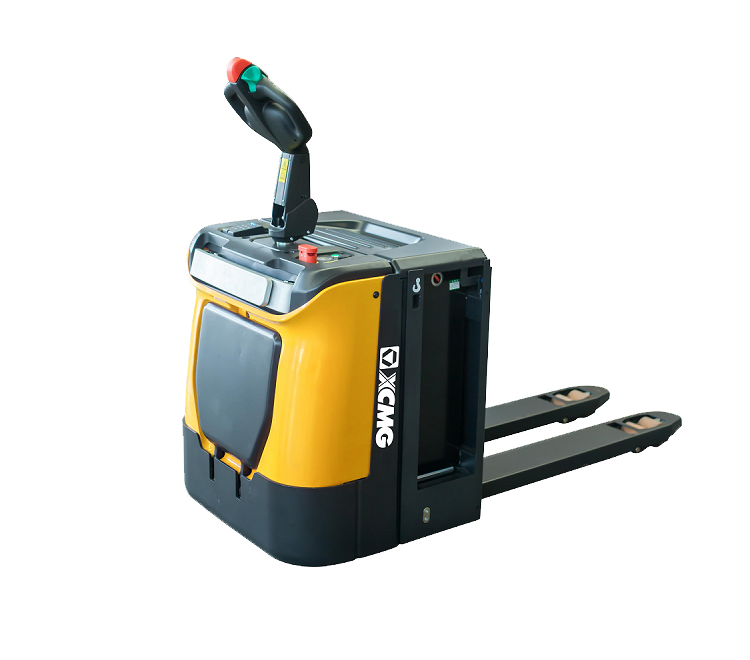

XCMG official 2 ton pallet truck XCC-P20 china new AC battery
electric pallet trucks.
The
XCC-P20 is the ideal selection for most transporting palletized goods on medium
or long distances cargo handling.The AC drive system and the optional electric
steering system ensure high handing capacities.
Advantages:
1. Robust and
ergonomic design.
2. NOBLELIFT AC
Drive system for enough power.
3. Steel
battery and drive frame housing.
4. Optional foldable
platform with protective arms.
5. Optional NOBLELIFT
electric steering system.
6. Using tested
international brand components.
|
特性（character） |
||||
|
型号(Model) |
XCC-P20(低配款） |
XCC-P20（高配款） |
||
|
额定承载能力(Rated capacity) |
Q |
kg |
2000 |
|
|
载荷中心距（load center distance） |
C |
mm |
600 |
|
|
动力方式(Power mode) |
电动 |
|||
|
电池标准（battery standard） |
/ |
2PzS |
||
|
轮胎形式(Tyre type) |
聚胺酯轮(PU) |
|||
|
尺寸（Size） |
||||
|
最大起升高度(Max.lifting height) |
h3 |
mm |
120 |
|
|
操作手柄在中立位置时的高度（Handel height） |
h14 |
mm |
950/1350 |
926/1327 |
|
最小离地间隙(Min.under clearance) |
h13 |
mm |
85 |
|
|
总长(Length) |
l1 |
mm |
1790 |
1762 |
|
车长( Length to face of forks) |
l2 |
mm |
640 |
612 |
|
总宽(Width) |
b1 |
mm |
790 |
729 |
|
货叉尺寸(Fork dimensions) |
s/e/l |
mm |
55/173/1150 |
60/173/1150 |
|
货叉外间距(Distance between fork-arms) |
b5 |
mm |
540 |
|
|
直角堆垛通道宽度,托盘800X1200（Aisle width for pallets 800X1200 lengthways ） |
Ast |
mm |
2290 |
2250 |
|
前悬距（Load distance, centre of drive axle to fork） |
X |
mm |
892 |
965 |
|
轮距(Wheel base) |
y |
mm |
1330 |
1388 |
|
转向轮尺寸（Additional wheels dimensions） |
xw |
mm |
100X40 |
|
|
轮距（Tread rear ） |
b11 |
mm |
367 |
|
|
最小转弯半径(Min.Turning radius) |
Wa |
mm |
1585 |
|
|
性能(Performance) |
||||
|
行驶速度(满载/空载) (Travelling speed loaded/unloaded) |
km/h |
7.5/8.0 |
6.0/6.0 |
|
|
提升速度（满载/空载）（Lift speed,loaded/unloaded） |
m/s |
0.027/0.030 |
0.027/0.035 |
|
|
下降速度（满载/空载）（Lowering speed,loaded/unloaded） |
m/s |
0.030/0.025 |
0.042/0.027 |
|
|
爬坡能力（满载/空载）（Gradeability,loaded/unloaded） |
% |
8.0/15.0 |
6.0/10.0 |
|
|
行车制动（Braking method） |
电磁制动 |
|||
|
电机和蓄电池(Motor&Battery) |
||||
|
提升电机功率(Lift motor power) |
kw |
0.8 |
||
|
驱动电机功率(Drive motor power) |
kw |
1.4 |
1.3 |
|
|
电压(Voltage) |
V |
24 |
||
|
容量(Amphere) |
Ah |
160/210 |
200 |
|
