XCMG official 2 ton pallet truck XCC-LW20 multi-purpose mini electric pallet trucks for sale
Summary
- Max Lifting Height:115mm
- Rated Loading Capacity:2000kg
- Model Number:XCC-LW20
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
Specifications
- Weight:153.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

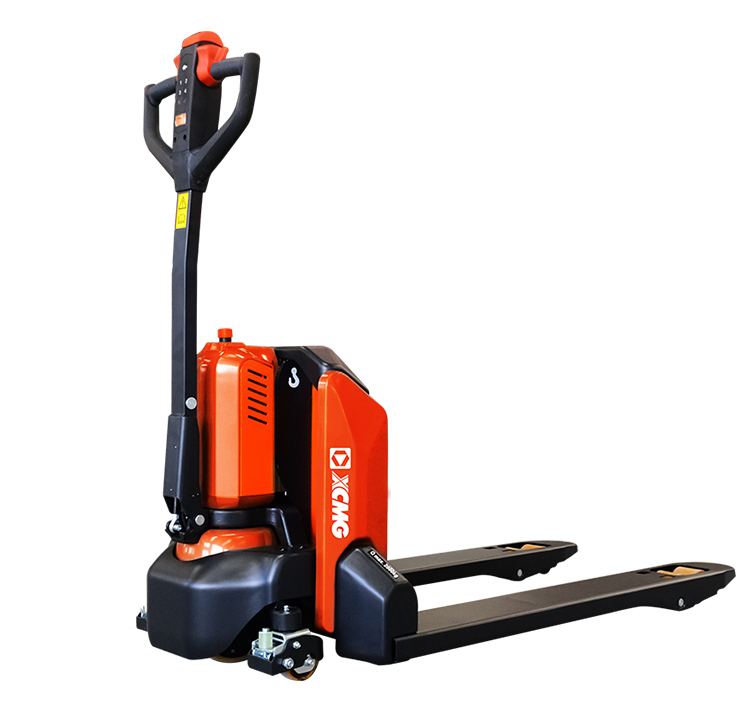

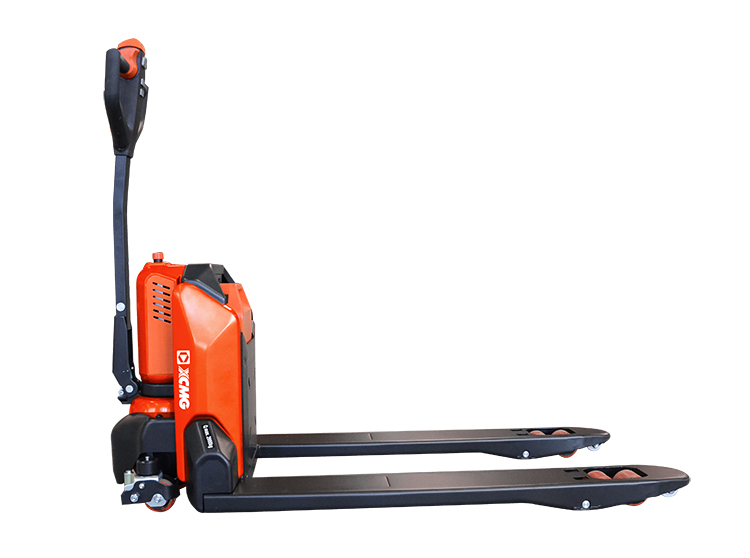

XCMG official 2 ton pallet truck XCC-LW20 multi-purpose electric pallet trucks.
The XCC-LW20 perfectly combines the advantages of a manual and an electric truck, making it a high-quality truck for multiple USES. And it adopts the most cutting-edge concept design, and infuses the modular design concept, giving the truck a novel angular appearance, so its English name is EDGE.
Product Highlights:

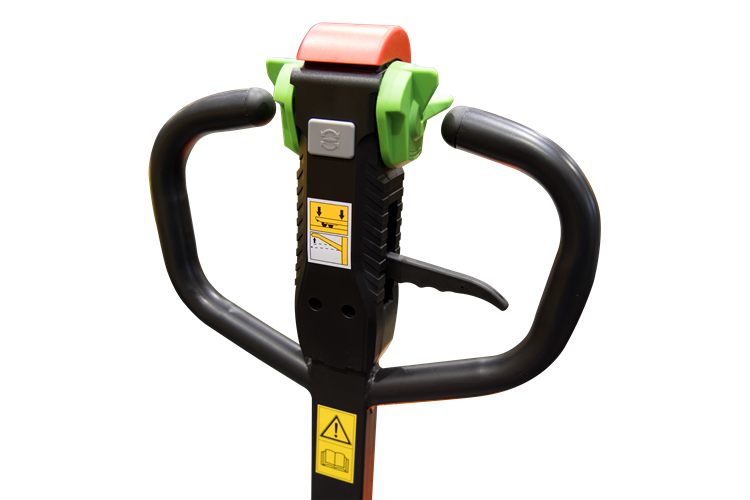

1. The handle is made of elastic and environmentally friendly material, which is comfortable to operate, insulated and shock-absorbing, which optimizes the comfort of the operator. All the switch buttons are integrated in the humanized touch position for easy operation. Built-in code lock and LCD display, realize intelligent control of the car.
2. The whole vehicle can realize the function of walking in the upright position of the handle, ensuring that the vehicle can safely travel and turn in a truck, elevator or narrow space.

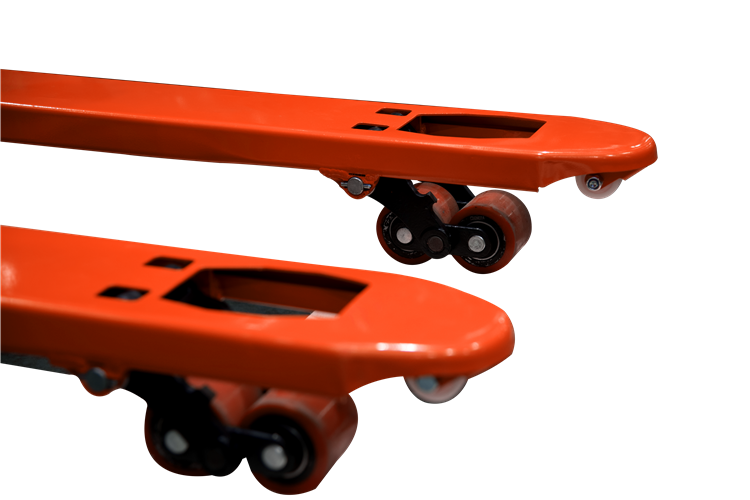

3. The frame adopts metal covering parts, which can protect the internal parts. The fork adopts a large foot seal design, which makes it easier to enter and exit the pallet. All models are equipped with balance wheels as standard, making the body more stable and reliable.
4. With independent charging interface, it can be charged in the car without removing the battery. Standard maintenance-free intelligent lithium battery with built-in BMS battery management system and high-power charger ensure that the excellent performance of the battery can be intelligently controlled and quickly charged.
character |
|||
Model |
|
|
XCC-LW20 |
Rated capacity |
Q |
kg |
2000 |
Load center distance |
C |
mm |
600 |
Power mode |
|
|
AC Motor |
Battery standard |
|
|
/ |
Tyre type |
|
|
PU |
Size |
|||
Max.lifting height |
h3 |
mm |
115 |
Handel height |
h14 |
mm |
700/1160 |
Min.under clearance |
h13 |
mm |
80 |
Length |
l1 |
mm |
1536 |
Length to face of forks |
l2 |
mm |
386 |
Width |
b1 |
mm |
540 |
Fork dimensions |
s/e/l |
mm |
47/160/1150 |
Distance between fork-arms |
b5 |
mm |
540 |
Wheel base |
y |
mm |
1189 |
Performance |
|||
Travelling speed loaded/unloaded |
|
km/h |
4.8/5.2 |
Lift speed,loaded/unloaded |
|
m/s |
0.017/0.022 |
Lowering speed,loaded/unloaded |
|
m/s |
0.05/0.03 |
Gradeability,loaded/unloaded |
|
% |
7.0/16.0 |
Motor & Battery |
|||
Lift motor power |
|
kw |
0.8 |
Drive motor power |
|
kw |
0.75 |
Voltage |
|
V |
48 |
Amphere |
|
Ah |
20 |
