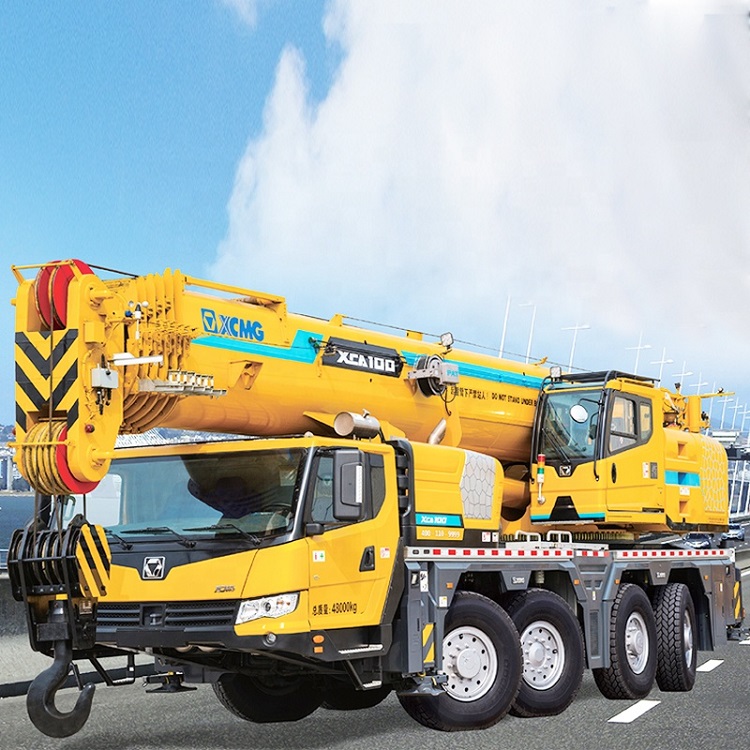

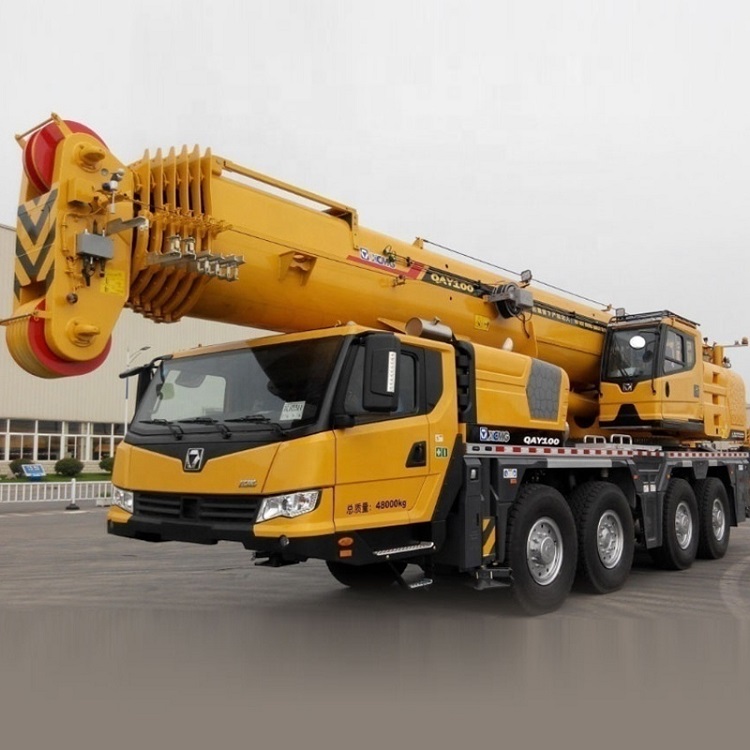

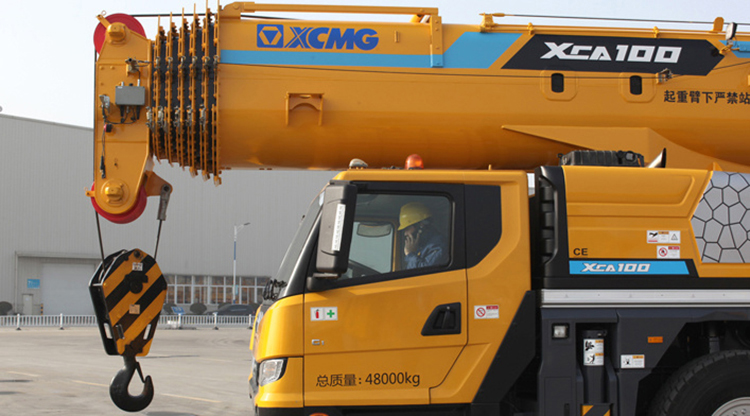

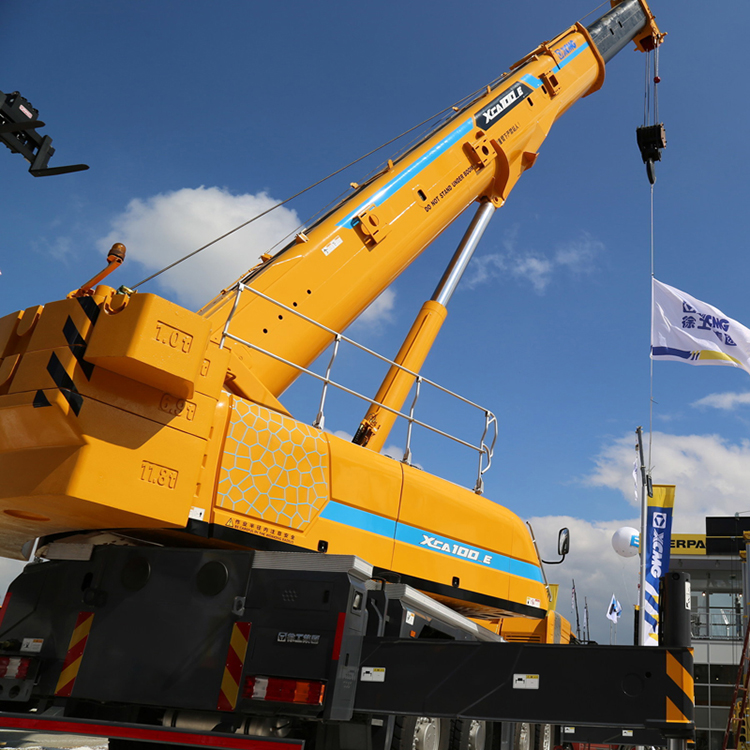

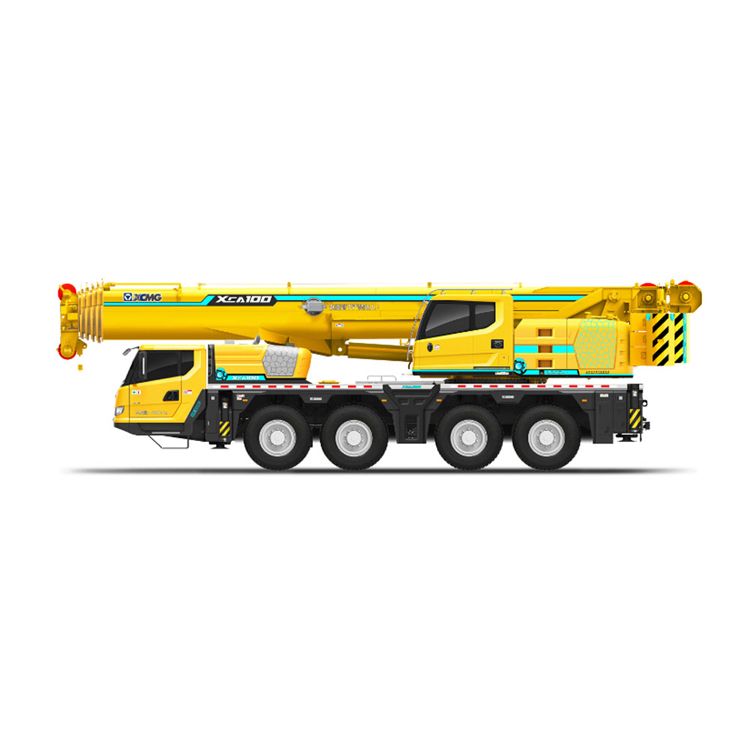

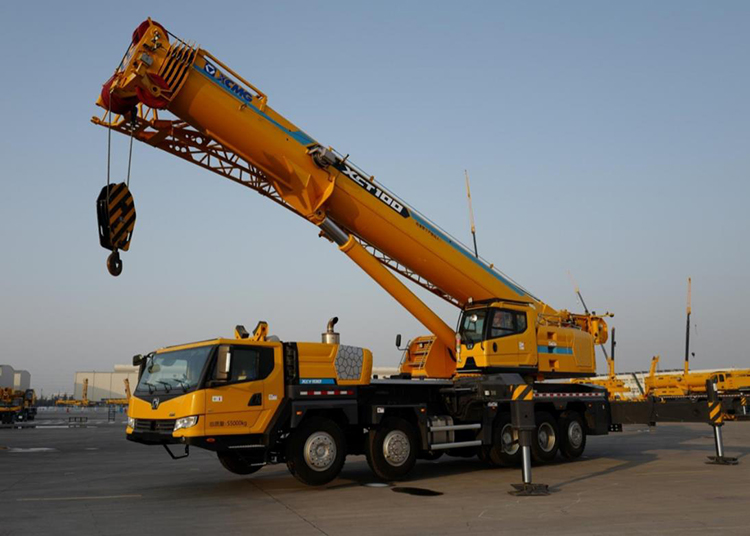

XCMG 100 ton All Terrain Crane XCA100.

Developedfor both domestic and international markets, XCA 100 all-terrain crane has anextensive applicability, and is widely suitable for lifting and installationoperations in oil field construction, wharf building, bridge erection, etc.

Witha 7-section elliptical boom extendable in the 13.4-73m range, an infiniteluffing trussed jib extendable to 44 meters (incl. an 8-m-long additionalsection) and supported by 10x8x10 H-shaped triggers, the 5-axle chassis-mountedcrane has an effective reach of as large as 108.2 meters. In addition, the twinindependent winch layout, the modular balance weights and the new-typeenergy-efficient hydraulic system also make it stand out from its industrypeers.

Its main performance characteristics arelisted as follows:

1. Alarger lifting height of up to 108 meters and a larger lifting capacity;

2. Asingle engine system of higher power and a maximum gradeability of 67%;

3.The design for efficient site transfer makes easy shifting with mounted balanceweights to nearby workplaces.

4.The new-type energy-efficient hydraulic system contributes to a lower fuelconsumption rate, a higher micro-motion performance and a bettermaneuverability;

5.The innovative application of intelligent boom technologies based on disruptiveconcepts of crane maneuverability delivers a comfortable experience ofintelligent operation;

6.The World-leading intelligently-controlled crane traveling system and theoptimal integrated control technique reduce the excessive wearing in thebraking system during a long downhill journey, and thus extend its servicelife;

7.The industry-leading HMI system of sedan-class technical sophistication makesoperation easier and quicker;

8.The new-type styling and user-friendly design make driving and operation moreconvenient.

Items	Unit	Parameters
Parameter items	-	XCA100
Dimensions
Full length of complete machine	(mm)	13180
Full width of complete machine	(mm)	2750
Overall height of complete machine	(mm)	4000
Axle base	(mm)	1600+2475+1650
Wheel track	(mm)	2340
Weight
Total mass before driving	(kg)	48000
Axle load	(kg)	12000×4
Power
Engine model (upper)	-	ISME 420 30/ISM11E4 440
Rated power of engine	(kw/(r/min))	306/1900 318/1900
Rated torque of engine	(N.m/(r/min))	2010/1200 2080/1200
Engine model (lower)	-	BF6M1013EC/OM924LA.E3A/1
Rated power of engine	(kw/(r/min))	174/2300 145/2200
Rated torque of engine	(N.m/(r/min))	854/1400 750/1200-1600
