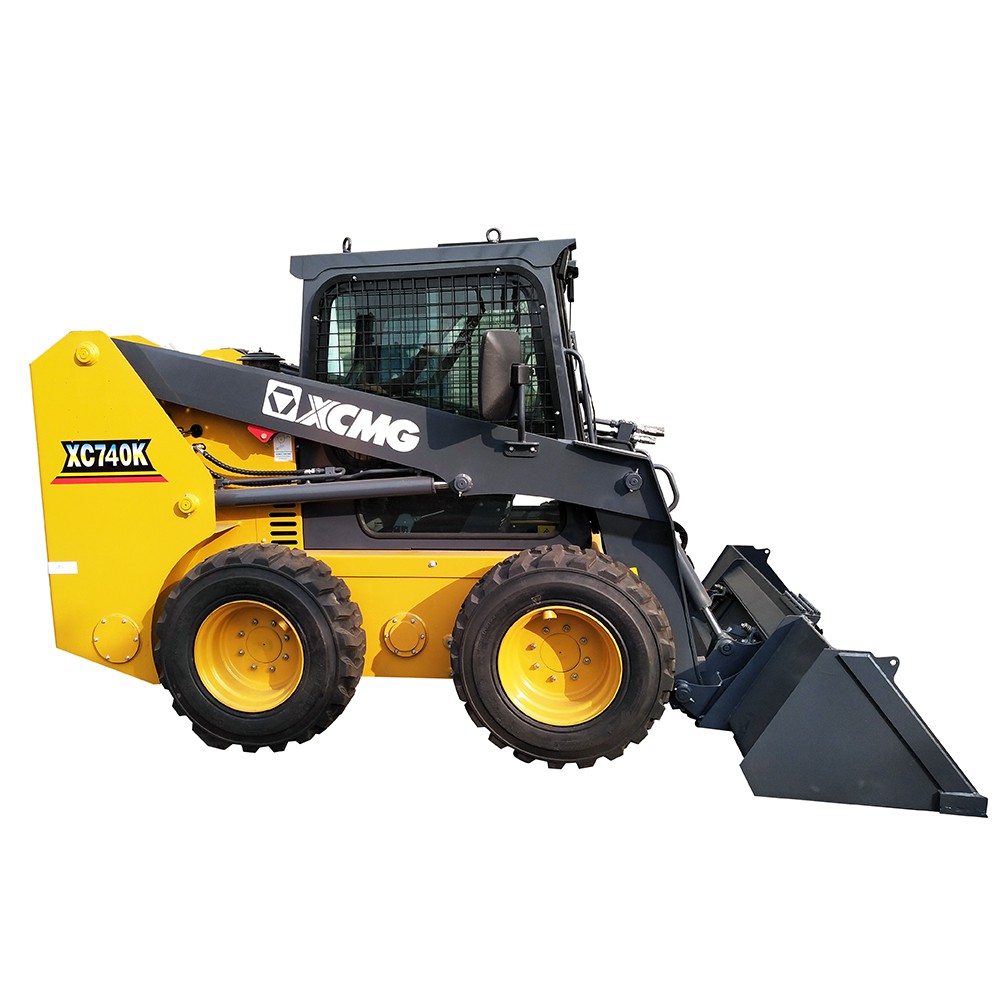

XCMG Official XC740K Skid Steer Loader for sale
![](/app/topc/statics/images/close.png)
![XCMG Official XC740K Skid Steer Loader for sale](/images/store/357636/item/XC740K_1.jpg)
![](/app/topc/statics/images/close.png)
Summary
- Rated Load:750
- Dimension(Long*Breadth*High):3270x1807x1970mm
- Type:Skid steer loader
- Place of Origin:China
- Model Number:XC740K
- Brand Name:XCMG
- Certification:CE/ISO9001
Specifications
- weight:3140.000kg
- Condition:New
- Moving Type:Wheel
- Rated load:750kg
- Tipping load:1500kg
- Operating weight:3140kg
- Maximum breakout force:18kN
- Engine Model:Xinchai 4D27G31
- Rated power:49.3/36.8 Hp/kw
- Rated speed:2500rpm
- Tire standard:10-16.5
- Maximum speed:14km/h
- Maximum operating height:3878mm
- Maximum horizontal height of bucket bottom:2851mm
- Wheel base:1027m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XC740K Skid steer loader
1、The renowned brand engine equipped features strong power,
ultra-low emission, and higher fuel efficiency.
2、Compact structure, low turning radius, and strong site
adaptability.
3、The international interchangeable quick-change coupling
enables the change of tens of attachments, including sweeper, planer, breaking
hammer, and ditcher, rapidly and conveniently.
4、The ROPS&FOPS cab and the seat belt, bumper, fire
extinguisher, and safety hammer equipped guarantee the personal safety of the
operator.
5、The cab can be tilted backward for a large angle to make
the repair and maintenance portions more accessible.
Description |
Unit |
Parameter value |
||
Rated load |
kg |
750 |
||
Tipping load |
kg |
1500 |
||
Operating weight |
kg |
3140 |
||
Maximum breakout force |
kN |
18 |
||
Engine |
Manufacturer |
Xinchai |
||
Model |
4D27G31 |
|||
Rated power |
Hp/kw |
49.3/36.8 |
||
Rated speed |
rpm |
2500 |
||
Cooling mode |
Water-cooling |
|||
Performance parameter |
Operation mode |
Mechanical & multi-function electronic control |
||
Tire standard |
10-16.5 |
|||
Maximum speed |
Km/h |
14 |
||
Hydraulic system |
Hydraulic flow rate |
L/min |
62.5 |
|
Optional large flow |
-- |
|||
Hydraulic pressure |
bar |
200 |
||
Maximum operating height |
mm |
3878 |
||
Bucket hinge pin height |
mm |
3057 |
||
Cabin top height |
mm |
1960 |
||
Maximum horizontal height of bucket bottom |
mm |
2851 |
||
Length without bucket |
mm |
2533 |
||
Length with bucket |
mm |
3310 |
||
Toppling angle |
° |
40 |
||
Maximum unloading height |
mm |
2375 |
||
Ground-bucket angle |
° |
30 |
||
Rotating angle of bucket at highest point |
° |
83 |
||
Unloading distance |
mm |
575 |
||
Wheel base |
mm |
1027 |
||
Departure angle |
° |
25 |
||
Ground clearance |
mm |
183 |
||
Front radius of
turning circle (without bucket ) |
mm |
1183 |
||
Front radius of
turning circle (with bucket) |
mm |
2066 |
||
Rear radius of
turning circle |
mm |
1564 |
||
Length of tail |
mm |
1005 |
||
Wheel track |
mm |
1380 |
||
Tire edge width |
mm |
1640 |
||
Bucket edge width |
mm |
1800 |
||
Bucket capacity
(stacking height) |
m³ |
0.45 |
||
Bucket capacity (tiling) |
m³ |
0.35 |
||
Diesel tank
capacity |
L |
80 |
||
Capacity of
hydraulic oil tank |
L |
60 |
