XCMG official 3 ton agricultural telescopic handler XC6-3514K 14m side loader forklift price
Summary
- Overall Dimensions:6290*2600*2500mm
- Fork Length:1200mm
- Max Lifting Height:13700mm
- Rated Loading Capacity:35000kg
- Power Source:Diesel Engine
- Type:Front Loader
- Model Number:XC6-3514K
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:10500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG official 3 ton
agricultural telescopic handler XC6-3514K 14m side loader forklift.

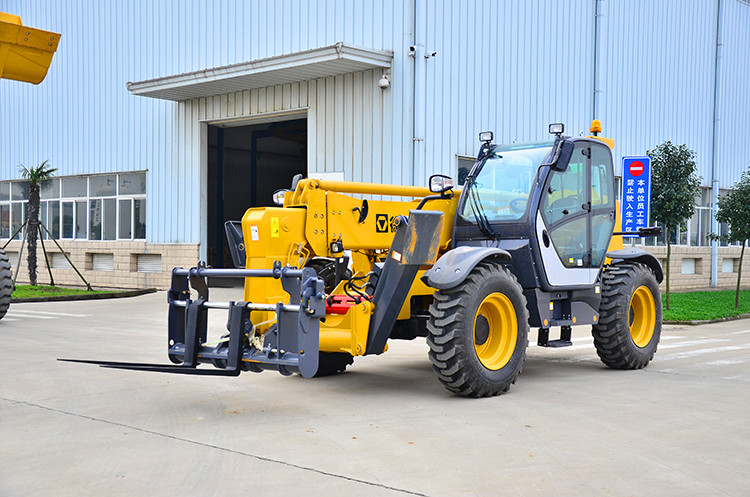

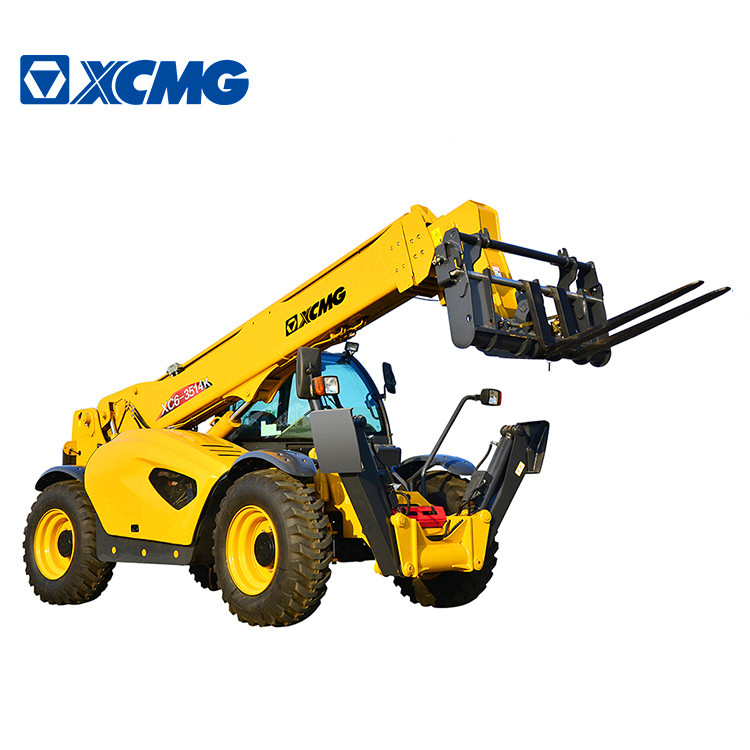

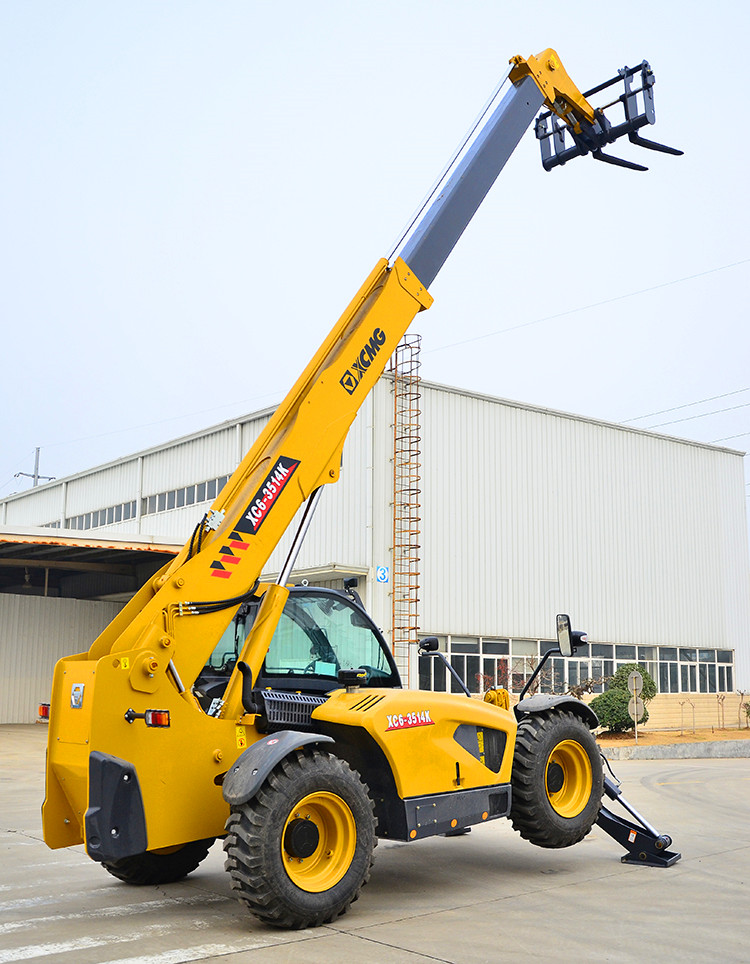

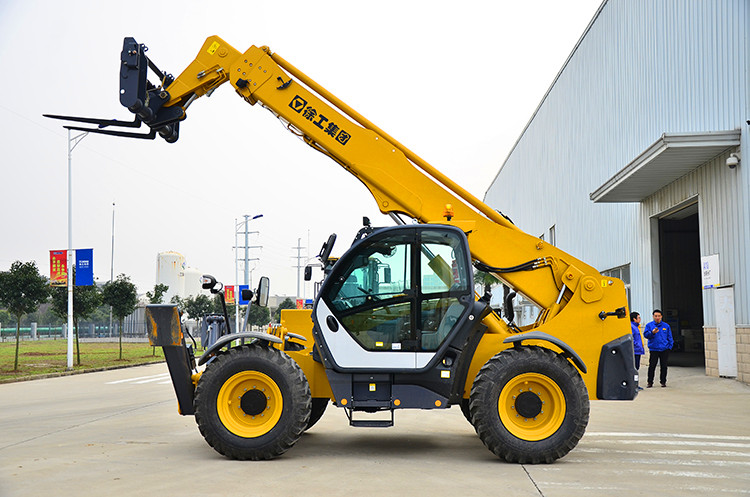

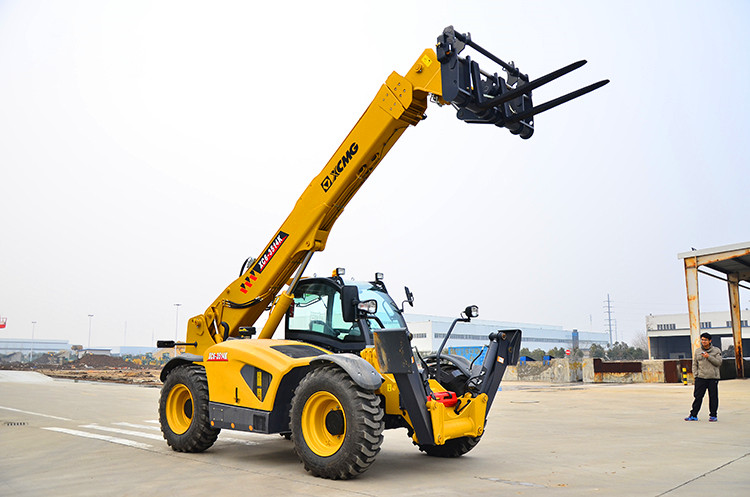

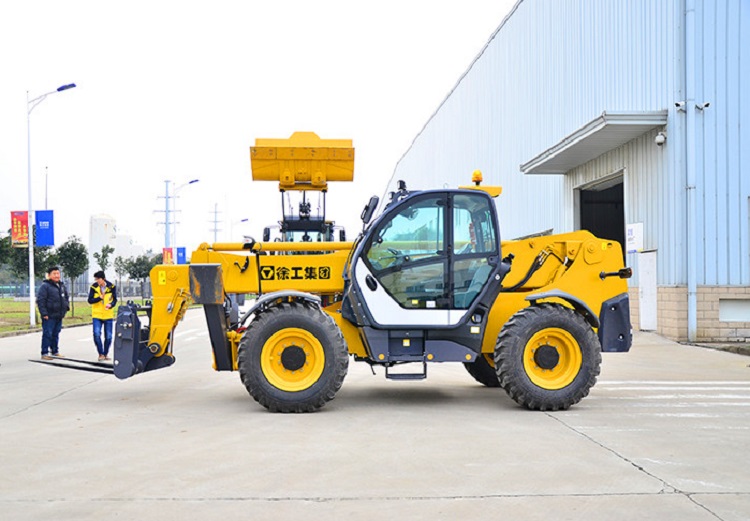

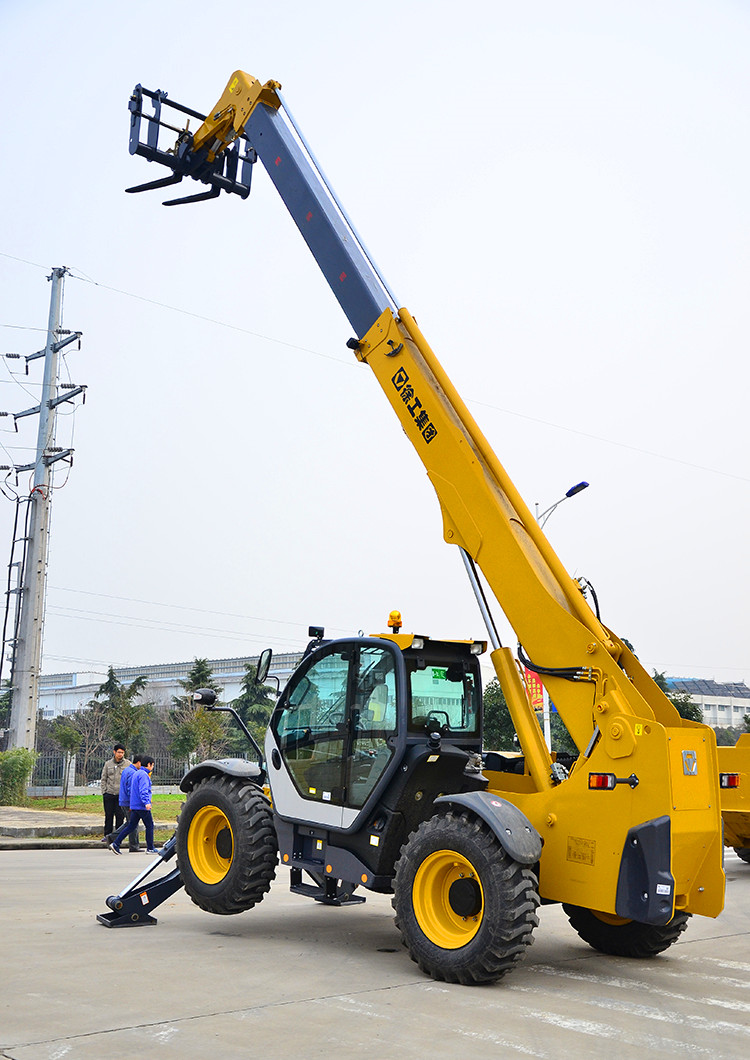

XC6-3514K
is the latest telehandler which features the highest operation simplicity,
safety and efficiency.The intelligent independent cooling system features high
energy-saving and efficiency.
Advantages
and Highlights:
*
With compact short wheelbase and lateral engine arrangement, this machine
features high handinessand flexibility.
*
The four-wheel drive and multiple steering modes (including four-wheel,
two-wheel, and crab steering modes) realize super-strong off-road capability
and adapt to diversified working conditions.
*
The advanced human-machine interactivity, intelligent heat dissipation system,
and dedusting control system embody high technologic sense and intelligence.
*
This machine can be equipped with diversified attachments, including aerial
platform, bucket, and bale clamp, to meet the users' individual needs.
Description | Unit | XC6-3514K |
Gross weight | kg | 10500 |
Engine power | kW | 74.9 |
Rated load | kg | 3500 |
Effective load at maximum forward reach | kg | 635 |
Maximum lifting height | mm | 13700 |
Maximum forward reach | mm | 9600 |
Center distance of load | mm | 600 |
Luffing angle | ° | -4~73 |
Fork angle | ° | 90~18 |
Maximum traction force | kN | ≥55 |
Gradeability | ° | ≥25 |
Maximum traveling speed | km/h | 30 |
Turning radius | mm | ≤4750 |
Braking distance | m | ≤8 |
Overall length | mm | 6380 |
Overall width | mm | 2500 |
Overall height | mm | 2740 |
Wheelbase | mm | 2980 |
Wheel tread | mm | 2060 |
Fork length | mm | 1200 |
Bale clamp diameter | mm | 800-1800 |
