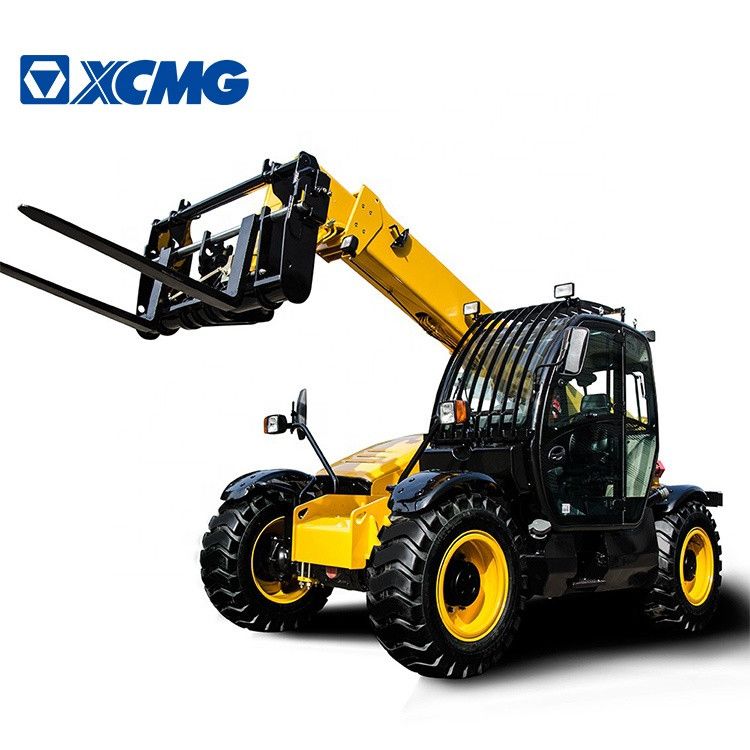

XCMG 3 ton telehandler XC6-3507K 7 m telescopic handler with parts price
![](/app/topc/statics/images/close.png)
![XCMG 3 ton telehandler XC6-3507K 7 m telescopic handler with parts price](http://www.machmall.com/images/store/357636/item/XC6-3507K (6).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Overall Dimensions:6890*2500*2815mm
- Fork Width:125mm
- Fork Length:1200mm
- Max Lifting Height:7m
- Rated Loading Capacity:3.5 ton
- Power Source:Diesel Engine
- Type:Powered Pallet Truck
- Model Number:XC6-3507K
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Certification:CE/ISO
Specifications
- weight:7850.000kg
- Condition:New
- Moving Type:Other
- Max. traction force:55kN
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 1 ton telehandler XC6-3507K.
1,
XC6 is the latest XCMG' agricultural version telehandler which features the
highest operation simplicity, safety and efficiency.
2,
The panoramic cab and the XCMG's visual identity appearance design feature good
fashion and elegance.
3,
The integrated static-pressure stepless variable drive system realizes full
speed range drive and stable driving.
4,
The four-wheel drive and multiple steering modes (including four-wheel,
two-wheel, and crab steering modes) realize super-strong off-road capability
and adapt to diversified working conditions.
5,
The inching control technology and special overload control system are applied
to achieve high operation safety and reliability.
6,
The electro-hydraulic proportional control for the working system features
accurate, stable, and efficient operations.
7,
The advanced human-machine interactivity, intelligent heat dissipation system,
and dedusting control system embody high technologic sense and intelligence.
Description |
Unit |
Parameter value |
Engine Power |
kW |
70 |
Overall weight (±5%) |
kg |
7850 |
Overall dimensions (±2%) |
mm |
5065×2250×2470 |
Maximum traveling speed |
m/h |
30 |
Turning radius |
mm |
3880 |
Maximum effective load |
kg |
3500 |
Effective load at maximum extending
length |
kg |
1250 |
Maximum lifting height (±100) |
mm |
7150 |
Maximum forward reach (±100) |
mm |
3600 |
Center distance of load |
mm |
600 |
Luffing angle (±1º) |
° |
-3~65 |
Inclination of fork carrier (forward
(±1.5)/backward (±1)) |
° |
90/17.5 |
Maximum traction force |
KN |
70 |
Wheelbase (±2%) |
mm |
2985 |
Wheeltread (±2%) |
mm |
1840 |
